12 Years Surveillance Systems and USB Cameras Designer and Manufacturer
ELP 170 Degree Wide Angle USB2.0 OV5640 CMOS 5 Megapixel Webcam HD for ATM, Kiosk

ELP 170 Degree Wide Angle USB2.0 OV5640 CMOS 5 Megapixel Webcam HD for ATM, Kiosk

  • Model: ELP-USB500W02M-L170
  • Availability: In stock

$50.60

Quantity:
 inquiry Now

Products Description

ELP 170 Degree Wide Angle USB2.0 OV5640 CMOS 5 Megapixel Webcam HD for ATM, Kiosk

ELP OEM 170Degree Wide Angle USB 2 Webcam CMOS OV5640 5MP Fisheye Camera Module for Android ,Linux,Windows

Effect Show-Capture Time:at dusk

ELP OEM 170Degree Wide Angle USB 2 Webcam CMOS OV5640 5MP Fisheye Camera Module for Android ,Linux,Windows

Feature:

*5 Megapixel HD Webcam for portable video system

*1/4inch CMOS OV5640 sensor , *Wide Angle fisheye lens

*2592x1944 super HD resolution for faster, smoother HD experiences

*high speed USB1.1&2.0 compatible, occupy less bandwidth

*Support Free driver, camera with UVC

*UVC Class camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above



Specification:

Optional models

ELP-USB500W02M-L170

(wide angle view 170 degree fisheye lens)

Sensor

1/4" CMOS OV5640

Lens size

500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels

Max. Resolution

2592X1944

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

2592 (H) x 1944 (V) pixels  MJPEG 15fps      YUY2 3fps
2048 (H) x 1536 (V) pixels  MJPEG 15ps       YUY2 3fps
1600 (H) x 1200 (V) pixels  MJPEG 15fps      YUY2 3fps
1920 (H) x 1080 (V) pixels  MJPEG 15fps      YUY2 3fps
1280 (H) x 1024 (V) pixels  MJPEG 15fps      YUY2 7.5fps
1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 7.5fps
1024 (H) x 768 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels      MJPEG 30fps      YUY2 30fps
640 (H) x 480 (V) pixels      MJPEG 30fps      YUY2 30fps
320 (H) x 240 (V) pixels      MJPEG 30fps      YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30-150 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

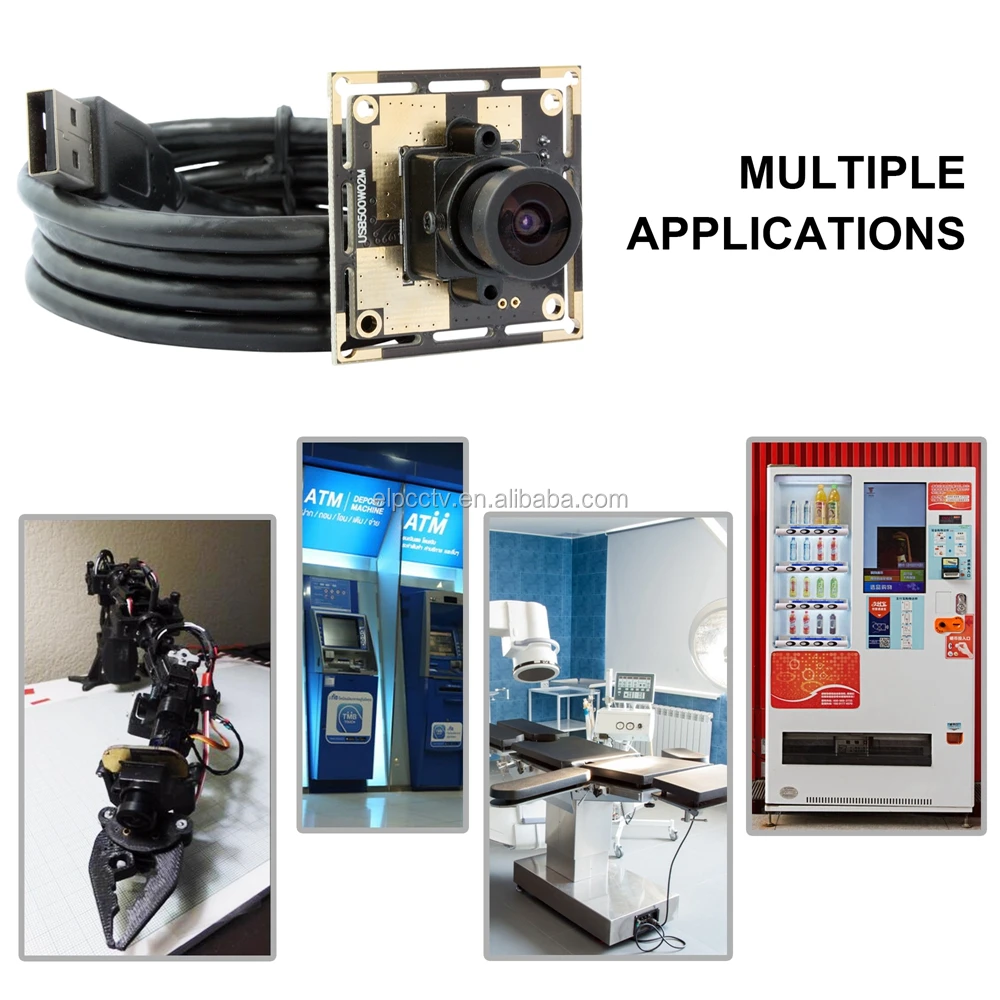

Applications

ELP-USB500W02M series usb camera module can use in where?

It can use in”any,all,whole...“ Linux Andoid Windows CPU operating system
which come with USB Host port,including USB1.1 and USB2.0
Such as us as ATM camera, Medical camera,Automatic camera or even personal hobbist camera developing etc.

ELP OEM 170Degree Wide Angle USB 2 Webcam CMOS OV5640 5MP Fisheye Camera Module for Android ,Linux,Windows
