Products Description
ELP 2MP Full HD Webcam 100fps/60fps/30fps Machine Vision Industrial No Distortion 100Degree Manual Focus 1080P 30fps USB Camera For Windows,Mac,Linux,Android
2MP USB Camera With No Distortion Lens, Metal Enclosure, 3m USB Cable
Model: ELP-USBFHD01M-BH100
Product Description:
-
*Based on 1/2.7" CMOS OV2710 image sensor, Max resolution 2 Megapixel 1920 x 1080 output, Full HD resolution meets your request for higher quality video still picture resolution.
-
*FIxed focus No Distortion lens, M12 Mount changeable, provides the image without any fisheye.
-
*UVC compliant USB 2.0 cameras. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
Package Include
1 piece of 2MP USB Camera With No Distortion lens,
1 piece of 3m USB Cable
Lens Optional: 100degree, 110degree, 120degree
Features
-
*High Speed 2megapixels Full HD USB Camera max 1920(H)X1080(V)
-
*M12 mount fixed focus lens No Distortion, interchangeable 100degree/110/120degree optional.
-
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
-
*CMOS OV2710 sensor 1/2.7inch for high quality image and low power consumption.
-
*High speed USB 2.0 interface for high resolution PC camera interface.
-
*Plug and Play, work with most camera software, no need extra drivers.
-
*high pixel technology for sharp image and accurate color reproduction.
-
*Professional Metal Housing,dimension 42*42mm, embedded for industrial machines
-
*Camera with UVC, compatible with operation systems like Linux, Windows, Android, MAC, SP2 or above.
Specification:
|
Optional models
|
ELP-USBFHD01M-BH100
ELP-USBFHD01M-BH110
ELP-USBFHD01M-BH120
|
|
Sensor
|
1/2.7" CMOS OV2710
|
|
Lens size
|
200W, 2.0megapixel, 1920(H)x1080(V)pixels
|
|
Max. Resolution
|
1920X1080
|
|
Picture format
|
MJPEG
|
|
USB Protocol
|
USB2.0 HS/FS, USB1.1 FS
|
|
Support free driver
|
USB Video Class(UVC)1.1
|
|
Auto exposure AEC
|
Support
|
|
Auto white balance AEB
|
Support
|
|
Frame rate
|
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
|
|
Adjustable parameters
|
Brightness/Contrast/Color saturation /Definition/Gamma/WB
|
|
Night vision
|
optional, can choose IR board
|
|
Lens
|
Standard no distortion lens, 100Degree,110,120degree optional
Other M12 Mount lens optional .
|
|
Voltage
|
DC 5V
|
|
Current
|
150mA
|
|
work temperature
|
DEGREES(-20~70)
|
|
Size
|
42*42mm
|
|
Support OS
|
Windows /
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
|
High Speed Camera can produce sharp and clear videos
Performance 1080P 30FPS; 720P 60FPS; 480P 120FPS
2MP USB Camera Full HD Max resolution 1920(H)x1080(V)
|
Wide Angle Webcam fixed focus, View Angle 100degree, optional 110degree and 120degree.
No Distortion camera lens offers the image without any distortion/ fisheye
USB with camera, plug and play. No need to install drivers.

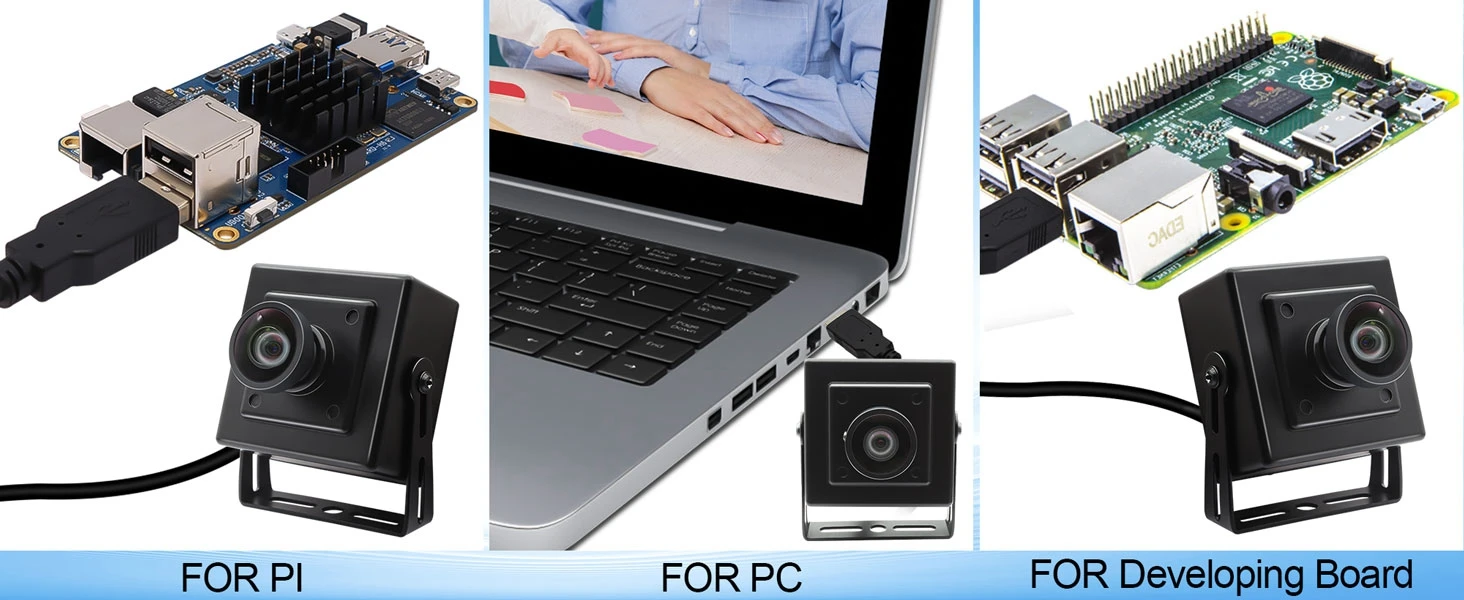

For Pi: It's compatible with Raspberry Pi
For PC: USB Interface, just play and play in your computer or laptop, PC, work as a USB Webcam
For Developing board: it also can be used for secondary development.
Wide Compatibility: works with most operations systems like Windows, Linux, Android, and Mac OS;
also work with video and streaming apps like Skype, Facetime, Facebook, Youtube live streaming, Amcap, USB Camera
|
High Speed Camera 30fps 60fps 120fps has multi-application, especially for fast moving shooting,
Diving, Traffic detection, Golf swing, Pets monitoring, Playing sports, Birds feeding.
