ELP 8MP 2160P 1080P 60fps Webcam Digital Zoom 2X 4X 2.8-12mm Manual Varifocus Lens UVC IMX415 Color 4K USB3.0 Camera HDMI For Live Streaming
Model: ELP-USB4KCAM30H-CFV(2.8-12)
Package Includes:
1) 1pcs 4K USB HDMI Camera with 2.8-12mm varifocal lens .
2) 1pcs 1.5m usb3.0 cable with type C port
3) 1pcs 1.5m HDMI cable with HDMI port
New Release 4K HDMI&USB Camera!
This 4K ELP-USB4KCAM30H USB3.0 HDMI Camera Module is a New member of ELP Cameras Family in 2024. It adopt 1/2.8" Sony IMX415 Color CMOS sensor. With powerful H.264/YUY2/MJPEG Video Compression format, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840x2160 60fps,also Full HD 1080P 60fps Video Output. Support Type C and HDMI Dual Output simultaneously. Available to use M12 Mount no distortion lens, wide angle lens, CS Mount 2.8-12mm,3.6-10mm lens or 5-50mm Manual focus zoom Lens, enable 2X digital Zoom and 4X or 10X optic Zoom for super clear details images
Why choose HDMI?
"HDMI" stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Features
【High Definition 4K】 Ultra HD Camera 4K , Max resolution 3840(H) x2160 (V), resulting in sharper and more detailed images and videos.
【High Frame Rate 60fps】 4K Camera can drive 60fps 3840x2160/1920x1080 60fps at H.264/ MJPEG .
【Sony IMX415 Sensor】 4K webcam adopt 1/2.8" Sony IMX415 Color CMOS Image Sensor,
【H.264/MJPGE/YUY2 Compression format】USB Camera support 3 types of compress format H.264 /MJPEG /YUY2 optional .
【3 Display Modes】USB mode / HDMI mode / USB & HDMI mode simultaneously display ;
【USB and HDMI simultaneously output】4K USB & HDMI Camera, USB plug to laptop,meantime HDMI connect to the monitor ,two screen display simultaneously .
【Manual Vari-focus Lens】Optical Zoom varifocal lens webcam with 2.8-12mm,3.6-10mm,5-50mm CS Mount lens ,changeable .
*Manual adjust Zoom ,Focus, Iris .
【Digital Zoom】Support 2X digital Zoom for super clear details images .
【UVC Compliant Plug&Play】 Just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
【Adjustable Parameters】Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
【Support OS】Widely works with most operating system,include Win XP/Vista/Win7/Win8 / Win10/ Win11etc. Linux with UVC (above linux-2.6.26). MAC-OS X 10.4.8 or above/Android 4.0 or above with UVC/Raspberry Pi.
Datasheet
|
Model
|
ELP-USB4KCAM30H-CFV(2.8-12)
ELP-USB4KCAM30H-CFV(3.6-10)
ELP-USB4KCAM30H-CFV(5-50Y)
|
|
Sensor
|
1/2.8” SONY IMX415
|
|
Max. Resolution
|
3840(H)*2160(V)
|
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Pixels Size |
1.45µm x 1.45µm |
|
Compression format
|
MJPEG / YUY2(YUYV) / H.264
|
|
Resolution & frame
|
3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps
2560x1440 MJPEG 60fps/ H.264 60fps /
1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps
1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps
640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps
|
|
Central Definition
|
1000LW/PH(Center)
|
|
S/N Ratio |
30dB |
|
Mini illumination |
0.2 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 Interface &HDMI v1.4 Interface
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC |
Support |
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure
|
|
Zoom
|
Optical Zoom -4x zoom in and out manually adjust lens
Digital Zoom-2x zoom in and out controlled by software
|
|
Lens Parameter
|
CS Mount Varifocal lens ,optional 2.8-12mm,3.6-10mm,5-50mm .
Manual adjust Zoom ,Focus ,Iris .
|
|
Power supply Interface
|
USB Type-C Power Supply, Type-C & HDMI Display Simultaneous
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
480mA - 500mA
|
|
Storage Temperature
|
-20～80℃
|
|
Working temperature
|
0～70℃
|
|
Board size /Weight
|
Double-deck, 38mm x 38mm / 200g
|
|
Cable equipments
|
2 pieces cables
(1pcs 1.5m USB3.0 cable with Type-C port, 1pcs 1.5m cable with HDMI port)
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
ELP 4K USB HDMI Camera, with USB and HDMI simultaneously dual output

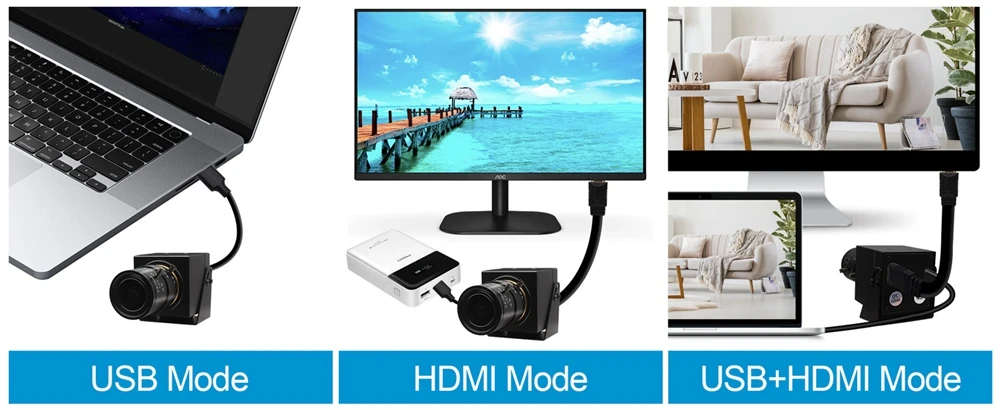

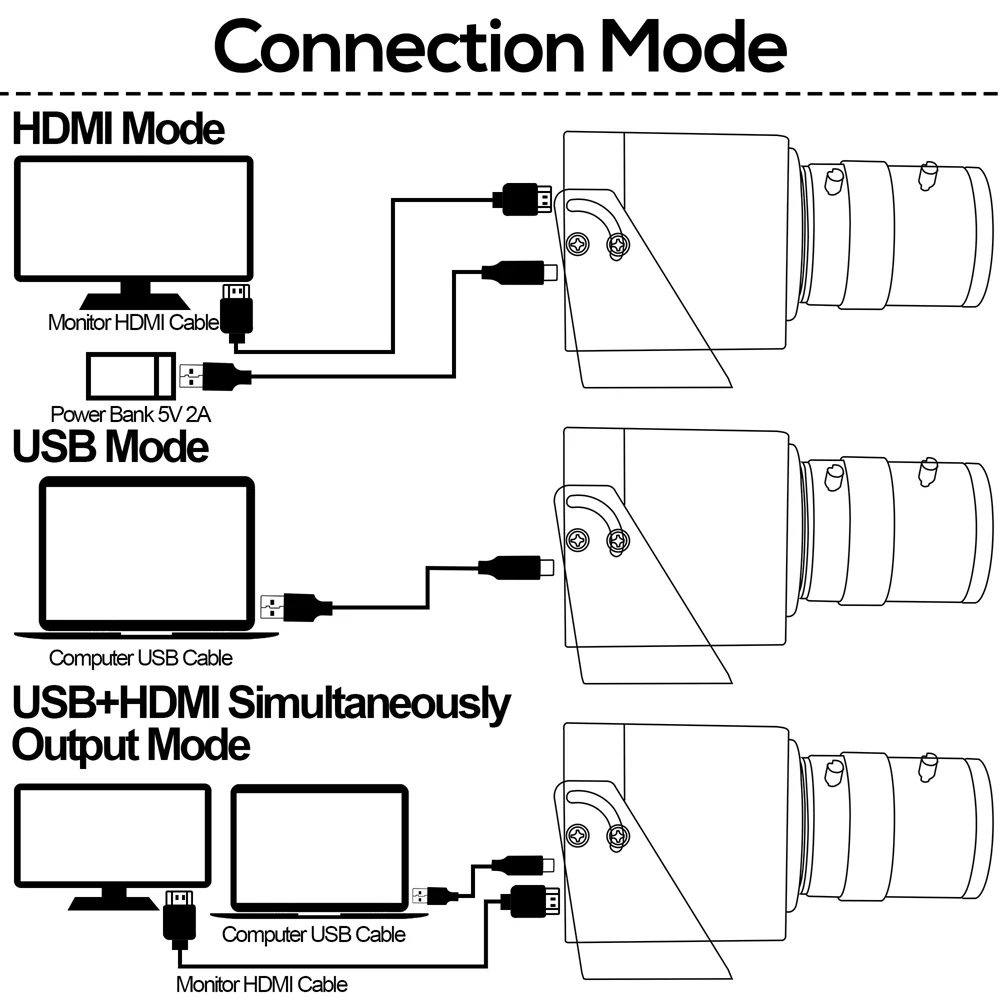

Support 3 Connection Modes to display : USB Mode/HDMI Mode/USB+HDMI simultaneously output Mode
Connect USB3.0 cable to PC, the camera plug and play ,image display through USB Cable to the PC .
Connect HDMI Cable to monitor , projector or other device support HDMI Input , USB power only , the image display in the monitor through HDMI Cable .
-

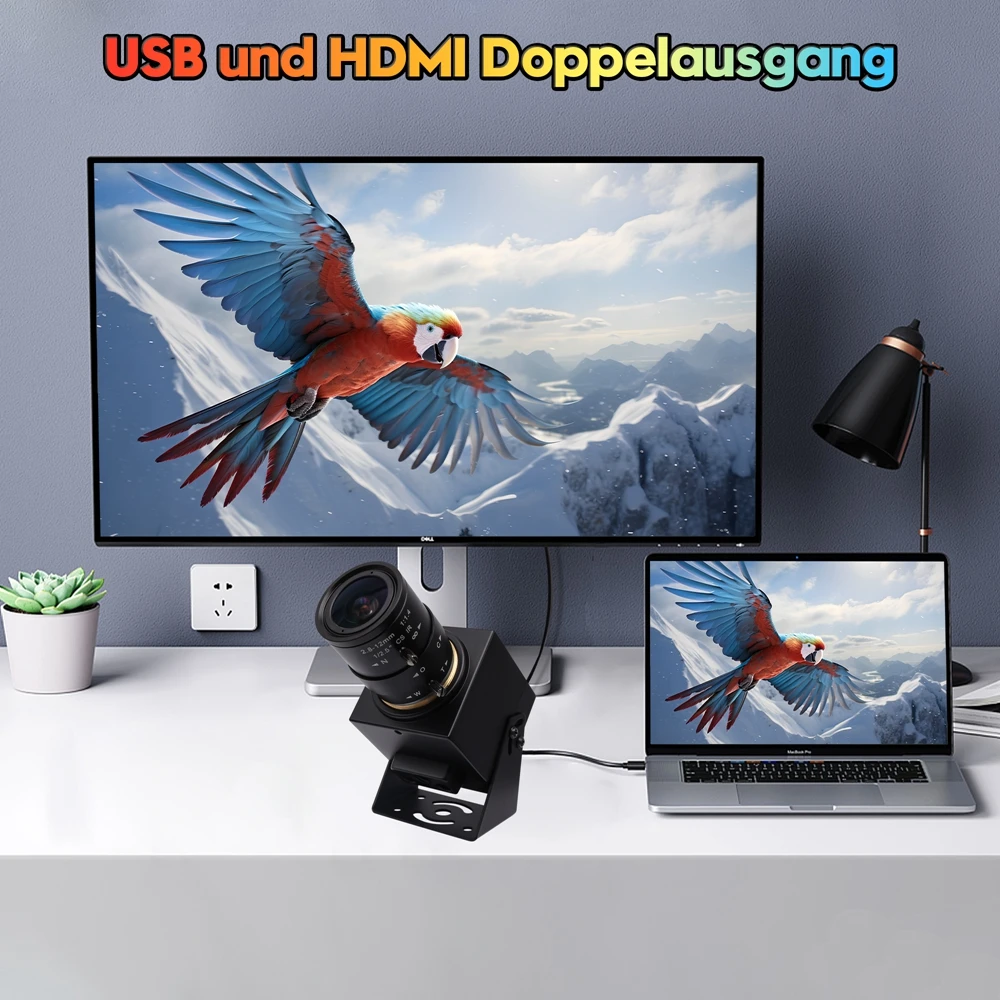

USB & HDMI display simultaneously:
Connect USB Cable to PC, and connect HDMI cable to the monitor with HDMI Port or projector... the image display simultaneously both on PC and monitor, projector...etc.
4K HDMI USB3.0 Camera 60fps

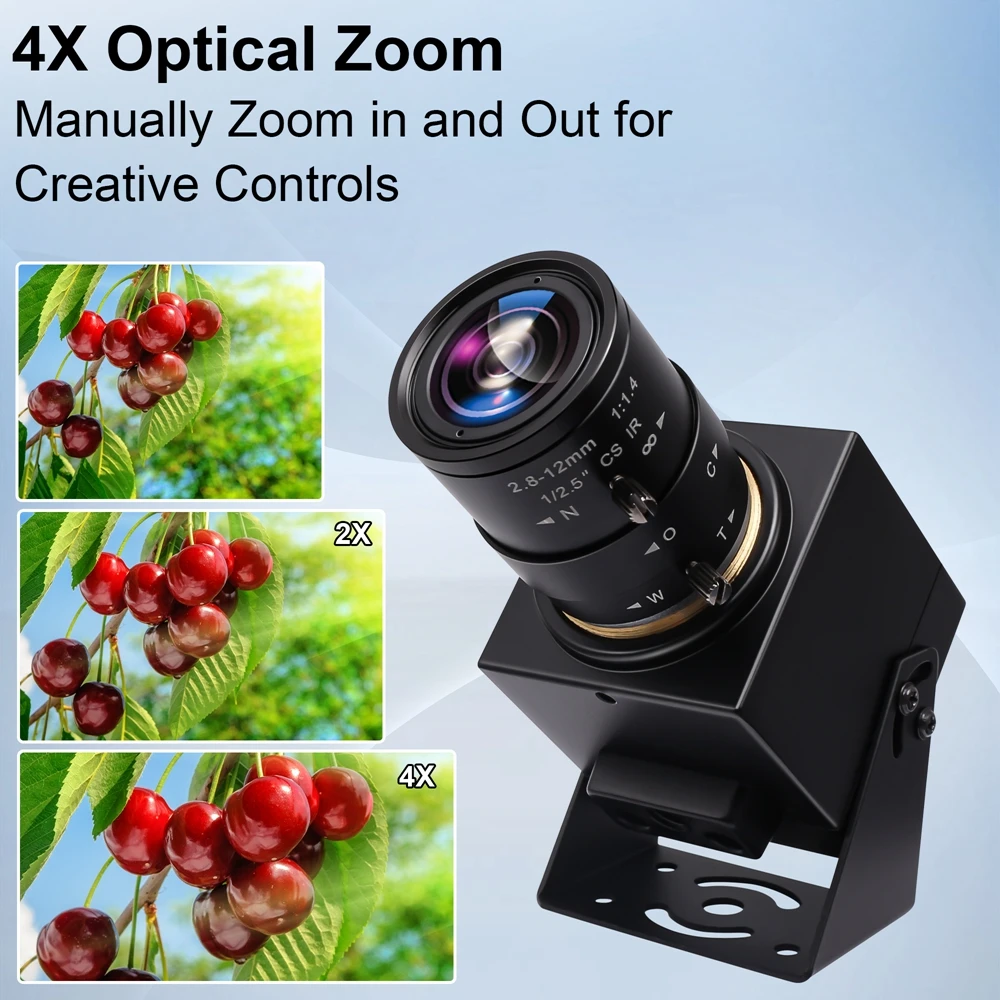

2.8-12mm Optical Zoom 4x lens 4K Security camera enables you to easily perform 1x to 4x smooth zooming by adjusting the lens .
Digital Zoom 2x camera controlled by software .

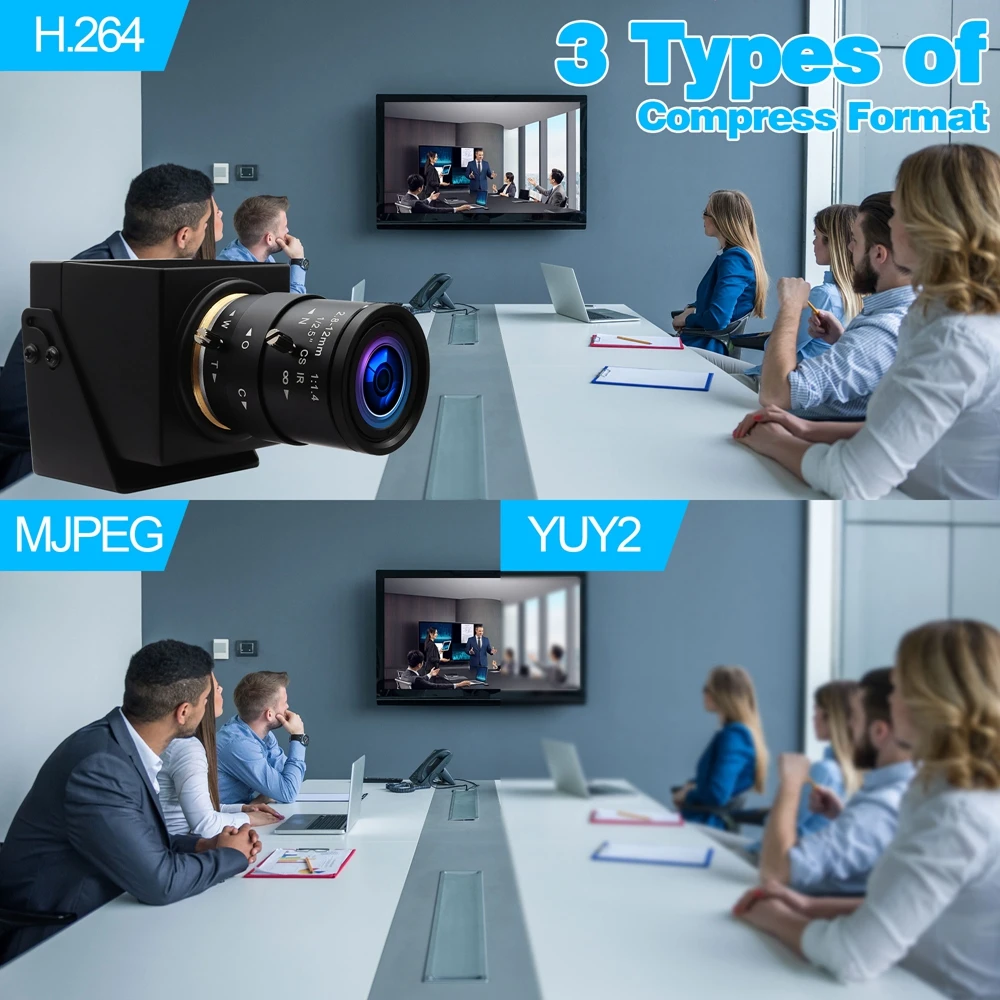

Powerful H264 60fps 4K Camera
H.264/MJPEG/YUY2 compression format optional
High Speed H.264 4K 60fps camera 2160 1080P 60fps

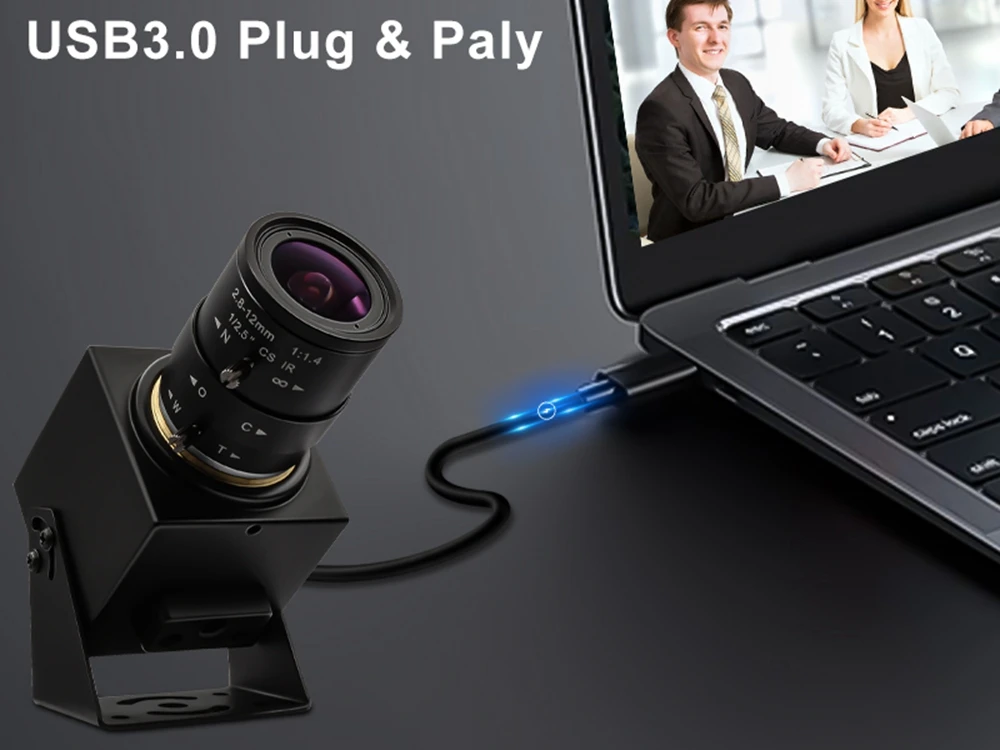

Camera with USB Interface , plug and play
4K Camera compatible with multiple OS: Windows,Linux ,Android ,Mac and etc .

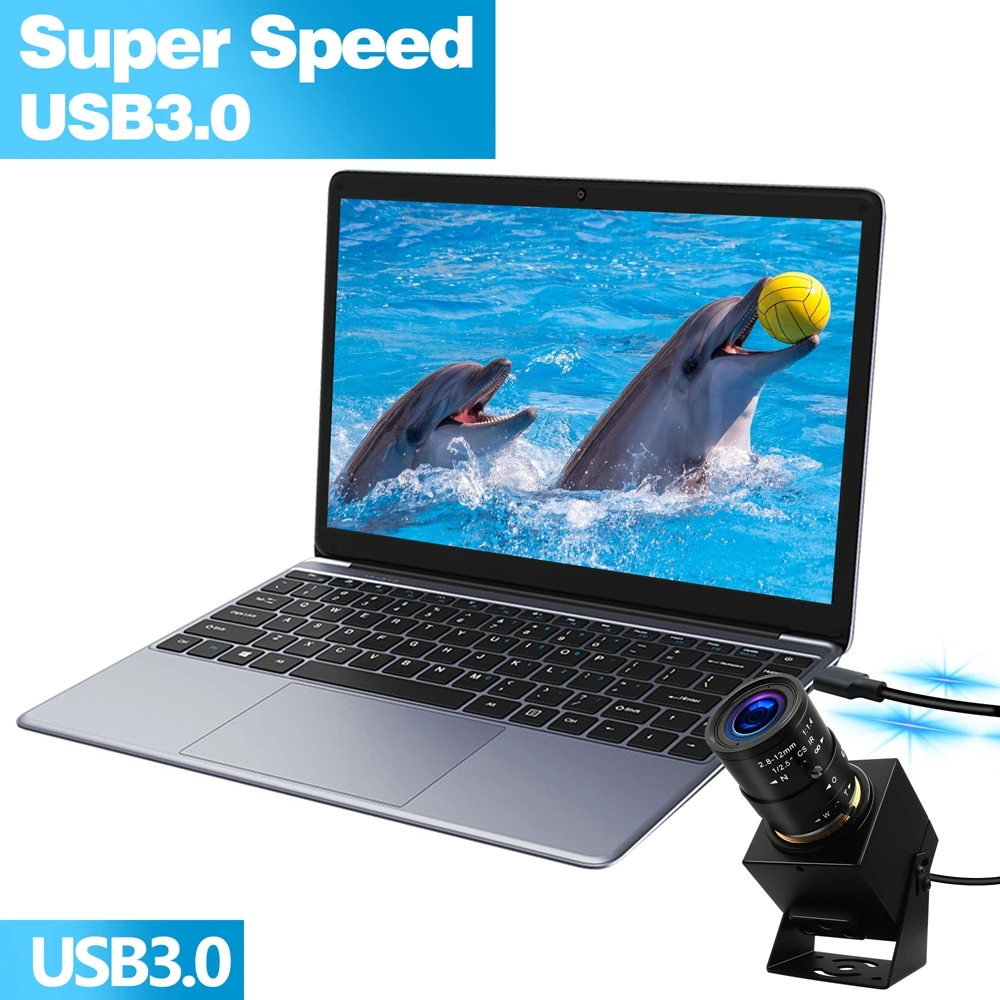

Super Speed USB3.0 Camera directly connect to PC and display .
HDMI and USB3.0 Simultaneous output
4K HDMI USB3.0 Camera H.264 60fps Manual zoom PC Camera
