ELP Black And White Global Shutter USB Camera Optical Zoom Manual Adjust Iris High Speed 720P 60fps HD PC Webcam For Recognition
Model ELP-USBGS720P02-MFV(5-50) (Black and white image )
Model ELP-USBGS720P02C-MFV(5-50) (Color image )
***If no choose ,default ship BW mode camera .
Package Includes:
1) 1pcs 1MP Global Shutter USB Camera with CS Varifocal lens
2) 1pcs 3m usb cable
Image Color or Black White Optional
->Monochrome Version, this version Global shutter camera use Black and white image sensor ,offer black and white image .
->RGB Color Version, thie version camera offer RGB Mode camera ,image is colorful .
CS Varifocal Lens optional

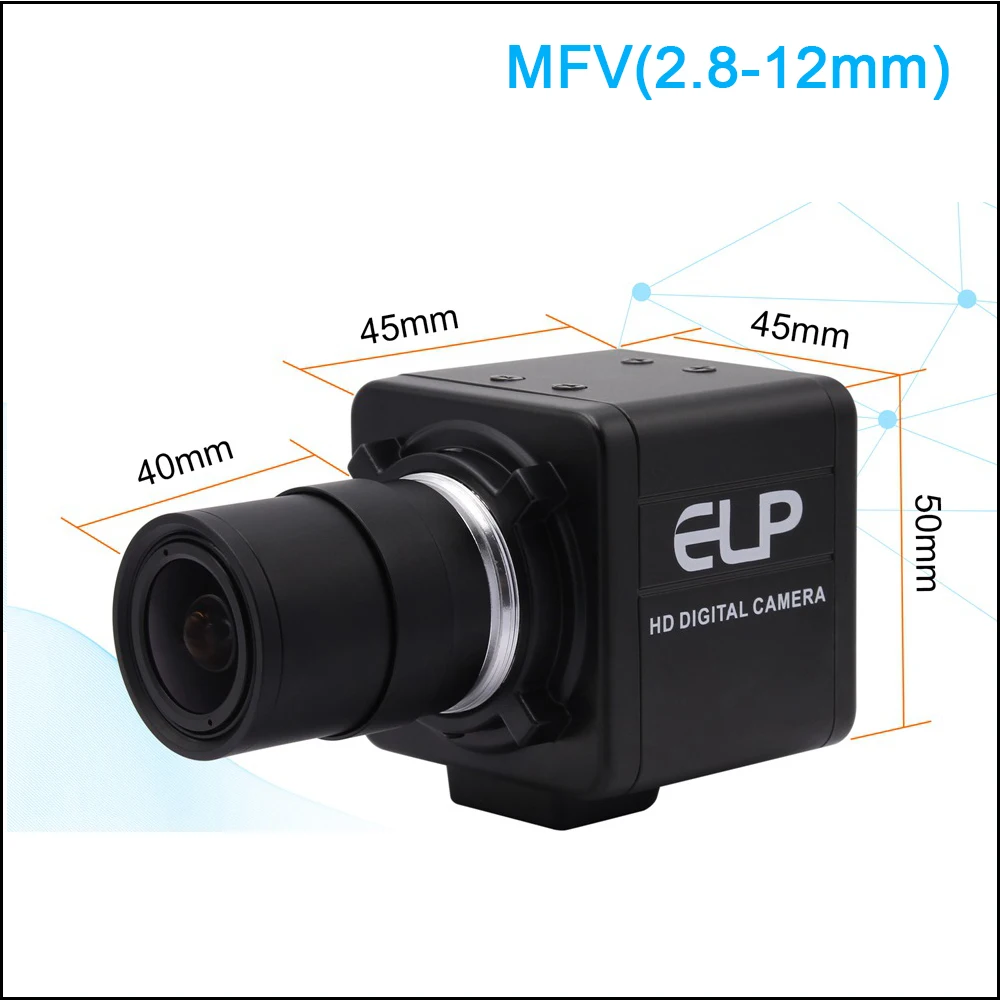

->2.8-12mm Optical Zoom 4x

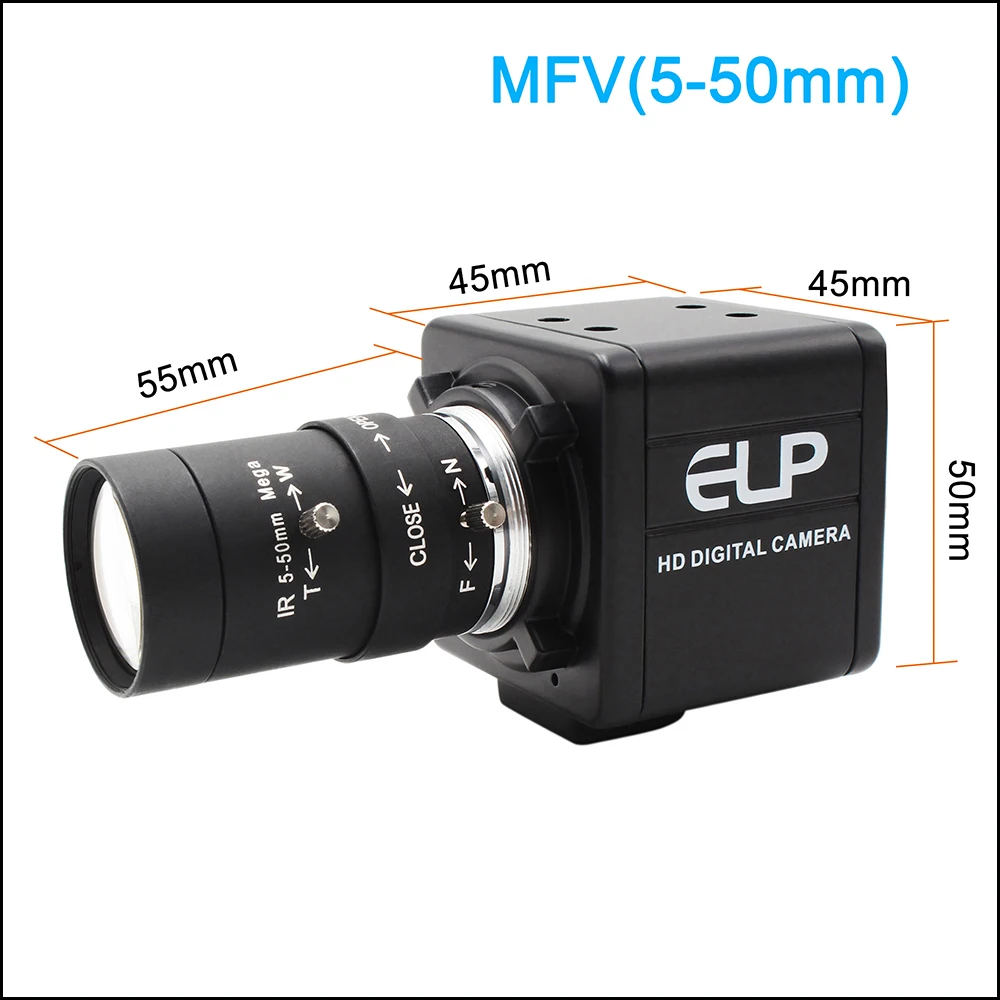

->5-50mm Optical zoom 10x lens ,suitable for far distance working
Why choose Global Shutter camera ?
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.
This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

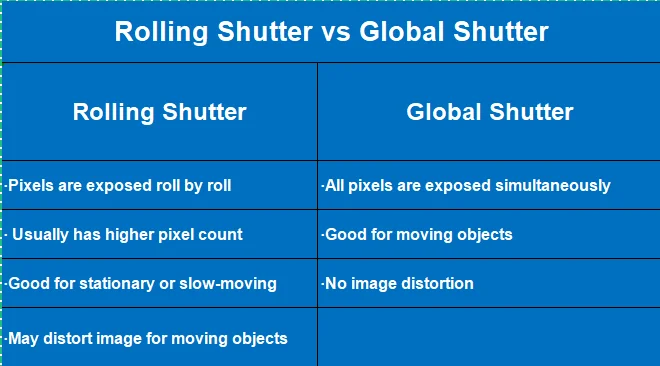

Difference of Rolling Shutter and Global Shutter
Main Features
-
*1MP HD Webcam 1.0Megapixels max resolution 1280x720P
-
* High quality Aptina AR0144 Sensor for color and mono version optional
-
* Shutter Type : Global shutter, captures an image by exposing the entire sensor at once
-
* HD Snap webcam without shadow,. widely used for barcode scanner, drone
-
* High frame rate- deliver 1280X720MJPEG@ 60fps
-
* Optical zoom lens CS Mount varifocal, 5-50mm lens zoom 10x ; 2.8-12mm lens zoom 4x
-
* Manual adjust zoom, focus, aperture .
-
* USB2.0 Interface ,plug and play .
-
* Camera with UVC , free driver , compatible with Linux, Android, Windows, Mac etc operation systems.
Specifications
|
Model
|
ELP-USBGS720P02-MFV
ELP-USBGS720P02C-MFV (C is color version)
|
|
Sensor
|
Aptina AR0144 ,(1/4 inch )
|
|
Shutter Type |
Global Shutter |
|
Max. Resolution
|
1.0 Megapixels, 1280(H)X720(V)
|
|
Image Area |
3888µm x 2430 µm |
|
Pixel Size |
3.0μm |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
1280X720MJPEG@ 60fps YUY2@5fps
800X600MJPEG@ 60fps YUY2@20fps
640X480 MJPEG@ 60fps YUY2@ 30fps
|
|
Surface Mount Technology |
SMT |
|
S/N (Signal Noise Ratio) |
38dB |
|
Dynamic Range |
63.9dB |
|
Sensitivity |
3.1V/lux-sec@550nm |
|
Mini illumination |
0.1 Lux |
|
Connecting Port type
|
USB 2.0 High Speed
|
|
OTG protocol |
USB2.0 OTG |
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Parameter
|
CS Mount varifocal lens
5-50mm or 2.8-12mm zoom lens optional
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
110-160mA
|
|
Storage Temperature
|
-20～75℃
|
|
Working temperature
|
-10～70℃
|
|
Board size /Weight
|
38mm × 38mm / 400g
|
|
Cable equipments
|
Stander 3m (optional 2m ,5m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
Global Shutter USB Camera HD
hd pc webcam with zoom lens
HD PC Webcam 720P 60fps Optical Zoom
5-50mm manual focus webcam
Varifocal 10x optical zoom usb camera ,can adjust the brightness ,zoom ,focus .
Positive from our clients .
USB2.0 Camera plug and play ,no need any drivers .
Camera with UVC Compatiblity ,work with most operation systems and softwares ,
include Windows ,Mac OS, Chrome OS, Linux ,Ubuntu ,
Sofrware Zoom Teams ,Skype ...
How to use ELP USB Camera ?
