ELP Fisheye Webcam Wide Angle 16MP CMOS IMX298 Sensor Plug Play Security USB Camera Module For ATM Kiosk Machine Vision Webcam HD Support UVC

ELP Fisheye Webcam Wide Angle 16MP CMOS IMX298 Sensor Plug Play Security USB Camera Module For ATM Kiosk Machine Vision Webcam HD Support UVC

  • Model: ELP-USB16MP01-L180
  • Availability: In stock

$60.90

Quantity:
 inquiry Now

Products Description

ELP Fisheye Webcam Wide Angle 16MP CMOS IMX298 Sensor Plug Play Security USB Camera Module For ATM Kiosk Machine Vision Webcam HD Support UVC ELP-USB16MP01-L180

Package include :

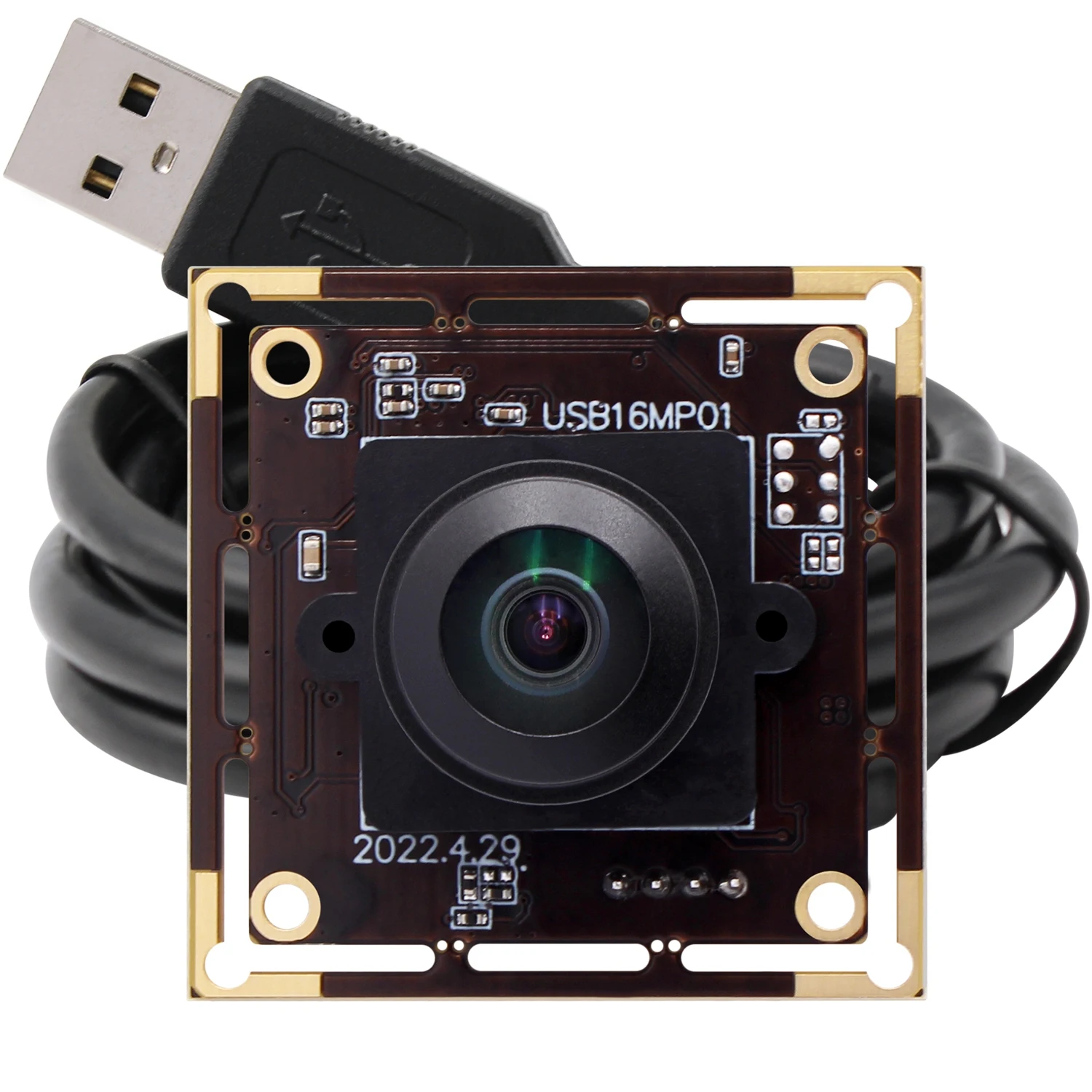

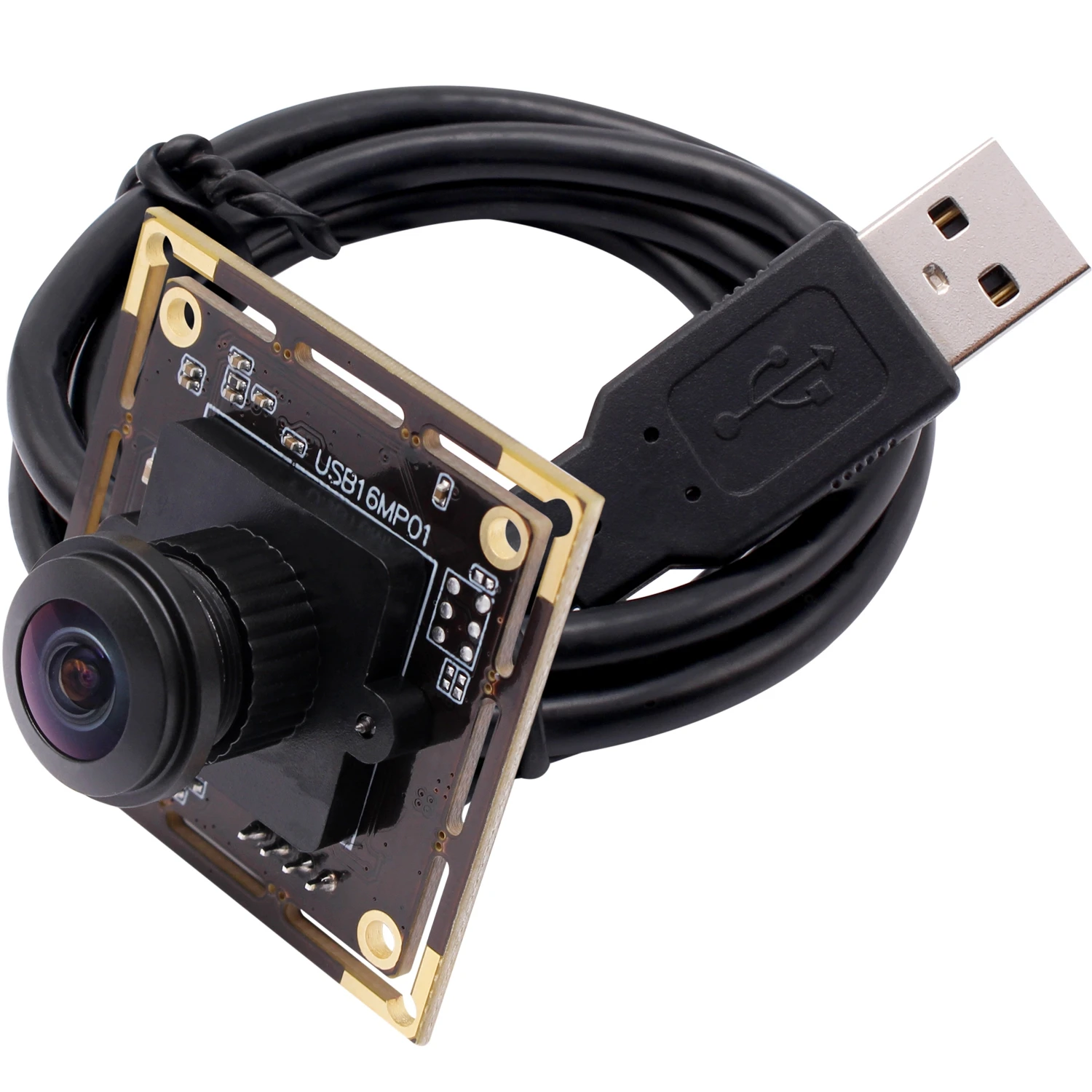

1 Piece of 16MP IMX298 USB Camera with M12 Lens fisheye lens, 1m USB Cable

Features

1) More than HD,16MP USB Camera : This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .

2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details.

Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

3) M12 Mount camera lens, interchanegabele : This camera module has a 180° M12 Lens, transmitting the most realistic image effect.

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

5) Widely Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision,

1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera

5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner

9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition

12:video door phone 13:HD surveillance

Specification

Model

ELP-USB16MP01-L180

Sensor

 IMX298

Sensor Size

1/2.8inch

Pixel Size

1.12um

Image area

6.4mm x 5.3mm

Max. Resolution

4656(H) X 3496(V) 16Megapixel

Compression format

MJPEG / YUY2(YUYV)

Resolution & frame

4656 x 3496MJPEG@10fps  YUY2 1fps4208 x 3120MJPEG@10fps  YUY2 1fps

4160 x 3120 MJPEG@10fps  YUY2 1fps4000 x 3000MJPEG@10fps  YUY2 1fps
3840 x 2160 MJPEG@10fps  YUY2 1fps3264 x 2448MJPEG@10fps  YUY2 1fps

2592 x 1944 MJPEG@10fps  YUY2 1fps2320 x 1744MJPEG@30fps  YUY2 1fps

2048 x 1536 MJPEG@30fps  YUY2 1fps1920 x 1080MJPEG@30fps  YUY2 5fps

1600 x 1200 MJPEG@30fps  YUY2 5fps1280 x 960MJPEG@10fps  YUY2 10fps

1280 x 720 MJPEG@30fps  YUY2 10fps1024 x 768MJPEG@10fps  YUY2 10fps

800 x 600 MJPEG@30fps  YUY2 15fps640 x 480MJPEG@30fps  YUY2 30fps

Min illumination

0.5lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free DriveProtocol

USB Video Class(UVC)

AEC

Support

AWB

Support

AGC

Support

Buttoncamera

Support

Adjustableparameters

Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.6mm lens ,optional other M12 Mount lens

Power supply

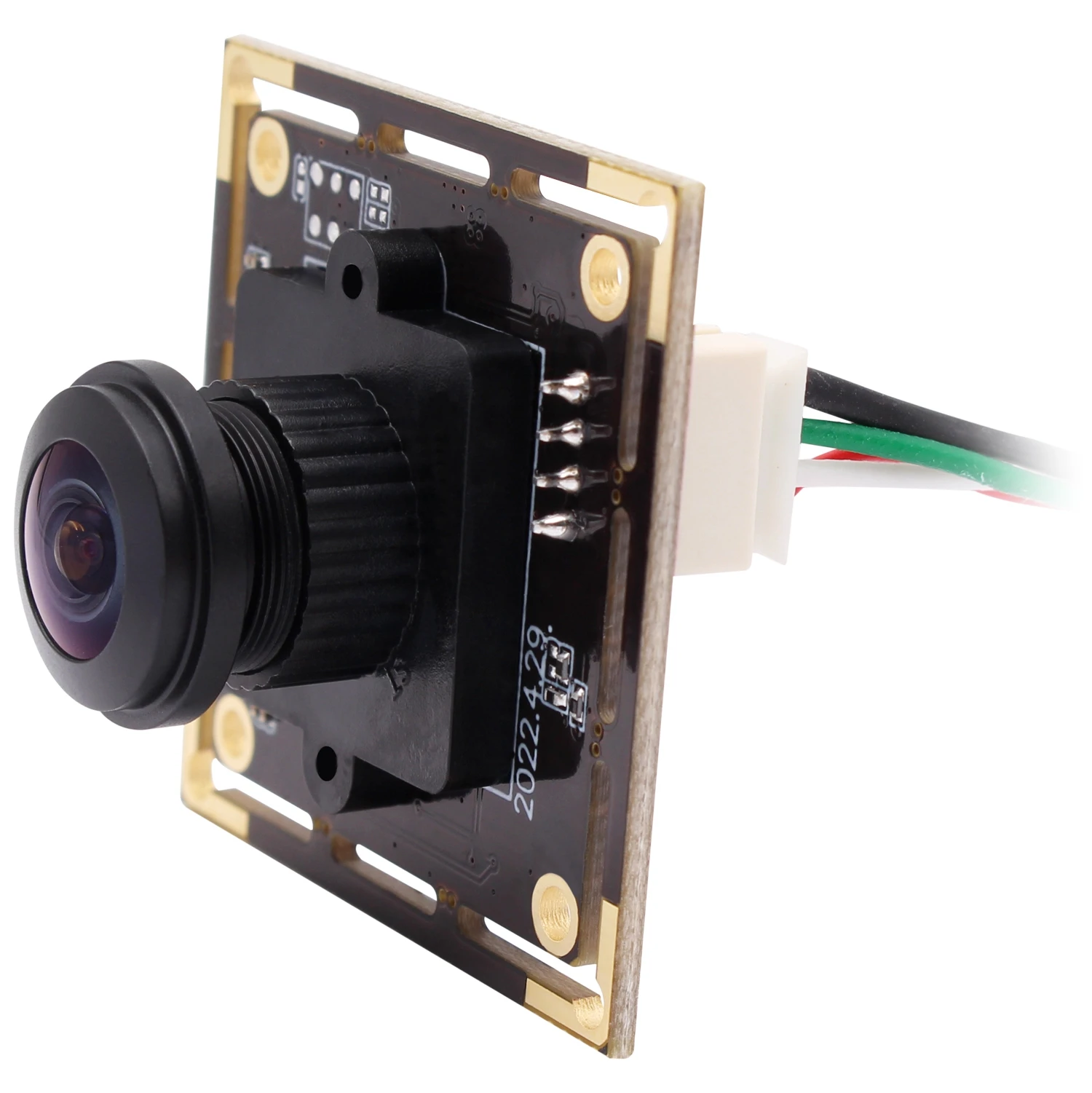

USB BUS POWER4P-2.0mm socket

Operating Voltage

DC5V

Working Current

150mA~240mA

Working temperature

-10~70℃

Storage temperature

-20~85℃

Boardsize/Weight

38X38mm(Compatible 32X32mm)/ about 30g

Cable

Standard 1M / optional 2M,3M,5M

Operating system request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC




USB Camera sample picture



High resolution 16MP USB Camera max resolution 4656(H) X 3946(V)

High  Tech 1/2.8inch IMX298 sensor

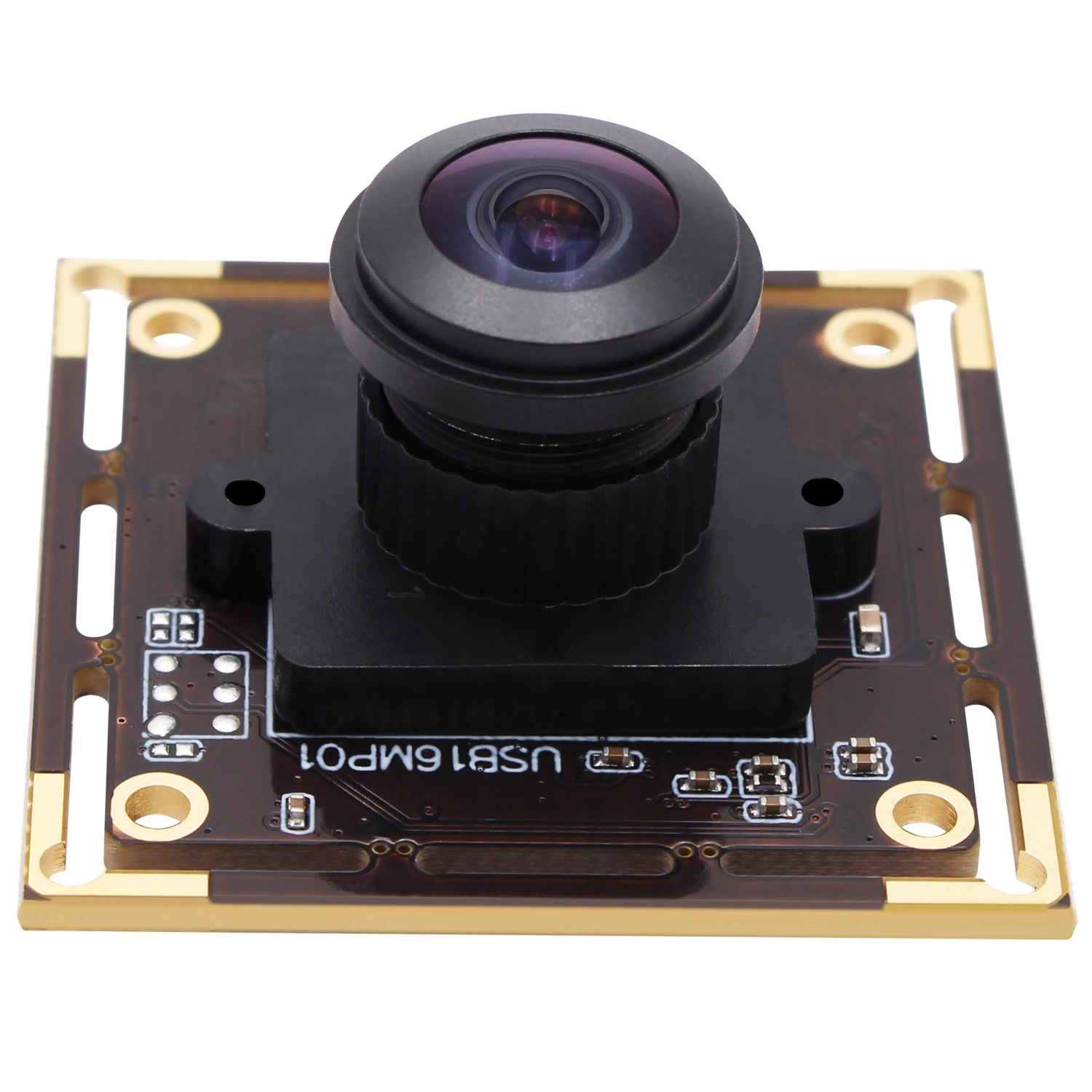

High qualtity wide angle webcam M12 Mount lens

High speed usb 2.0 interface,support OTg

High Compatibility:for use in Android, linux, Windows, MAC OS

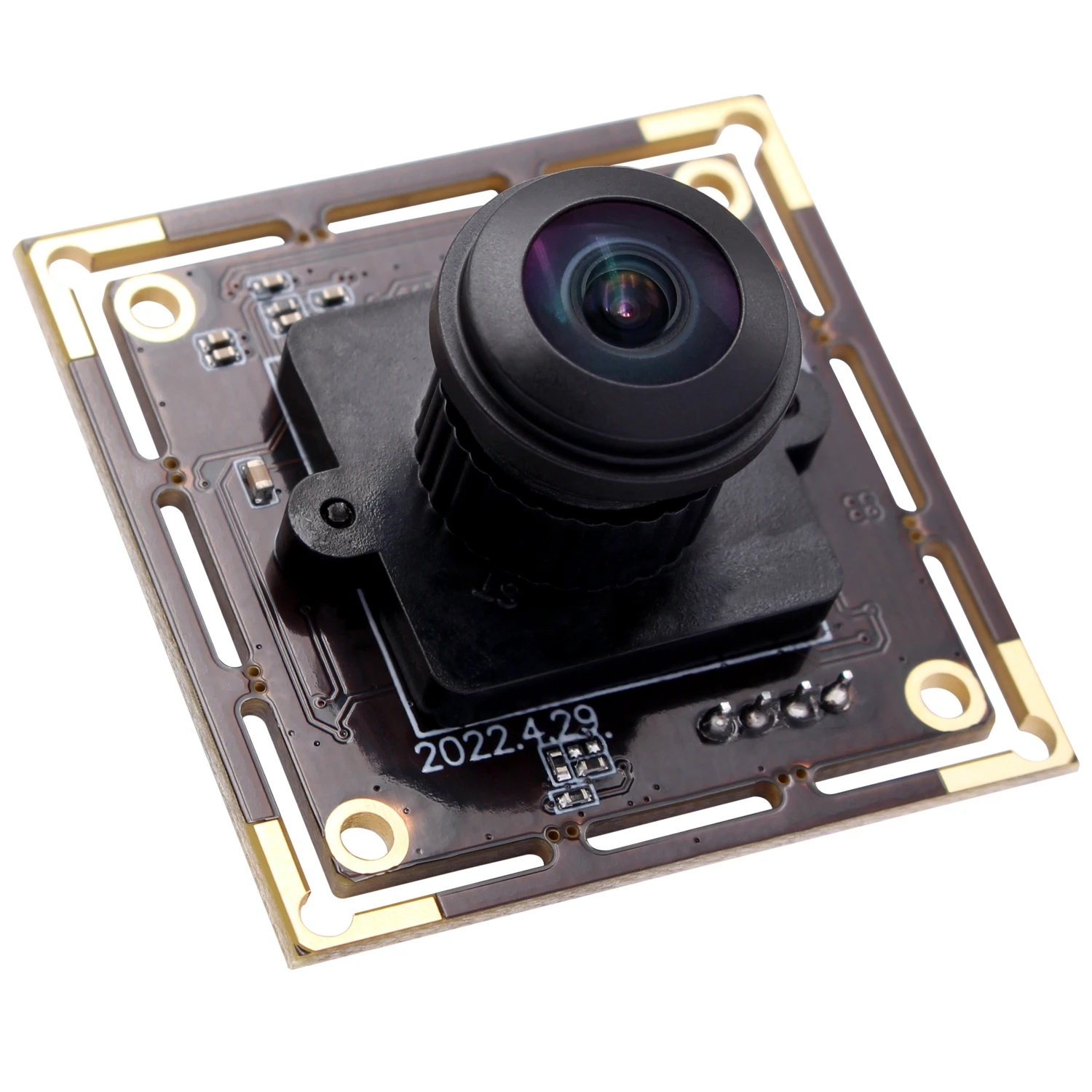

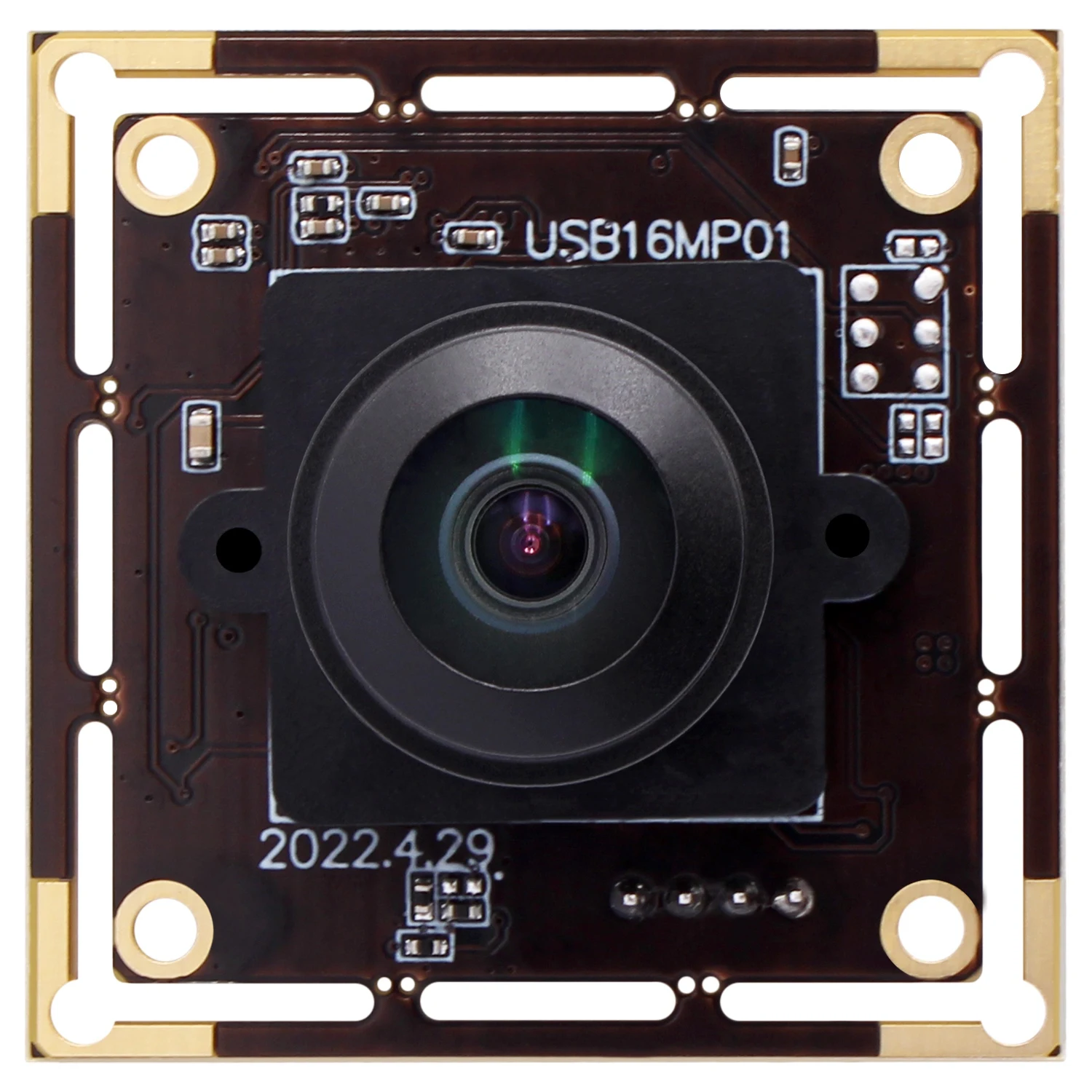

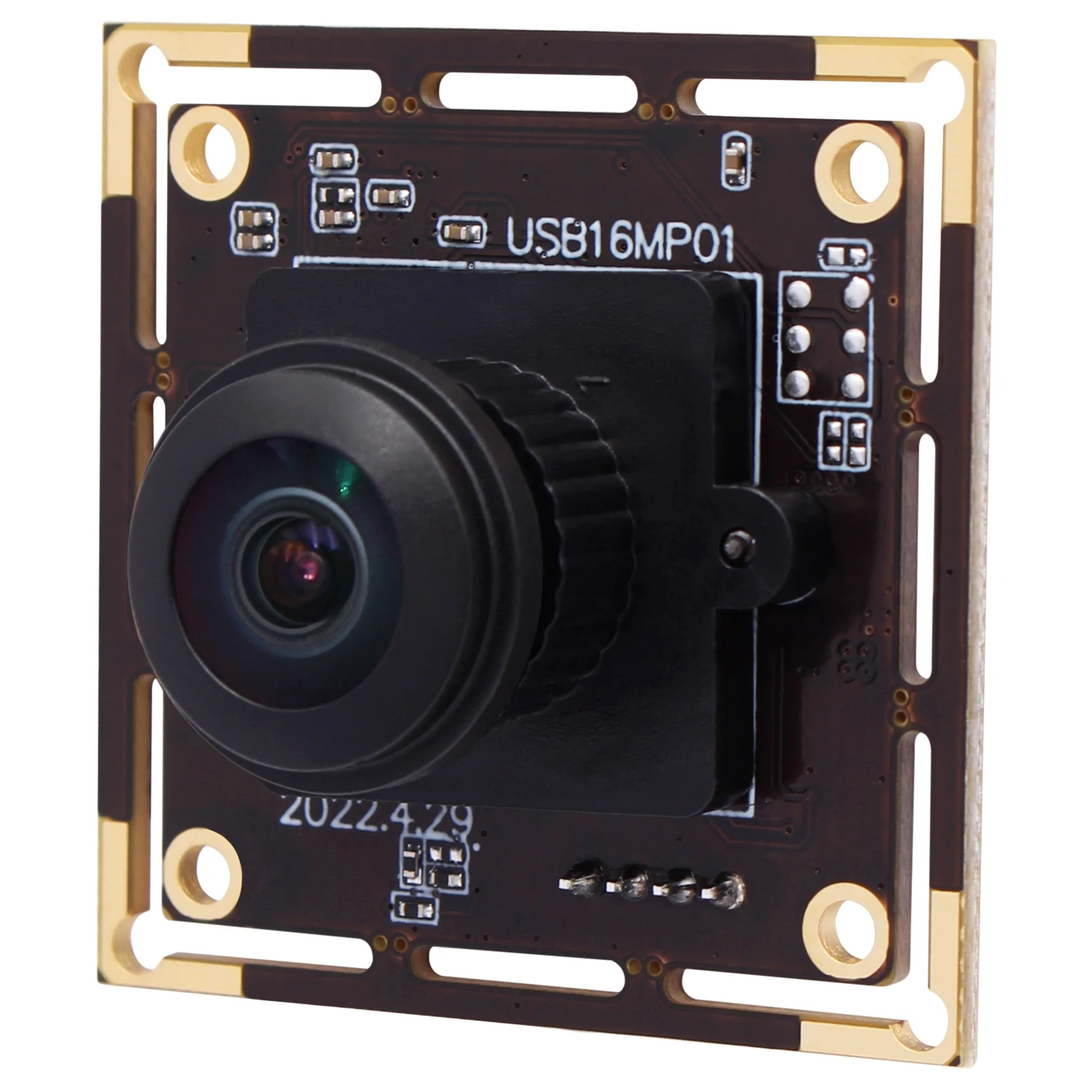

Super Mini Camera Module Dimension 38*38mm ,can be cut to 32*32mm
