ELP Mini Fisheye Camera Board With Wide Angle Lens 0.3MP High Speed 60fps VGA USB Camera For Game Player Driving Camera
Camera Description
About ELP 0.3mp super mini usb camera module:
-
Model: ELP-USB30W02M series is a mini camera with 0.3MP , based on 1/4 inch CMOS OV7725 image sensor,
-
Fixed focus, fisheye lens, high speed 480p 60fps,
-
This is a super mini webcam module, Max resolution 0.3 Megapixel 640x 480 output, with 38*38mm/26*26mm mini board size.
-
UVC compaliant USB 2.0 cameras. No extra drivers are needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera.
Package includes:
1PC of 0.3MP USB Camera with fixed focus lens ,
1pc of USB Cable length default 1m
Features
-0.3 Megapixel Camera , Max resolution: 640*480P
- High quality cmos ov7725 image Sensor for high quality image,
- High frame rate–640*480 image array at 60FPS in VGA Mode
- Supports image sizes: 640*480 480*480 450*450 352*288 320*240 288*288 240*240
- Compression format supports YUY2 and MJPEG dual format output
- Mini size 32*32/26*26mm - Super small outline and thin profile for embedded applications
- Low power consumption – ideal for portable equipment
- Image quality controls - Brightness, Contrast, hue, saturation, sharpness, gamma, white balance
- Automatic image control functions - automatic exposure control(AEC) & automatic white balance (AWB)
- Plug and Play& UVC Compliant, support to use in most OS: Windows, Linux, Android, Mac,etc
Main Specifications
|
Model
|
ELP-USB30W02M-L180
ELP-USB30W02M-L170
|
|
Sensor
|
OV7725
|
|
Lens Size
|
1/4 inch
|
|
Pixel Size
|
6.0um X 6.0um
|
|
image area
|
3984 µm x 2952 µm
|
|
Max. Resolution
|
640(H)X480(V)
|
|
Compression format
|
MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
640X480 MJPEG@ 60fps YUY2@ 30fps/
480X480 MJPEG@ 30fps YUY2@ 30fps
450X450 MJPEG@30fps YUY2@ 30fps/
352X288 MJPEG@ 30fps YUY2@ 30fps
320X240 MJPEG@30fps YUY2@ 30fps/
240X240 MJPEG@ 30fps YUY2@ 30fps
|
|
S/N Ratio
|
50dB
|
|
Dynamic Range
|
60dB
|
|
Sensitivity
|
3.8V/lux-sec@550nm
|
|
Mini illumination
|
0. 2lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard fisheye lens ,
optional 2.1/2.5/2.8/3.6/6mm/ FOV(D)170 Degree
|
|
Night vision
|
Need to equipped IR Sensor Lens and IR LED Board
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Power supply
|
DC5V
|
|
Operating Voltage
|
100mA~160mA
|
|
Working current
|
-10～70℃
|
|
Working temperature
|
-20～85℃
|
|

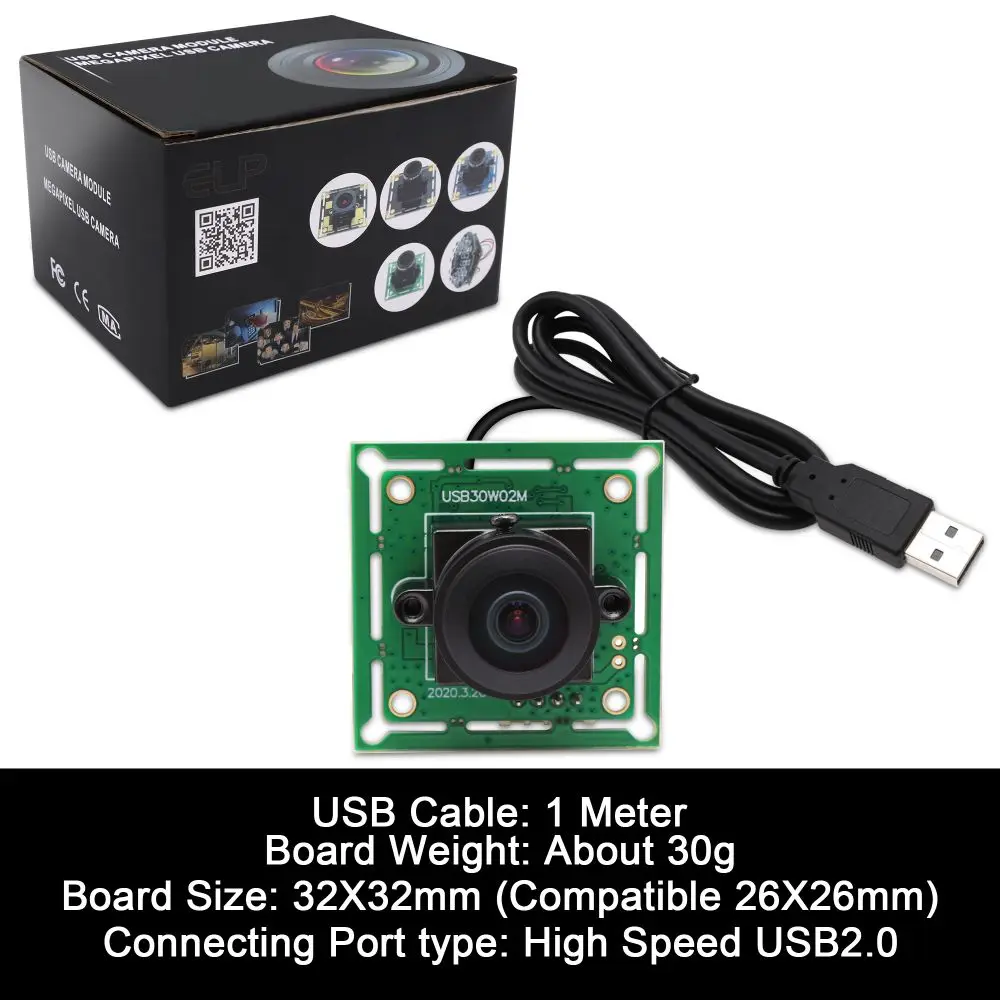

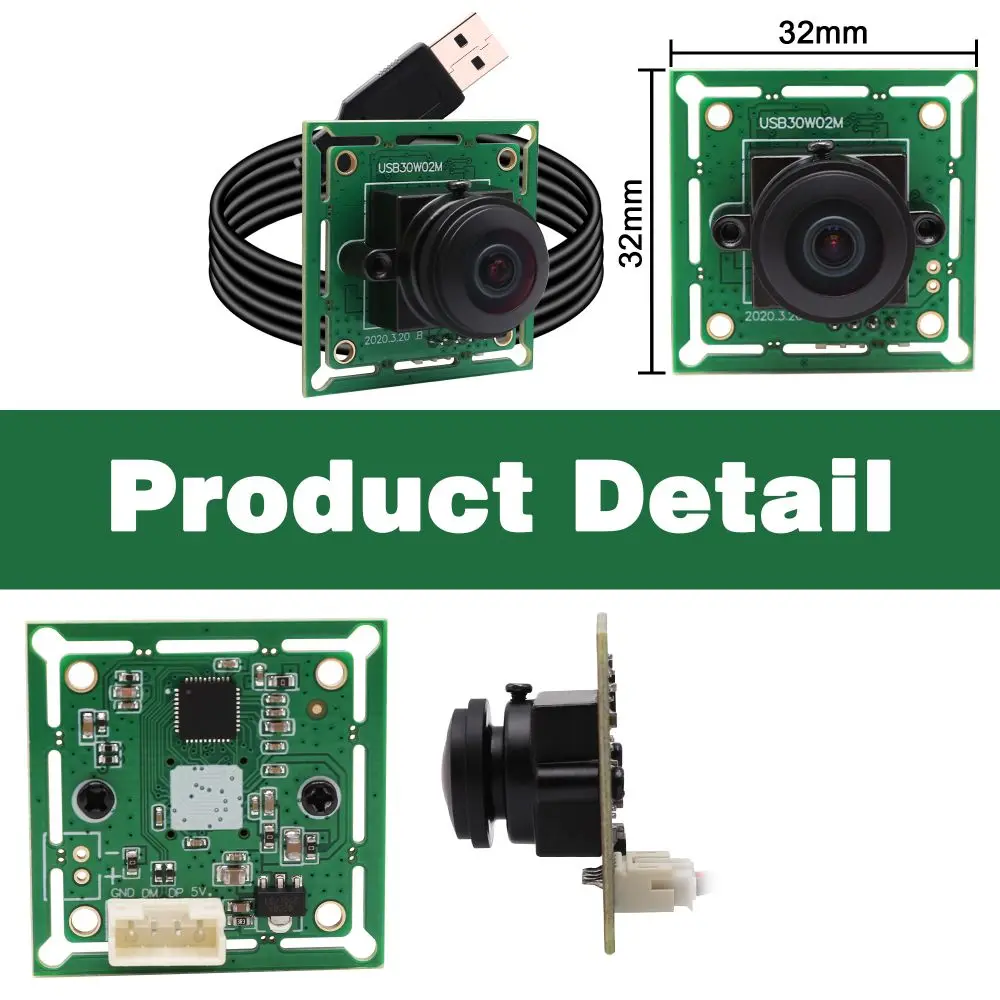

Board size /Weight
|
32X32mm（Compatible 26X26mm）/ about 30g
|
|
Cable
|
Standard 1M / optional 2M,3M,5M
|
|
Operating system request
|
WinXP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
|

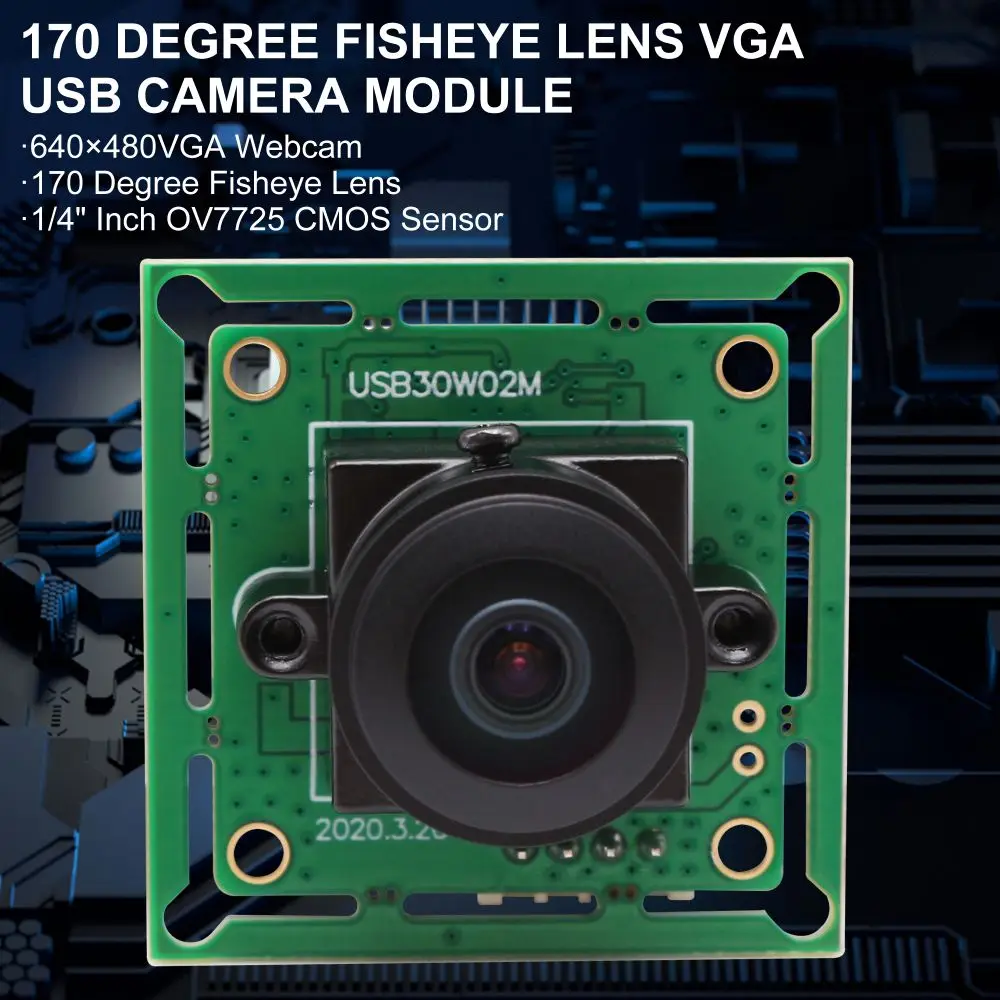

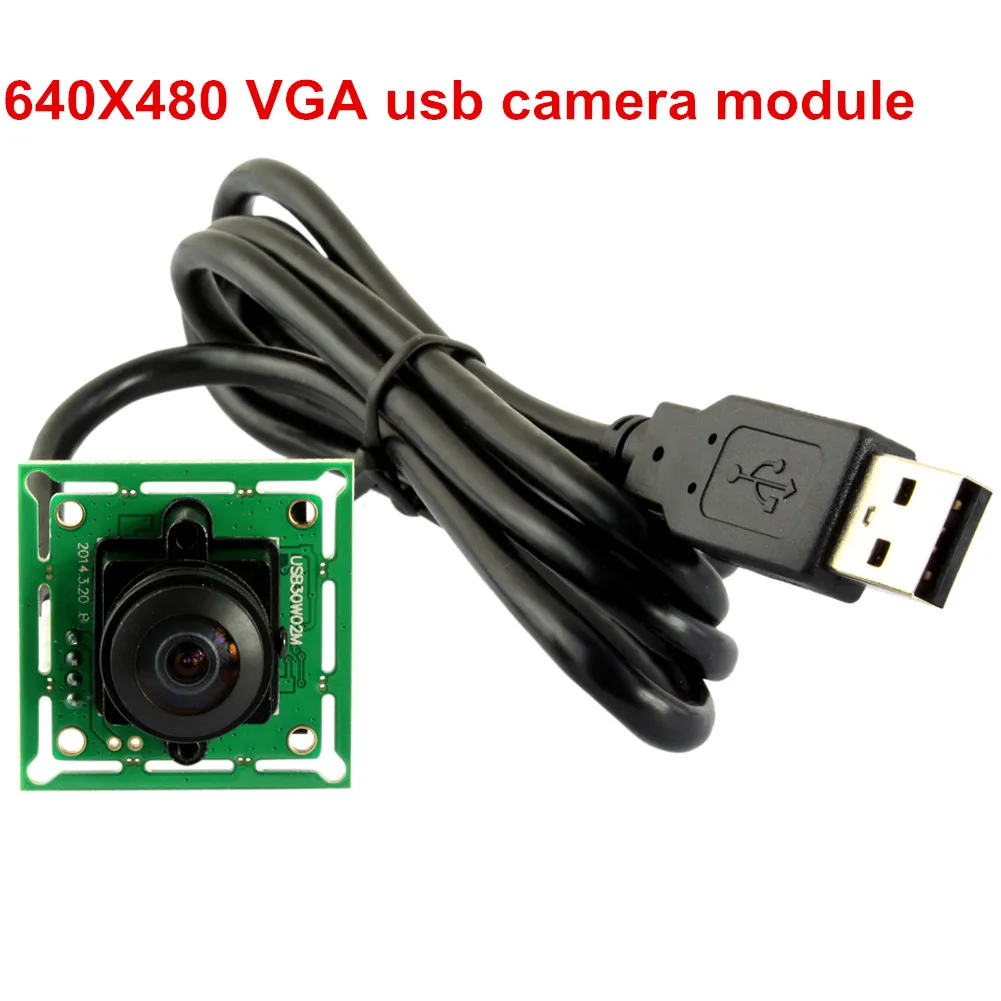

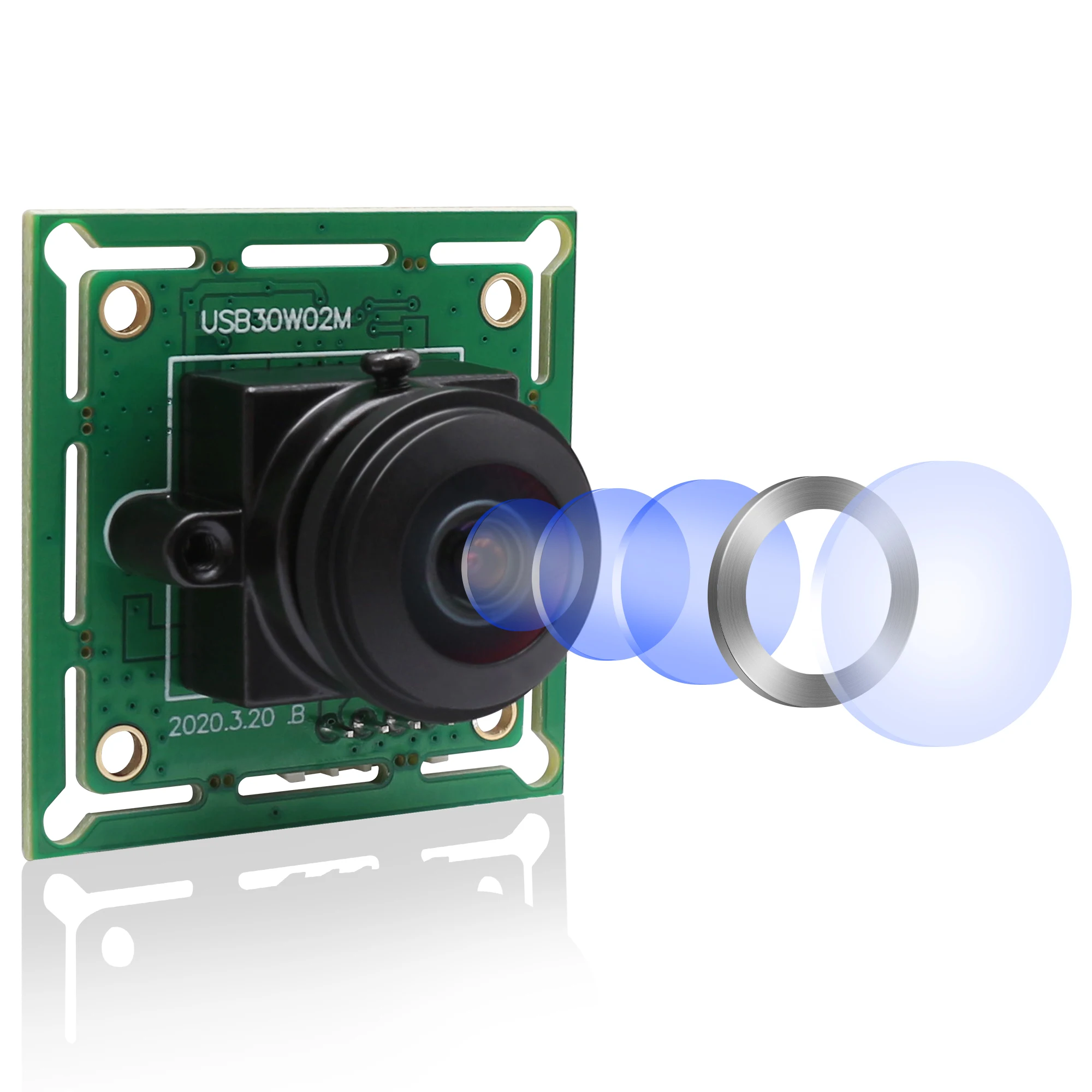

640x480 VGA Usb Camera Module 0.3mp wide angle fisheye camera board Super Mini Camera with CMOS OV7725 sensor
Wide Angle fisheye Usb Camera Module 640x480p VGA Webcam Board Adopts to 1/4 inch OV7725 CMOS Color image sensor

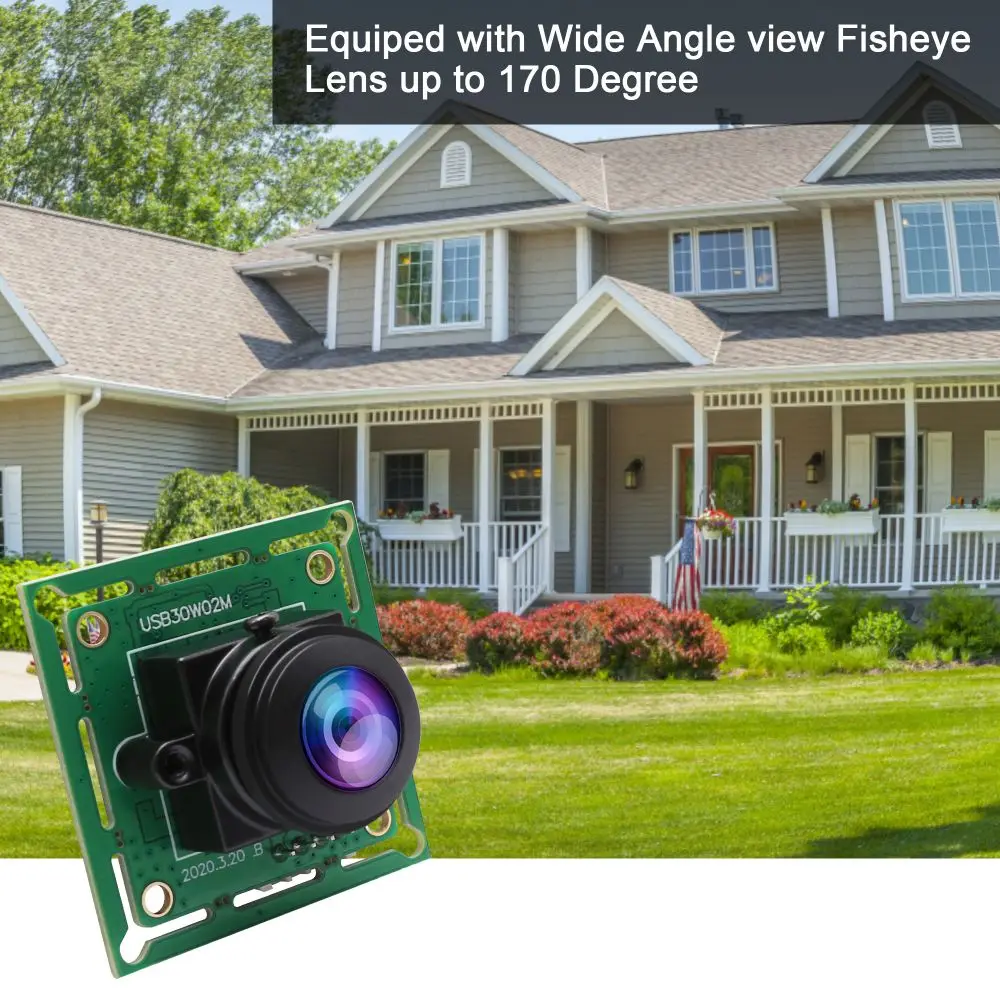

Equipped with wide angle fisheye lens up to 180dergee viewing angle for wider angle of view capturing.
With fisheye lens, 0.3MP Camera produce ultra-wide viewing image
High Speed USB with camera, plug and play in most devices, like PC, Raspberry Pi, developing board. No need to install drivers.

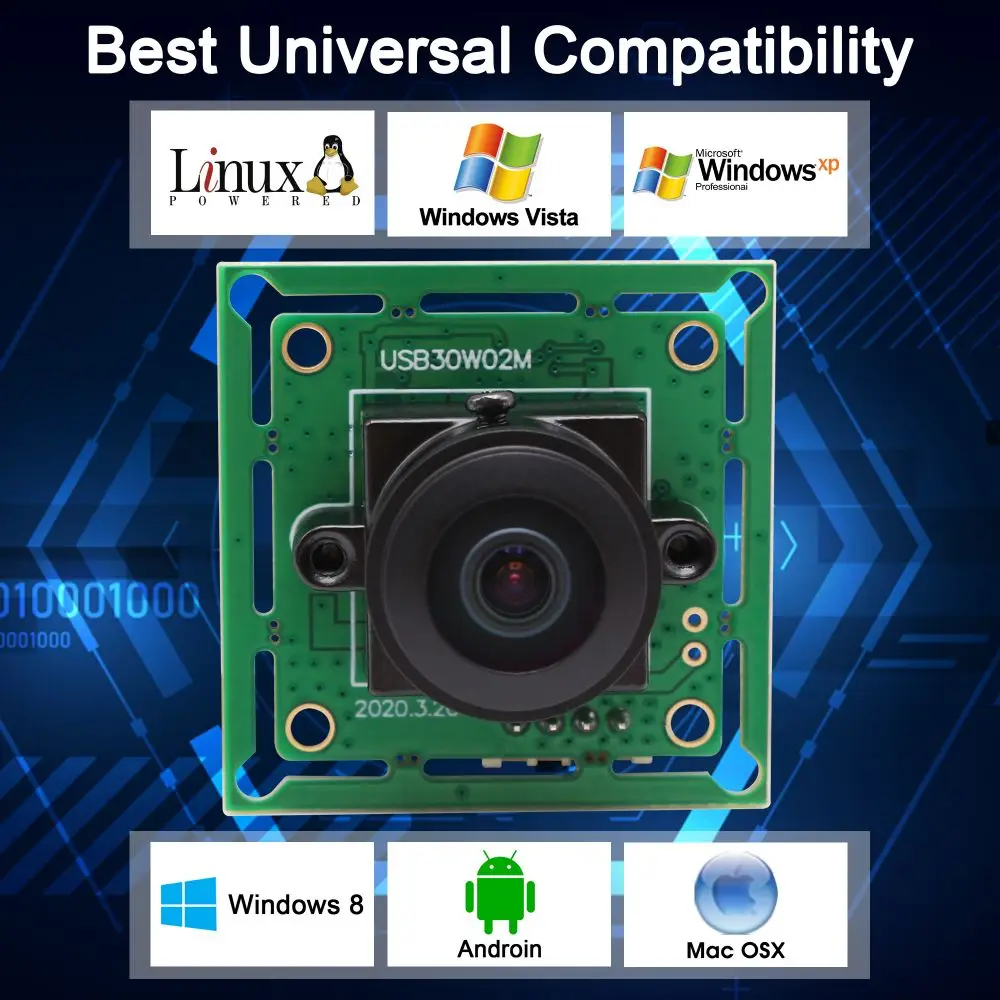

The 0.3MP Camera have best universal compatibility with most operation systems, include Linus, Windoes, Mac, Android and etc.
