Model: ELP-USB4KCAM05AF-V90
ELP IMX258 OIS USB Camera 11MP 15fps 4K 30fps Drone Camera Anti-Shake Mini Optical Image Stabilization USB Camera Autofocus With No Distortion Lens
Optical Image Stabilization OIS Camera Module with Micro Gimbal Stabilizer (MGS), ensure the picture always remains clear and stable during vibration or shaking
OIS Camera (Left) VS Non-OIS Camera (Right)
ELP Anti-Shake USB Camera With Autofocus No Distortion Lens 4K 30fps Webcam
*Based on the Anti-shake structure and autofocus motor lens, Cameras with image stabilization reduce the number of wasted shots due to shake, enhancing shooting efficiency.
*Image stabilization cameras are particularly suitable for handheld shooting, low-light environments, telephoto photography, and long exposure shots.
*Adopt 1/3.06 inch Color Sony IMX258 image sensor, the image resolution up to 11megapixels 3840x2880=, enabling more accurate color rendition and detail capture, enhancing the overall image quality.
*High Speed 11MP 2880P 15fps; 4K 2160P 30fps, well used for the scenarios that requiring fast capture of fleeting moments, such as sports photography or wildlife photography
Package Include :
1pc of 11MP Anti-Shape USB Camera Module with autofocus lens
1pc of 1meter USB Cable .
Features
-
*High Definition 11Megapixels max resolution 3840(H)*2880(V)
-
*Anti Shake - Optical Image Stabilization OIS with Micro Gimbal Stabilizer (MGS), ensure the picture always remains clear and stable during vibration or shaking
-
*Color Image Sensor Sony IMX258 CMOS 1/3.06inch
-
*High Frame Rare 4K 3840X2160 30FPS, 3840X2880 15FPS
-
* Auto Focus - Automatically focus clear at different distances, no need to adjust the lens.
-
* No Distortion Lens - With mini 90 degree No distortion Lens
-
* Adjustable Parameters - available to adjust parameters accoding to your needs, like Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, WhiteBalance, Exposure.
-
* Super mini camera - 38*38mm board size and lightweight for many Portable Devices
-
*High speed USB2.0 Interface -Plug and play ,no need any driver ,just plug to USB Port and work with the camera video software .
-
* OTG Support -Can work with Android development board, mobile via OTG Cable .
-
* High Compatibility- compatible with operation systems Android, Windows, Linux. Mac OS
-
* Wide Application: Vehicle monitoring,Road monitoring,Sports photography, Industrial Inspection, ICT Testing Machine, Quality Control, 3D Scanning, Remote Inspection, Crop Monitoring, Precision Agriculture, Robotic Picking, Livestock monitoring, Drone etc.
Datasheet
|
Model
|
ELP-USB4KCAM05AF-V90
|
|
Sensor
|
IMX258
|
|
Max. Resolution
|
3840(H) *2880 (V)
|
|
Pixels Size |
1.4µmx1.4µm |
|
Default Resolution |
3840(H)*2160(V) |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
3840x2880@15fpsMJPEG / 3840x2160@ 30fpsMJPEG
2592x1944@ 30fpsMJPEG / 2048x1536@ 30fpsMJPEG
1600x1200@30fpsMJPEG /1920x1080@ 30fpsMJPEG
1280x960@30fpsMJPEG / 1280x720@ 30fpsMJPEG
800x600@ 30fpsMJPEG / 640x480@ 30fpsMJPEG
3840x2880@1fpsYUY2 / 3840x2160@ 1fpsYUY2
2592x1944@1fpsYUY2 /2048x1536@ 3fpsYUY2
1600x1200@5fpsYUY2 / 1920x1080@ 5fpsYUY2
1280x960@5fpsYUY2 / 1280x720@ 10fpsYUY2
800x600@20fpsYUY2 / 640x480@30fpsYUY2
|
|
Center Definition
|
800 LW/ PH(Center)
|
|
S/N (Signal Noise Ratio) |
24dB |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Mini illumination |
0.1 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Autofocus |
Support |
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Parameter
|
Autofocus OIS Lens No Distortion
FOV: 90Degree
IR filter: 650±10nm
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
240mA
|
|
Storage Temperature
|
-10～75℃
|
|
Working temperature
|
-10～65℃
|
|
Board size /Weight
|
38mm × 38mm / 100g
|
|
Cable equipments
|
Stander 1m (optional 2m ,3m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|
OIS USB Camera Optical Image Stabilization Autofocus 4K 30fps
Optica Image stabilization camera reduce the number of wasted shots due to shake, enhancing shooting efficiency.

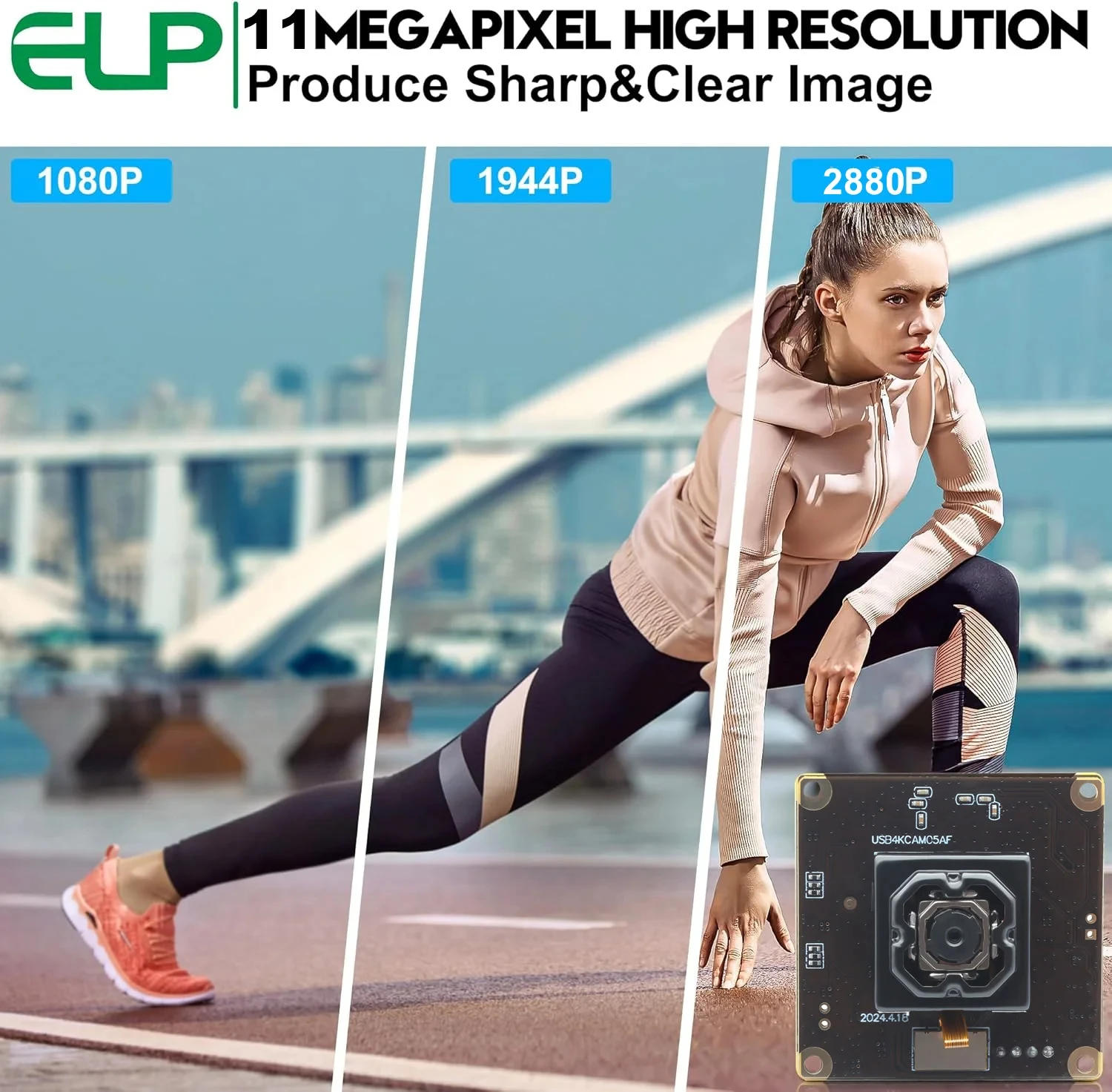

High Definition 11MP 4K USB Webcam- CMOS IMX258 Sensor Max Resolution up to 3840*2880 for Sharper and More Detailed Images

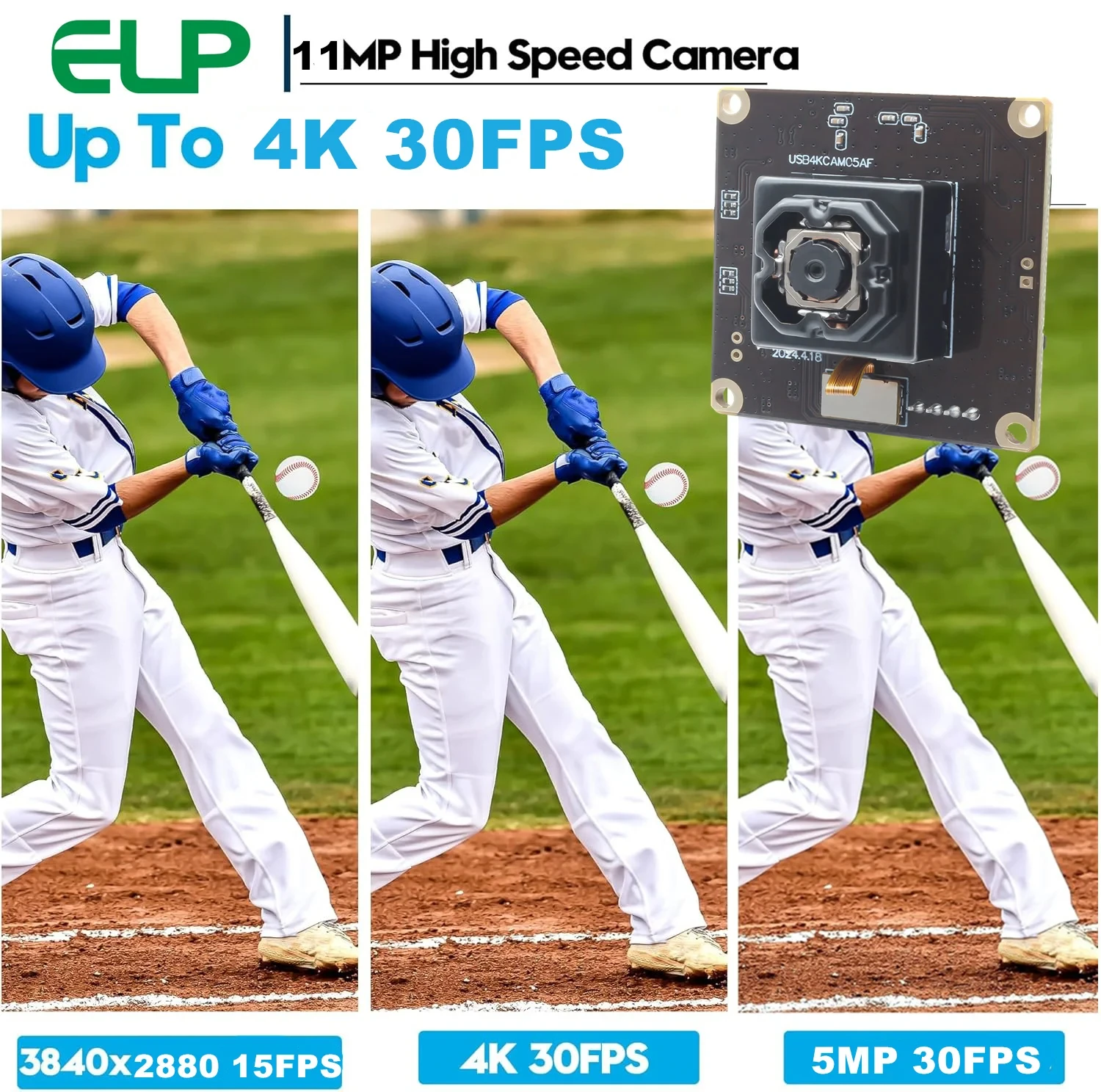

High Frame Rate USB Computer Camera- 4K 3840X2160 30FPS, 5MP 2592X1944 30FPS 3840X2880 15FPS
Autofocus webcam automatically focus image clear at distance

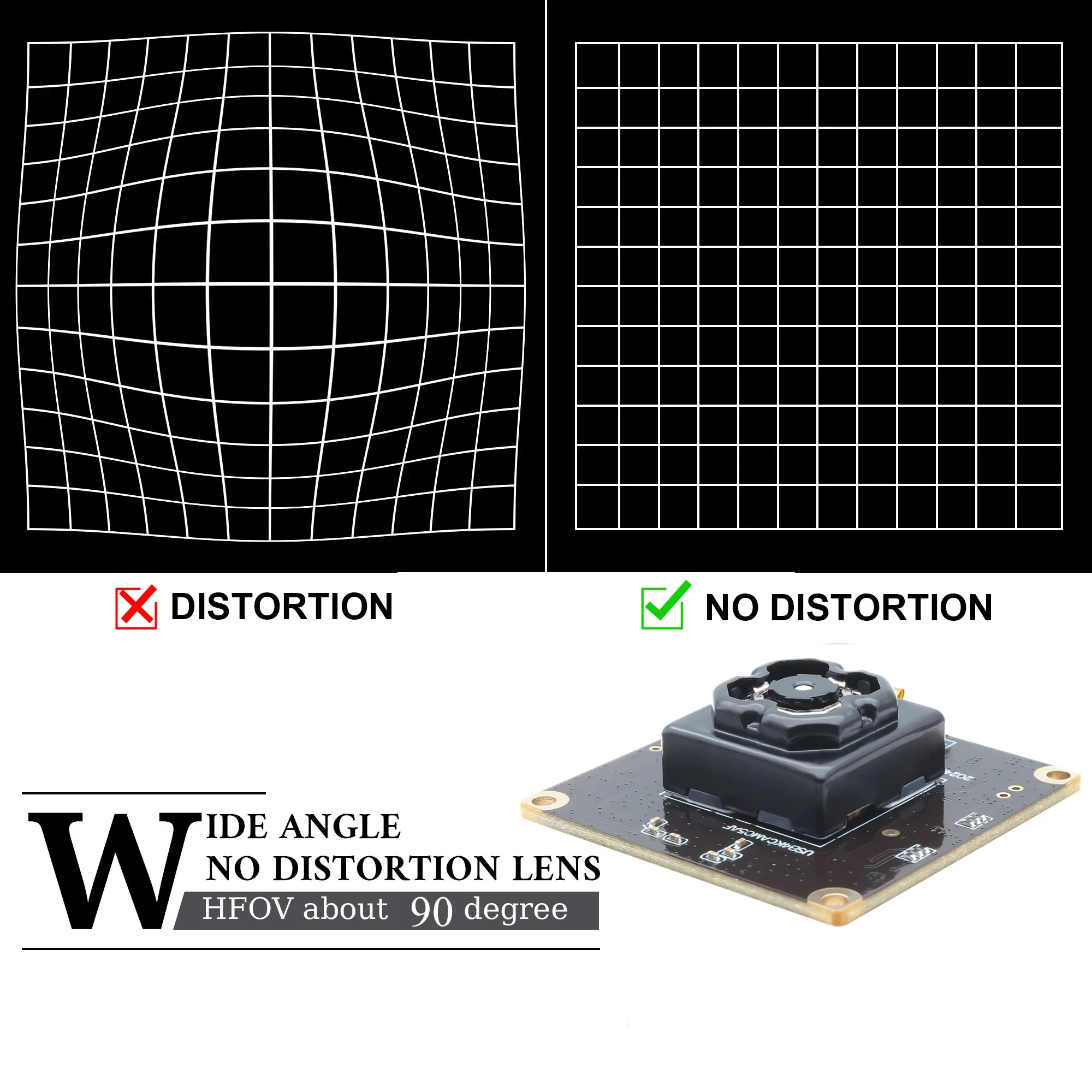

No Distortion lens camera offer the image without any fisheye .
Adjustable parameters ,allow clients to adjust the parameters according to your requirements and working environment .

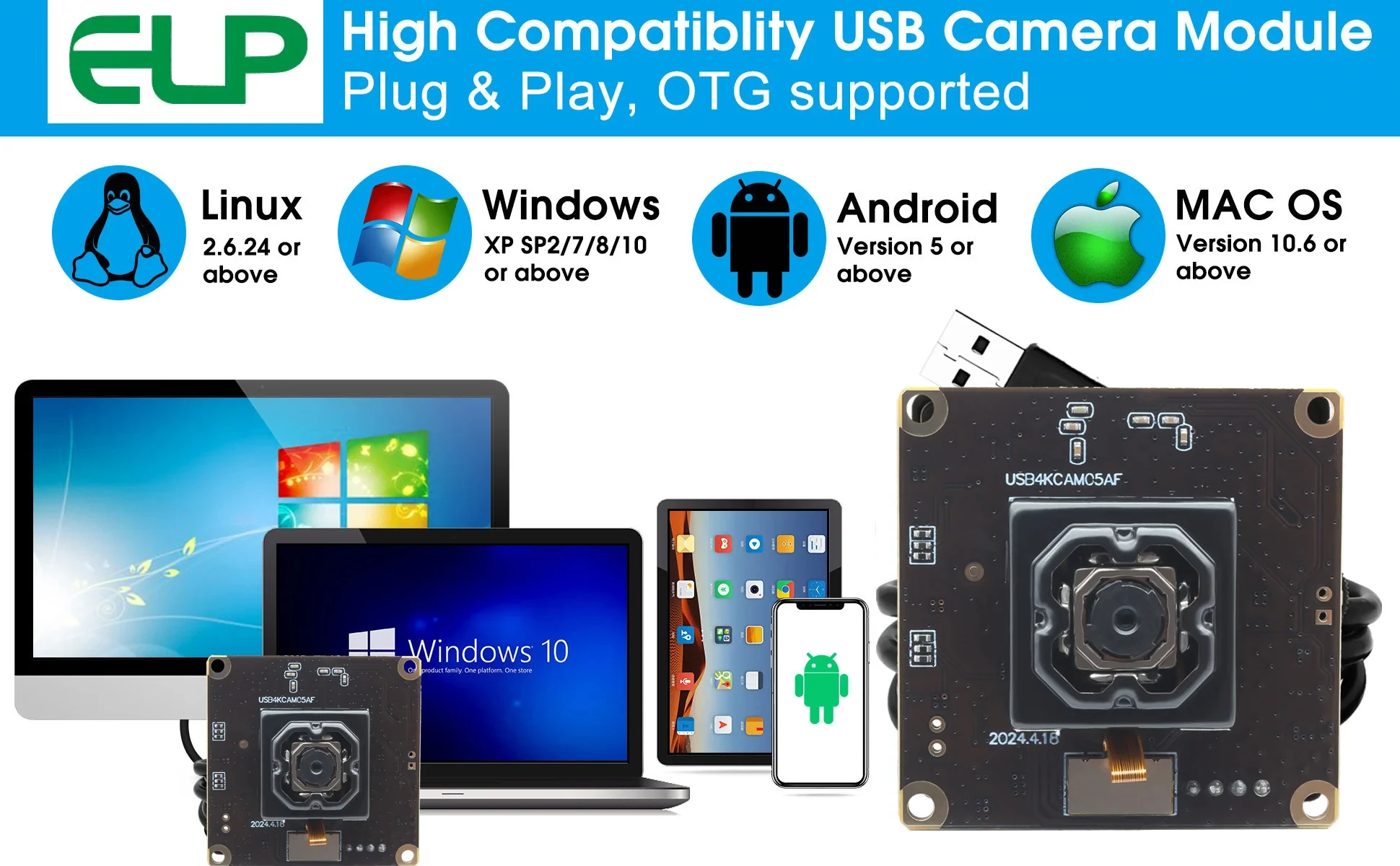

High Compatibility ,USB2.0 Interface plug and play ,no need driver ,work with Linux Windows, Android ,Mac OS .
*UVC Complicant ,Plug and Play for Computer, Laptop. Compatible with Windows, Linux, MacOS, Android, and etc.

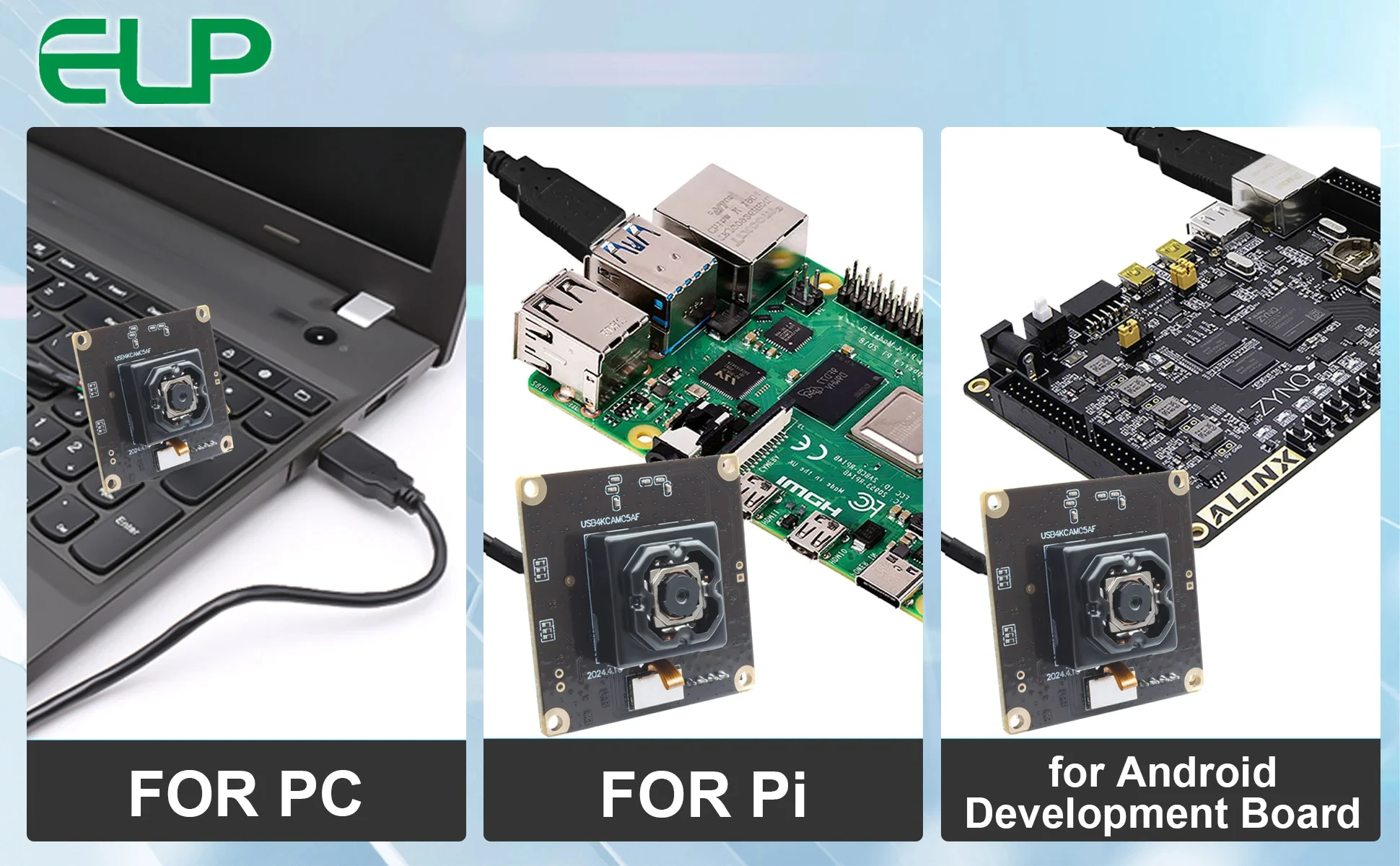

*Works with your computer's default video program, also available to secondary development in Linux Ubuntu, Raspberry Pi, Jeston Nano and etc.
*OTG support, Easy connect to Android device like Tablet,Smartphone,Mobile or development board via OTG cable.
Mini 38mmx38mm camera board can be installed in most hidden and narrow position:
Optical Image Stabilization camera with mini dimension and high speed output ,well used for fast moving sports, Vehicle, Driving systems,and etc.
