Products Description
ELP 110degree No Distortion 260fps WebcamWide Angle 2MP 1080P Camera With USB2.0 CMOS OV4689 Mini Camera Module High Speed
Main Features
*1080P 60fps HD USB2.0 Camera,
*Equiped with Standard No distortion lens ,wide angle 110 degree
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P or Support IR Cut
*CMOS OV4689 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specifications
|
Model
|
ELP-USBFHD08S-H110
|
|
Sensor
|
OV4689
|
|
Lens Size
|
1/3 inch
|
|
Pixel Size
|
2.0µm X 2.0µm
|
|
image area
|
5440 µm x 3072 µm
|
|
Max. Resolution
|
1280(H)X720(V)
|
|
Compression format
|
MJPEG / YUV2(YUYV)
|
|
Resolution & frame
|
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360MJPEG@ 260fps
|
|
S/N Ratio
|
38.3dB
|
|
Dynamic Range
|
64.6dB
|
|
Sensitivity
|
1900mV/lux-sec@550nm
|
|
Mini illumination
|
0. 1lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard FOV110 degree no distortion lens,
optional 2.8/3.6/6/8/12mm lens, FOV 170/180Degree,
|
|
Power supply
|
USB BUS POWER
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~185mA
|
|
Working temperature
|
0~70℃
|
|
Board size /Weight
|
38*38mm
|
|
Cable
|
Standard 1M
|
|
Operating system request
|
Win XP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Frame rate read by our testing software- AMCAP

2MP USB Camera Module High Frame Rate 260fps Webcam,1080P USB Camera for Industrial,Embedded Webcam USB for ATM Machine, Robot, PC, Kiosk

-
【HD 1080P WEBCAM】2 megapixel USB webcam with high quality no distortion lens,up to1920X1080 high HD resolution.

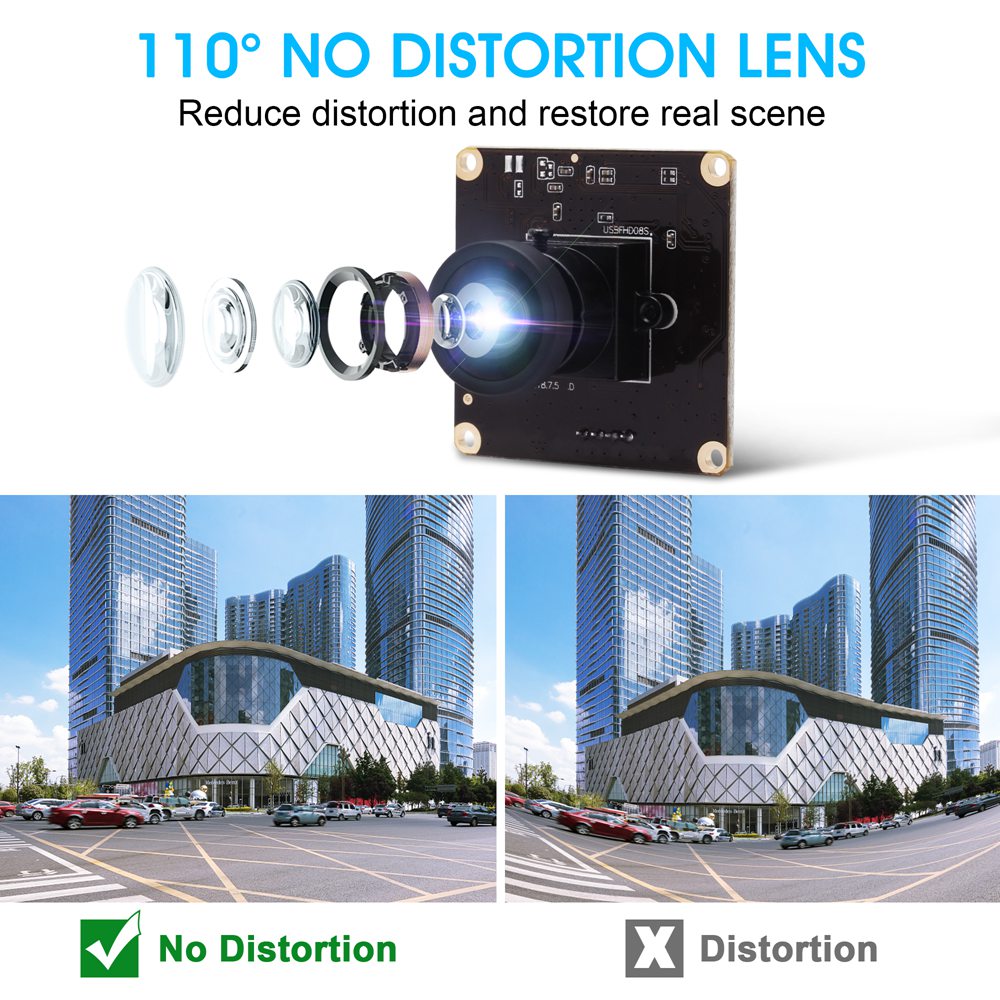

Wide Angle Webcam Full HD 1080P USB Camera ,No Distortion Camera Module 110degree ,reduce distortion and restore real scene .
-
【HIGH FRAME 260FPS WEBCAM】2MP HD USB webcam&video recording get a sharper and smoother picture with more pixels and more frames included1920(H)x1080(V)pixels1080P@60fps,720P@120fps,360P@260fps(MAX),the picture quality is realistic&pure and capture the smallest details with 260fps High frame mini camera.
-
【PLUG AND PLAY】This webcam is literally plug and play. Enjoy easy USB 2.0 connectivity to PCs or Macs and seamless compatibility with your family video apps.Easy to use,easy to install.
-
【WIDE COMPATIBLITY】This webcam works with Win XP/Vista/Win7/Win8,Linux with UVC（above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.
-

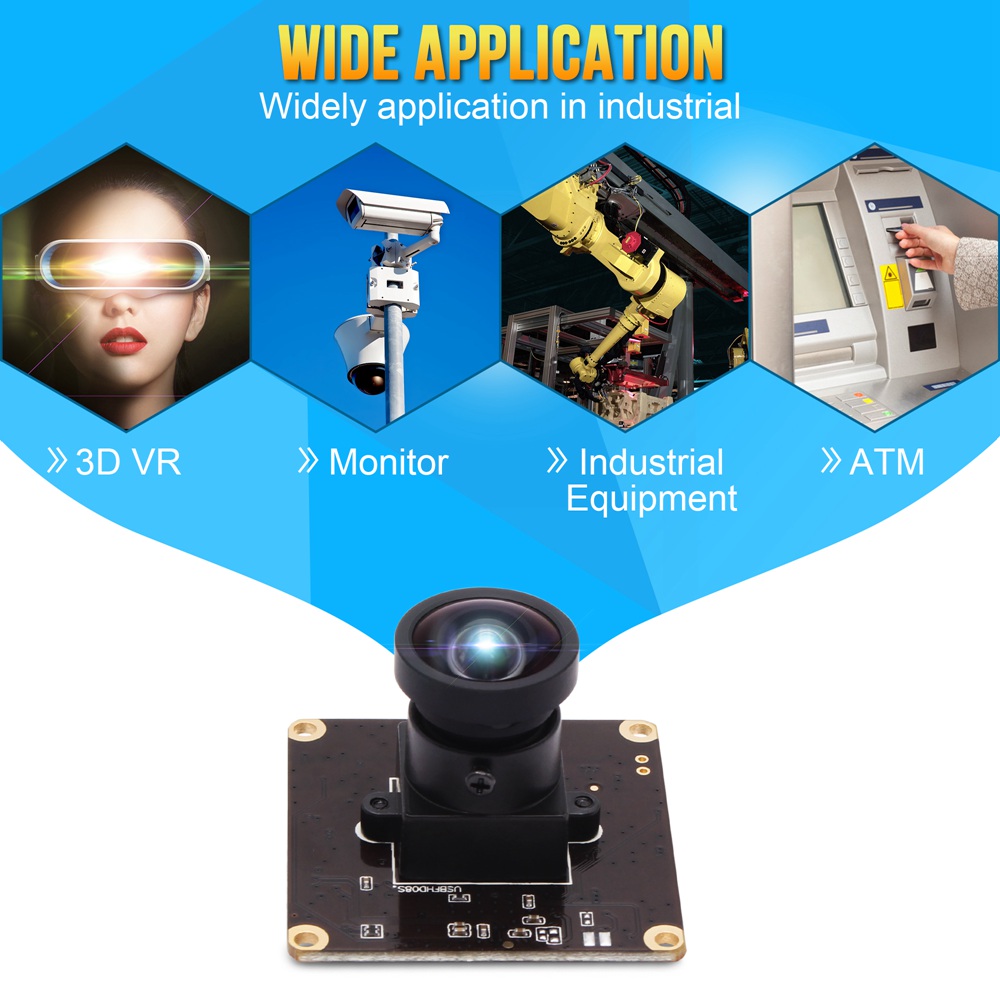

2MP compact camera for all kinds of machine vision,Wide application for 3D VR,Robot,Virtual Dressing Mirror,Real-time Monitoring,etc.
