Products Description
ELP 12MP Autofocus USB Camera Module 4K 30fps 1080P 60fps Mini UVC 300ms PDAF Fast Auto Focus Camera Board With IMX362 Sensor
Package include :
1 Piece of 12MP IMX362 USB Camera with 65Degree AF Lens ,
1 piece of USB Cable supplied.
Optional :
Camera Board (Model: ELP-USB12MP02AF-V65 ),
Camera with casing (Model: ELP-USB12MP02AF-KV65),
White LED Camera (Model: ELP-USB12MP02AF-KV65W ),

Features
-

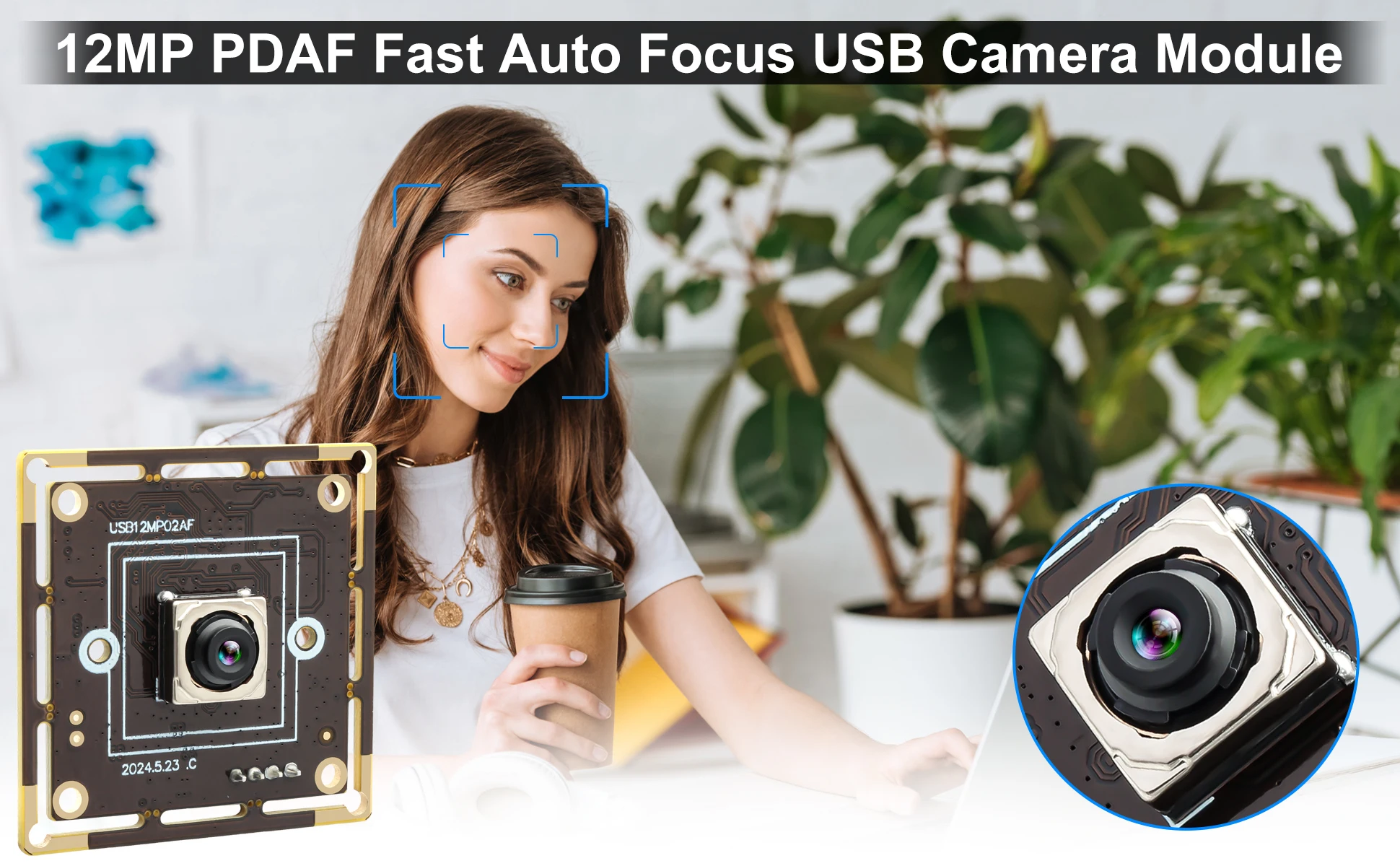

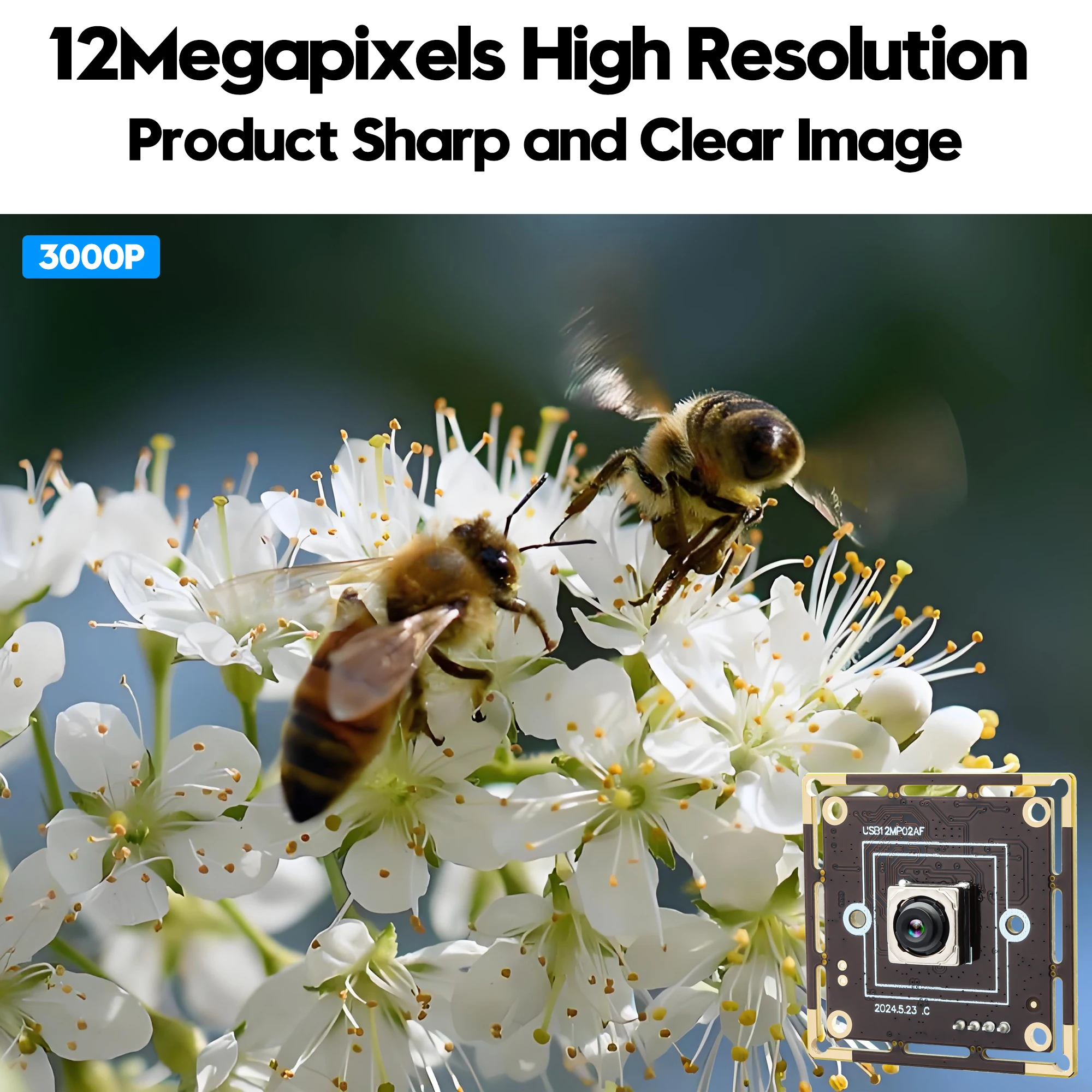

12Megapixel USB Camera Module, high resolution, Max resolution 4000X3000.
-

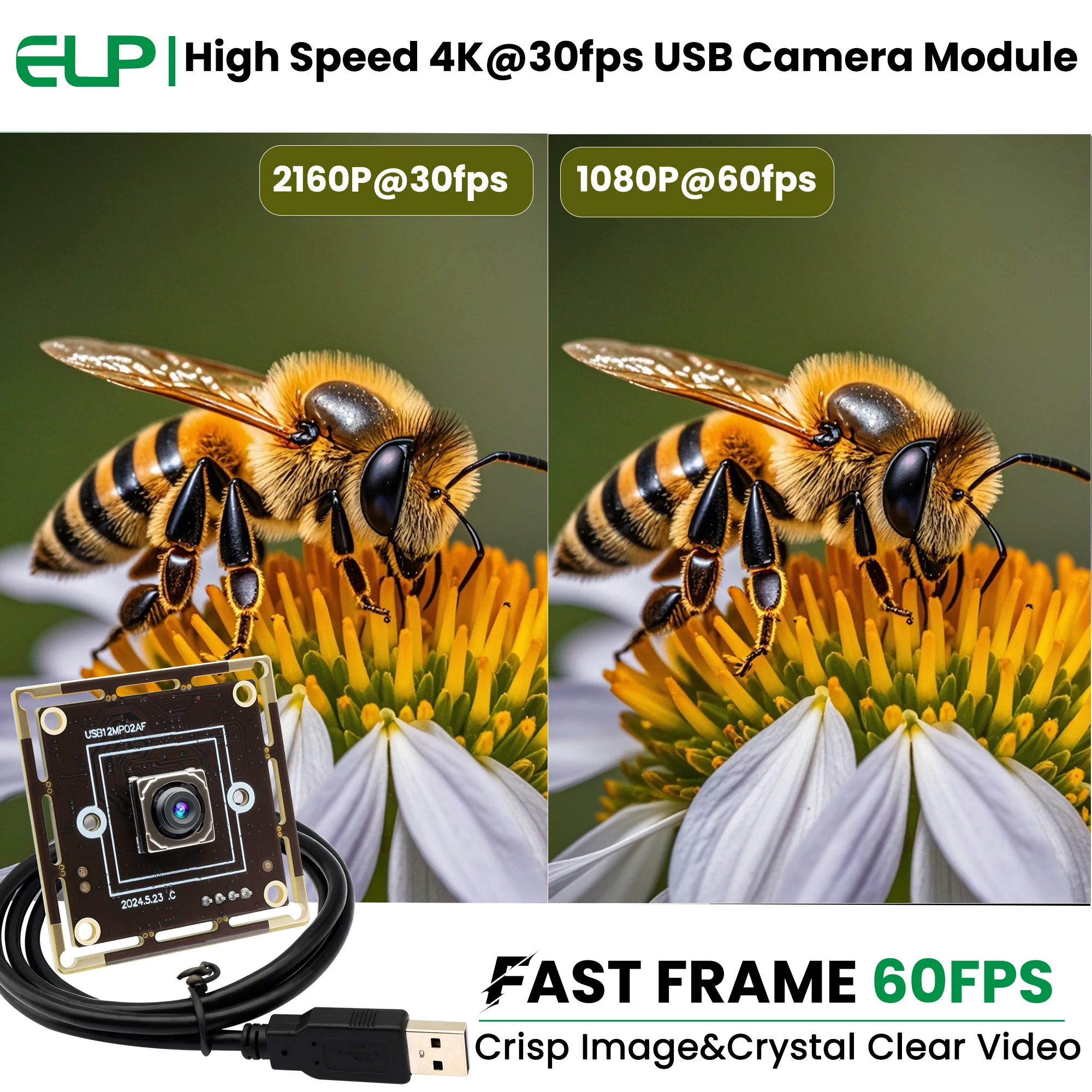

Fast frame 4K@30fps, 1080P@60fps for quick moving objects capturing.
-
1/2.55” IMX362 sensor for high-quality image and low power consumption.
-

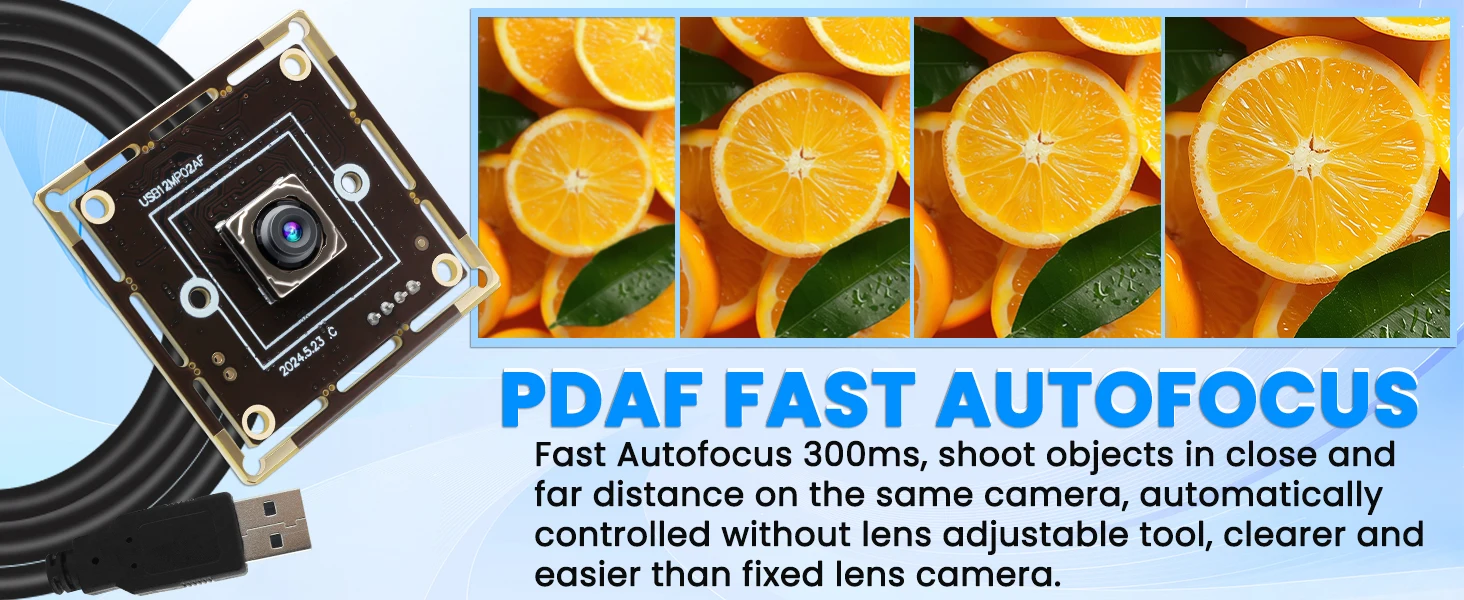

Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
-
Focus Speed About 200ms at 60fps/ 300ms at 30fps.
-
HD Megapixel 65degree AF low distortion lens, Focus: 3.3mm, DFOV: about 76 Degree , HFOV: about 65 Degree.
-
Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional.
-
High speed USB 2.0 interface for high resolution PC camera interface.
-

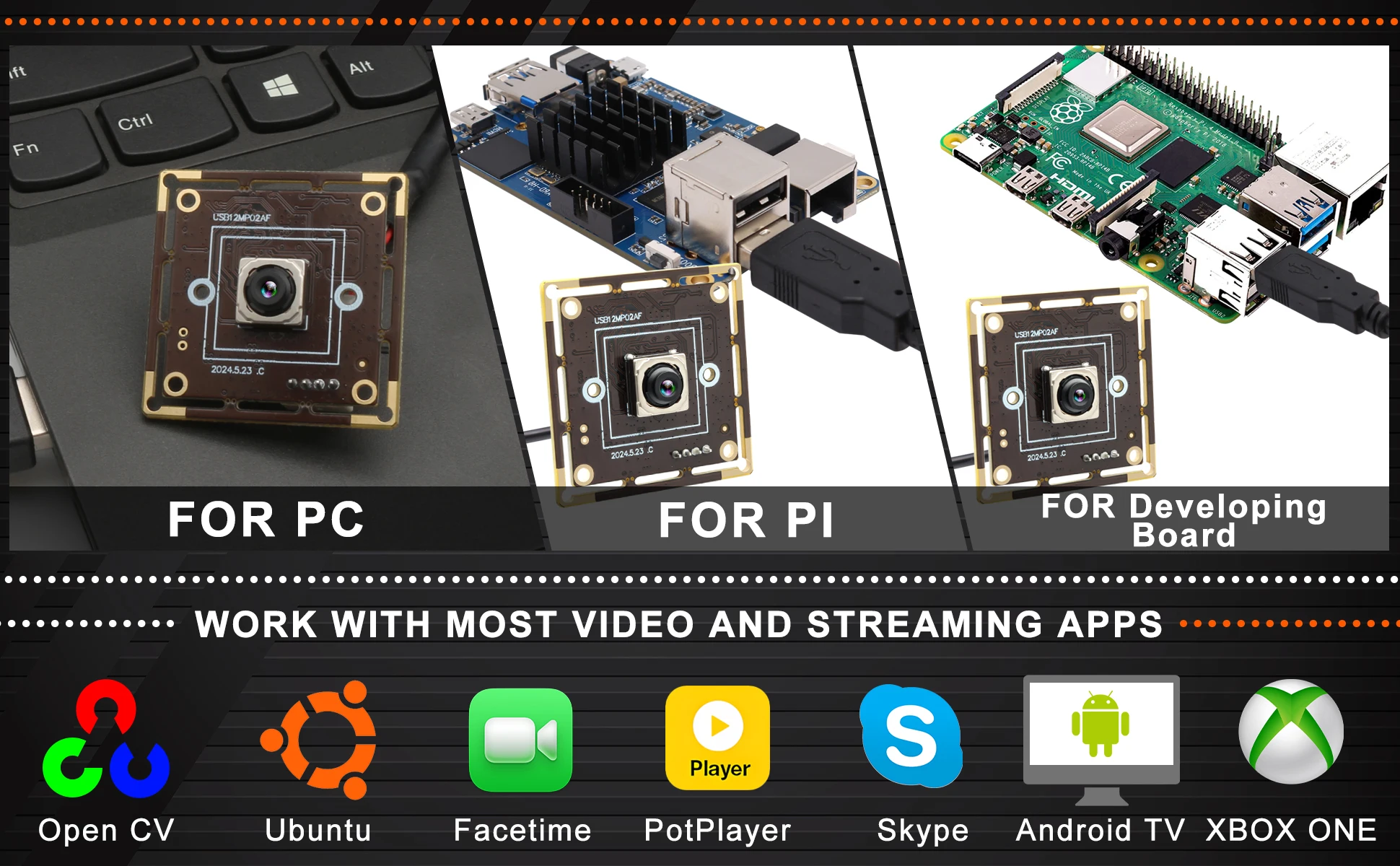

USB Interface , Plug & Play. No need any drivers. Just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.

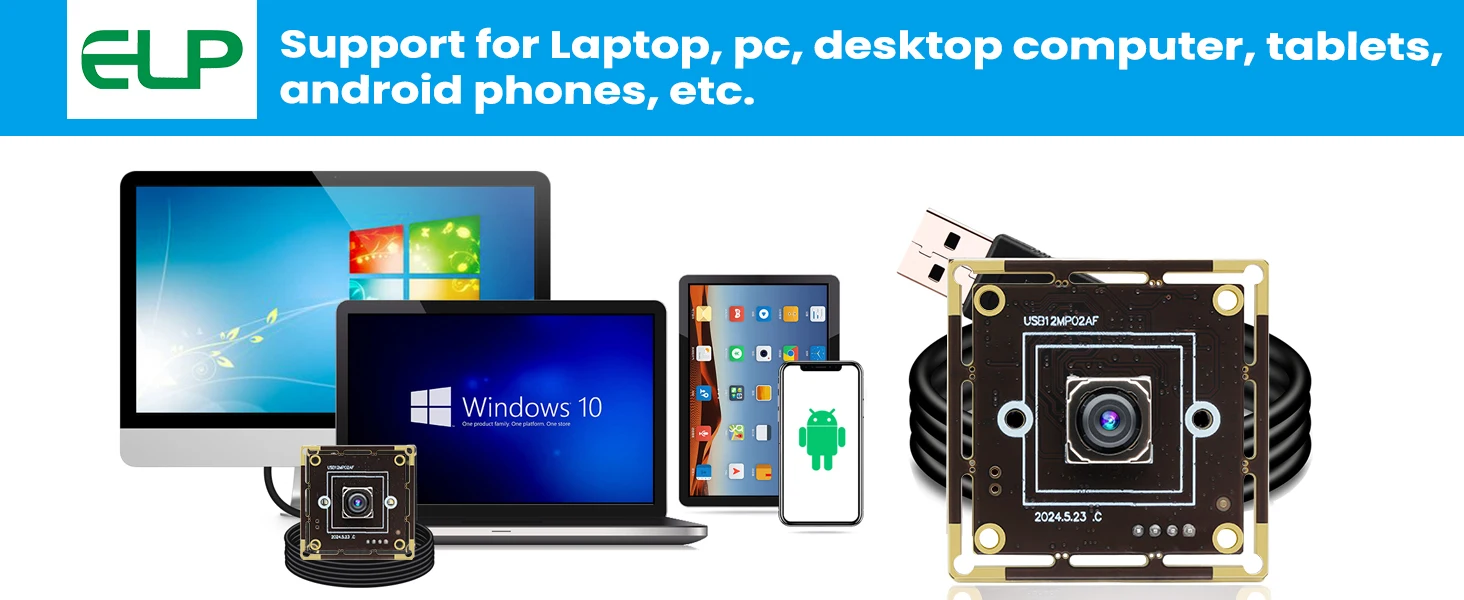

*UVC-compliant, Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
Specification
|
Model
|
ELP-USB12MP02AF-V65 (without Case)
ELP-USB12MP02AF-KV65 (with Case)
ELP-USB12MP02AF-KV65W (with Case and white LED)
|
|
Sensor
|
Sony IMX362 (1/2.3inch )
|
|
Sensor Size |
1/2.55inch |
|
Pixel Size |
1.4umx1.4um |
|
Max. Resolution
|
4000(H) X 3000(V) 12Megapixel
|
|
Image Area |
6.8mmx5.67mm |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Auto Focus Mode |
PDAF Mode |
|
Focus Speed |
About 200ms at 60fps/300ms at 30fps |
|
Resolution & frame
|
4000 x 3000 MJPEG@15fps /3840 x 2160 MJPEG@30fps
2592 x 1944 MJPEG@30fps YUY2@3fps
2560 x 1440MJPEG@30fps YUY2@3fps
2048 x 1536 MJPEG@30fps YUY2@3fps
1920 x 1080 MJPEG@60fps YUY2@5fps
1600 x 1200 MJPEG@45fps YUY2@5fps
1280x 1024 MJPEG@60fps YUY2@10fps
1280 x 720 MJPEG@60fps YUY2@10fps
800 x 600 MJPEG@45fps YUY2@25fps
640 x 480 MJPEG@45fps YUY2@25fps
640 x 360 MJPEG@60fps
320 x 240 MJPEG@45fps YUY2@25fps
|
|
Mini illumination |
0.5 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Parameter
|
AF LENS Focus:3.3mm,DFOV:about 76Degree, HFOV:about 65Degree
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
160mA~180mA
|
|
Storage Temperature
|
-20～60℃
|
|
Working temperature
|
-20～85℃
|
|

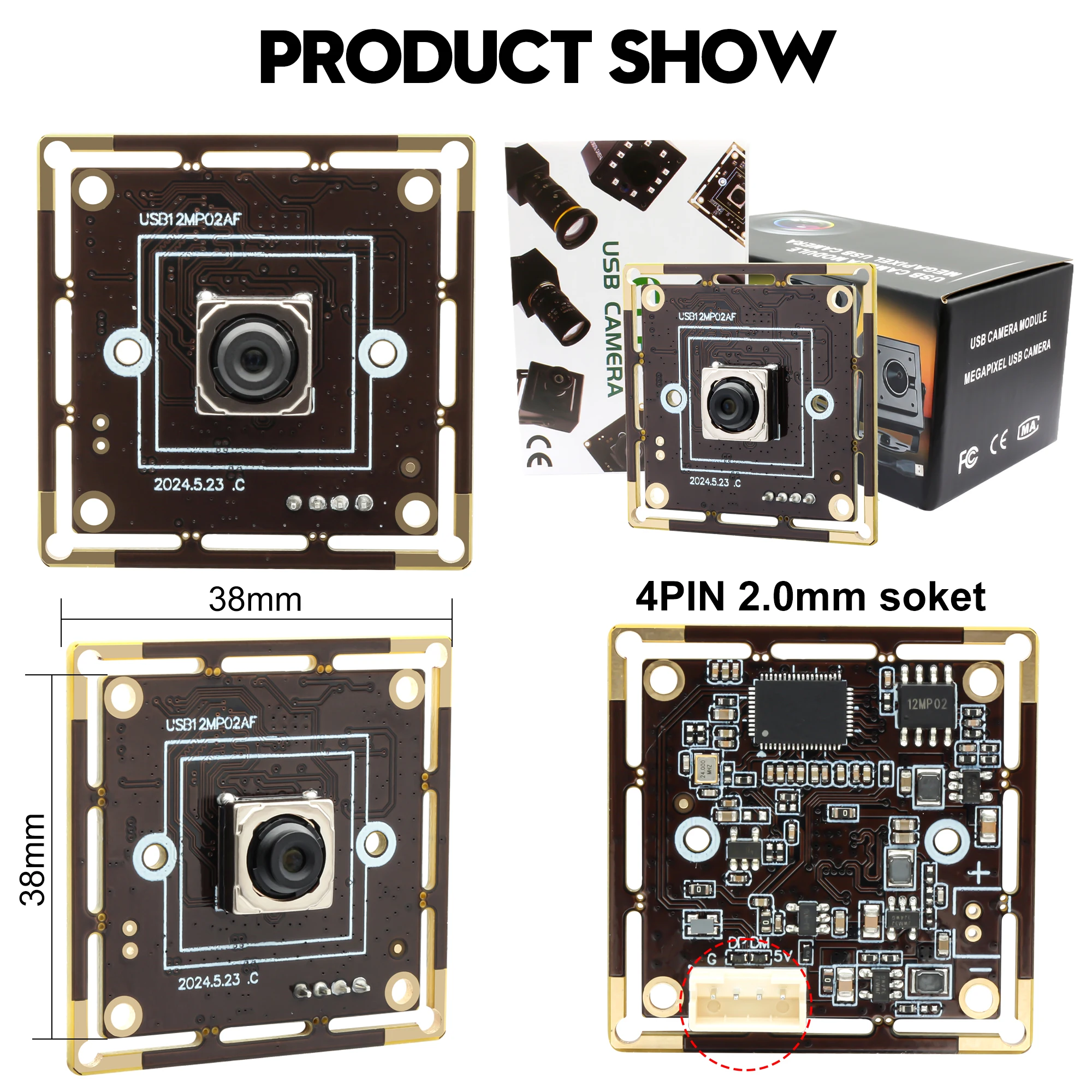

Board size /Weight
|
38mm × 38mm, optional 32*32mm / 100g
|
|
Cable equipments
|
Stander 1m (optional 2m ,3m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
C
ApplicationWide Applications: This tiny camera(38*38mm) is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other machine vision .
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
