ELP 180 Degree Fisheye Lens 2MP 1080P FULL HD Camera Module USB2.0 OV2710 COLOR SENSOR
  • ELP 180 Degree Fisheye Lens 2MP 1080P FULL HD Camera Module USB2.0 OV2710 COLOR SENSOR
  • ELP 180 Degree Fisheye Lens 2MP 1080P FULL HD Camera Module USB2.0 OV2710 COLOR SENSOR

ELP 180 Degree Fisheye Lens 2MP 1080P FULL HD Camera Module USB2.0 OV2710 COLOR SENSOR

  • Model: ELP-USBFHD01M-BL180
  • Availability: In stock

$45.11

Quantity:
 inquiry Now

Products Description

ELP 180 DEGREE FISHEYE LENS FULL HD 1080P USB CAMERA MODULE USB2.0 OV2710 COLOR SENSOR MJPEG



Model:ELP-USBFHD01M-BL180   is 2.0megapixel 1920(H)X1080(V) High resolution USB cameras with wide angle fisheye lens FOV 170Degree for Linux Android Windows etc. OS system.VGA@120fps

Main Features



 *High Speed 1080P HD USB Camera
*Equiped with wide angle fisheye lens FOV 180Degree
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.



Specification



Models

ELP-USBFHD01M-BL180

Sensor

1/2.7" CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x 1024 (V) pixels   MJPEG 30fps       YUY2 6fps
1280 (H) x  720 (V) pixels    MJPEG 60fps       YUY2 9fps
1024 (H) x  768 (V) pixels    MJPEG 30fps       YUY2 9fps
800 (H)   x  600 (V) pixels    MJPEG 60fps       YUY2 21fps
640 (H)   x  480 (V) pixels    MJPEG 120fps     YUY2 30fps
352(H)    x  288 (V) pixels    MJPEG 120fps     YUY2 30fps
320 (H)   x  240 (V) pixels    MJPEG 120fps     YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

Lens

180degree fisheye lens,wide angle

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

41*41mm

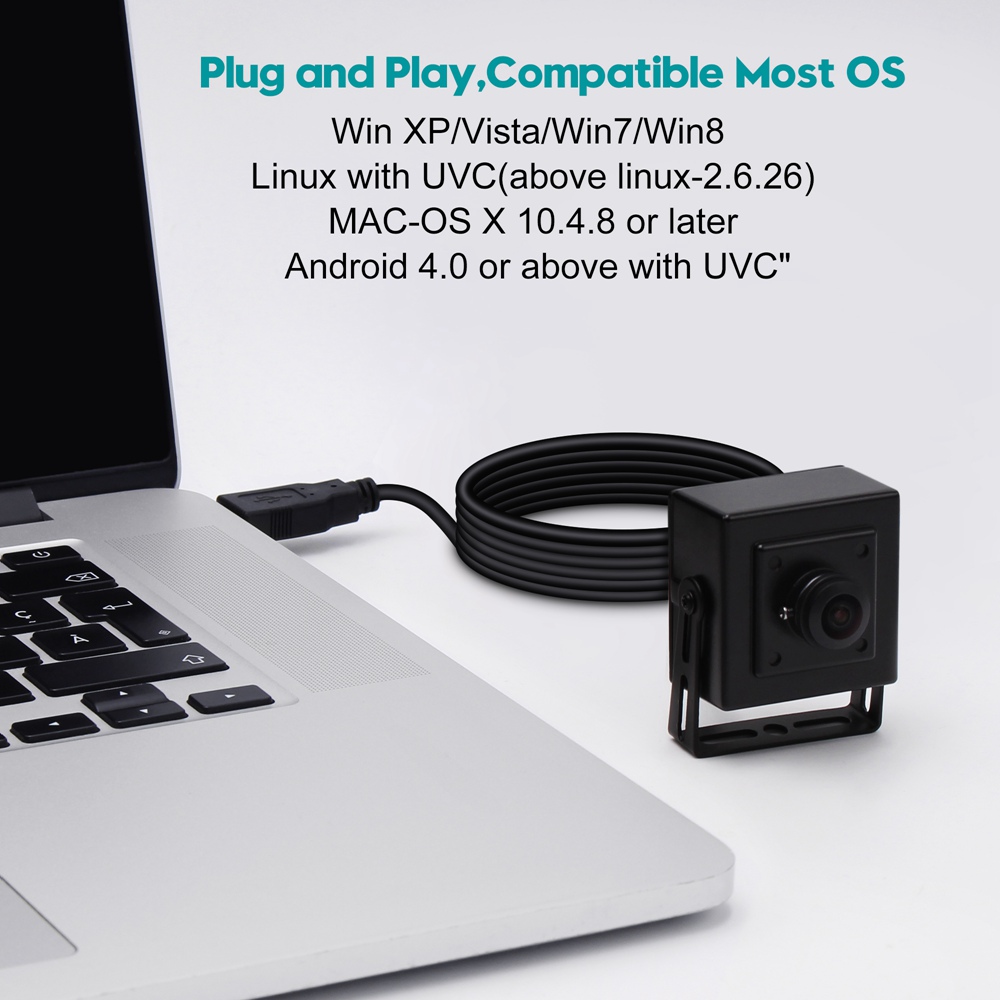

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
