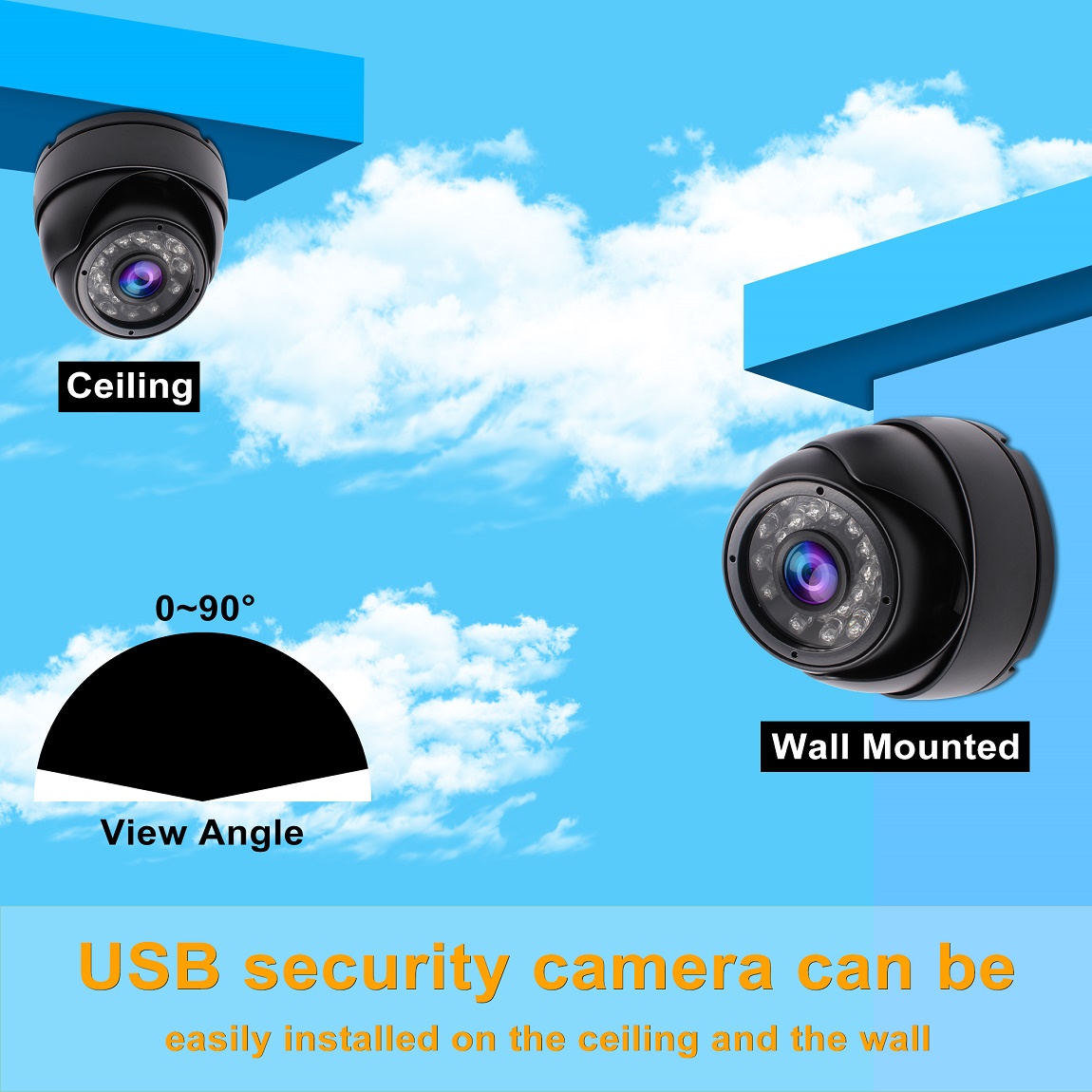

ELP 1MP Infrared Camera Night Vision IR Home Security Camera Waterproof Casing 720P HD Audio Video USB Camera With Microphone
Package includes:
1PC 1MP USB camera with 24pcs IR LED, Dome casing, Fixed focus lens,
1PC usb cable (Cable optional)
Main Features
*1MP HD USB Camera 1280X720P
*Equiped with Standard 3.6mm lens, other lens optional to change
*Support microphone, audio record function offered.
*Night Vision camera with 24pcs IR LED
*Inbuilt IR Cut switch automatically between day and night mode.
*CMOS OV9712 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications.
*USB Interface, plug and play, free driver.
*UVC compliant, work in Linux, Windows XP, WIN CE, MAC, SP2 or above.
Specification
|
Model
|
ELP-USB100W04H-DL36
|
|
Sensor
|
OV9712
|
|
Lens Size
|
1/4 inch
|
|
Pixel Size
|
3.0um X 3.0um
|
|
image area
|
3888 µm x 2430 µm |
|
Max. Resolution
|
1280(H)X720(V)
|
|
Compression format
|
H264 /MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
H264：
640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps
MJPEG：
640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps
YUV：3
20X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 10 fps
|
|
S/N Ratio
|
40dB
|
|
Dynamic Range
|
69dB
|
|
Sensitivity
|
3.7V/lux-sec@550nm
|
|
Mini illumination
|
0. 1lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
Support OTG Protocol
|
USB2.0 OTG
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree
|
|
Digital audio
|
High quality digital MIC, support single, dual channel
|
|
IR CUT Connector
|
Support 2P-1.25mm socket
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Power supply
|
DC5V
|
|
Operating Voltage
|
120mA~180mA
|
|
Working current
|
-10～70℃
|
|
Working temperature
|
-20～85℃
|
|
Board size /Weight
|
38X38mm（Compatible 32X32mm）/ about 30g
|
|
Cable
|
Standard 5M / optional 1m/2M,3M,5M
|
|
Operating system request
|
Win7 Win8
Linux 2.6 or above
Android 4.0 or above
|
