ELP 2Megapixel 1080P Webcam Full HD 60fps, 360P 260fps OV4689 CMOS Senser Manual Focus 2.8-12mm Varifocal Industrial Camera USB2.0 UVC
Features
*2MP USB Camera ,max resolution 1920x1080
*High Frame rate camera module ,1080P 60fps, 720P 120fps, 640x360@ 260fps max
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P
*CMOS OV4689 sensor for high quality image and low power consumption.
*High quality lens, true and color image.* M12 Mount varifocal lens ,
* Optical zoom Camera use 2.8-12mm lens ,support to manual adjust focal length ,manual zoom
*High speed USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications.(38*38mm)
*Camera with UVC, compatible with Linux, Windows XP, WIN CE, MAC, SP2 or above.
Datasheet/Specifications
|
Model
|
ELP-USBFHD08S-BFV(M12 2.8-12mm lens)
|
|
Sensor
|
OV4689
|
|
Lens Size
|
1/3 inch
|
|
Pixel Size
|
2.0µm X 2.0µm
|
|
image area
|
5440 µm x 3072 µm
|
|
Max. Resolution
|
1280(H)X720(V)
|
|
Compression format
|
MJPEG / YUV2(YUYV)
|
|
Resolution & frame
|
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360MJPEG@ 260fps
|
|
S/N Ratio
|
38.3dB
|
|
Dynamic Range
|
64.6dB
|
|
Sensitivity
|
1900mV/lux-sec@550nm
|
|
Mini illumination
|
0. 1lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard 2.8-12mm lens M12 Mount
|
|
Power supply
|
USB BUS POWER
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~185mA
|
|
Working temperature
|
0~70℃
|
|
Board size /Weight
|
38*38mm
|
|
Cable
|
Standard 3M (Optional 2m,3m,5m )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|

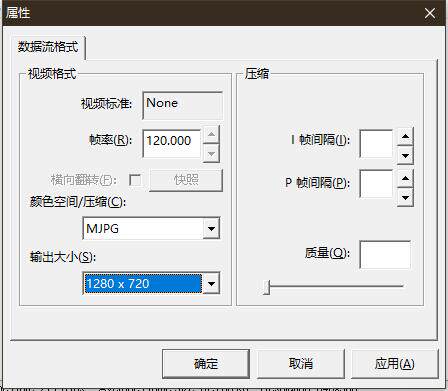

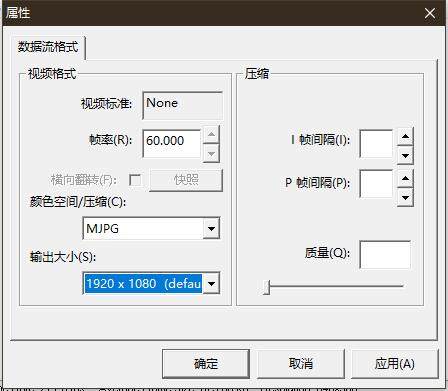

Frame rate read by our testing software- AMCAP
