Products Description
ELP 48MP Fast Autofocus USB Camera Module with 70degree No Distortion Lens for Computer Mini UVC USB2.0 Industrial Webcam Board 8000 * 6000 USB with Camera for Laptop PC Raspberry pi Jetson Nano
Package include :
1 Piece of 48MP USB Camera with mini lens, 1m USB Cable
Features
*Ultra HD 8000X6000 High Resolution 48MP USB Camera.
*High Speed 4K 3840X2160 @ 30fps HD USB Camera,
*Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.
*Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.
*With industrial grade high quality sensor GM1 Sensor
*Super Image reality, real color reproduction, without interpolation.
*UVC Free Driver , Plug and Play, easily used on different systems.
*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

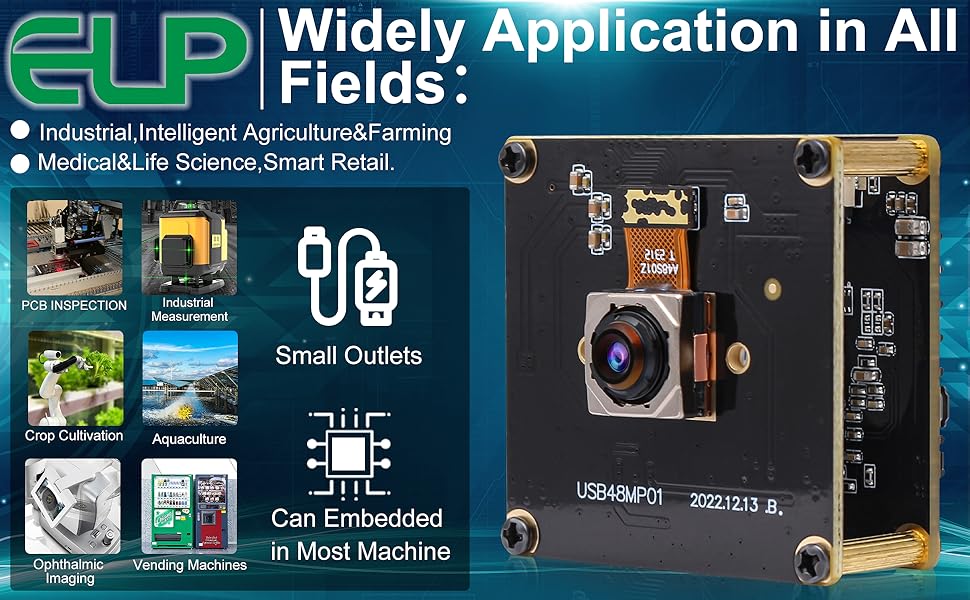

*Widely application :Online class /live broadcast, high-definition photography, face recognition, document scanning, ID Card/passpord scanning and etc
Specification
|
Model
|
ELP-USB48MP01-AF70
|
|
Sensor
|
GM1 Image Sensor
|
|
Max. Resolution
|
8000(H)*6000(V)
|
|
Lens Size |
1/2inch (4:3) |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
8000x6000 @ 5fps MJPEG / 4000x3000 @ 15fps MJPEG
3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG
1280x720 @ 30fps MJPEG
|
|
Surface Mount Technology |
SMT |
|
Focus Speed |
AF, Autofocus Fast focus at about 200ms |
|
Center Definition
|
1000 LW/ PH(Center)
|
|
S/N (Signal Noise Ratio) |
30dB |
|
Dynamic Range |
82dB |
|
Sensitivity |
1.4 V/lux-sec@550nm |
|
Mini illumination |
0.3 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Parameter
|
Size 1/2
DFOV About 82 degree
HFOV About 70 degree
Mount M8.15 *P0.35
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
550-610mA
|
|
Storage Temperature
|
-20～80℃
|
|
Working temperature
|
0～70℃
|
|

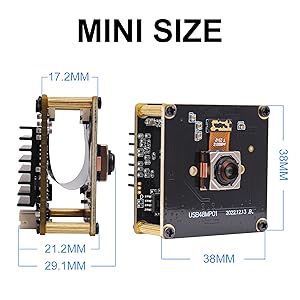

Board size /Weight
|
Double-deck, 38mm × 38mm / 100g
|
|
Cable equipments
|
Stander 1m (optional 2m ,3m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|
ELP 48MP USB camera can capture very HD High Definition Fidelity images
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
How to use ?
>>>If you request a housing with this 48MP Camera Autofocus ,please select this one
