ELP 4K Manual Focus Zoom Webcam IMX317 Color FHD 2160P 1080P 30fps Audio Video Conference Camera USB2.0 Plug Play For Raspberry Pi Android Development Board
4K/2160P USB Webcam,Ultra HD Sony IMX317 Image Sensor with Manual Focus Optical Zoom Lens Varifocal Focus Adjustable
SPECIFICATION :
Sensor :SONY IMX317 (1/2.5”)
Max Resolution :3840(H) x2160 (V)
Picture format :MJPEG /YUY2 (YUYV)
IR Filter: 650±10nm
Operating System Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
Features
* 4K Camera , High resolution Max 3840(H) *2160 (V) , suitable for document capture
*Advanced IMX317 (1/2.5" ) Color CMOS image sensor , more efficiency .

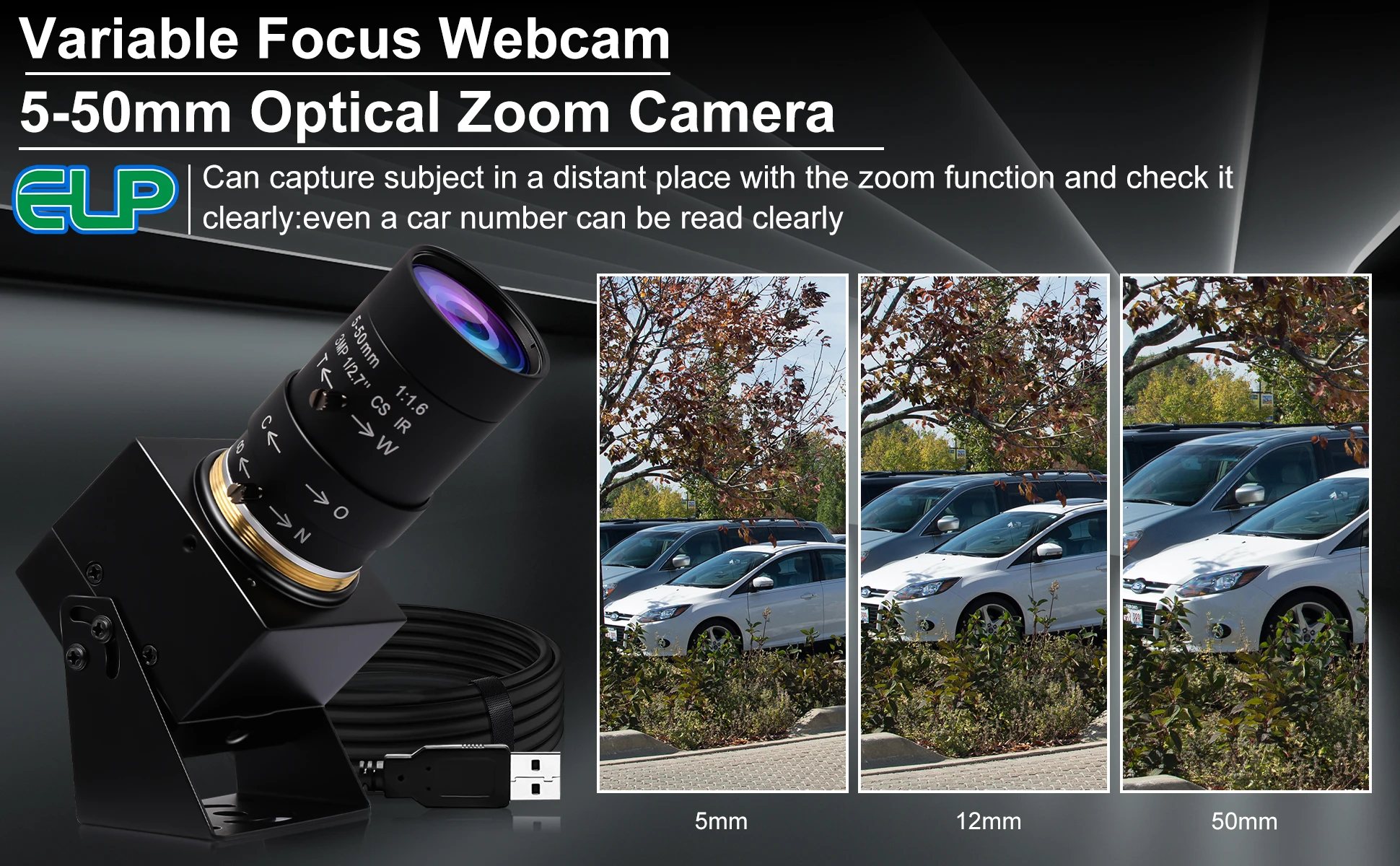

* Optical Zoom webcam CS Mount, 5-50mm or 2.8-12mm varifocal lens optional , support manual focus ,aperature ,sharpness .
*USB Audio Camera ,inbuilt dual microphone .
*High speed 30fps at 3840x2160P ,30FPS@1920X1080 .
* Camera with UVC ,free driver ,compatible with most OS: Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
Datasheet
Model
|
ELP-USB4KHDR01-MFV(5-50)
|
Sensor
|
SONY IMX317 (1/2.5”)
|
Max Resolution
|
3840(H) *2160 (V)
|
Sensitivity
|
1000mV/Lux-sec
|
Image area
|
6100^mx4524^m
|
Picture format
|
MJPEG /YUY2 (YUYV)
|
Resolution & FPS
|
3840x2160@ 30fps MJPEG/ 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG
1280x960@30fps MJPEG/1280x720@ 30fps MJPEG
1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG/ 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2
1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2
1280x960@5fps YUY2/1280x720@ 5fps YUY2
1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
|
Center Definition
|
1000LW/PH (Center)
|
S/N (Signal Noise Ratio)
|
26dB
|
Sensitivity
|
0.65V/lux-sec@550nm
|
Low illumination
|
0.2lux
|
Shutter
|
Electronic rolling shutter / Frame exposure
|
Interface
|
USB2.0 High Speed
|
AEC
|
Support
|
AEB
|
Support
|
AGC
|
Support
|
Adjustable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance,
Backlight Contrast, Exposure
|
Lens
|
Size: 1/2.3”, 5-50mm varifocal lens
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
|
Power Supply & Connector
|
USB BUS POWER 4P-2.0mm socket
|
Power
|
DC5V
|
Current
|
200mA
|
Size
|
38mm x 38mm
|
Storage Temperature
|
-20°C to 70°C
|
Working Temperature
|
0°C to 60°C
|
USB Cable
|
1M(2M/3M/5M Optional)
|
Operating System
|
Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
