ELP 8MP Autofocus USB Camera Super Mini Board IMX179 USB2.0 Lightburn Camera with Microphone Ultra HD Embedded USB Camera for PC
ELP-USB8MP05AF-V62
Package include :
1) 1pcs autofocus 8mp usb camera with Non distortion lens FOV 60 degree
2) 1pcs 1m usb cable
Description:
Based on 1/3.2" 8MP IMX179 image sensor, Auto focus, No distortion lens, UVC compliant USB 2.0 cameras. This is a mini webcam module, Max resolution 8 Mega pixel 3264 x 2448 output, with 62.3x9x6mm mini board size and Long strip Shape. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.Automatical control the focusing process to capture the still object,shots the imaging and video you want. No need manual adjust the lens no matter the object near or far. Ultra HD resolution meets your request for higher quality video still pictures resolution.
Features
-
More than HD ,8MP USB Camera: This camera adopts an 8MP IMX179 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.
-
1/3.2” CMOS IMX179 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details.
-
Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
-
USB Audio Camera ,8MP Camera inbuild microphone .
-
Autofocus non distortion lens FOV 62 degree ,The minimum identification distance will only be around 5cm, manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
-
Mini USB Camera with size 62.3*9*6mm tiny camera is highly recommended for embedded in industrial machine vision .
-
Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.
-
Support OS: Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
-
Adjustable Parameters : (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
Specifications
|
Model
|
ELP-USB8MP05AF-V62
|
|
Sensor
|
IMX179
|
|
Sensor Size
|
1/3.2 inch
|
|
Pixel Size
|
1.4µm x 1.4µm
|
|
Image Area
|
6.18mm x 5.85mm
|
|
Max. Resolution
|
3264(H) X 2448(V) 8 Megapixel
|
|
Compression Format
|
MJPEG / YUY2 (YUYV)
|
|
Resolution & Frame Rate
|
3264X2448 MJPEG@15fps YUY2@1fps 2048X1536 MJPEG@15fps YUY2@3fps 1920X1080 MJPEG@ 25fps YUY2@5fps 1280X720 MJPEG@30fps YUY2@10fps 800X600 MJPEG@30fps YUY2@25fps
320X240 MJPEG@30fps YUY2@30fps
|
2592X1944 MJPEG@15fps YUY2@2fps 1600X1200 MJPEG@30fps YUY2@5fps
1280X960 MJPEG@30fps YUY2@5fps
1024X768 MJPEG@30fps YUY2@10fps 640X480 MJPEG@30fps YUY2@30fps
|
|
Focus
|
Auto
|
|
S/ N Ratio
|
34dB
|
|
Dynamic Range
|
72.5dB
|
|
Sensitivity
|
0.65V/ Lux-sec@550nm
|
|
Min Illumination
|
0.5 Lux
|
|
Shutter Type
|
Electronic Rolling Shutter / Frame Exposure
|
|
Connecting Port Type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class (UVC)
|
|
OTG Protocol
|
USB2.0 OTG
|
|
AGC
|
Auto
|
|
AEC
|
Auto
|
|
AWB
|
Auto
|
|
Adjustable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
AF LENS HFOV about 62 degree
|
|
Power Supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working Current
|
150mA~240mA
|
|
Working Temperature
|
- 10~70℃
|
|
Storage Temperature
|
-20~85℃
|
|
Board Size /Weight
|
62.3x9x6mm/ about 20g
|
|
Cable
|
Standard 1m
|
|
Operating System Request
|
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
8MP Utra Clear Auto Focus USB Camera Module with High quality 1/3.2 inch IMX179 Color CMOS image Sensor for clearer images
Fast Auto Focus Wecam Module shoor objects in close and fat distance, automatically focus without lens adjustment tool, clearer and earier tham the fixed focus for fast shooting object in different distance.

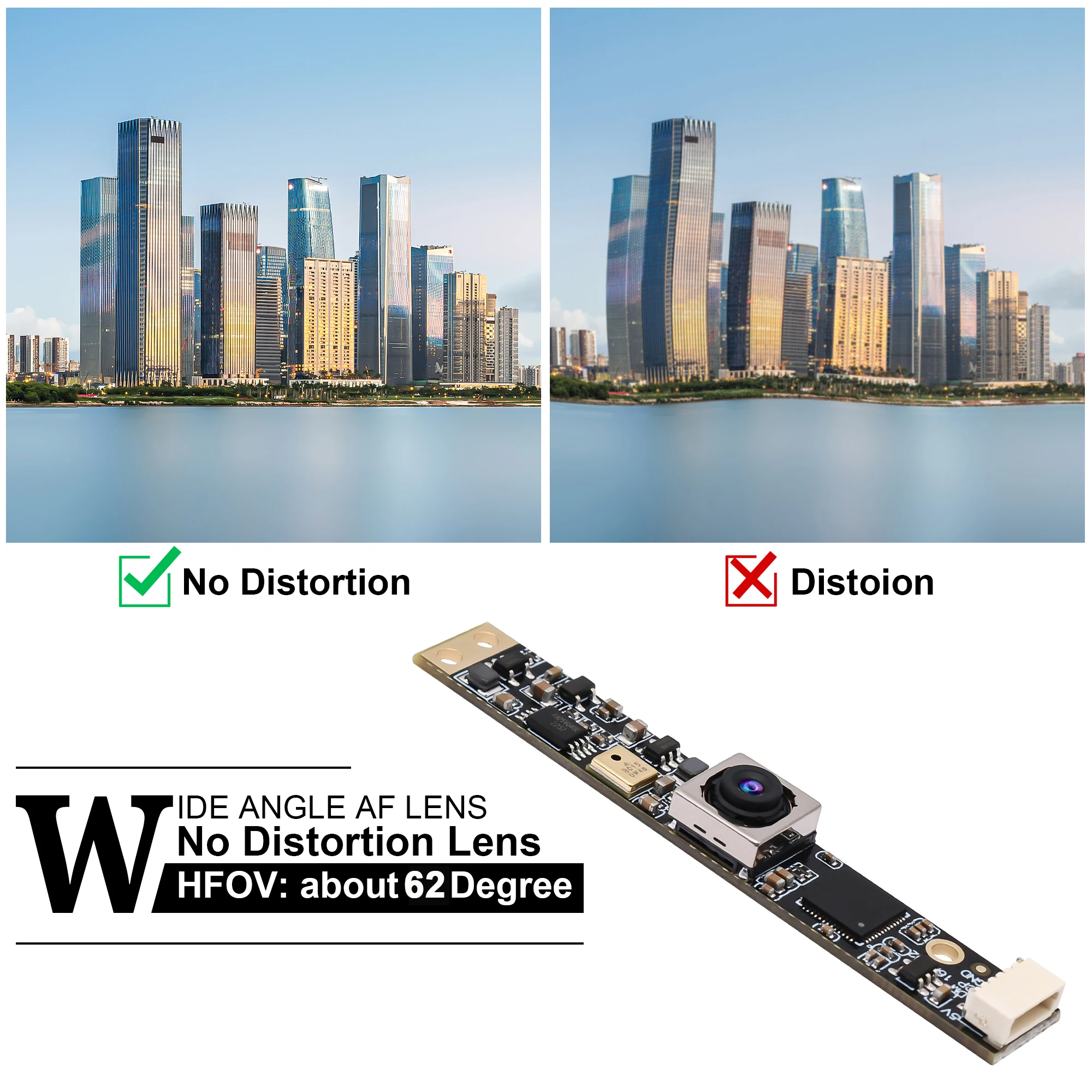

8MP Autofocus USB Camera board with Mini wide angle 62 degree No distortion Lens
Super mini board size usb web cam module, 62.30*9*6mm compact embedded camera module suitable for embedded in mini small space
8MP High Definition 3264 x 2448 Web camera with built-in microphone for Audio and Video Recording
Mini usb camera module with 4-pin 1.0mm mini connector on board
Plug and play, Driver-Free USB interface, High performance compatible with Many system, like
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
UVC compalibility can be used in Laptop, Desktop, Smart phone, Tablet, development board, Raspberry PC, Banana PI etc.
It can work with already preinstalled camera software instead of built in camera (like in laptops/PC),Amcap,free Yawcam software,Conta Cam,Quick Time,Zoom,Facetime,Photo Booth,Skype,OBS,YouTube live streaming
Applications
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
Widely application for all kinds of machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc.
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
