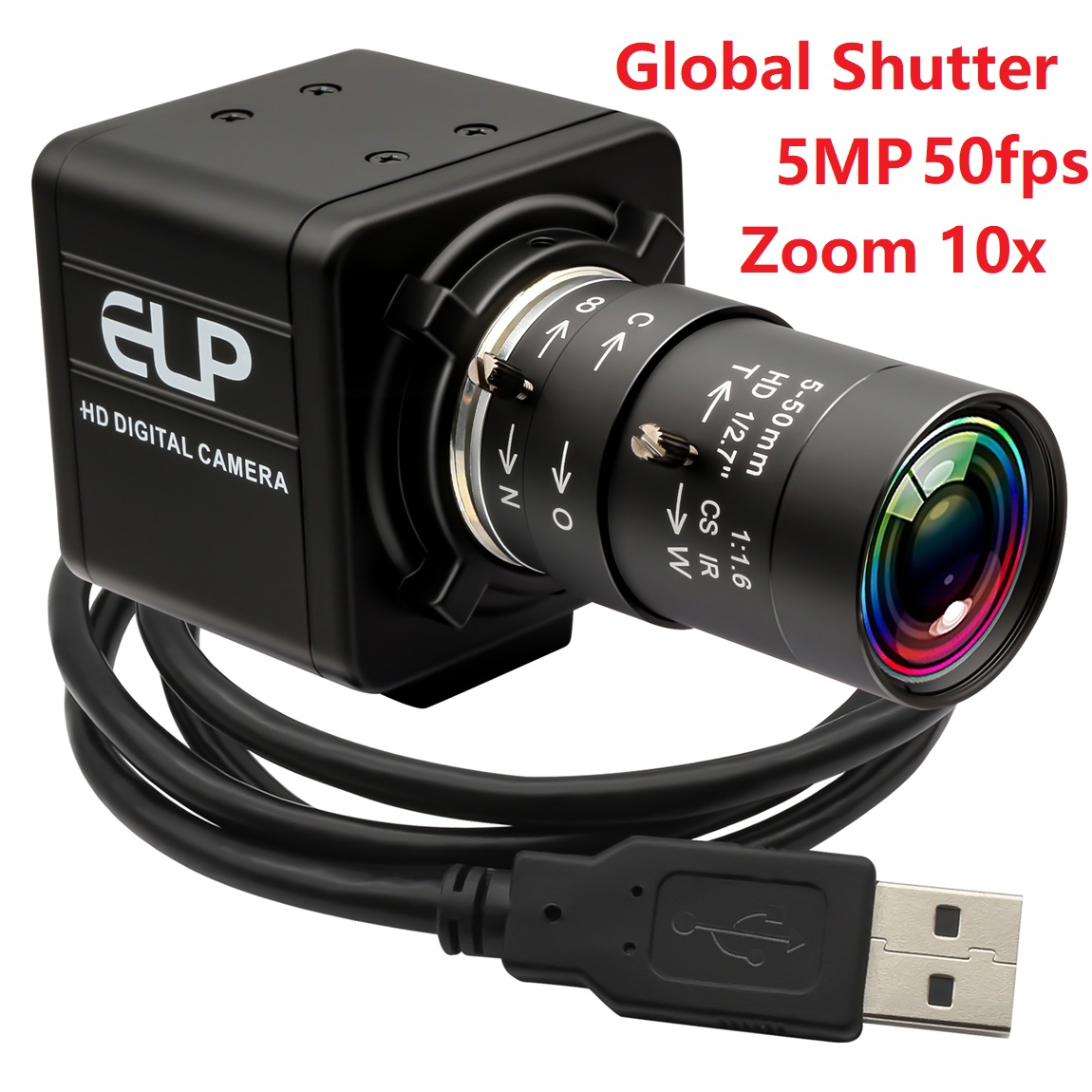

ELP Global Shutter USB Webcam High Speed 5mp@50fps 1440P@60fps Industrial Video Camera with 5-50mm 10X Zoom Lens Variable Focus Close-up PC Camera CS Mount UVC
Description of Model: ELP-USBGS5MP01-MFV
-
This ELP-USBGS5MP01 Series Camera is ELP New 5MP Global Shutter Sensor & High Frame Rate 50FPS USB 2.0 camera.
-
Highly recommended for Accurate and Fast Capture of Moving Scenes at 50 fps in 5MP Resolution.
-
Its OX05B1S Color CMOS Global Shutter Sensor Helps to Minimize Frame-to-Frame Distortion and Reduce Motion Blur While Capturing Fast-Moving Objects to Produce Smoother Images with Greater Scene details.
-
Use CS Mount Optical zoom lens, 5-50mm, 3.6-10mm, 2.8-12mm, 6-60mm optional, and replaceable.
Package Include
1pc of 5MP Global Shutter USB Camera with CS Varifocal lens ,
1pc of 3m USB Cable .
Lens Optional
|
Model
|
Lens Mount
|
Focal Length
|
Varifocal Lens
|
|
ELP-USBGS5MP01-MFV(5-50)
|
CS Mount
|
5-50mm
|
Zoom 10x
|
|
ELP-USBGS5MP01-MFV(3.6-10)
|
CS Mount
|
3.6-10mm
|
Zoom 3x
|
|
ELP-USBGS5MP01-MFV(2.8-12)
|
CS Mount
|
2.8-12mm
|
Zoom 4x
|
Main Features
* Global Shutter Sensor - OmniVision OX05B1S Color Global Shutter Sensor without Distortion or Lag
* 60FPS High Frame Rates - 2592x1944 5MP 50FPS, 2592x1440 60FPS,1920x1080 60FPS
* 5MP Full HD Resolution - 5MP Max Resolution 2592X1944 for High quality Still Picture & Video
* Optical Zoom CS Mount manual focus lens - 5-50mm, 6-60mm, 3.6-10mm, 2.8-12mm Varifocal Lens Optional and interchangeable
* Mini Compact PCB Board Size 38*38mm - Suitable for Many Embedded Application
* Adjustable Features - Brightness, Expsoure, WhiteBalance, Saturation, Contrast, Hue, etc, allows you customize the camera's performance according to your needs.
* Ease of Use -Free driver,simply connect to a USB port then Plug & Play,No need additional hardware, driver or complex setup processes
* Easy Integration & High Compatibility- Support Android, Windows, Linux. Mac OS etc.
compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms
The advantage of Global shutter compare to Rolling Shutter
Featured a high-speed global shutter pixel to meet high-resolution and low-latency requirements.
Shoot high-speed moving subjects in crisp sharp image without jello effect.
Avoid the rolling artifacts to get much more accurate complete picture than rolling shutter cameras.
Working Effect Compare between Rolling Shutter and Global Shutter
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.
This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.
|
Model
|
ELP-USBGS5MP01-MFV(5-50) ( CS 5-50mm Lens)
|
|
Sensor
|
1/2.5” OmniVision OX05B1S (Global Shutter)
|
|
Max. Resolution (Default)
|
2592 (H) *1944 (V)
|
|
Sensor Size |
1/2.5 inch (4:3)
|
|
Image Array Area
|
5737μm x 4312μm
|
|
Pixel Size
|
2.2μm x 2.2μm
|
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
2592x1944 @ 50fps MJPEG/ 2592x1440 @ 60fps MJPEG
2560x1440 @ 60fps MJPEG/ 2304x1296 @ 60fps MJPEG
2048x1536 @ 50fps MJPEG/ 1920x1080 @ 60fps MJPEG
1600x1200 @ 50fps MJPEG/ 1600x900 @ 60fps MJPEG
1280x960 @ 50fps MJPEG/ 1280x720 @ 60fps MJPEG
1024x768 @ 50fps MJPEG/ 1024x576 @ 60fps MJPEG
960x720 @ 50fps MJPEG/ 960x540 @ 60fps MJPEG
800x600@ 50fps MJPEG/ 800x450 @ 60fps MJPEG
848x480 @ 60fps MJPEG/ 640x480 @ 50fps MJPEG
640x360 @ 60fps MJPEG/
|
|
Surface Mount Technology |
SMT |
|
Focus |
Fixed Focus |
|
Center Definition
|
1000 LW/ PH(Center)
|
|
S/N (Signal Noise Ratio) |
38dB |
|
Dynamic Range |
72dB |
|
Sensitivity |
1.4V/lux-sec@550nm |
|
Mini illumination |
0.1 Lux |
|
Shutter Type
|
Global Shutter
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure .
|
|
Lens Parameter
|
CS Mount Varifoca Lens
Zoom 10x 5-50mm lens, 4x 2.8-12mm lens, 3x 3.6-10mm lens optional
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
180~230mA
|
|
Storage Temperature
|
-20～80℃
|
|
Working temperature
|
0～60℃
|
|
Board size /Weight
|
38mm × 38mm / 50g
|
|
Cable equipments
|
3m (optional 2m, 5m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|
5MP high speed wide angle global shutter usb camera module for computer,laptop,raspberry pi
High Definition: Record max 2592x1944 at 50fps video and still photo. Multiple resolution adjustable.
Global Shutter: all pixels in the image are exposed simultaneously, free of distortion, shooting high-speed moving objects in crisp sharp images.
All pixels in the image are exposed simultaneously.
High Speed/High Frame Rate: MJPEG 50fps@2592x1944/1200P/960P/720P, 60fps@2592x1440/1080P/720P etc.
1/2.5” OmniVision OX05B1S lightburn camera. The OmniVision OX05B1S sensor works with as little as 0.1 LUX.
5-50mm 10x optical zoom camera for recording lectures. CS Mount varifocal lens interchangeable.

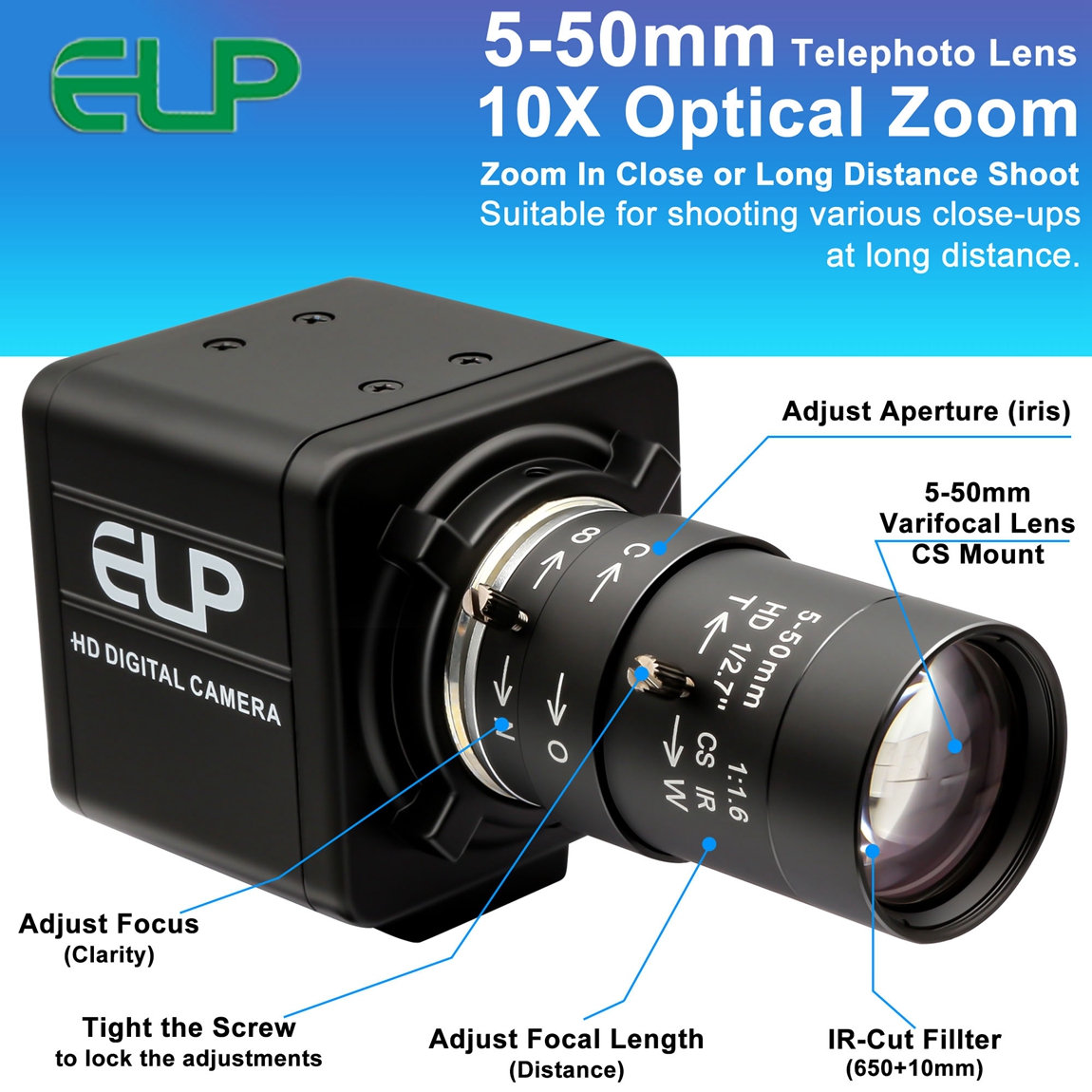

5-50mm Telephoto lens, 10x optical zoom
Zoom in colose or long distance shoot. Manual adjust focus, zoom, aperature

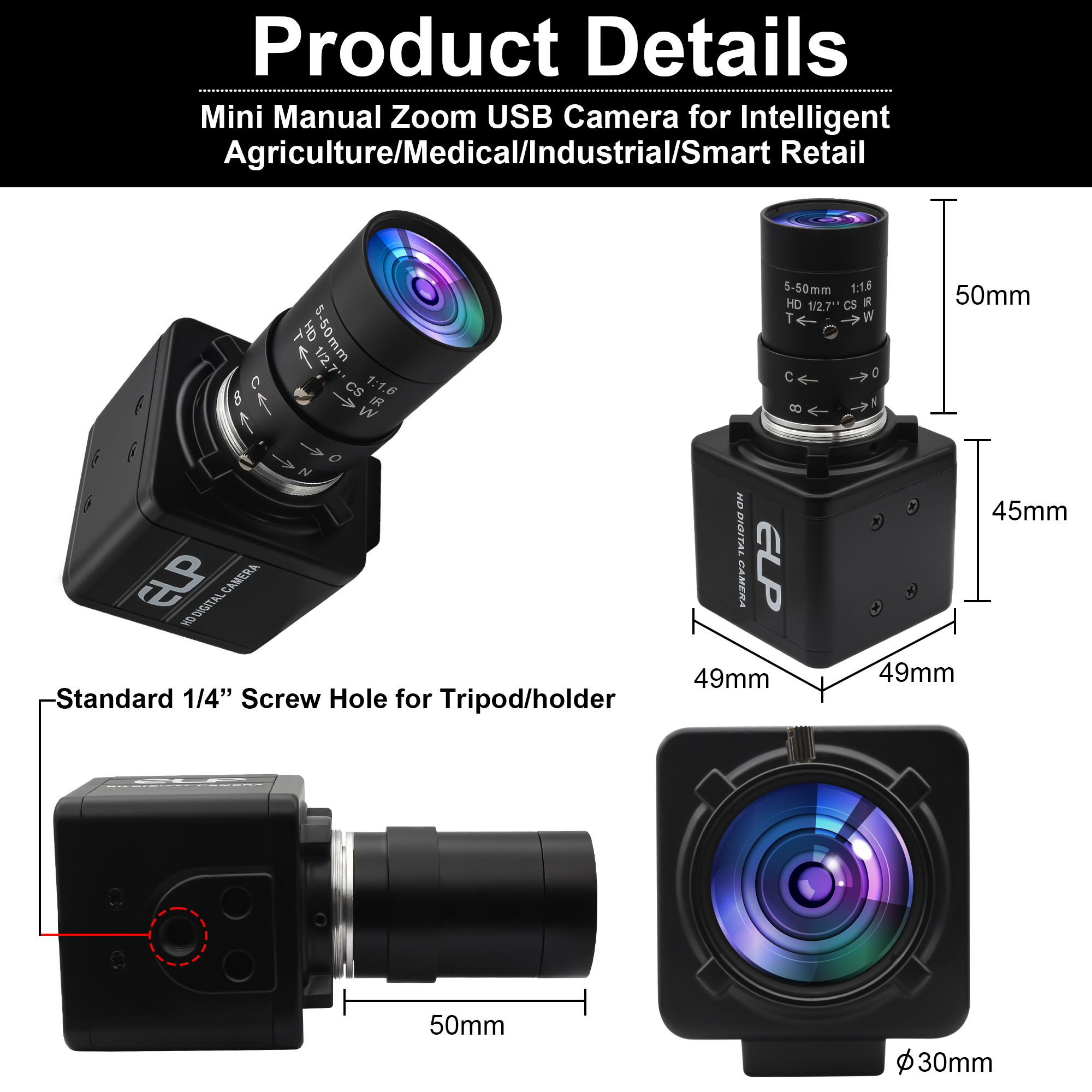

Small size 49*49*(45+50)mm for embedded application and secondary development.
USB Plug & Play: UVC-compliant, ready to use, just connect the camera to PC computer, Laptop with the included USB Cable without extra drivers to be installed.
Support OTG Function.
1. For PC:
With USB2.0 Interface, UVC support. Plug and Play for Computer, Laptop.
2. For Raspberry PI:
Support Android development board, Raspberry Pi development board, Jetson Nano, etc.
3. For Developing Board
Work in the developing board with Android, Pi OS, also OTG supported.
Easy connect to Android devices like Tablet,Smartphone,Mobile or development board via OTG cable.
Compatible with Windows, Linux, MacOS, Android. UVC USB2.0 Plug and Play for computer, laptop, Raspberry Pi, Android device.
Webcam for laptop, pc, desktop computer, tablets, android phones, etc, all can work directly without driver.
Wide Software Compatibility for Zoom/Skyp/teams/OBS/FaceTime/Facebook etc.
Ultra HD 1944P Video Recording
Wide Applications for Shooting High Speed Moving Objects:
1. Sports Analysis like golf swings, tennis strokes, or soccer kicks, Gesture Recognition
2. Motion Analysis and Biomechanics
3. Industrial Inspection for quality control and inspection, Factory Automation, Conveyor Monitoring
4. Robotics and Automation, robot navigation, Robotic Vision, object detection, motion tracking , Autonomous Mobile Robots (AMR), Drones
5. Scientific Research, such as chemical reactions, fluid dynamics, combustion processes, or material testing
6. Entertainment and Media Production like film production, special effects, and virtual reality applications
7. Security & Traffic, like Automatic Number Plate Recognition (ANPR), Traffic Monitoring Systems
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
