Products Description

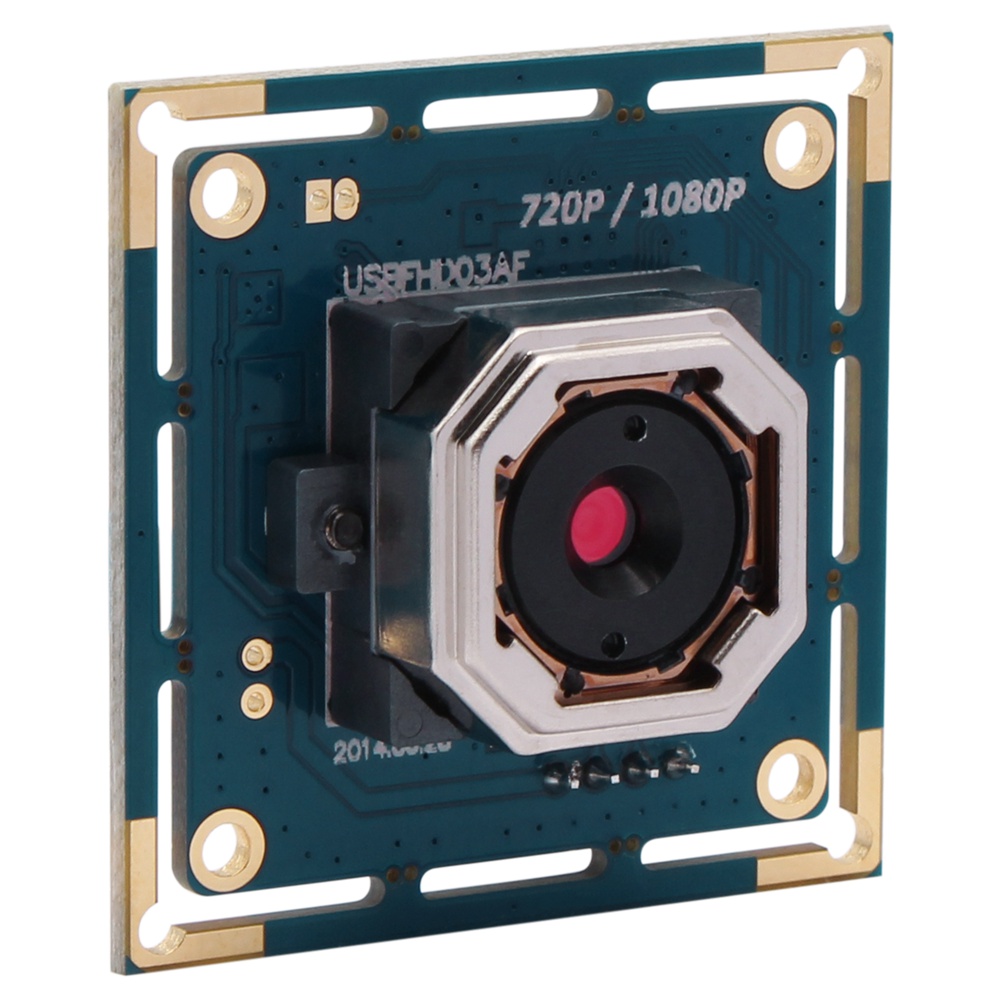

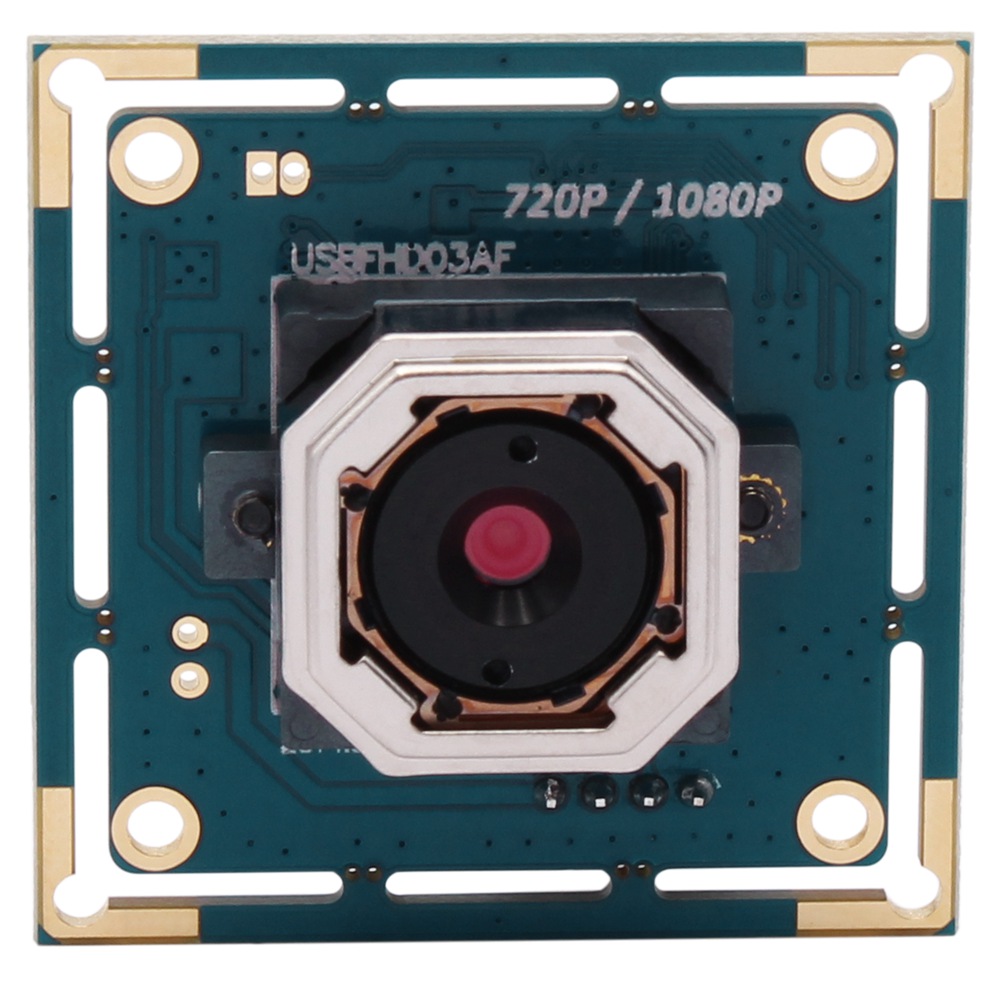

ELP High Speed 30fps 100fps Camera AF 60Degree Lens Industrial Machine Vision USB Plug Play 2MP Autofocus Camera For Robotics
Package Include

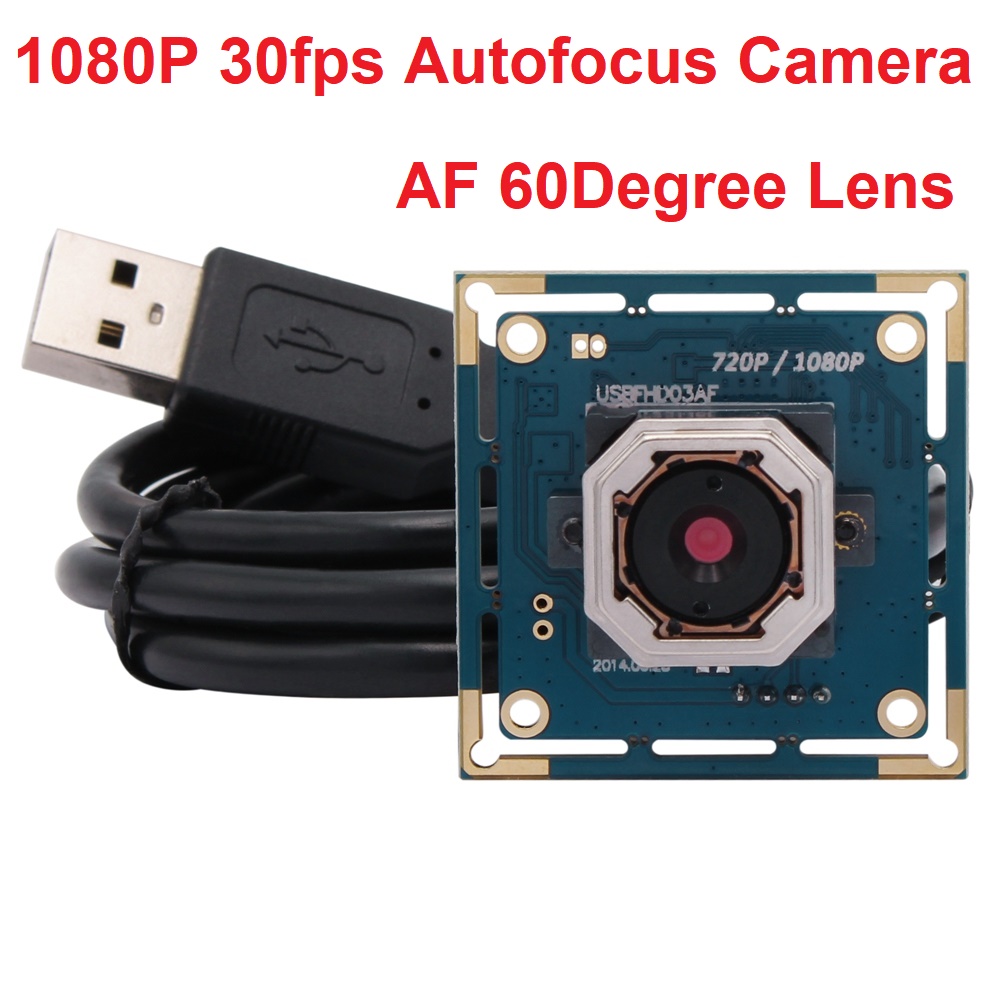

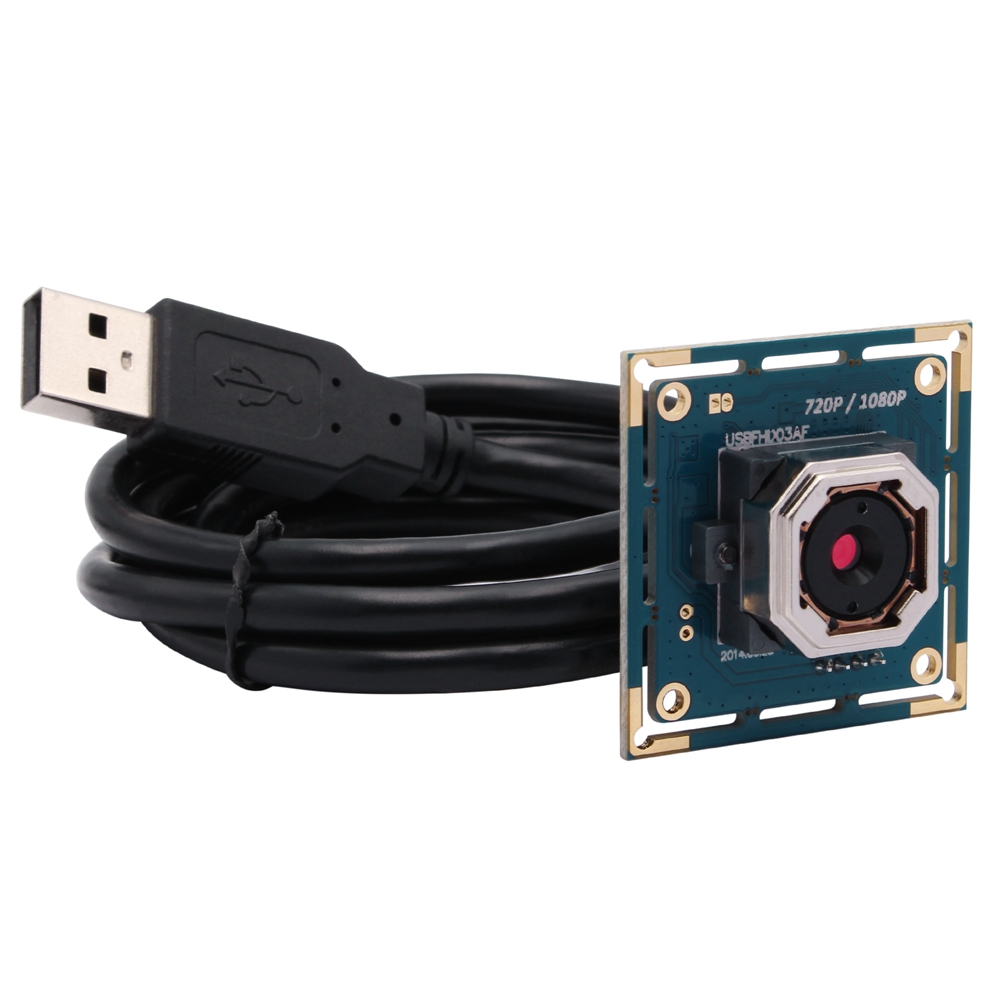

1pc of 2MP Autofocus USB Camera with 60Degree lens
1pc of 1m USB Cable supplied
Features:
*Full HD Webcam max resolution 1920x1080P 2Mega pixels

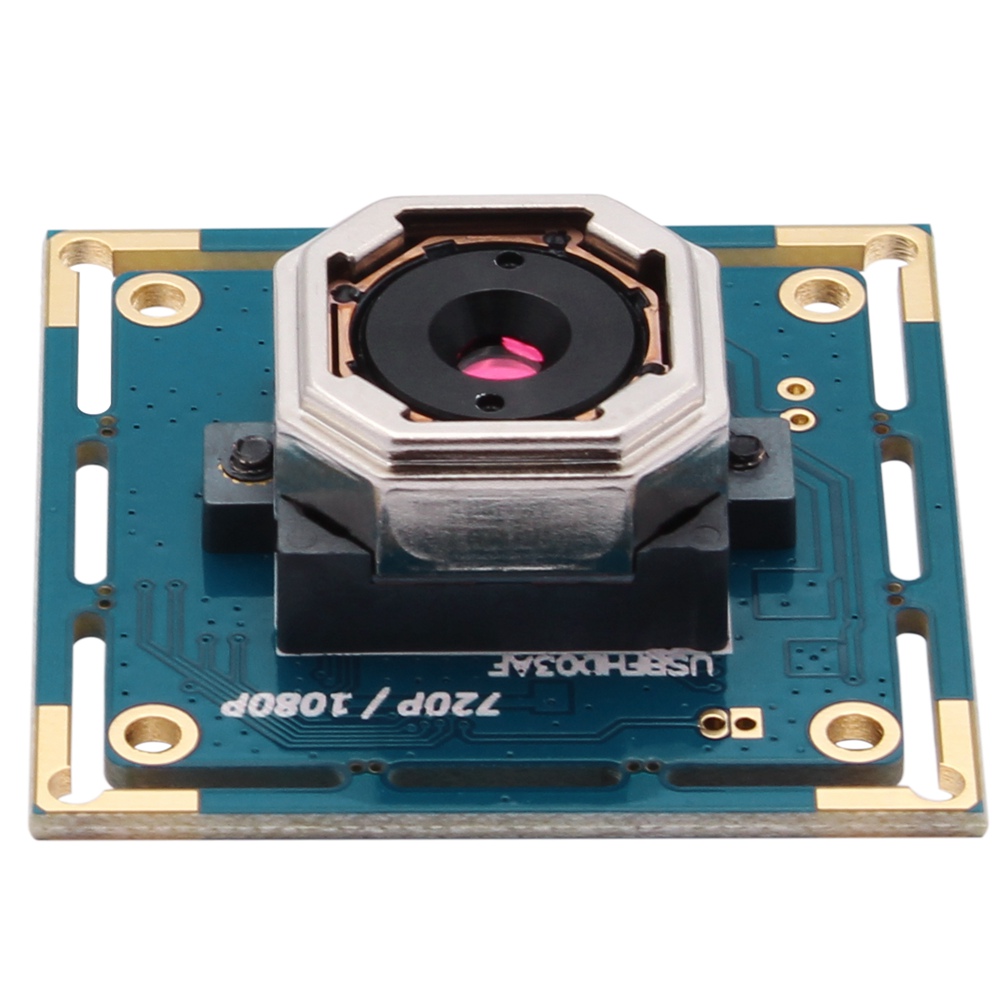

*FOV(D)60 Degree Lens with AUTOFOCUS MOTOR
*Can drive 30fps@1080P
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification:
|
Model
|
ELP-USBFHD03AF-A60
|
|
Sensor
|
CMOS OV2710
|
|
Sensor Size
|
1/2.7 inch
|
|
Pixels Size |
3µm x 3µm |
|
Image Area |
5856μm x 5856μm |
|
Max. Resolution |
Full HD , 1920(H)*1080(V) |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps
640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps
1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps
1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
|
|
Special Function |
Lens correction/Defective pixel correction/Black sun cancellation |
|
Mini illumination |
0.05 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
USB Protocol
|
USB 2.0 HS/FS
|
|
Connection Port Type |
USB2.0 High Speed |
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC |
Support |
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure, Backlight contrast .
|
|
Lens Parameter
|

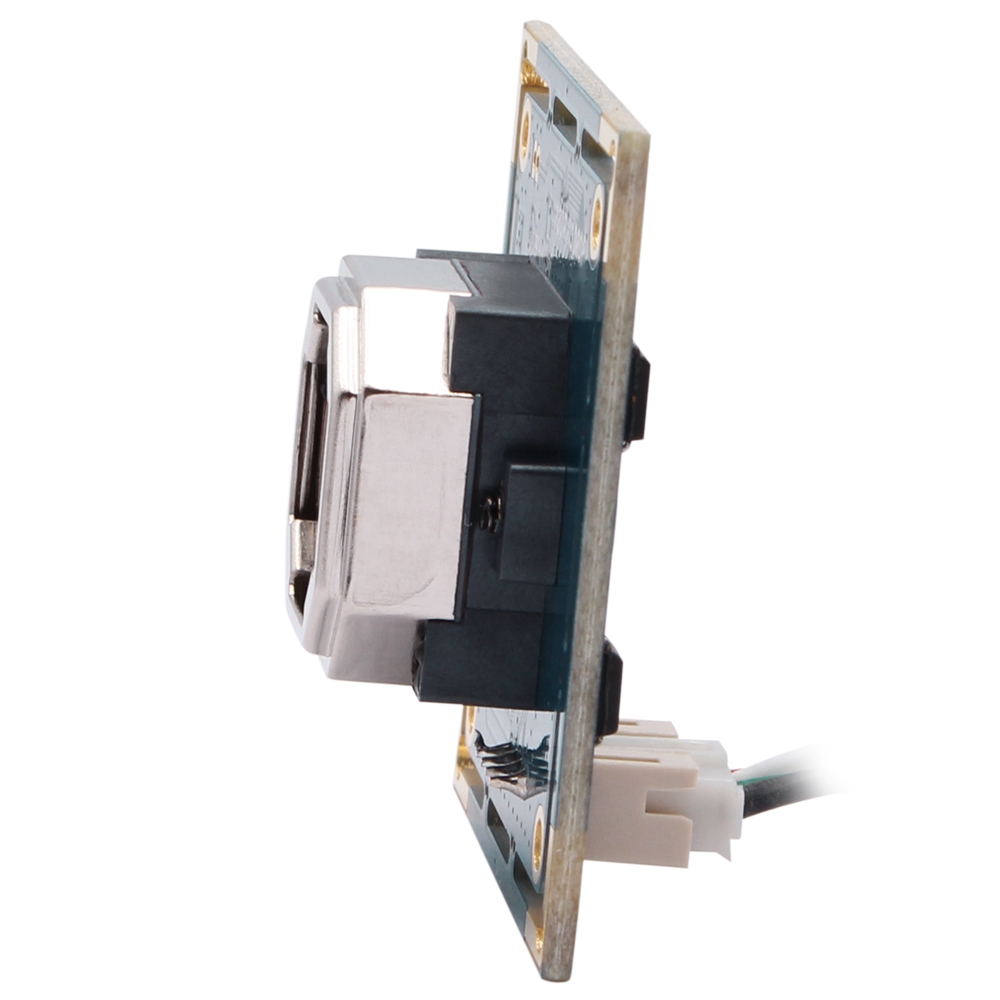

Mini AF60 lens, FOV about 60 degree.,Autofocus
|
|
LED Board power connector |
Support 2P-2.0mm socket |
|
Power supply Interface
|

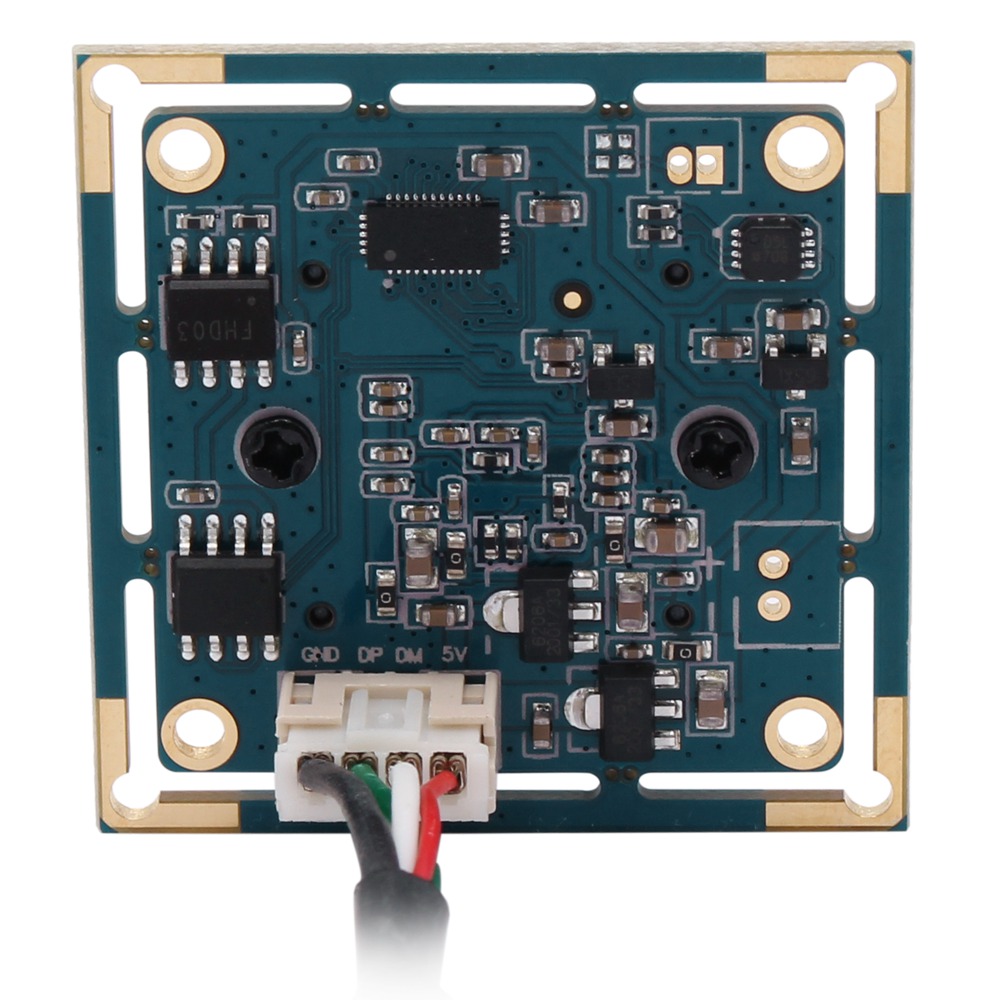

USB BUS Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
120mA - 220mA
|
|
Storage Temperature
|
-20～75℃
|
|
Working temperature
|
0～60℃
|
|
Board size /Weight
|
38 x 38mm (Compatible 32x32mm)/ About 30g
|
|
Cable equipments
|
Standard 1m (Optional 1m,3m,5m )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|


ELP Cost-effective and versatile USB2.0 Cameras offer reliable imaging for a wide variety of industrial and non-industiral applications.
.
