ELP Mono/Color Global Shutter USB Webcam High Speed 60fps 1280*720P Camera Module For High Speed Capturing Face Recognition
720P Global shutter camera module have color version / mono version optional ,
Default supply color version camera ,this one offer image is color /RGB mode '
Also available to select the mono version ,this offer image black and white .
Main Features
*1Megapixels USB Camera, max resolution 1280x720
*Global shutter sensor AR0144 , ,captures an image by exposing the entire sensor at once
*Equiped with 3.6mm lens standard, other M12 lens optional to change
*Aptina AR0140 sensor for high quality image and low power consumption.
*High frame rate 720P @ 60fps USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications.
*HD Snap webcam without shadow,. widely used for barcode scanner, drone

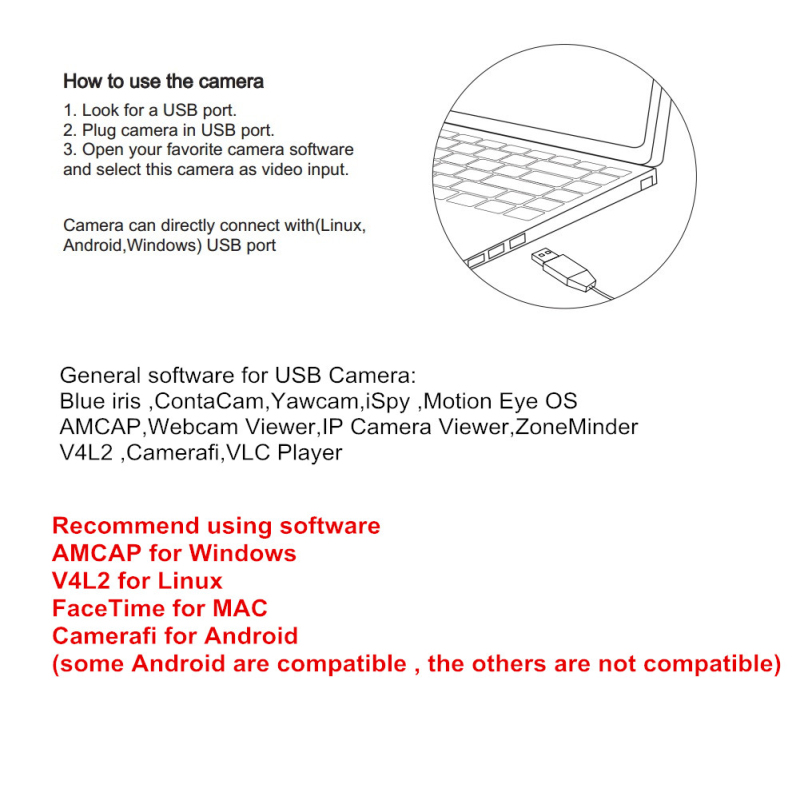

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Why Global Shutter
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.
This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.
Difference of Rolling Shutter (Left ) and Global Shutter (Right )
Specifications
Model
|
ELP-USBGS720P02-BL36
|
Sensor
|
Aptina AR0144
|
Lens Size
|
1/4 inch
|
Pixel Size
|
3.0µm
|
image area
|
3888µm x 2430 µm
|
Effective Pixels
|
1280(H)X720(V) 1MP
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
Resolution & frame
|
1280X720MJPEG@ 60fps YUY2@5fps
800X600MJPEG@ 60fps YUY2@20fps
640X480 MJPEG@ 60fps YUY2@ 30fps
|
S/N Ratio
|
38dB
|
Dynamic Range
|
63.9dB
|
Sensitivity
|
3.1V/lux-sec@550nm
|
Mini illumination
|
0.2 Lux
|
Shutter Type
|
Global Shutter
|
Connecting Port type
|
USB2.0 High Speed
|
OTG protocol
|
USB2.0 OTG
|
Free Drive Protocol
|
USB Video Class(UVC)
|
AEC
|
Support
|
AEB
|
Support
|
AGC
|
Support
|

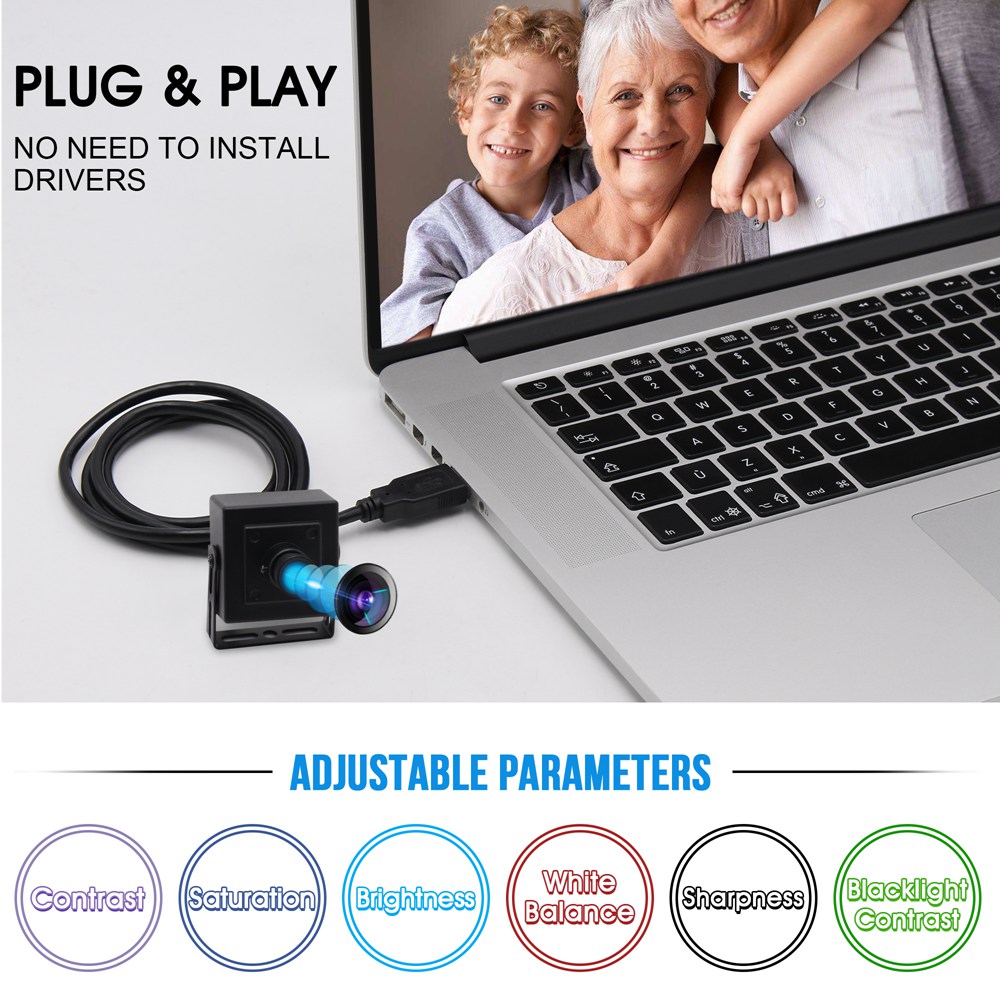

Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
Lens Parameter
|

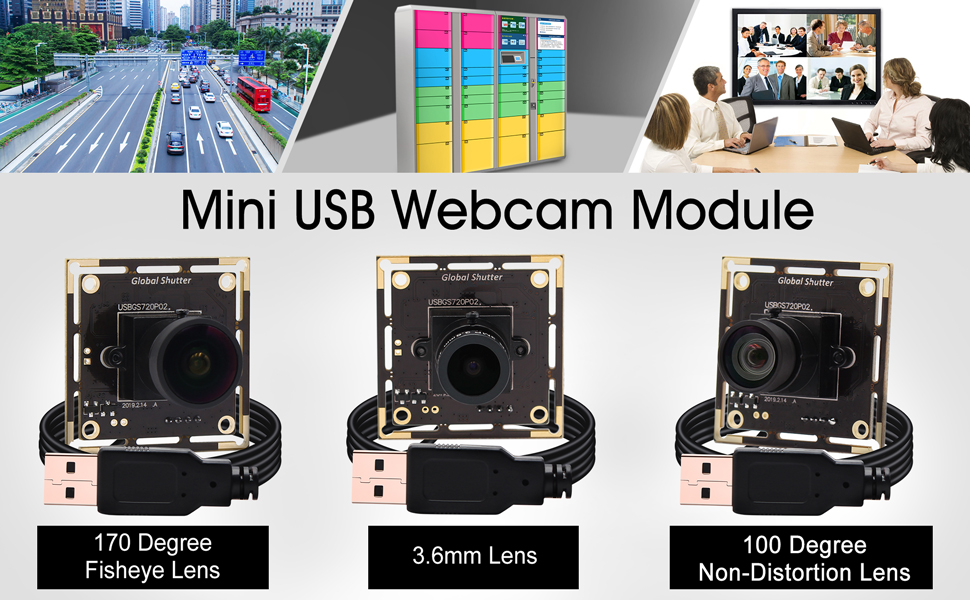

Standard 3.6mm lens
(2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional)
|
Power supply connector
|
USB BUS POWER 4P-2.0mm socket
|
Work Power Voltage
|
DC5V
|
Work Power Current
|
110mA~160mA
|
Working temperature
|
-10~70℃
|
Storage temperature
|
-20~75℃
|

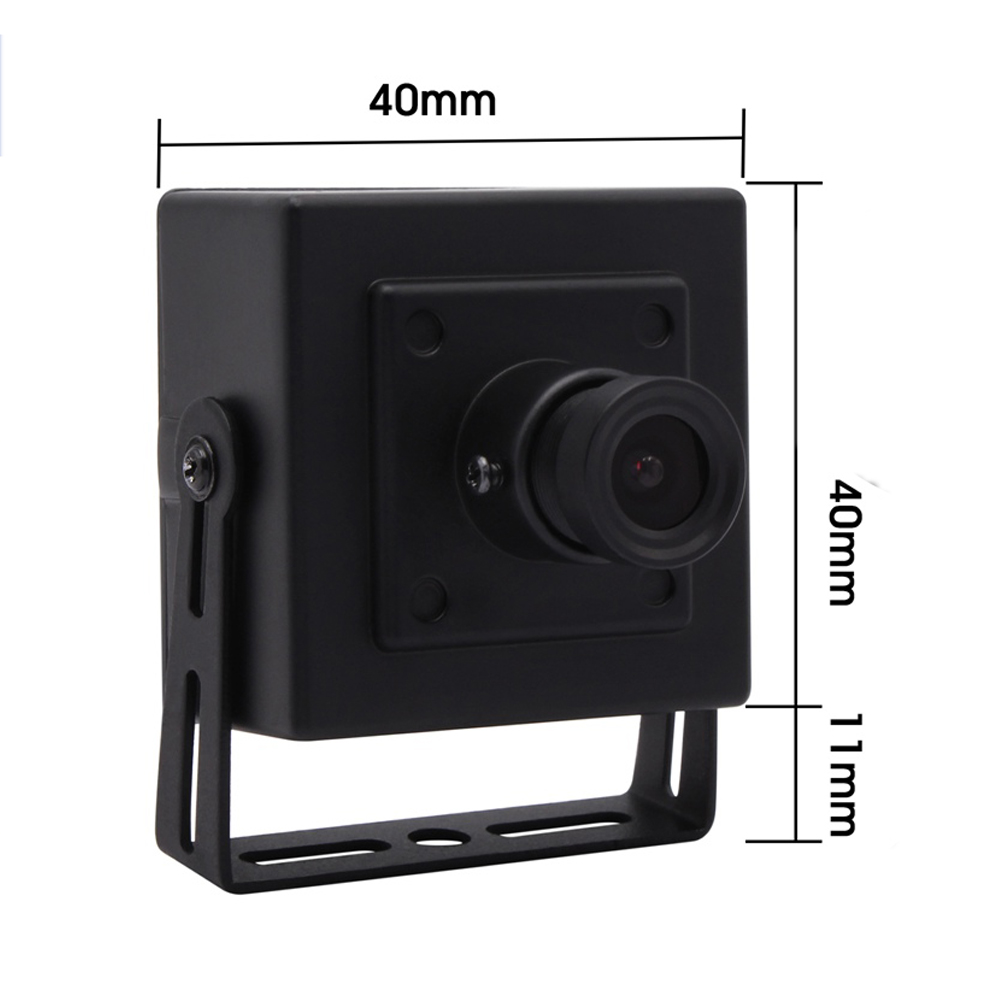

Board size /Weight
|
41x41x26mm / About 200g
|
Cable
|
Standard 3m cables (2M,3M,5M optional )
|
Support OS
|
Win7 Win8
Linux 2.6 or above
Android 4.0 or above
|
