ELP Night Vision 4K Camera With White LED CMOS IMX415 Sensor Wide Angle Webcam Low Distortion Lens 100/110/120Degree Industrial Home Security USB Camera For Low Light Condition (100/110/120 Degree Lens)
Package include
1pc 4K USB Camera with Wide Angle Low Distortion lens, white LED ,3m USB Cable
Features
* High Definition 4K Camera Max resolution 3840*2160
* Adopt 1/2.5” Sony IMX415 sensor for high-quality image
* High quality Low Distortion lens, Wide angle 100/110/120degree optional
*4K Camera come with White LED for night vision ,can adjust the brightness
*High Speed Camera 30fps @ 3840x2160p/ 30FPS @ 1920X1080P
* MJPEG/YUY2 dual output format optional
* Mini board size 38x38mm for embedded application, housing available
* High-speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
*USB2.0 Interface, plug and play, UVC-compliant, free driver.
*High Compatibility-Can Work With Most OS:Windows,Linux,Mac,Raspberry Pi,Android,etc.
*Adjustable parameters: Brightness Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Datasheet
|
Model
|
ELP-USB4K03-KH100W
ELP-USB4K03-KH110W
ELP-USB4K03-KH120W （Fixed Focus low distortion lens）
|
|
Sensor
|
Sony IMX415 (1/2.8” )
|
|
Max. Resolution
|
3840(H) *2160 (V)
|
|
Pixels Size
|
1.45µmx1.45µm
|
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
33840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
|
|
Center Definition
|
1000 LW/ PH(Center)
|
|
S/N (Signal Noise Ratio)
|
30dB
|
|
Sensitivity
|
0.65V/lux-sec@550nm
|
|
Mini illumination
|
0.2 Lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Type
|
M12 Mount, fixed focus
|
|
Lens Parameter
|
Size 1/2.5" 3.6mm fical length
IR Filter: 650nm
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
200mA
|
|
Storage Temperature
|
-20～70℃
|
|
Working temperature
|
0～60℃
|
|
Board size /Weight
|
38mm × 38mm, optional 32*32mm / 100g
|
|
Cable equipments
|
Stander 3m (optional 2m ,1m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|
ELP 8megapixles High Definition 4K USB Camera High Speed 30fps Camera With White LED Low Distortion Lens

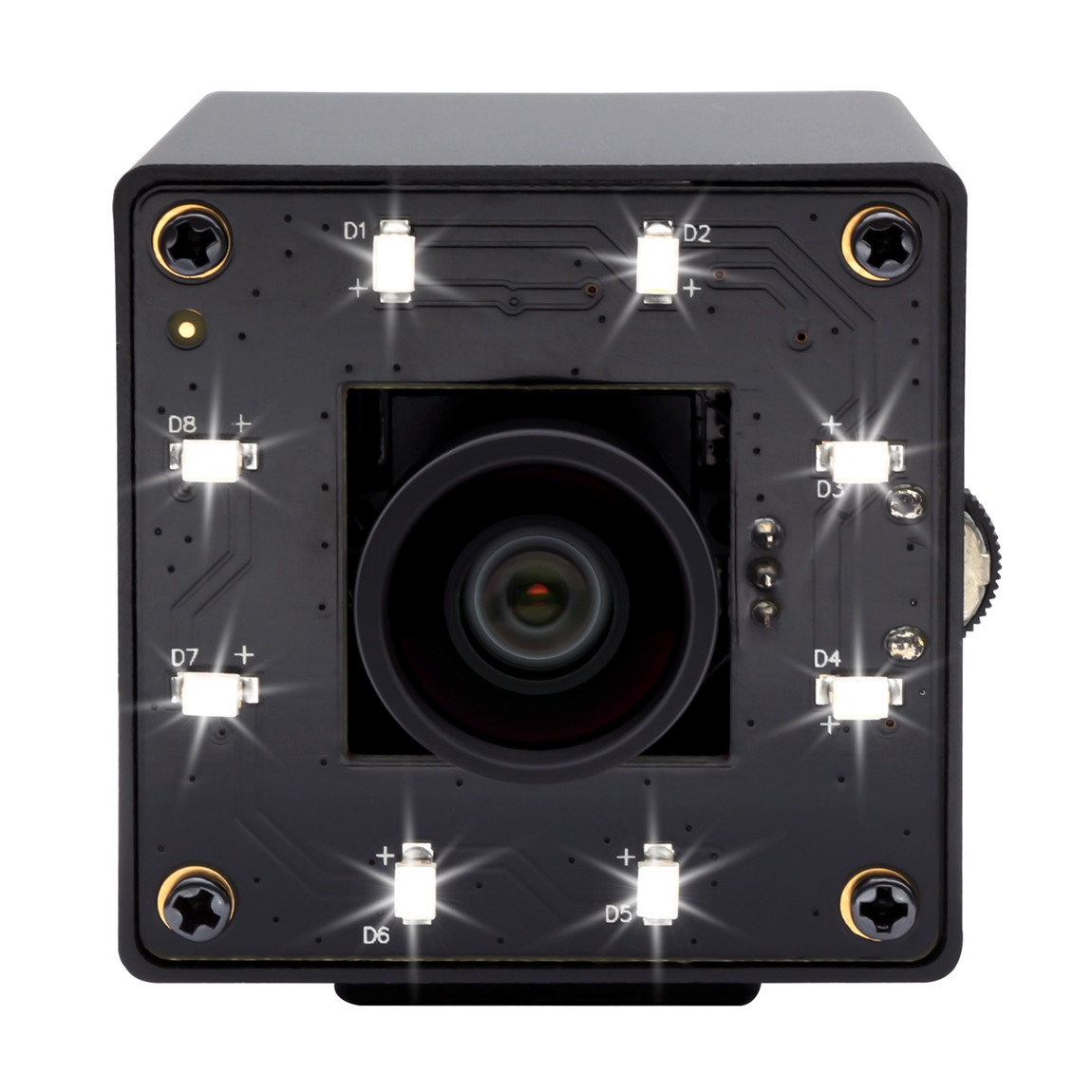

The 6pcs white led light can offer extra light for localised areas, can manuall control to turn the light on/off.
USB With camera ,plug and play . No need any driver to work .
4K UVC Camera,USB plug and play for computer,laptop,raspberry pi, no extra driver or specific software required.
Excellent compatiblility, work with most OS ,include Windows, Linux ,Mac ,Android
Software & Adjustable Parameters :
-
Although this camera required no specific software and works for varity software including webcam software,video call software,
-
we recommned to use professional video software to get the best image quality, for example Apcam, OpenCV, VLC,V4L2,Camerafi/USB Camera Sharpcap.
-
For different scenarios, you can adjust the following parameters on video software to achieve optimal results:
-
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast.

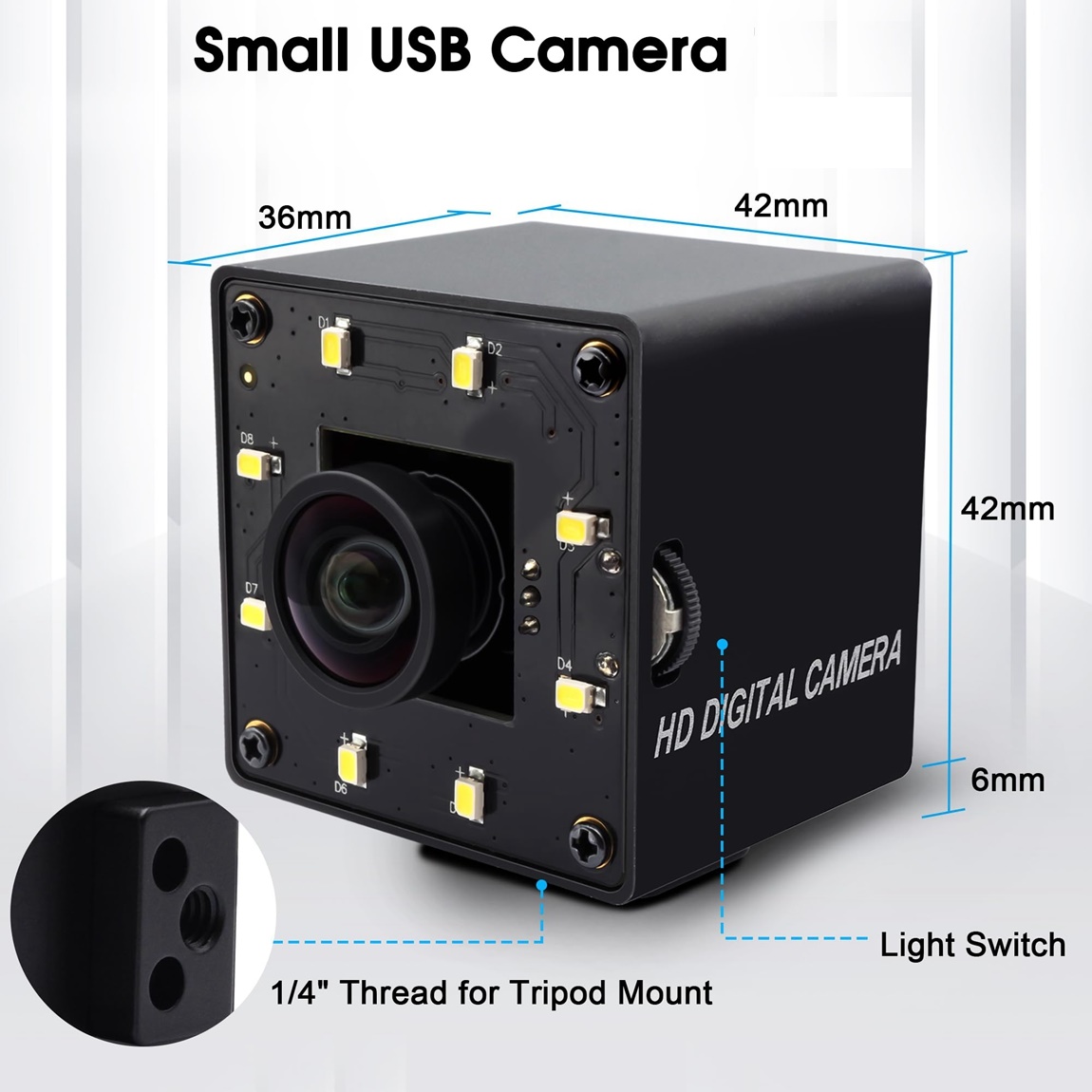

Mini Metal casing industrial Camera 42*42mm easily embedded in industrial machines .
High resolution and high speed camera is the ideal for industrial, computer vision,DIY project,video recording, 3D scanners,live-streaming, medical devices, machine vision, industrial inspections,sports analysis, machinary monitoring.
