ELP 16MP Autofocus USB Camera With Microphone For Computuer Mini USB2.0 Webcam Camera Module UVC IMX298 Autofocus Super Mini Audio Video Camera with 68 Degree No Distortion Lens For Scanning and Industrial Machines
Package include :
1 Piece of 16MP IMX298 USB Camera with AF lens non distortion , 1m USB Cable
Features
1) More than HD ,high definition Max. still resolution 4656 x 3496 : This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction,
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

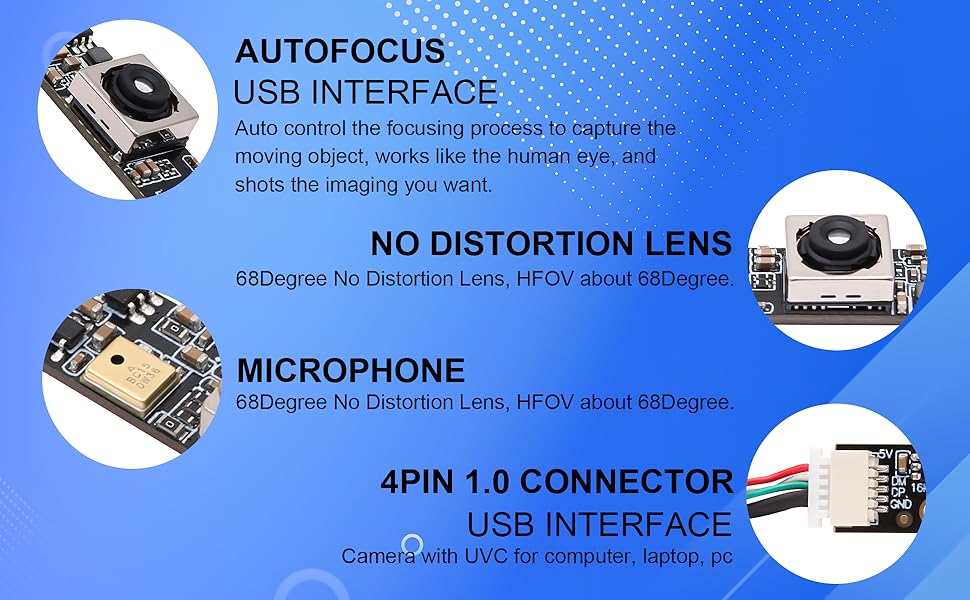

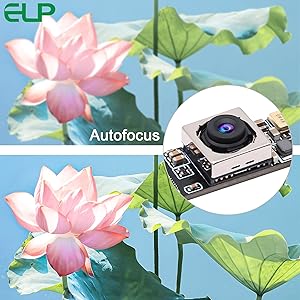

3) Super mini AF Lens Autofocus camera module : This camera module has a AF Lens, transmitting the most realistic image effect.

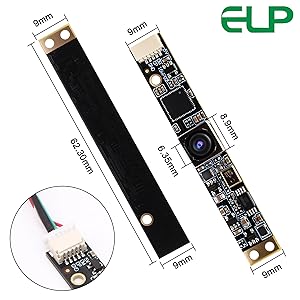

Mini Size: 62.3*9*5.5mm mini usb strip camera board

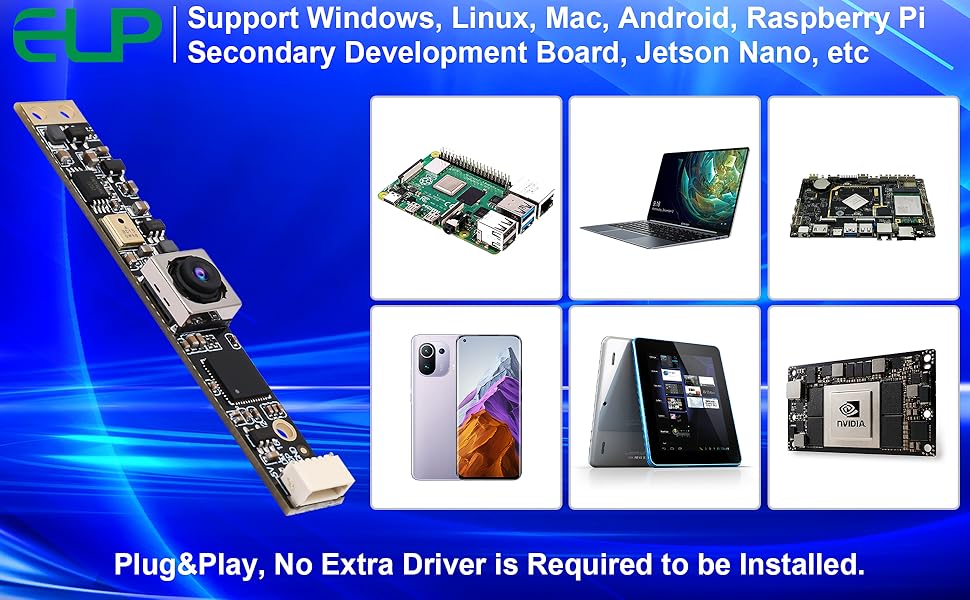

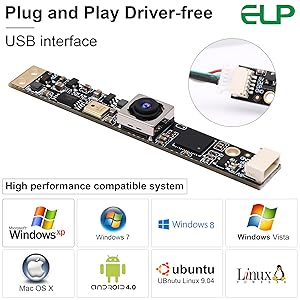

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5) Widely Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other vision
Specification
|
Model
|
ELP-USB16MP02-AF68 (HFOV about 68°)
ELP-USB16MP02-AF100 (HFOV about 100°)
|
|
Sensor
|
SONY IMX298
|
|
Sensor Size
|
1/2.8inch
|
|
Pixel Size
|
1.12um
|
|
Image area
|
6.4mm x 5.3mm
|
|
Max. Resolution
|
4656(H) X 3496(V) 16Megapixel
|
|
Compression format
|
MJPEG / YUY2（YUYV）
|
|
Resolution & frame
|
4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps
4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps
3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps
2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps
2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps
1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps
1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps
800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps
|
|
Min illumination
|
0.5lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free DriveProtocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC
|
Support
|
|
Buttoncamera
|
Support
|
|
Adjustableparameters
|
Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|

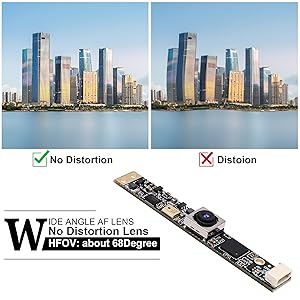

AF LENS Focus: 3.2mm , DFOV: about 78 Degree , HFOV: about 68 Degree
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working Current
|
150mA~280mA
|
|
Working temperature
|
-10～70℃
|
|
Storage temperature
|
-20～85℃
|
|
Boardsize/Weight
|
62.3x9x5.5mm （Compatible 32X32mm）/ about 30g
|
|
Cable
|
Standard 1M
|
|
Operating system request
|
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Applications
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipmen t 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance

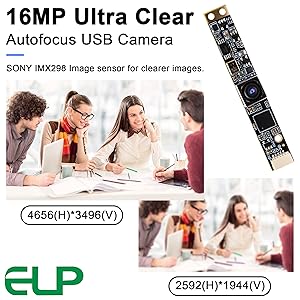

High resolution 16MP USB Camera max resolution 4656(H) X 3946(V)
High Tech 1/2.8inch SONY IMX298 sensor
ELP 16megapixel autofocus usb camera module with microphone mini webcam board with 68degree no distortion lens for computer,pc,laptop.
Super mini usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
Small outline and thin profile for embedded machine visions.
Widely application for all kinds of machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc.
Mini usb camera board can be installed in most hidden and narrow position:
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
How to use ?
↓↓ 100degree AF 16MP USB Camera Module Option ↓↓
