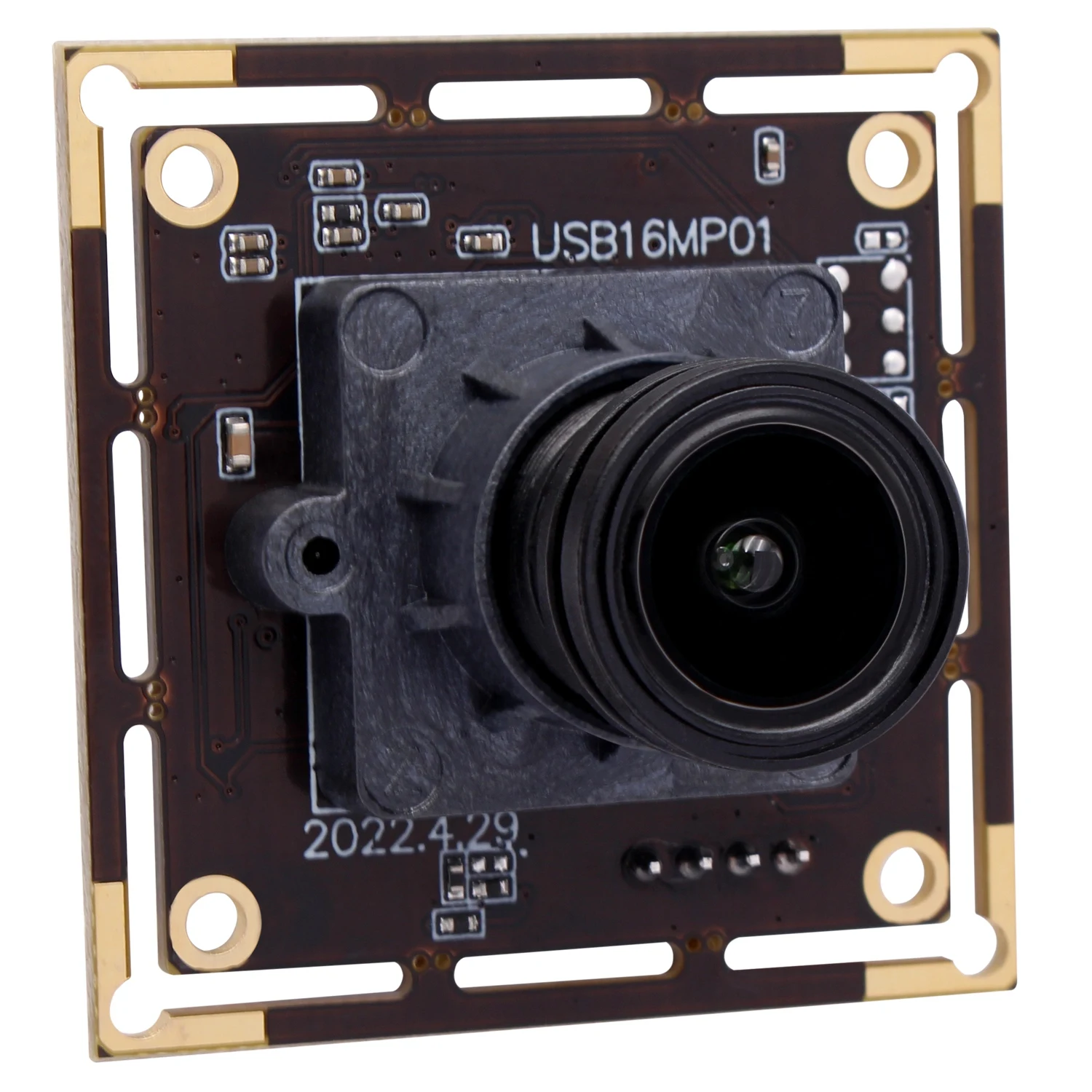

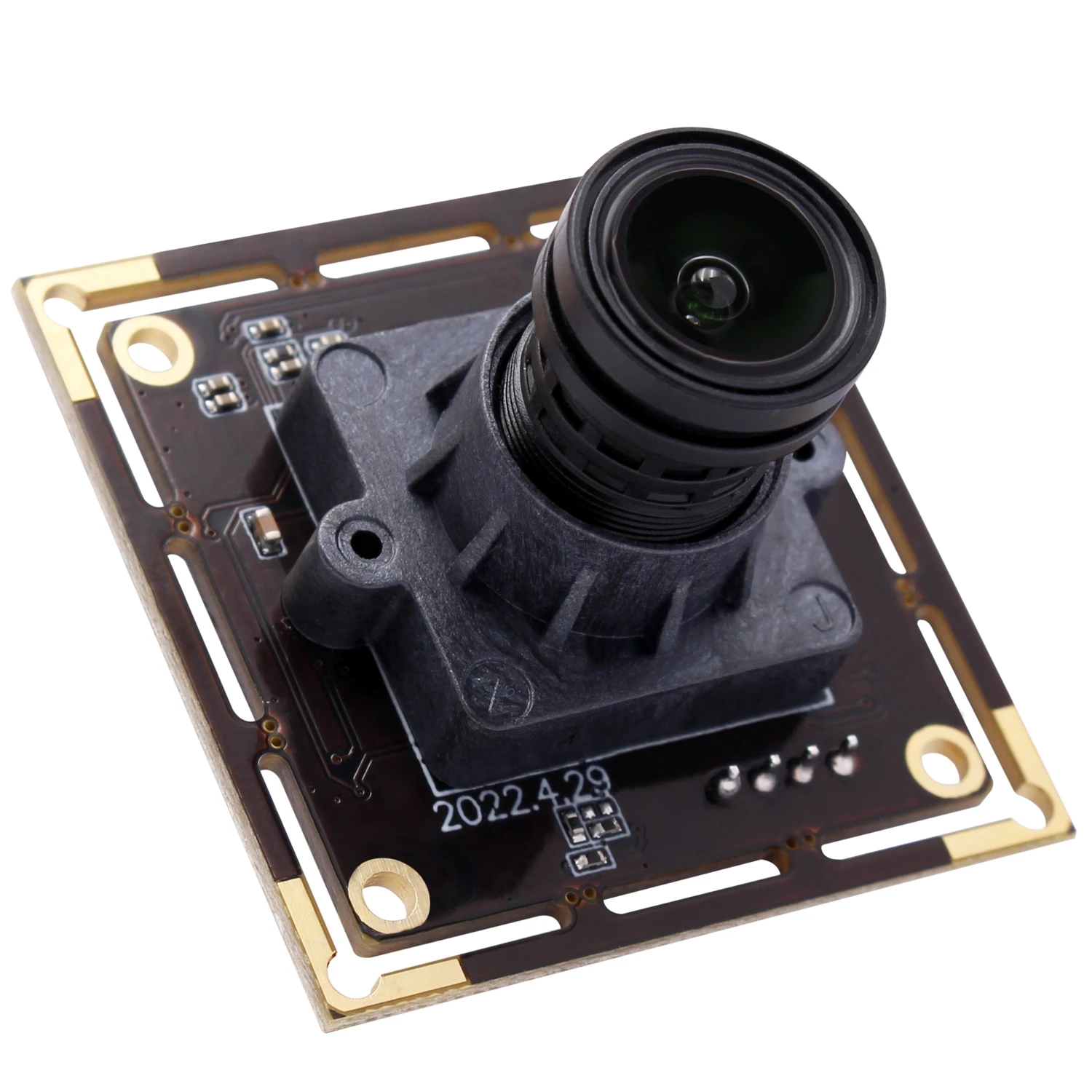

ELP 16MP USB Camera Module 4656*3496 CMOS IMX298 Sensor Security Industrial Webcam For Windows Android Mac Linux Raspberry Pi Camera Laptop PC Camera USB2.0 Driverless Plug and Play ELP-USB16MP01-F36
Package include :

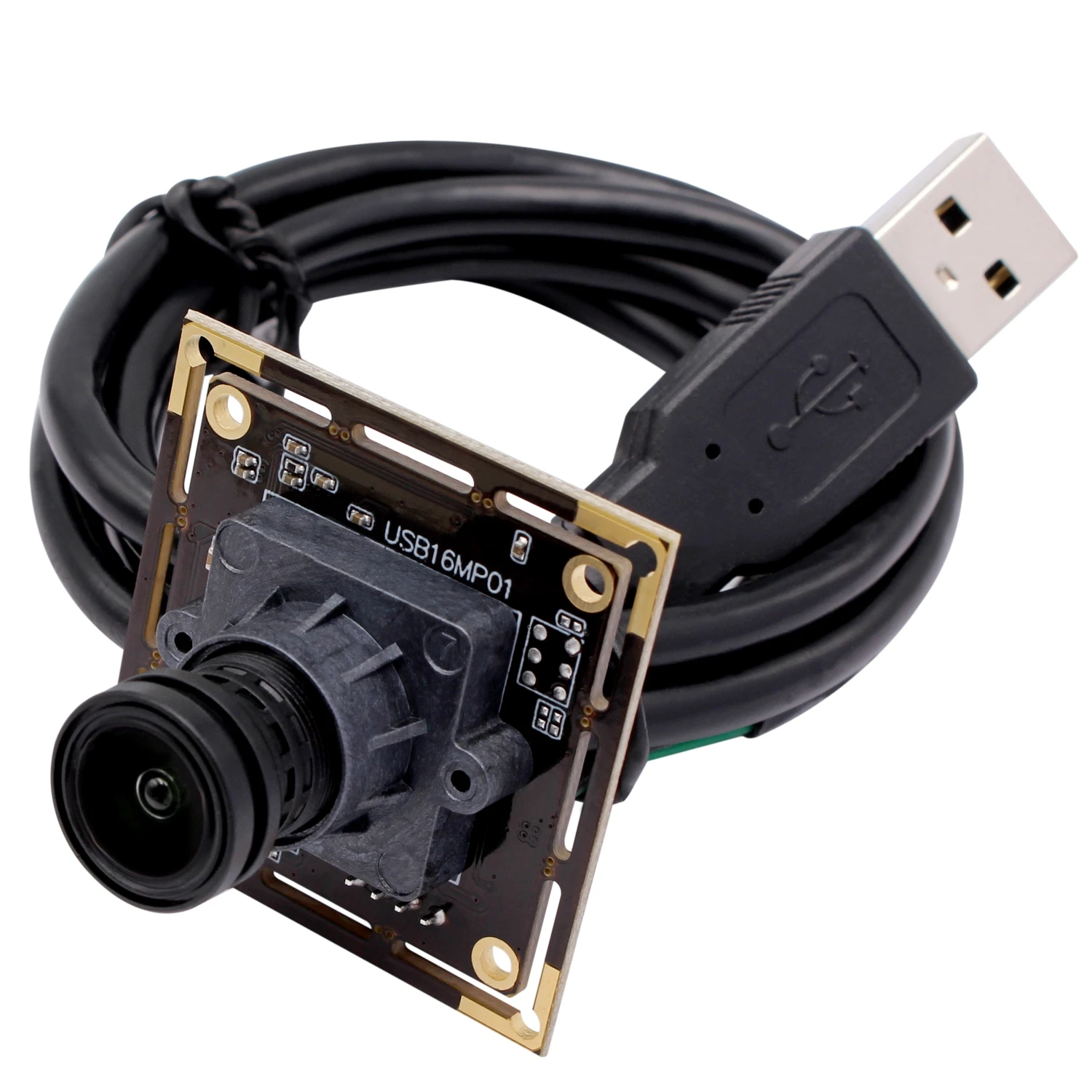

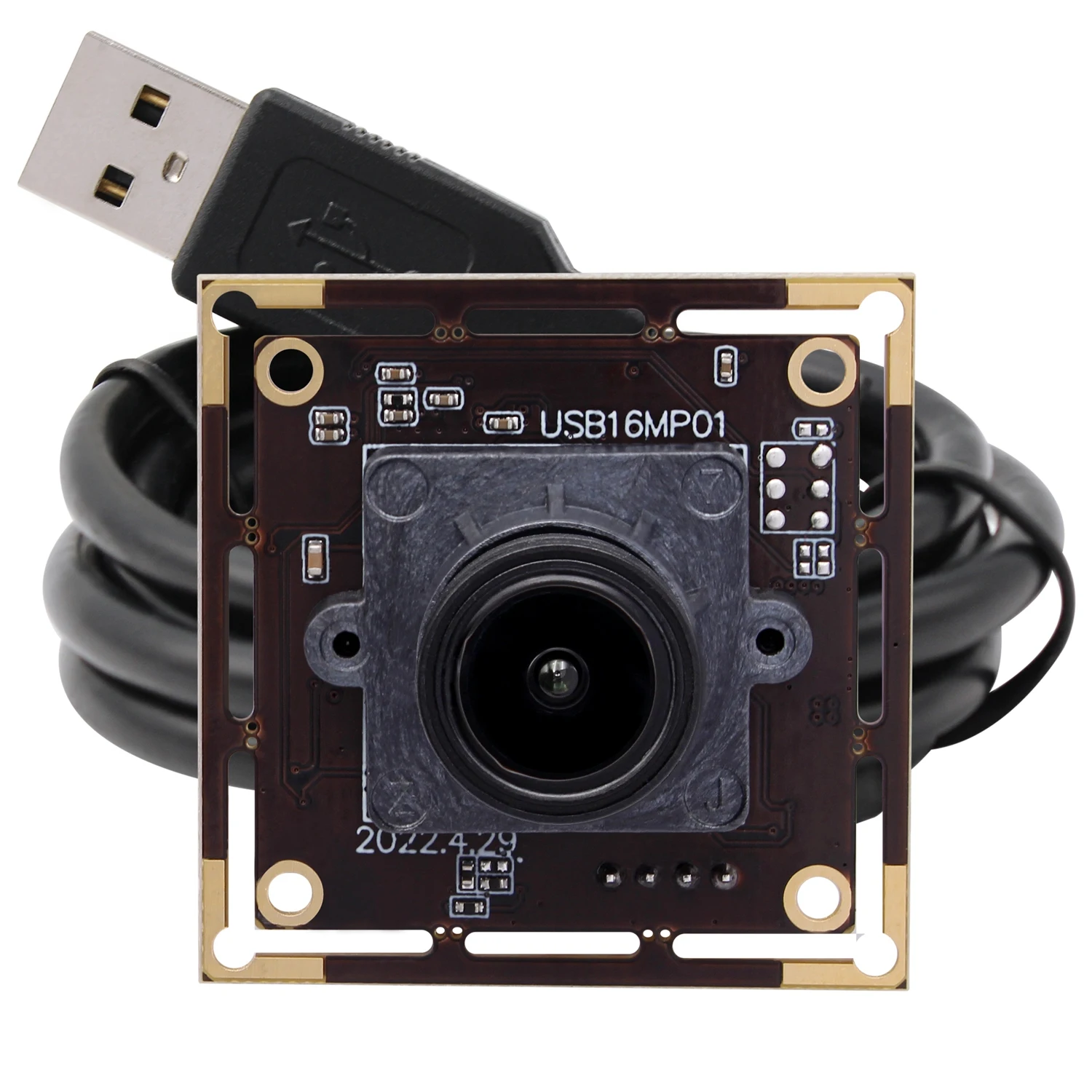

1 Piece of 16MP IMX298 USB Camera with M12 Lens 3.6mm or 2.8mm lens, 1m USB Cable
Features
1) More than HD,16MP USB Camera : This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

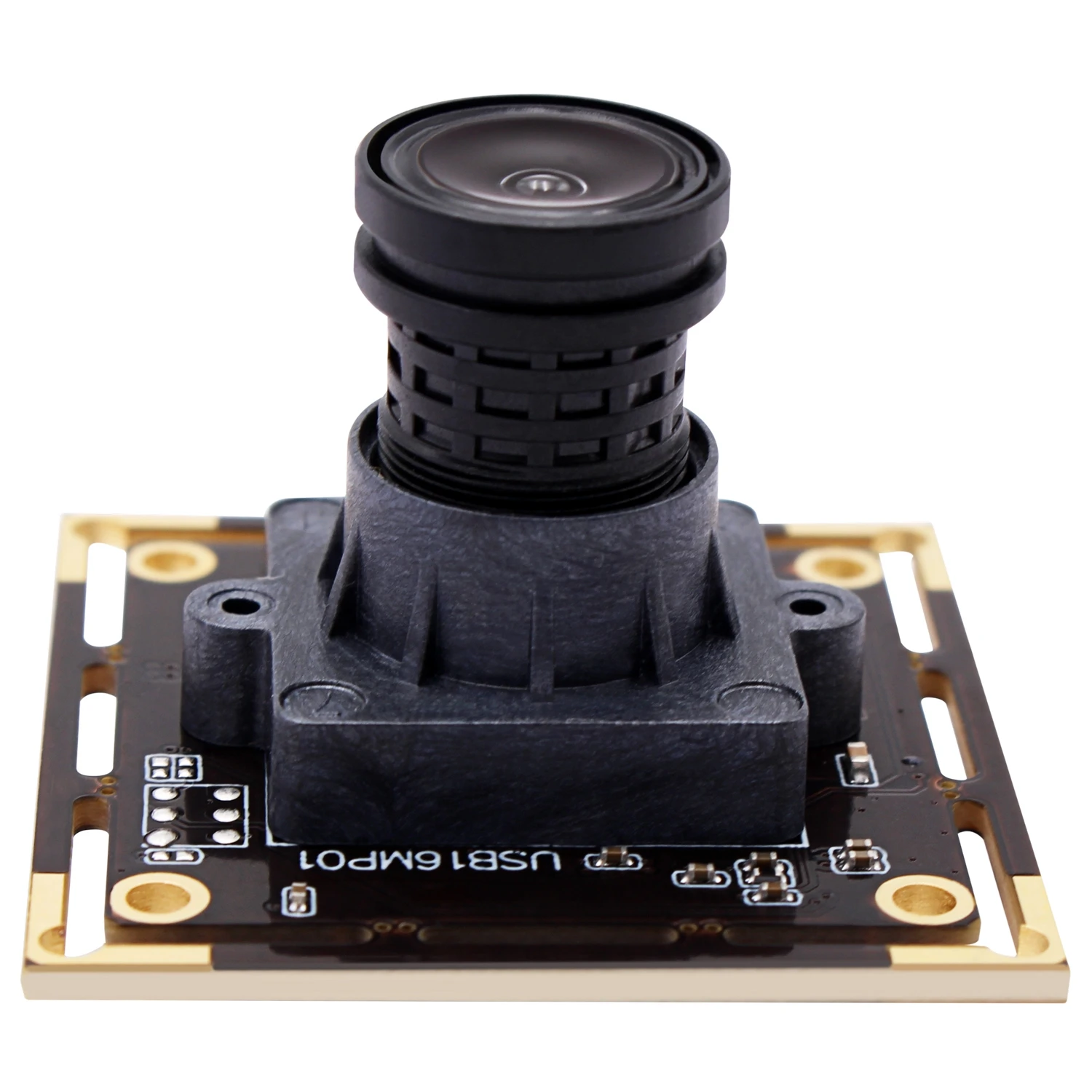

3) M12 Mount lens,fixed focus camera lens changeable : This camera module has a 95° FOV M12 Lens, transmitting the most realistic image effect.
4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5)Widely Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
Specification
|
Model
|
ELP-USB16MP01-F36
|
|
Sensor
|
IMX298
|
|
Sensor Size
|
1/2.8inch
|
|
Pixel Size
|
1.12um
|
|
Image area
|
6.4mm x 5.3mm
|
|
Max. Resolution
|
4656(H) X 3496(V) 16Megapixel
|
|
Compression format
|
MJPEG / YUY2（YUYV）
|
|
Resolution & frame
|
4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps
4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps
3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps
2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps
2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps
1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps
1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps
800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@30fps YUY2 30fps
|
|
Min illumination
|
0.5lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free DriveProtocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC
|
Support
|
|
Buttoncamera
|
Support
|
|
Adjustableparameters
|
Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard 3.6mm lens ,optional other M12 Mount lens
|
|
Power supply
|

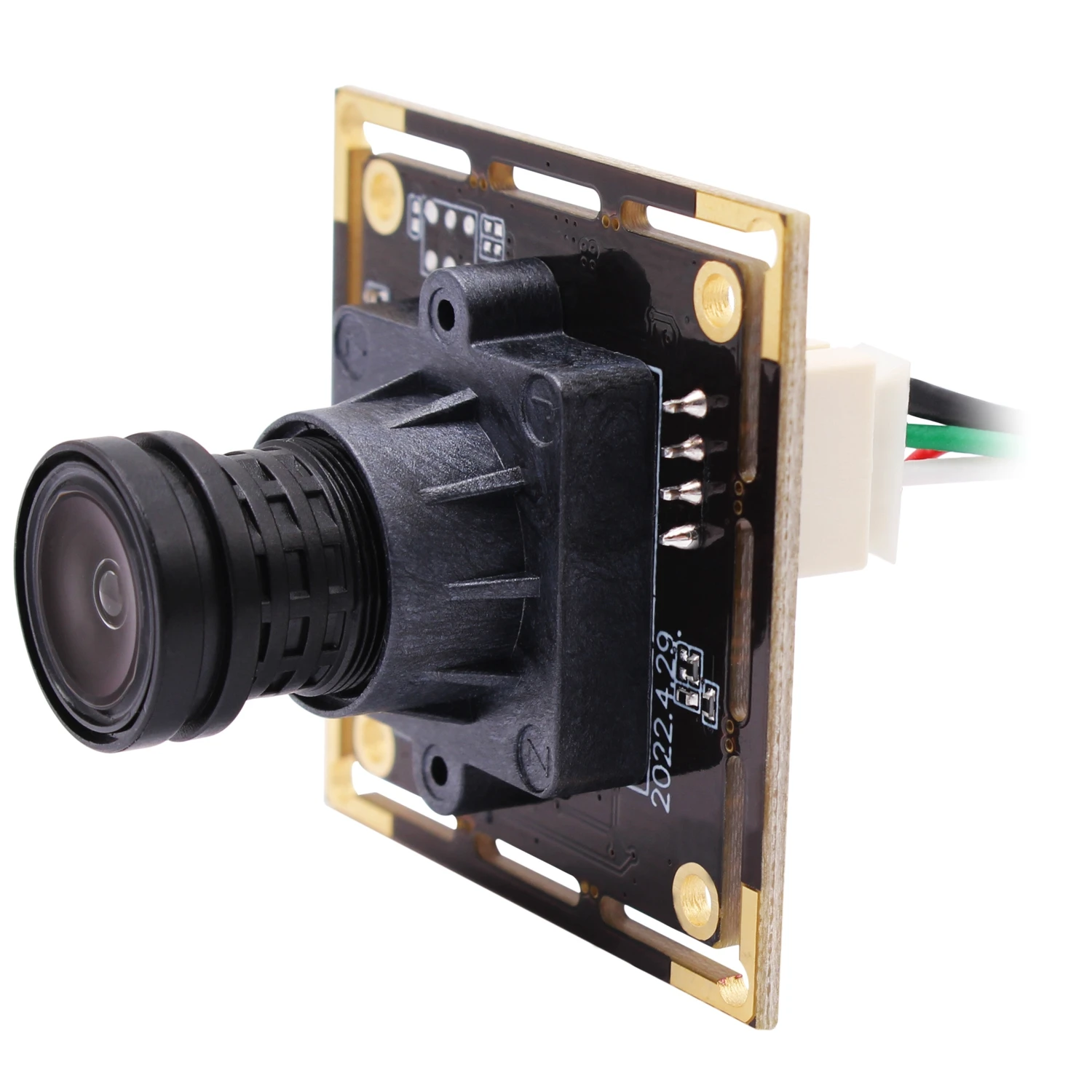

USB BUS POWER4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working Current
|
150mA~240mA
|
|
Working temperature
|
-10～70℃
|
|
Storage temperature
|
-20～85℃
|
|
Boardsize/Weight
|
38X38mm（Compatible 32X32mm）/ about 30g
|
|
Cable
|
Standard 1M / optional 2M,3M,5M
|
|
Operating system request
|
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Applications
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
Camera Sample Picture
High resolution 16MP USB Camera max resolution 4656(H) X 3946(V)
High Tech 1/2.8inch IMX298 sensor
High qualtity wide angle webcam M12 Mount lens
High speed usb 2.0 interface,support OTg
High Compatibility:for use in Android, linux, Windows, MAC OS
Super Mini Camera Module Dimension 38*38mm ,can be cut to 32*32mm
The camera Lens interchanegable ,other optional lens
