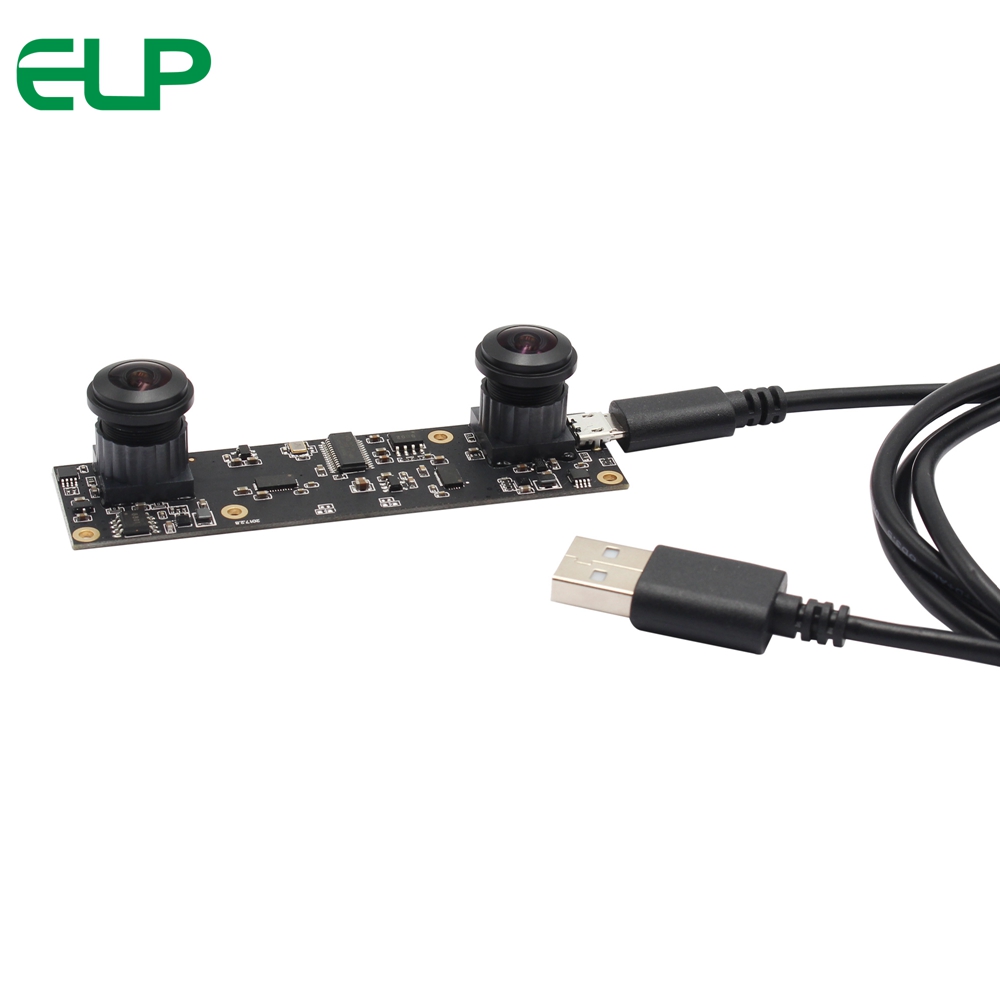

ELP 180 degree Fisheye 2MP 1080P Stereo Webcam OTG UVC Plug Play Driverless Dual Lens USB Camera Module for 3D Video VR Virtual Reality
Model :ELP-1080P2CAM series is 2megapixel 1920(H)X1080(V) dual lens USB cameras, adopt to Aptina AR0330 Color Image Sensor for Linux Android Windows etc. OS system
Many of our customer buy it to use for VR or eye recognize system, person count system, and also mobile phone with eye view system etc.
Main Feratures
*Full HD 2Megapixels 1080P Dual Lens USB2.0 Camera Module
*Synchronization technology,suitable for Stereo 3D VR application
*High speed USB 2.0 interface
*High frame rate, can get MJPEG:1920x1080@30fps
*Low power consumption
*Small outline for embedded application,86x32mm
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High quality M12 fisheye lens, help get high quality image
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Speciofications
|
Model:ELP-1080P2CAM-L180
(M12 fisheye lens)
|
|
Performance |
1920X1080 MJPEG@ 30fps, 1904X1080 MJPEG@ 30fps
1280X720 MJPEG@ 30fps
640X480 MJPEG@ 30fps YUY2@10fps
320X240MJPEG@ 30fps YUY2@30fps |
|
Sensor |
AR0330 |
Compression format |
MJPEG / YUV2(YUYV) |
|
Lens Size |
1/3 inch |
Connecting Port type |
USB2.0 High Speed |
|
Pixel Size |
5.07um X 3.38um |
Connector |
Micro USB |
|
Max. Resolution |
(Left)1920(H)X1080(V)
(Right)1920(H)X1080(V)
(Combined)3840(H)X1080(V)
|
Shutter Type |
Electronic rolling shutter /
Frame exposure
|
|
Lens Parameter |
M12 fisheye lens |
OTG Protocol |
USB2.0 OTG |
|
Board size/Weight |
86X23mm, About 30g |
Free Drive |
USB Video Class(UVC) |
|
Cable |
Standard 1M |
Support |
AEC AEB |
|
Mini illumination |
0. 1lux |
S/N Ratio |
39dB |
|
Sensitivity |
2.0V/lux-sec@550nm |
Dynamic Range |
72.4dB |
|
Voltage |
DC5V |
Work temperature |
-10~70 °C |
|
Current |
220mA~280mA |
Storage Temperature |
-20~85°C |
Adjustable
parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure |
|
Operating system
request
|
Win XP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC |
