ELP 1.3MP USB Camera Module with Synchronized Dual Lens for Industrial Home Security,Webcam for stereo 3D VR application like people counting system
Features
[1.3MP USB Camera With OV9715 Sensor ] Dual Lens USB Camera Resolution 1.3megapixels ,Max 1280x960 each image ,combined 2560x960P . Adopt to high 1/3 inch CMOS OV9715 Sensor ,powered by USB2.0 interface.
[Synchronized Frames Technology]1.3MP HD 960P stereo 3D VR dual lens usb camera with dual lens frame synchronization provide side by side image, two lens work at the same time .
[High Speed 2560X960 @ 60fps Webcam]:1.3MP 960 dual lens camera module with high frame rate can get MJPEG:2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps. perfectly synchronized stereo images
[Mini Synchronized Dual Lens Webcam with No Distortion Lens ] 1.3MP Webcamera utilizing the disparity between the two lenses through algorithms,Allow MACHINE to see the world as we do.Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 80*16.5mm for embedded application
[Best Universal Compatibility]: Webcam support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services etc.
Widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
[Widely Application ] 960P Dual Lens USB Camera is widely used for Face recognition, object identification, motion tracking, mapping, and AR & VR applications can integrate seamlessly,suitable for stereo 3D VR application like people counting system,stereoscopic computer vision .

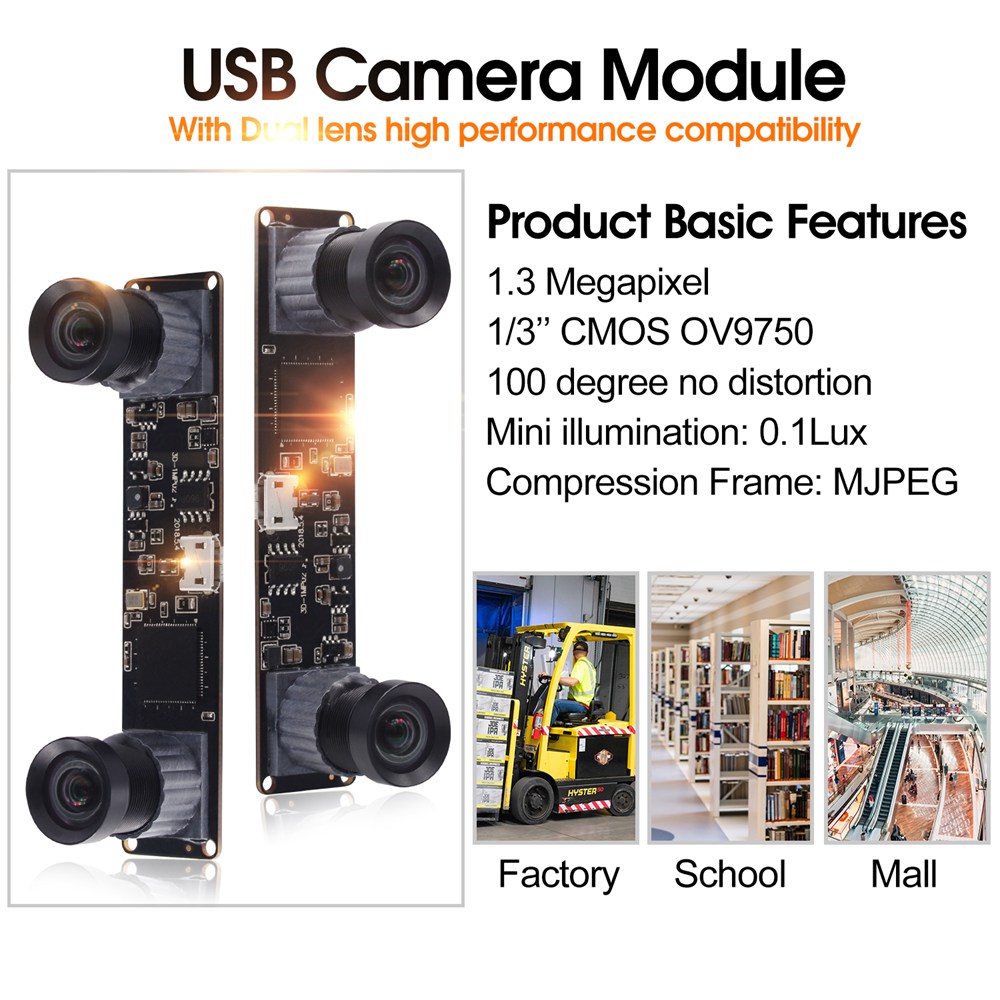

Specifications
|
Model |
ELP-960P2CAM-LC1100 ( M12 No distortion lens ) |
|
Sensor |
OV9750 |
|
Lens Size |
1/3 inch |
|
Pixel Size |
4860µm x 3660 µm |
|
Max. Resolution |
2560(H)X960(V) |
|
Compression format |
MJPEG |
|
Resolution & frame |
MJPEG:
2560X960@ 60fps/2560X720@60fps
/1280X480@60fps /640X240@60fps |
|
Sensitivity |
3.7V/lux-sec@550nm |
|
Mini illumination |
0. 1lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
Support OTG Protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
M12 No distortion lens |
|
Power supply |
USB BUS POWER Micro USB |
|
Power supply |
DC5V |
|
Operating Voltage |
160mA~220mA |
|
Working current |
-10~70℃ |
|
Working temperature |
-20~85℃ |
|
Board size /Weight |
80X16.5 |
|
Cable |
Standard 1M |
Operating system
request |
Win XP/Vista/Win7/Win8 |
|
Linux with UVC(above linux-2.6.26) |
|
MAC-OS X 10.4.8 or later |
|
Android 4.0 or above with UVC |
Synchronized Dual Lens Stereo USB Camera 1.3MP HD 960P Webcam 3D VR Web Camera Module with 1/3 CMOS OV9715 Image Sensor Camera Module Mini Industrial USB2.0 Web cam Plug&Play for Android,Linux,Windows
Synchronized Frames Technology-1.3MP HD 960P stereo 3D VR dual lens usb camera with dual lens frame synchronization provide accuracy at less than one millisecond.
Small outline 80*16.5mm for embedded application.

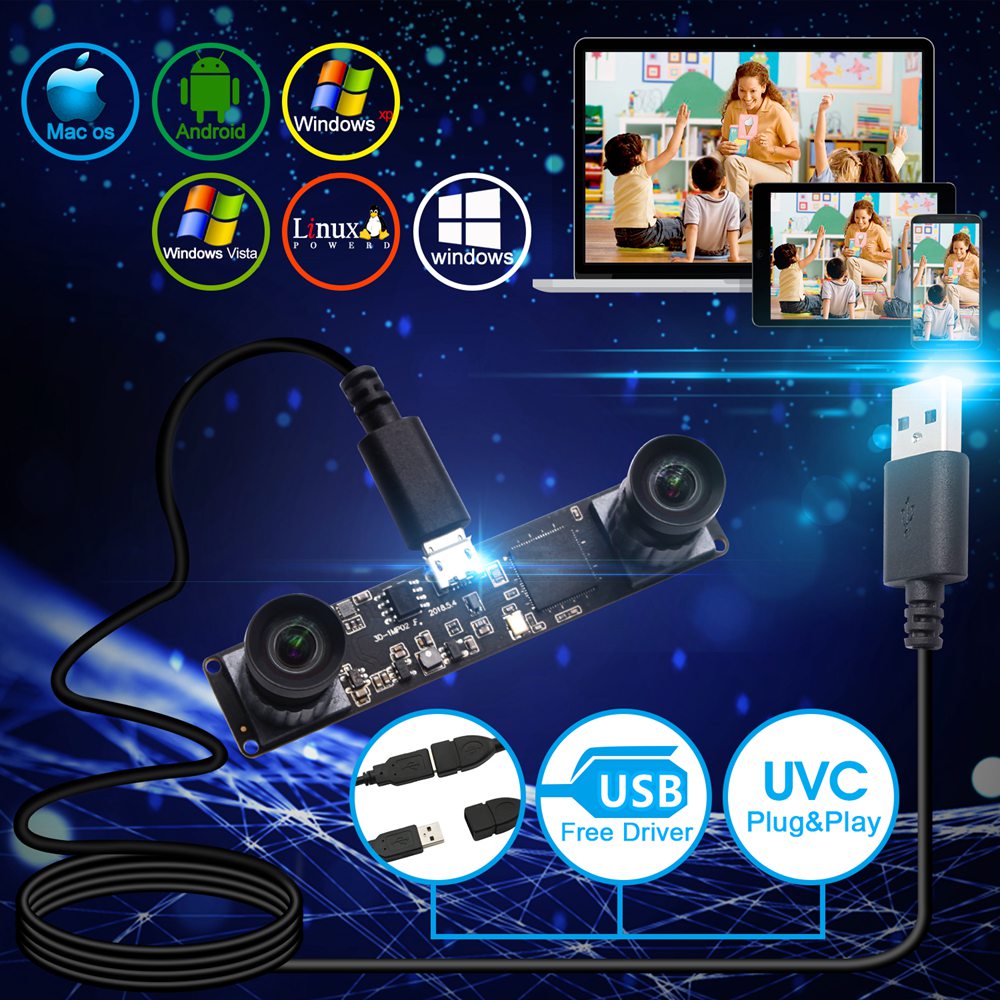

Free Driver USB Camera ,support UVC ,plug and play Webcam .Best Universal Compatibility
Webcam support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services etc.
Widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.

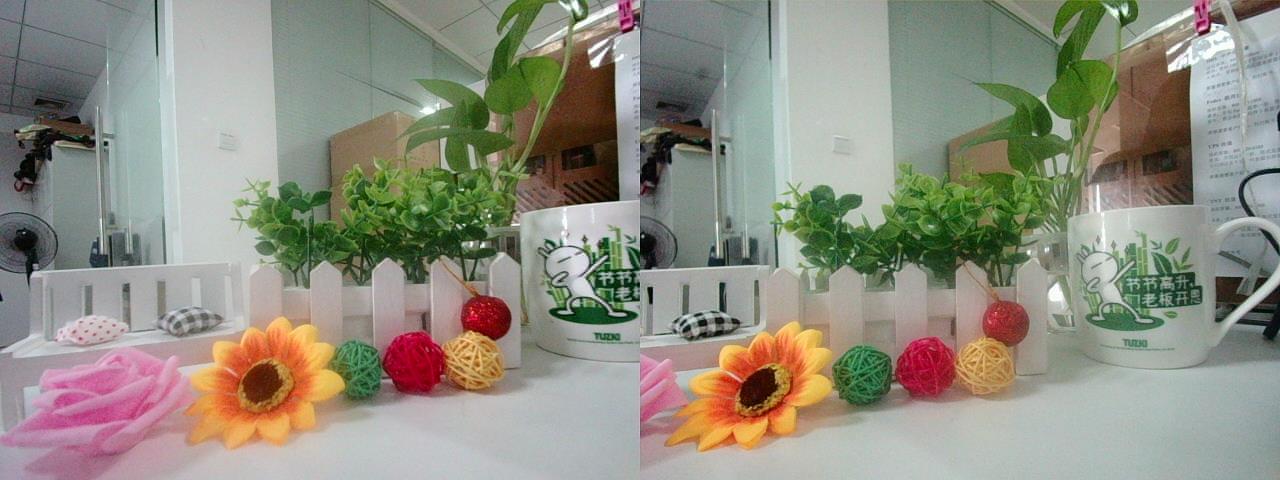

Sample Picture - dual lens simultaneously work
Wide Application
This 960P mini usb camera have super small outline and thin profile for embedded applications, Perfect for Face recognition,Object identification,Motion tracking,Mapping,AR & VR applications
