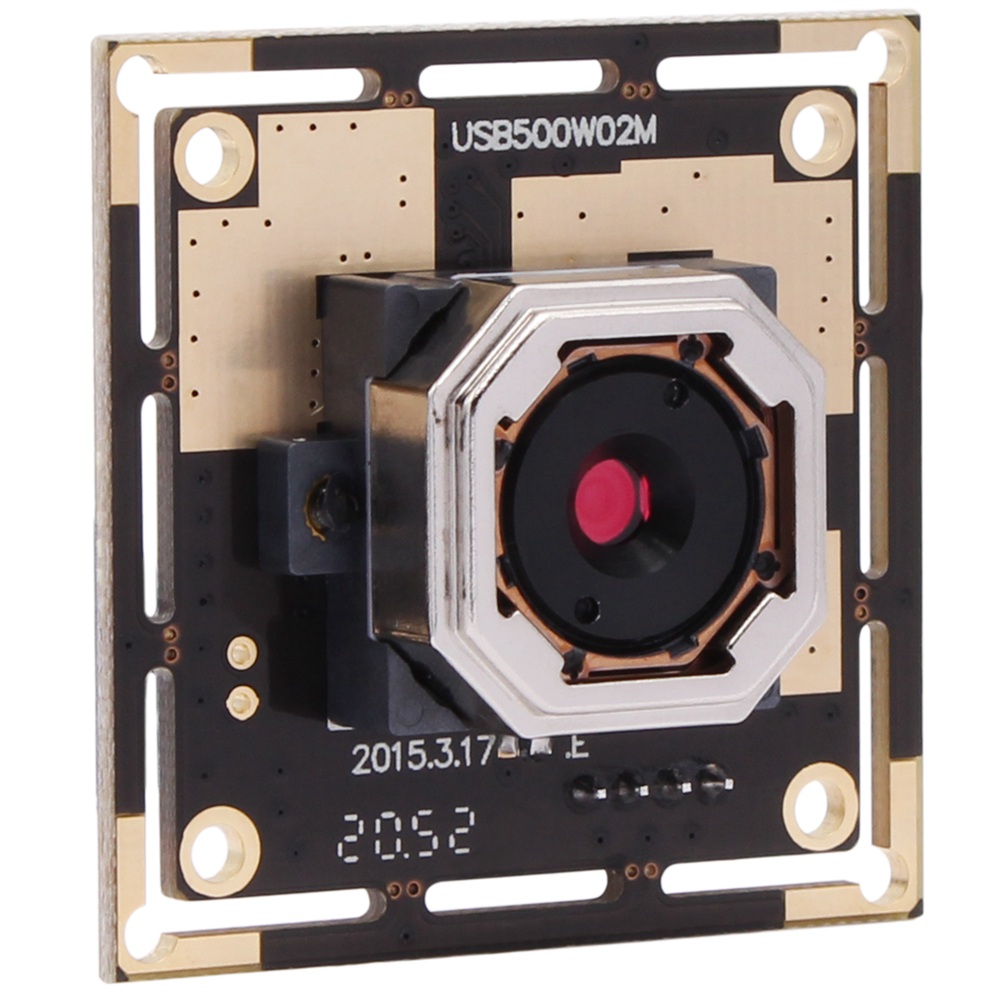

ELP 5Megapixel high resolution Autofocus USB Camera Module USB2.0 OV5640 Color CMOS Sensor 60Degree Lens (NOT Support OTG )

ELP 5Megapixel high resolution Autofocus USB Camera Module USB2.0 OV5640 Color CMOS Sensor 60Degree Lens (NOT Support OTG )

(0) Write Review
  • Model: ELP-USB500W02M-AF60
  • Availability: In stock

$45.60

Quantity:
 inquiry Now

Products Description

ELP 5Megapixel high resolution Autofocus USB Camera Module USB2.0 OV5640 Color CMOS Sensor 60 Lens (NOT Support OTG )



Effect

ELP-USB500W02M-AF60





Features

 *5.0megapixel 2592(H)x1944(V)pixels USB Camera

*FOV60 Degree Lens with AUTOFOCUS MOTOR
*CMOS OV5640 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.



Main Specifications

Module No.

ELP-USB500W02M-AF60

Sensor

OV5640 (1/4” )

Max. Resolution

2592 (H) *1944 (V)

Sensitivity

600mV/Lux-sec

Pixel Size

1.4µm x1.4µm

Image area

3673.6µmx2738.4µm

Maximum Image Transfer Rate

2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG

1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG

1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG

1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

Camera Board Assembly technique

SMT (ROSH)

Focus

Auto

Object distance

5CM-100M

Resolution

600LW/PH (Center)

interface

USB 2.0 High Speed

protocol

USB Video Class（UVC）

S/N Ratio

36dB

Dynamic Range

68dB

Shutter

Rolling shutter/ frame exposure

Package

CSP, Bare Die

AGC/AEC/AWB/ABF

Auto

Output Formats

YUYV/MJPEG

Adjustable parameter

Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus

Package

LQFN-40pin

Lens Parameter

Size:  1/4,  Iris:  F2.8,  Focus: 3.2mm,  FOV: 60Degree

Relative Illumination (Sensor): 70%

IR Filter: 650±10nm

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage

DC5V

Power consumption

150mW （VGA）; 200mW （QSXGA）;

Module Size

38mm × 38mm （compatible 32X32mm）

Temperature (Operation)

-20°C to 70°C

Temperature (Stable Image)

0°C to 60°C

USB Cable

1M(2M/3M/5M Optional)

Operating system request

Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Certifications

FCC and CE

Mini OV5640 USB Camera 5MP

5Mpixels Max resolution 2592x1944

Camera with UVC, Free Driver ,Plug and Play

ELP USB Camera compatible with multiple operation system



Widely used in Industrial Machines ,like

Adjustable parameters

How to use ELP USB Camera ?

Lens optional:
