ELP 5MP 30FPS USB Camera Wide Angle Video Camera for Computer,IMX335 Color Industrial USB Box Camera For 3D Printer,Laser Engraver,Machine Vision Camera for Industrial
Package Include (Model ELP-USB500W07-BH120)
1pc of 5MP IMX335 USB Camera with 120Degree lens
1pc of 3m USB Cable (Other lenght optiona )
Features:
*5Megapixel USB Camera resolution up to max.2592 (H) x 1944 (V) pixels
*CMOS Sony IMX335 sensor for HD image,Sensor Size 1/2.8 inch .
*High Frame Rate 30fps at 1944P 5MP 30fps , 1920x1080P 30fps .
*USB With Camera , High speed USB1.1&2.0 compatible, occupy less bandwidth
*Wide Angle lens, M12 Mount H120 FOV 120degree .
*Suppor MJPEG YUY2 picture format.
*Camera with UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Free driver to work
Datasheet
|
Model
|
ELP-USB500W07-BH120
|
|
Sensor
|
1/2.8inch Sony IMX335 Image Sensor
|
|
Max. Resolution
|
2592(H)*1944(V)
|
|
Pixels Size |
2.2umx2.2 um |
|
Image Area |
5800umx 4750um |
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
2592x1944 MJPEG 30fps/ YUY2 1fps
2048x1536 MJPEG 30fps/ YUY2 3fps
1920x1080 MJPEG 30fps/ YUY2 3fps
1600x1200 MJPEG 30fps/ YUY2 5fps
1280x960 MJPEG 30fps/ YUY2 5fps
1280x720 MJPEG 30fps / YUY2 5fps
1024 x 768 MJPEG 30fps/ YUY2 5fps
800 x 600 MJPEG 30fps / YUY2 20fps
640x480 MJPEG 30fps / YUY2 30fps
320x240 MJPEG 30fps / YUY2 30fps
|
|
Center Definition
|
1000 LW/ PH(Center)
|
|
S/N (Signal Noise Ratio) |
30dB |
|
Sensitivity |
0.65 V/lux-sec@550nm |
|
Mini illumination |
0.2 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC |
Support |
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .
|
|
Lens Parameter
|
M12 Mount 120Degree lens .
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm
Optional M12 2.1/2.8/3.6/6/8/12mm, No distortion (FOV 80-125 degree), 170 degree/180 degree Fisheye lens etc.
|
|
Power supply Interface
|
USB Bus Power 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
210mA
|
|
Storage Temperature
|
-20～75℃
|
|
Working temperature
|
-10～65℃
|
|
Board size /Weight
|
38mm x 38mm(compatible 32*32mm) / 50g
|
|
Cable equipments
|
Stander 3m (optional 2m ,3m ,5m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
Camera Picture Display
5MP USB camera high definition 2595x1944 resolution 30fps webcam board ensure your videos and image are always sharp and crystal clear with vivid color.
M12 Wide Angle Lens: This 5MP USB camera module features with an 120°(HFOV) M12 lens without distortion for exceptional image quality.
UVC compliant: This plug and play camera with USB-A plug required no extra driver or specific software, the camera has effortless compatibility with Windows,Linux,MacOS and Andorid, OTG support to connect with USB-C device via OTG adapter.
FOR Raspberry Pi
-
It can work with already preinstalled camera software instead of built-in camera.
-
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
-
Support windows,Linux,MacOS,Android,Raspberry Pi
-
Very easy to use,UVC compliant,no extra driver required,just plug in and go.
Software & Adjustable Parameters :
-
Although this camera required no specific software and works for varity software including webcam software,video call software, we recommned to use professional video software to get the best image quality, for example Apcam, OpenCV, VLC,V4L2,Camerafi/USB Camera Sharpcap.
-
For different scenarios, you can adjust the following parameters on video software to achieve optimal results: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast.
Small size box camera with metal case and stand, the camera can be installed in any narrow places of plat surface or mount on a tripod.

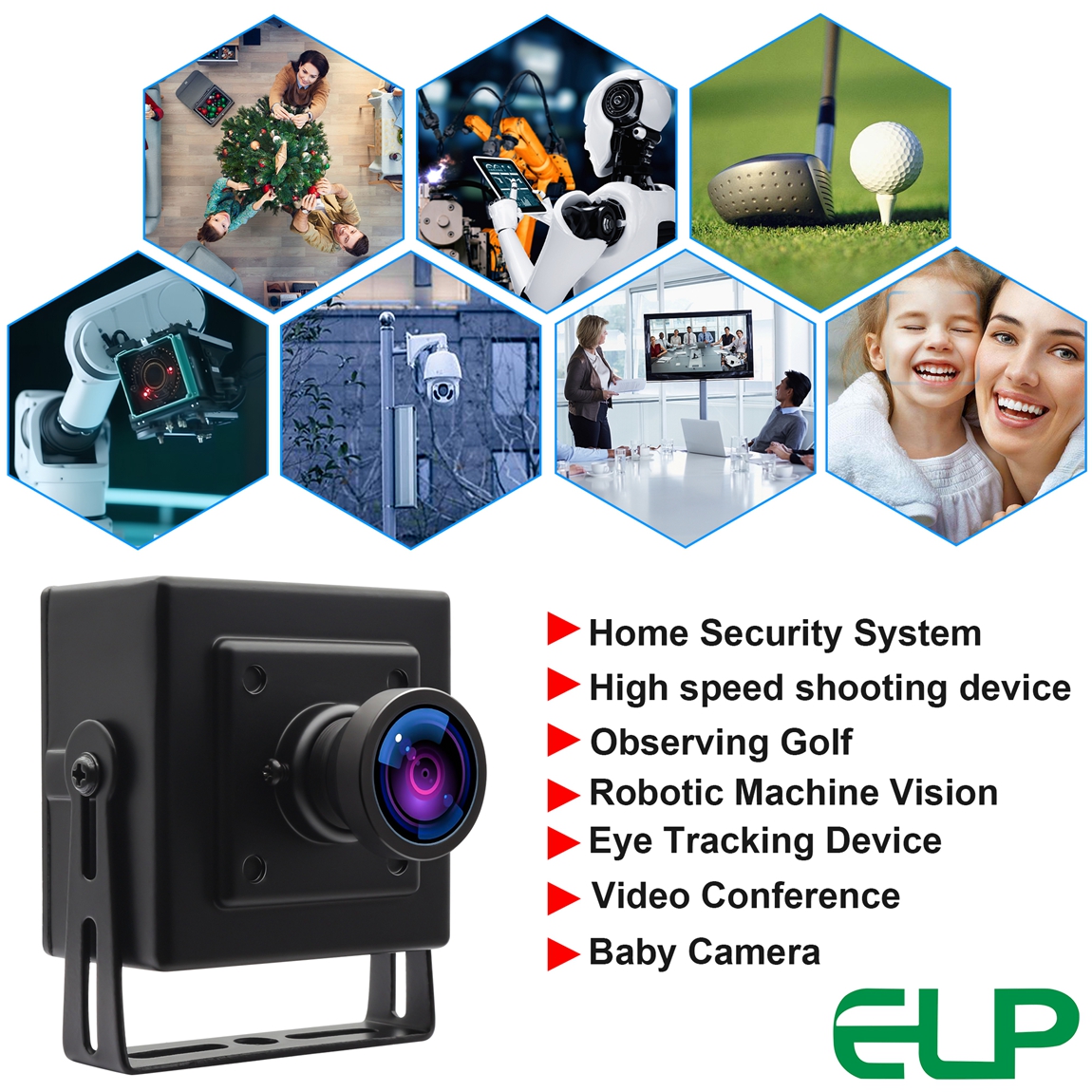

Application: Ideal for machine vision, DIY/craft projects, computer vision, video recording, 3D printer, security monitoring
