ELP 5MP OV5640 USB2.0 Webcam Manual Zoom UVC Driverless HD Web Camera for PC Laptop Computer Machine Vision Camera

ELP 5MP OV5640 USB2.0 Webcam Manual Zoom UVC Driverless HD Web Camera for PC Laptop Computer Machine Vision Camera

(0) Write Review
  • Model: ELP-USB500W02M-SFV(2.8-12)
  • Availability: In stock

$56.70

Quantity:
 inquiry Now

Products Description

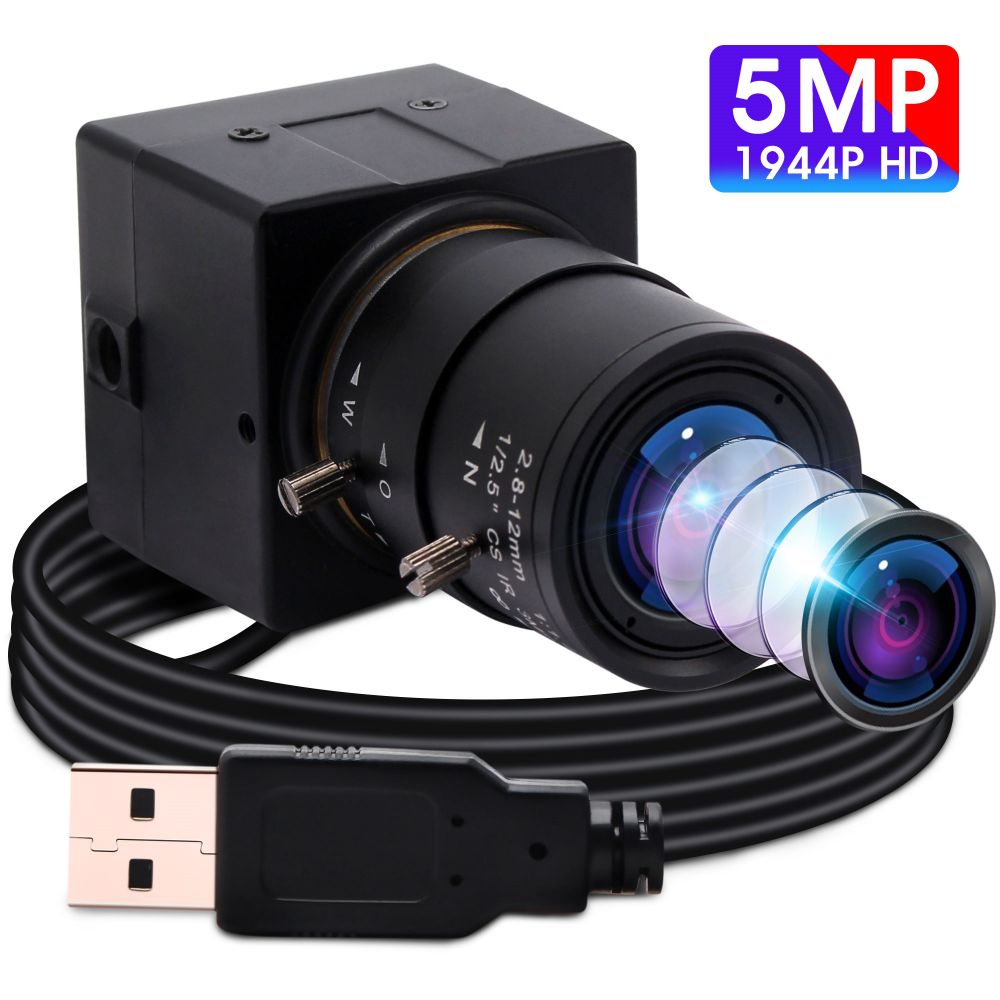

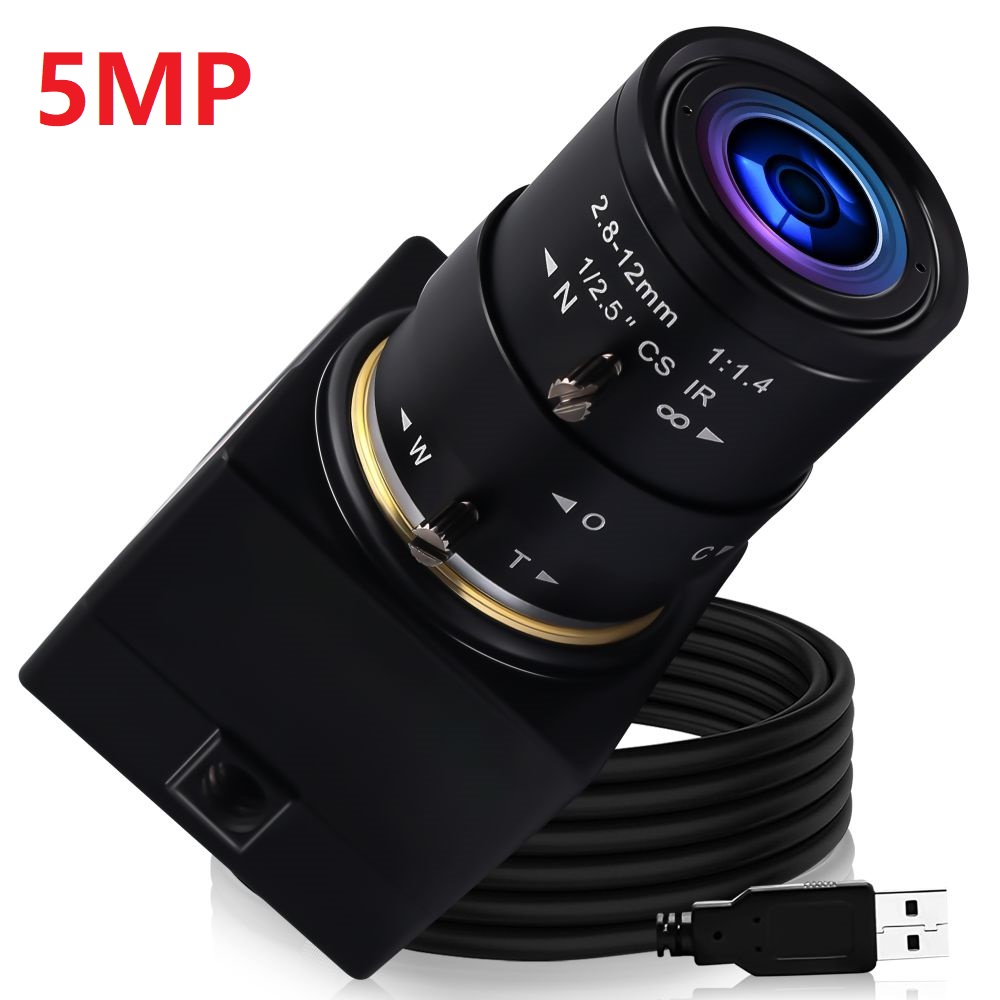

ELP 5MP USB Camera with 4x Zoom Lens (2.8-12mm) OV5640 UVC Driverless HD CCTV Webcam for Parking Lot Security, PC Camera

Packing list:

1. 1PC 5MP USB Camera with a varifocal CS lens (2.8-12mm/5-50mm/6-60mm Varifocal CS lens optional)

2. 1pc 3m usb cable



Main Features

  • *High Definition 5MP Camera, Resolution up to 2592*1944, 5.0 Megapixel

  • * With Advanced 1/2.5" Aptina MI5100 Sensor for sharp image

  • * CS Mount varifocal lens, manual focus, manual zoom and aperture adjusted; 2.8-12mm, 5-50mm optional/

  • * High-speed USB 2.0 interface - suitable for any PC with USB 2.0 port

  • * UVC-compliant, Plug&play, free driver.

  • * High Compatibility-Can Work With Most OS:Windows,Linux,Mac,Raspberry Pi,Android,etc.

  • * Auto exposure AEC Support/Auto white blance AEB Support

  • * Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB

Camera Specifications



Model

ELP-USB500W02M-SFV(2.8-12)

optional

ELP-USB500W02M-SFV(5-50) (with CS 5-50mm lens

ELP-USB500W02M-MFV (with CS mount ,no lens

Sensor

1/4inch OV5640 Image Sensor

Max. Resolution

2592(H)*1944(V)
Pixels Size 1.4umx 1.4um
Image Area 3673.6µmx2738.4µm

Compression format

MJPEG / YUY2(YUYV)

Resolution & frame

1600x1200@15fpsMJPEG/1920x1080@15fpsMJPEG

1280x1024@15fpsMJPEG/1280x720@30fpsMJPEG

1024x768@30fpsMJPEG/800x600@30fpsMJPEG

640x480@30fpsMJPEG/320x240@30fpsMJPEG

Center Definition

600 LW/ PH(Center)
S/N (Signal Noise Ratio) 36dB
Dynamic Range 68dB
Sensitivity 0.6V/lux-sec@550nm
Mini illumination 0.2 Lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB 2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AWB

Support
AGC Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure .

Lens Parameter

CS Mount 2.8-12mm / 5-50mm vairofal lens optional

Focus, Sharipness, Aperture manual adjusted.

IR Filter: 650±10nm

Power supply Interface

USB Bus Power 4P-2.0mm socket

Operating Voltage

DC 5V

Working current

150mW(VGA);  200mW(QSXGA);

Storage Temperature

 -20～70℃

Working temperature

0～60℃

Board size /Weight

38mm x 38mm(compatible 32*32mm) / 350g

Cable equipments

Stander 3m (optional 2m , 5m cable )

Operating system request

Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
