Products Description

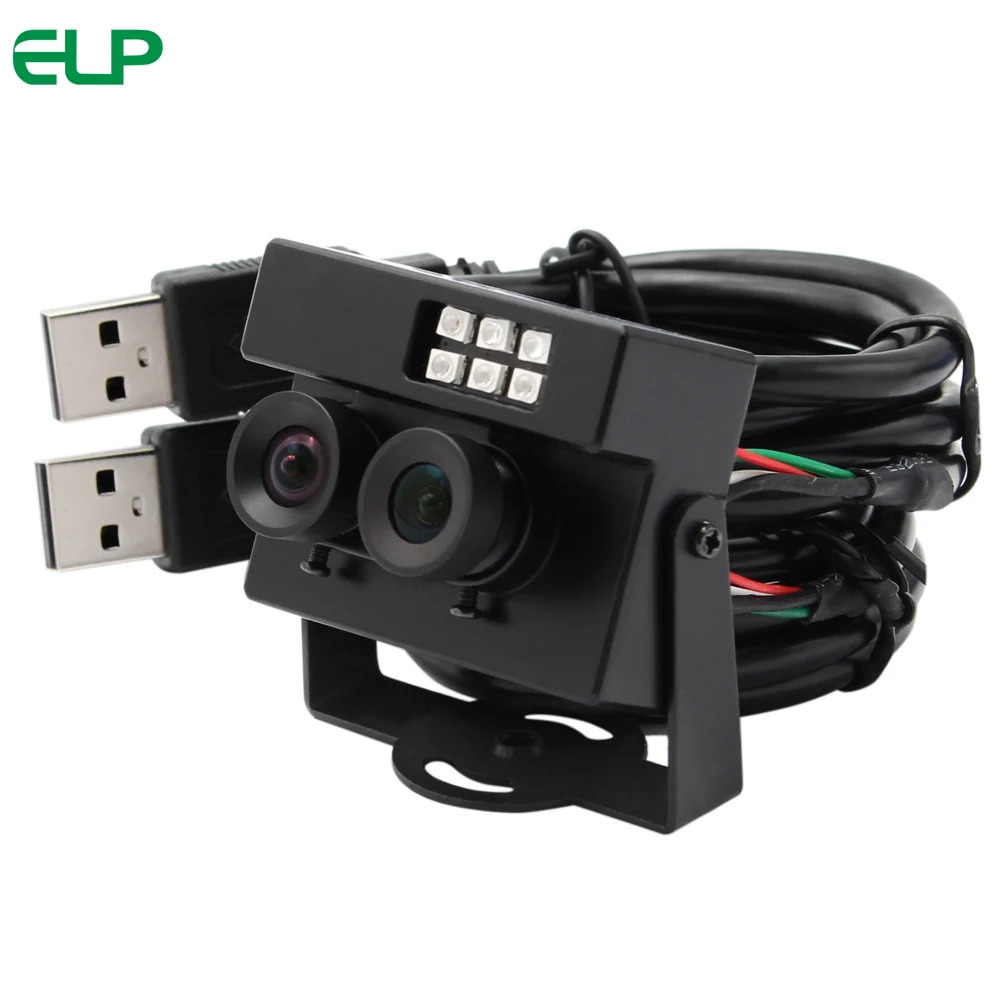

ELP Face Recognition &Biological Detection Dual Lens USB Camera,2mp FHD 1080P Web Cam RGB & IR Dual Output Webcam With Sesnsor AR0230 , 105dB WDR Day Night Webcam With 12pcs IR LED Lights
Features:
-
【Adjust Parameters】 Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure .
-
【Super Mini Camera Board】Mini Camera Board size with metal housing , makes it a great embedded camera board for muilt-applications like security camera, HD surveillance systems ect.
-
【 WDR USB Camera 105dB ,CMOS AR0230 Sensor 】 2 megapixel WDR dual lens usb camera use ar0230 image sensor which is the high standard in terms of image quality and sensitivity performance.The CMOS image sensor helps to produce sharp images effectively
-
【1080p usb camera with 90degree No distortion l lens 】 2mp full HD webcam max resolution 1920x1080p each lens , both lens is M12 Mount no distortion , offer image without any fisheye .Standard equipped with 3 meters usb cable.
-
【 Equipped with 6pcs IR LEDs, IR distance 1-2 meters 】 Night Vision USB WEBCAM With 6pcs IR LED ,one is RGB Mode, another is IR Mode , support this IR Camera work both at day time and night . (IR Mode use narrowband 850 nm IR Filter)
-
【M12 Mount Fixed Focus Lens】Equipped with M12 Mount lens, Fixed Focus Camera Module No distortion lens, it's interchangeable ,available to change other M12 Mount lens according to customer's request Lens FOV .
-
【Free Driver ,Plug and Play 】Driverless 2MP Board Module with 2.0USB cable is very easy to set up just plug & play, Work with Windows , Linux, Mac and Android systems, also support OTG protocal.
-
【 Widely used to in various applications 】: face recognition, biopsy detection and other application scenarios.Also support secondary development according to customers’ own requirements.
Specification:
|
Model
|
ELP-USB0230X2-BV90
|
|
Sensor
|
AR0230
|
|
Lens Size
|
1/2.7 inch
|
|
Pixel Size
|
3.0µm x 3.0 µm
|
|
Image Area
|
3888µm x 2430 µm
|
|
Max. Resolution
|
1920(H)X1080(V)
|
|
Compression format
|
MJPEG
|
|
Resolution & frame
|
RGB:
MJPEG：1920*1080@30fps/1280X720@30fps/640X480@30fps
W/B
MJPEG：1920*1080@30fps/1280X720@30fps/640X480@30fps
|
|
S/N Ratio
|
41dB
|
|
Dynamic Range
|
105dB
|
|
Sensitivity
|
4.0V/lux-sec@550nm
|
|
Mini illumination
|
0 lux (IR)
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
Support OTG Protocol
|
USB2.0 OTG
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
M12 Lens FOV(D) 138 (H) 100 degree
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Power supply
|
DC5V
|
|
Working current
|
-10～70℃
|
|
Working temperature
|
-20～85℃
|
|
Operating system request
|
Win XP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|

-
FULL HD 2mp 1080P Double Lens Day Nights USB WEBCAM
