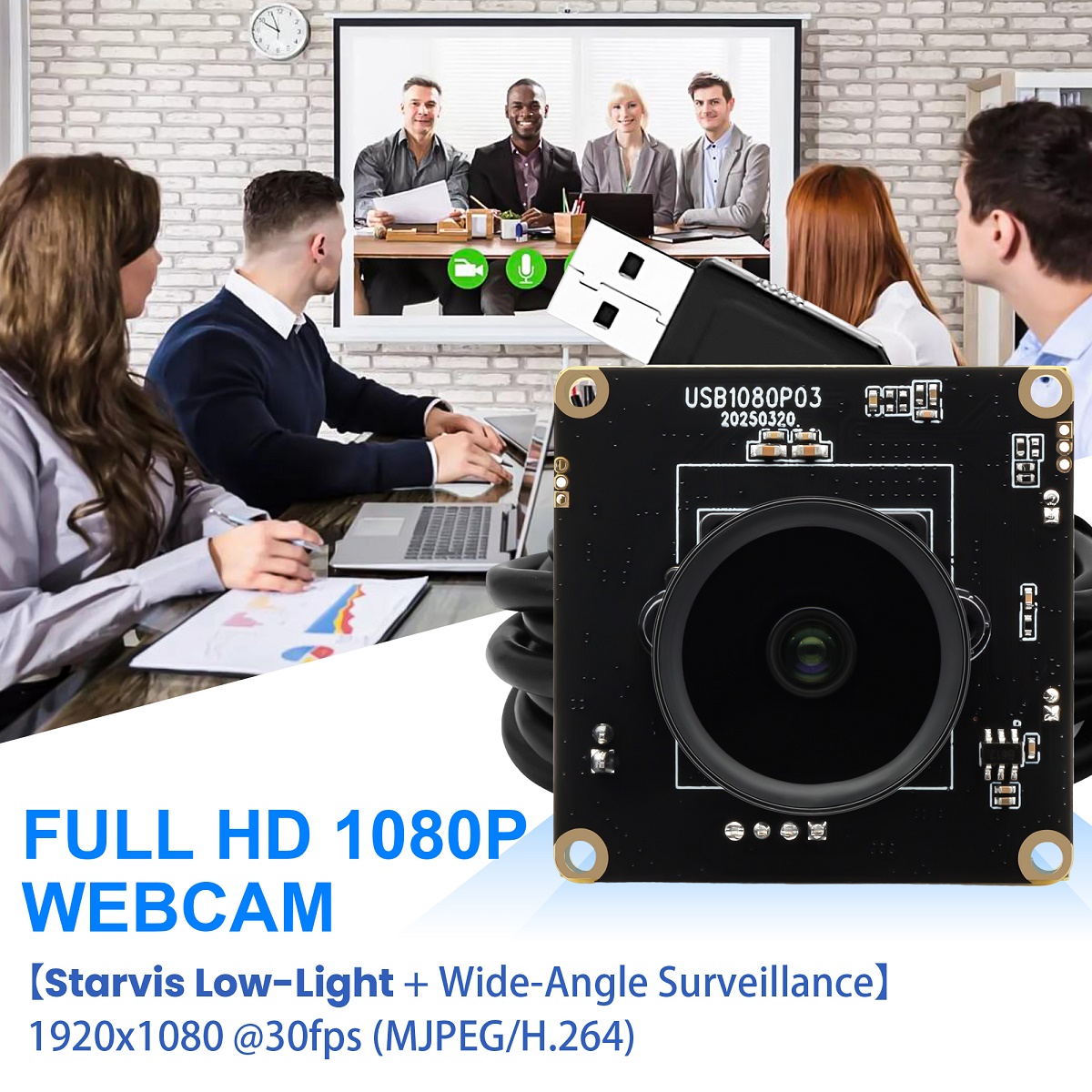

ELP 1080P 2K STARVIS LOW LIGHT 2MP USB CAMERA MODULE WITH NO DISTORTION LENS 100DEGREE
ELP Starvis Low Light Camera Module 2MP FHD 1080P 30fps High Sensitivity HDR Webcam S/N Ratio100dB H.264 No Distortion with Wide Angle Lens
Camera Description
High Sensitivity 2K Starvis USB Camera Module, Model: ELP-USB1080P03 series is
-
This Starvis camera is equipped with a high-performance 1/1.8” SC2210 Starvis sensor for ultra low-light imaging.
-
It supports 1080P resolution, high frame rate 30fps, and multiple video compression formats including MJPEG, YUY2, and H.264. Ideal for AI vision, industrial inspection, and low-light monitoring systems.
-
UVC compaliant USB 2.0 cameras. No extra drivers are needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera.
Package includes:
1PC of 2MP Low light Camera with No distortion lens ,
1pc of USB Cable length default 1m
Features
* Full HD 2.0 megapixels : Max Resolution 1920(H)x1080(V)
* High Sensitivity Image Sensor: 1/1.8” SmartSens SC2210 Starvis CMOS
* Minimum Illumination: 0.0001Lux,Exceptional Low Light Performance - See in the Dark!
* Industrial Design with Super Wide-Angle optional Camera: 60°-117° FOV + Pixel-Level Image Optimization for Various Environments.
* Video Formats: MJPEG / H.264 / YUY2 (UVC)
* High Frame Rates Supported:
1920x1080 @30fps (MJPEG/H.264)
1280x720 @30fps (MJPEG/H.264)
640x360 @30fps (MJPEG/H.264/YUY2)
* HDR Support: High Dynamic Range and S/N Ratio 100dB - See details in shadows and bright light.
* Mini Size Camera Board : 38x38mm, swell embedded in kinds of smart machines.
* USB Protocol: High speed USB 2.0
* UVC Camera: Free driver, Plug & Play
* OTG support: with OTG function, can connect smart phone, tablet via OTG cable.
* Adjustable Parameters: Brightness Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Why choose an H.264 camera?
H.264 = Small Files + Works Everywhere.
* Saves bandwidth & storage
* Plays smoothly on any device
For Users: No lag, no compatibility issues.
For Systems: Longer recordings, cheaper to run.
Main Specifications
|
Model
|
ELP-USB1080P03-H100
|
|
Sensor
|
1/ 1.8” SmartSens SC2210
|
|
Max. Resolution
|
1920(H)*1080(V)
|
|
Sensitivity |
1.08V/lux-sec |
|
Pixel Size |
4.0 µm x 4.0 µm |
|
Compression format
|
MJPEG / YUY2(YUYV) / H.264
|
|
Resolution & frame
|
1920x1080 MJPEG 30fps/ H.264 30fps / YUY2 5fps
1280x720 MJPEG 30fps/ H.264 30fps / YUY2 10fps
1024x576 MJPEG 30fps/ H.264 30fps / YUY2 15fps
960x540 MJPEG 30fps/ H.264 30fps / YUY2 15fps
640x480 MJPEG 30fps/ H.264 30fps / YUY2 30fps
640x360 MJPEG 30fps/ H.264 30fps / YUY2 30fps
|
|
Central Definition |
About 5 seconds after opening the preview software |
|
Min illumination |
Minimum to 0.0001Lux |
|
S/N Ratio
|
UP to 100dB
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
|
|
Lens Parameter
|
Standard H100= 100Degreee No Distortion lens,
Lens for options:
M12 S-mount:16-190 degree Lens;
M16: 2.8mm, 4mm, 6mm Lens;
CS Mount: 3.6-10mm, 5-50mm Lens optional
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~180mA
|
|
Working temperature
|
-10～70℃
|
|
Storage temperature
|
-20～85℃
|
|
Board size /Weight
|
32X32mm（Compatible 26X26mm）/ about 30g
|
|
USB Cable
|
Standard 1M / optional 2M,3M,5M
|
|
Operating system request
|
Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC
MAC-OSX10.4.8 or later
Android5 .x or above
|
Full Color Starvis Low Light Camera 0.0001Lux UVC Webcam
Full HD Webcam with High Quality Imaging, Max 1920x1080
Starvis Sensor Low Light Camera with 1/1.8" SmartSens SC2210
0.0001lux mini illumination offers better performance in weak light condition
Advanced H.264 Coding upload faster and reduce storgage, comparing with MJPEG, YUY2.
USB 2.0 Free Driver Plug and Play
For PC
* UVC Complicant ,Plug and Play for Computer, Laptop. Compatible with Windows, Linux, MacOS, Android, and etc.
For Pi
* Works with your computer's default video program, also available to secondary development in Linux Ubuntu, Raspberry Pi, Jeston Nano and etc.
For Android Development
* OTG support, Easy connect to Android device like Tablet,Smartphone,Mobile or development board via OTG cable.
Superior Compatibility: Can Work With Most OS:Windows,Linux,Mac,Raspberry Pi,Android,etc.
Mini USB Camera with size 38*38mm widely embedded for most industrial machines
Camera with USB interface. Plug and play in most devices, like PC, Raspberry Pi, developing board. No need to install drivers.
The Camera is UVC compliant, have best universal compatibility with most operation systems, include Linus, Windoes, Mac, Android and etc.
also the software in different OS.
