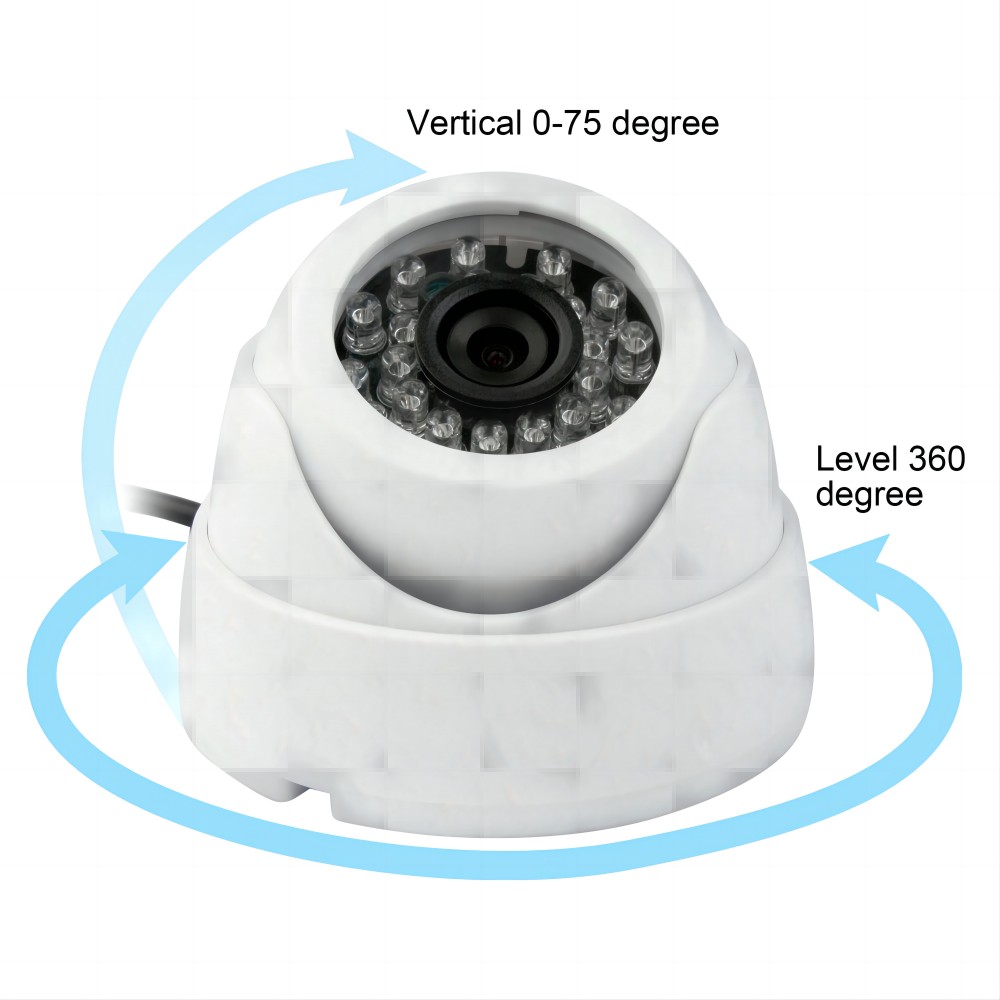

ELP Night Vision Camera USB Free Driver Plug and Play CMOS Sensor 1MP HD Small Plastic Waterproof Dome Housing Infrared USB2.0 Camera for home security (Dome Plastic Housing )

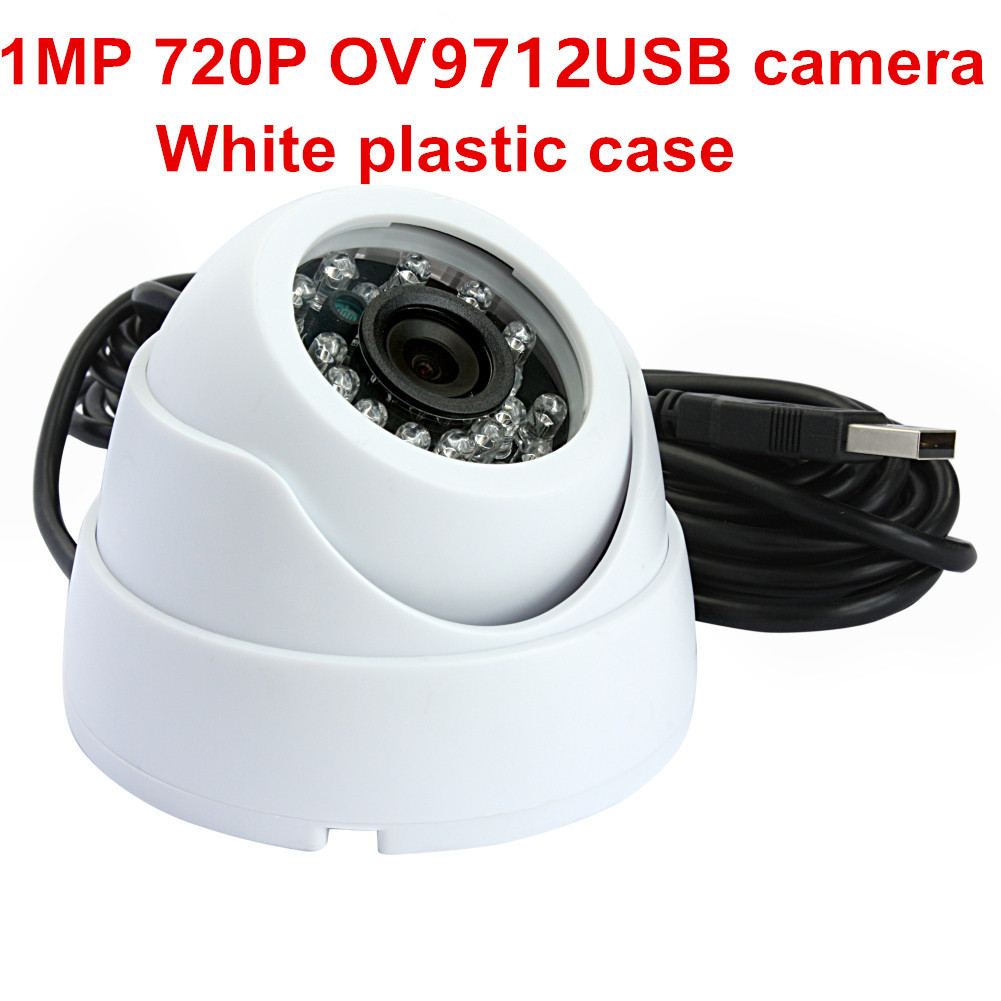

HD IR DOME 720P USB Camera with IR Cut 24PCS IR LED and 3.6MM Lens
ELP-USB100W05MT-ML36 is usb camera with IR LED day&night and also plastic waterproof housing completely for personal house video surveillance use or industrial video security.
This Dome USB camera already widely used at home for baby monitor or pet surveillance, and also widely use in industrial video,
such as bank ATM room to connect with ATM pc for security,all kinds of Android,Windows,Linux OS system etc.
Features
* 1megapixel HD USB Camera for house and industiral video security
* With dome housing can install directly at house or bank etc.
*Plug & play with any PC video surveillance, no need additional power
*Megapixel HD resolution up to 1080X720P
*With IR LED for day&night whole day video security
*With OmniVision 1/4" Color CMOS image sensor OV9712
*Support OTG Function,can directly connect to your mobile or tablet.
*Come with microphone on the board which support single channel and dual channel.
*High speed USB 2.0 interface for high resolution PC camera interface.
*White balance adjustable: Resolve color reduction and tone processing issues
*Camera with UVC .Support OS: Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above
*Equiped with 3.6mm fixed focus lens
Main Specifications
|
Model
|
ELP-USB100W05MT-ML36 (3.6mm lens with Plastic dome housing)
|
|
Sensor
|
NT99141
|
|
Lens Size
|
1/4 inch
|
|
Pixel Size
|
3.0um X 3.0um
|
|
image area
|
3888 µm x 2430 µm
|
|
Max. Resolution
|
1280(H)X720(V)
|
|
Compression format
|
MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps
800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps
352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps
176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps
|
|
S/N Ratio
|
40dB
|
|
Dynamic Range
|
69dB
|
|
Sensitivity
|
3.7V/lux-sec@550nm
|
|
Mini illumination
|
0. 1lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard 3.6mm, optional 6/8mm
|
|
LED
|
24PCS LEDs
|
|
Audio input
|
Support
|
|
IR CUT Connector
|
Support 2P-1.25mm socket
|
|
LED board test connector
|
Support 2P-1.25mm socket
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Power supply
|
DC5V
|
|
Operating Voltage
|
100mA~120mA
|
|
Working current
|
-10～70℃
|
|
Working temperature
|
-20～85℃
|
|
size /Weight
|
|
|
Cable
|
Standard 3M / optional 2M，5M
|
|
Operating system request
|
Win XP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Night Vision USB Camera Effect---In Daytime
Night Vision USB Camera Effect---At night
