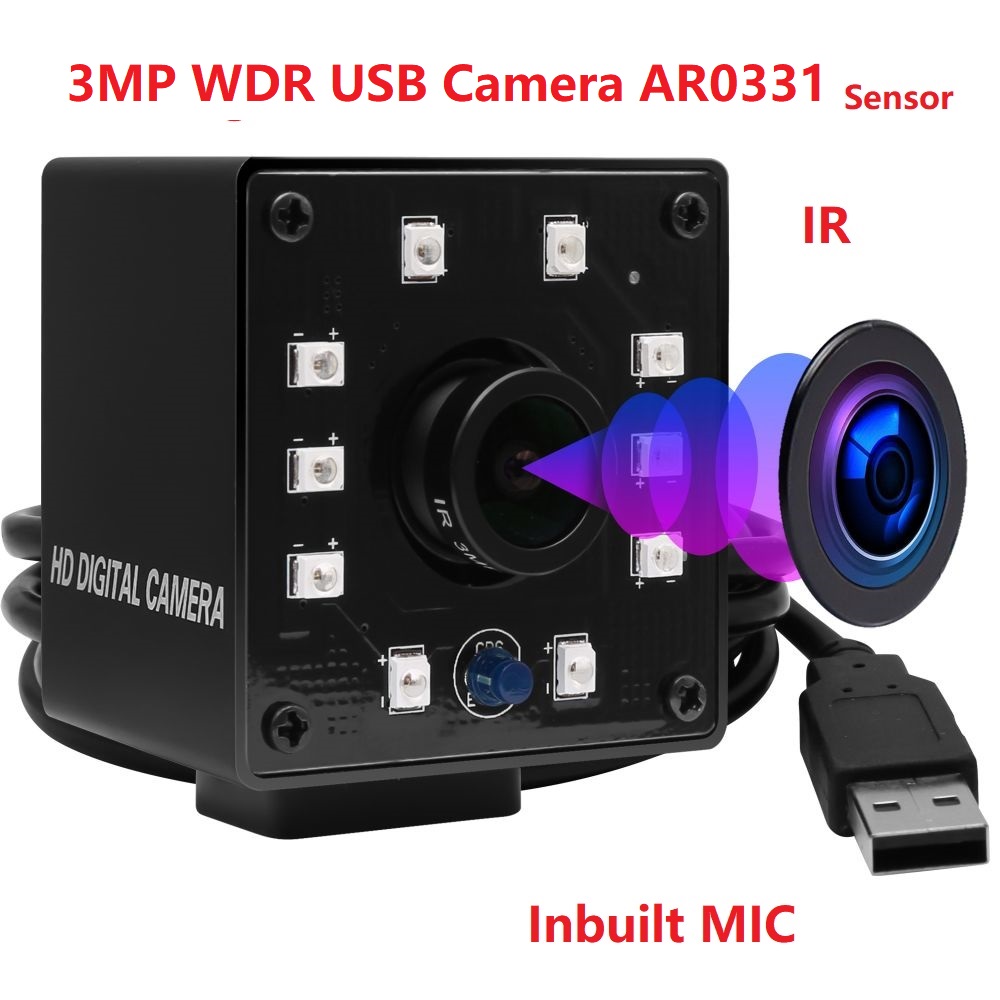

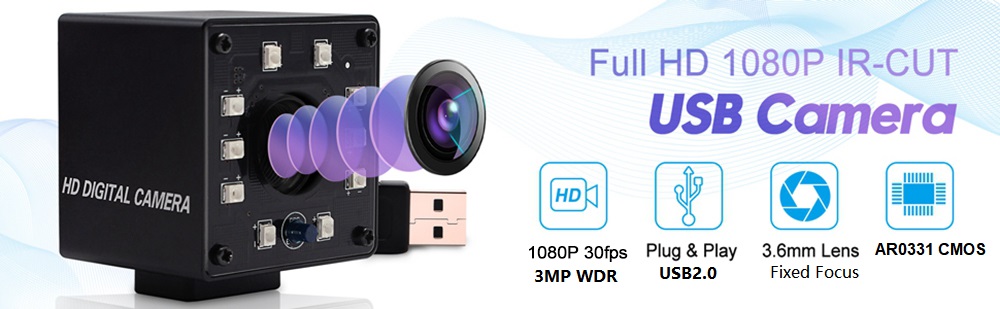

ELP 3MP 30fps FHD Infrared USB Camera Nigh Vision IR LED CMOS AR0331 Sensor Support Microphone Audio WDR Fixed Focus USB2.0 Webcam Video Camera With 3.6mm lens Metal Enclosure
ELP-USB3MP01H series is a WDR (Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too)
WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.
Package Include (Model ELP-USB3MP01H-KL36IR)
1pc of 3MP WRD USB Camera with enclosure , 3.6mm fixed focus lens ,10pcs IR LED
1pc of 3m USB Cable (Other lenght optiona )
Mian Features
*3MP High Deinition USB Camera highest resolution 2048(H)X1536(V)
*High Technology 1/3inch AR0331 CMOS Color Image Sensor

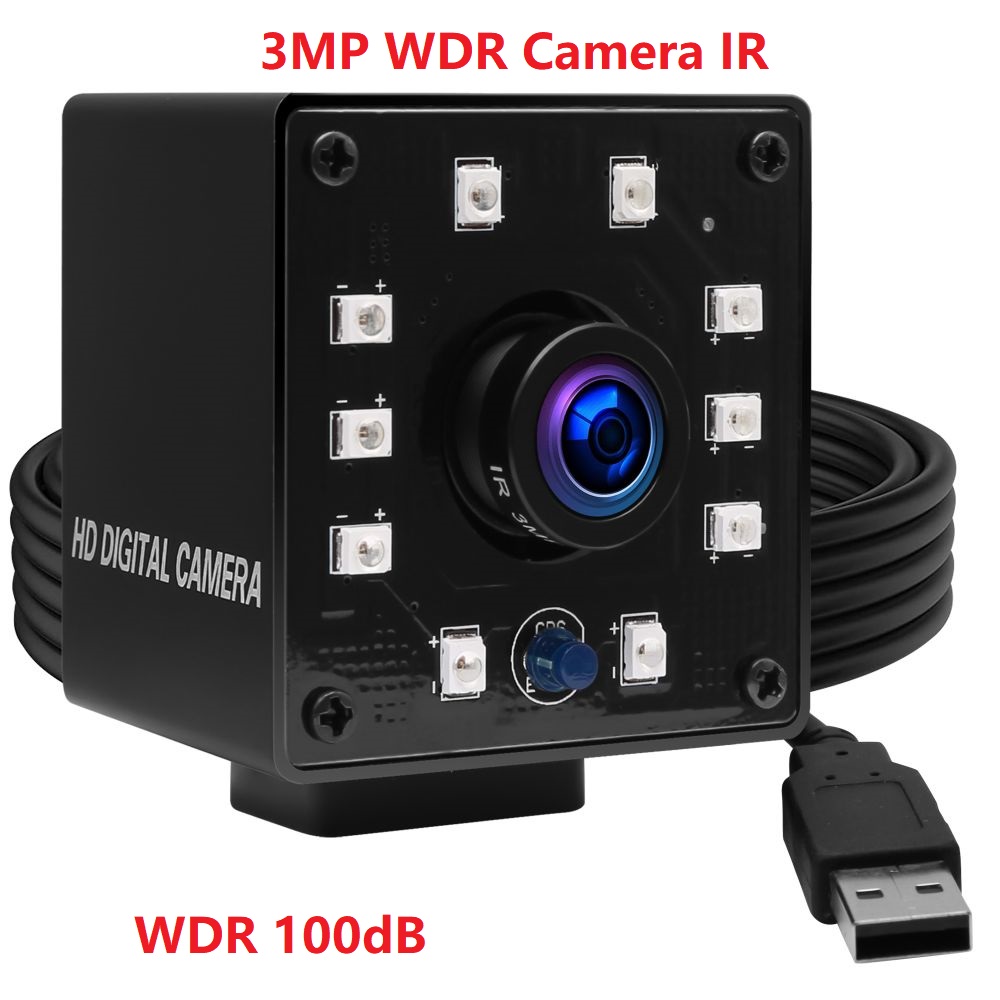

*WDR function, Dynamic Range up to 100dB ,capture image clear at strong light condition ,well balance the light .
*Mini Fixed Focus camera ,standard use normal 3.6mm lens ,other M12 Mount lens optional to change .
*With H.264/MJPEG/ YUY2 High profile compression.
*Can drive 1920*1080 30FPS H.264

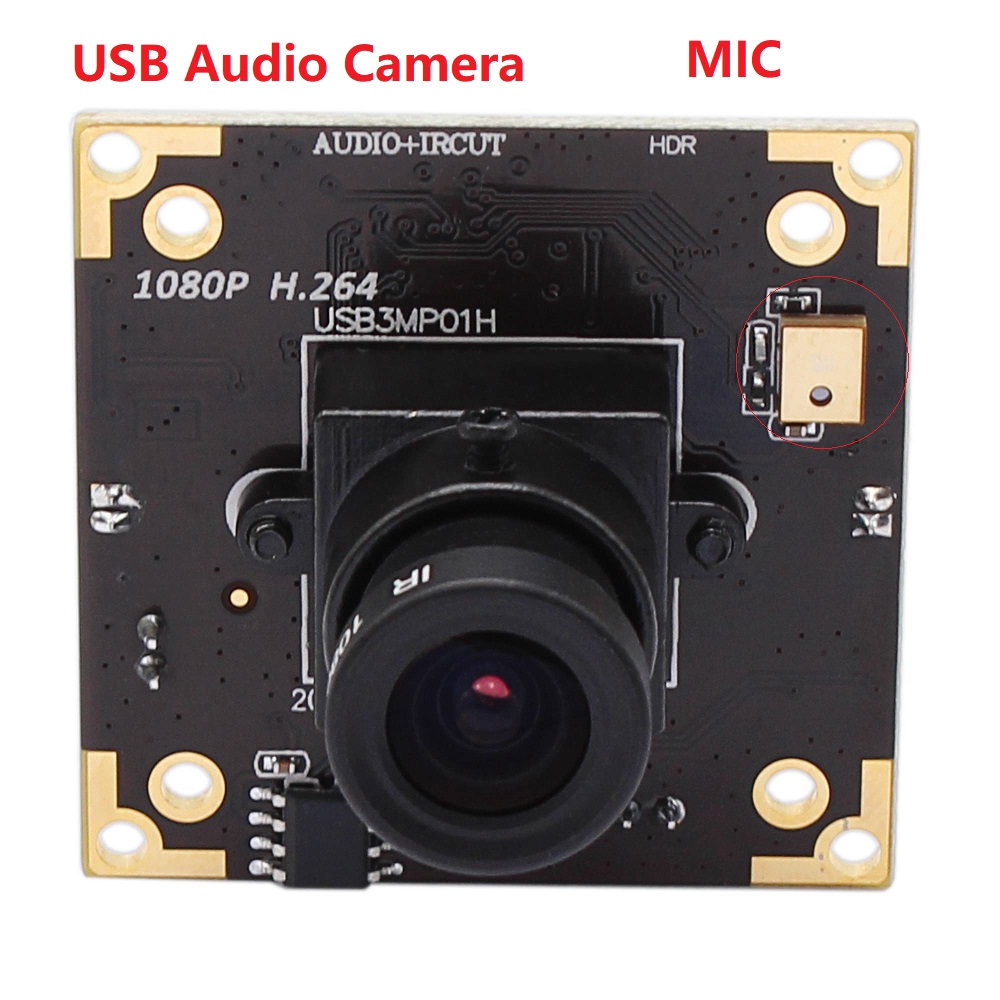

*Come with microphone on the board which support single channel and dual channel.
*With IR LED Board for night vision
*USB 2.0 High speed port
*Camera with UVC, Support Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above
Specifications
|
Model
|
Model: ELP-USB3MP01H-KL36IR
(WDR USB Camera with 3.6mm lens,10pcs IR LED)
|
|
Sensor
|
1/3inch AR0331 CMOS
|
|
Max. Resolution
|
2048(H)*1536(V)
|
|
Pixels Size |
2.2umx2.2 um |
|
Compression format
|
MJPEG / YUY2(YUYV) / H.264
|
|
Resolution & frame
|
H264:
640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
MJPEG:
640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@30fps/
1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps
YUV:
640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@
5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
|
|
S/N Ratio |
39dB |
|
Dynamic Range |
Up to 100dB |
|
Sensitivity |
2.0V/lux-sec@550nm |
|
Mini illumination |
0.05 Lux |
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC |
Support |
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure,Backlight Contrast .
|
|
Lens Parameter
|
Standard 3.6mm fixed focus lens ,M12 Mount .
Optional M12 2.1/2.8/3.6/6/8/12mm, No distortion (FOV 80-125 degree), 170 degree/180 degree Fisheye lens etc.
|
|
Digital Audio |
High Quality digital MIC ,support single,dual channel . |
|
LED Board |
10pcs IR LED |
|
IR Cut Connector |
Support 2P-1.25mm socket |
|
LED Board Power Connector |
Support 2P-2.0mm socket |
|
Power supply Interface
|
USB Bus Power
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
130mA - 190mA
|
|
Storage Temperature
|
-20～85℃
|
|
Working temperature
|
-10～70℃
|
|
Board size /Weight
|
38mm x 38mm(32*32mm) / 30g
|
|
Cable equipments
|
Stander 3m (optional 2m ,5m cable )
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
|
