Products Description
ELP 90 degree Dual lens USB Camera MJPEG 30fps 1280*720 CMOS OV9712 People Counting Camera Module for industrial Vision Webcam
General Description:

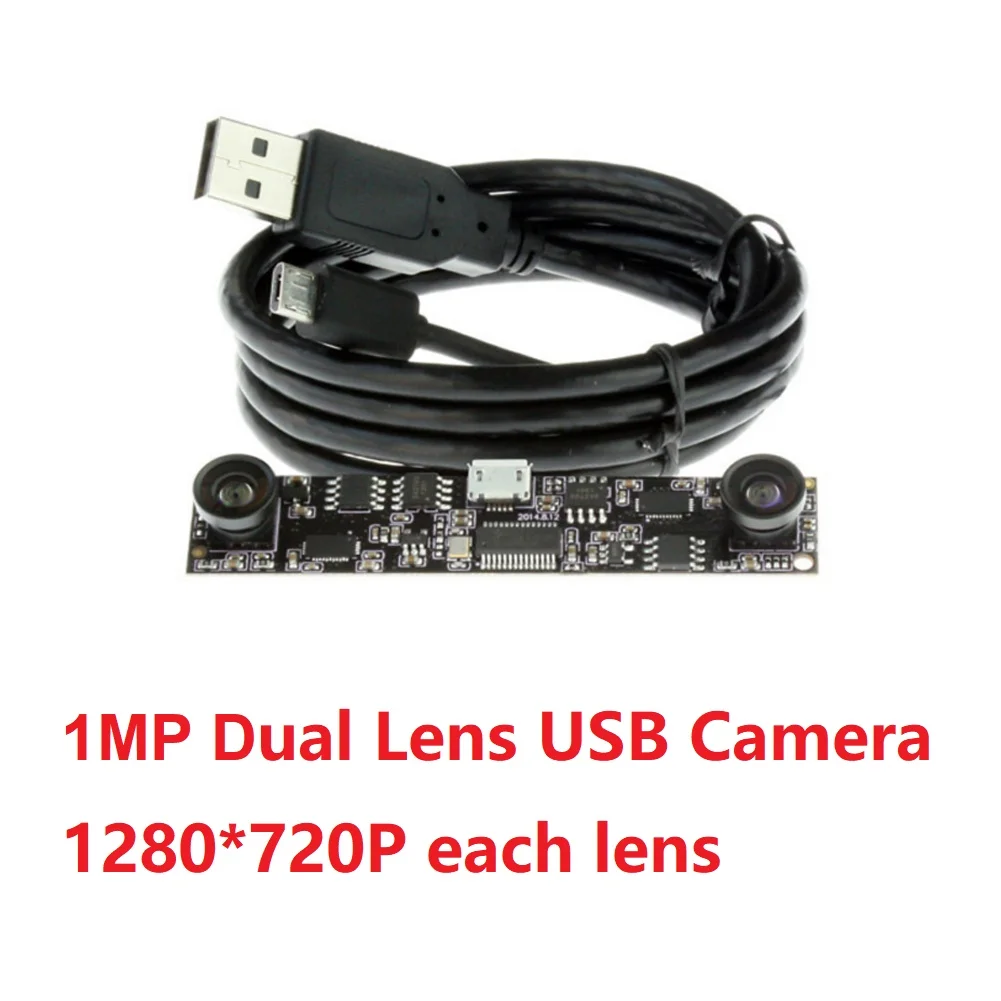

This ELP-USB1MP2CAM001-HOV Series Camera is ELP typical 1MP Dual Lens camera with resolution 1280x720P each output
This camera is ideal for binocular stereo vision development which directly simulates the manner of human eyes observing one scene from two different viewpoints. Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc.
Our customer normally develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video. We can supply SDK and display software to customer for integration, It can work on Android, Linux and Windows system with UVC and recognized as 2 cameras, just like two human eyes.
Package include:
1pc 720p usb camera module with dual Lens, USB Cable .
Camera Optional
->1MP Dual Lens USB Camera ,max resolution 1280x720P each ,dual lens work separately Combined 2596x720
->2MP Dual Lens USB Camera, resolution 1280x1080P each ,dual lens work separately .Combined 2560x1080

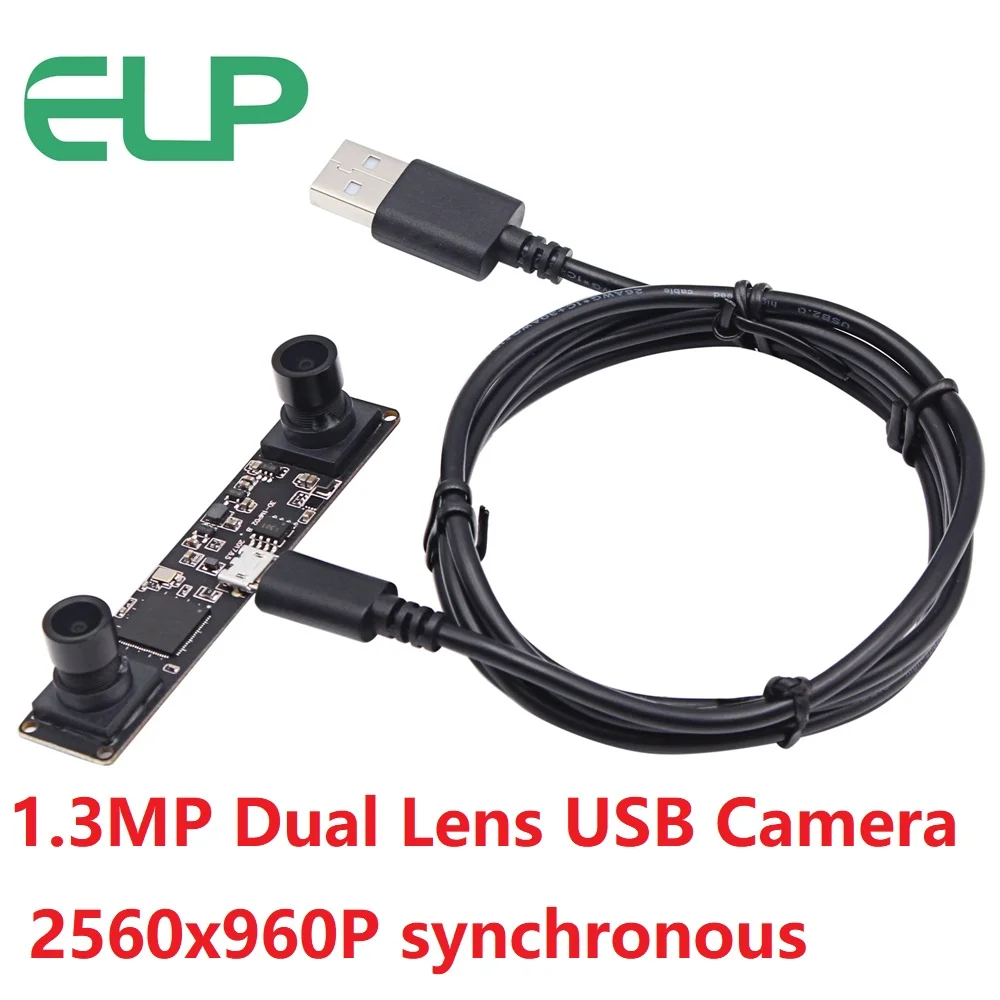

->1.3MP Dual Lens USB Camera, resolution 2560x960 ,dual lens work synchronous
Main Features:
-
*1MP HD 720P Dual Lens USB2.0 Camera Module
-

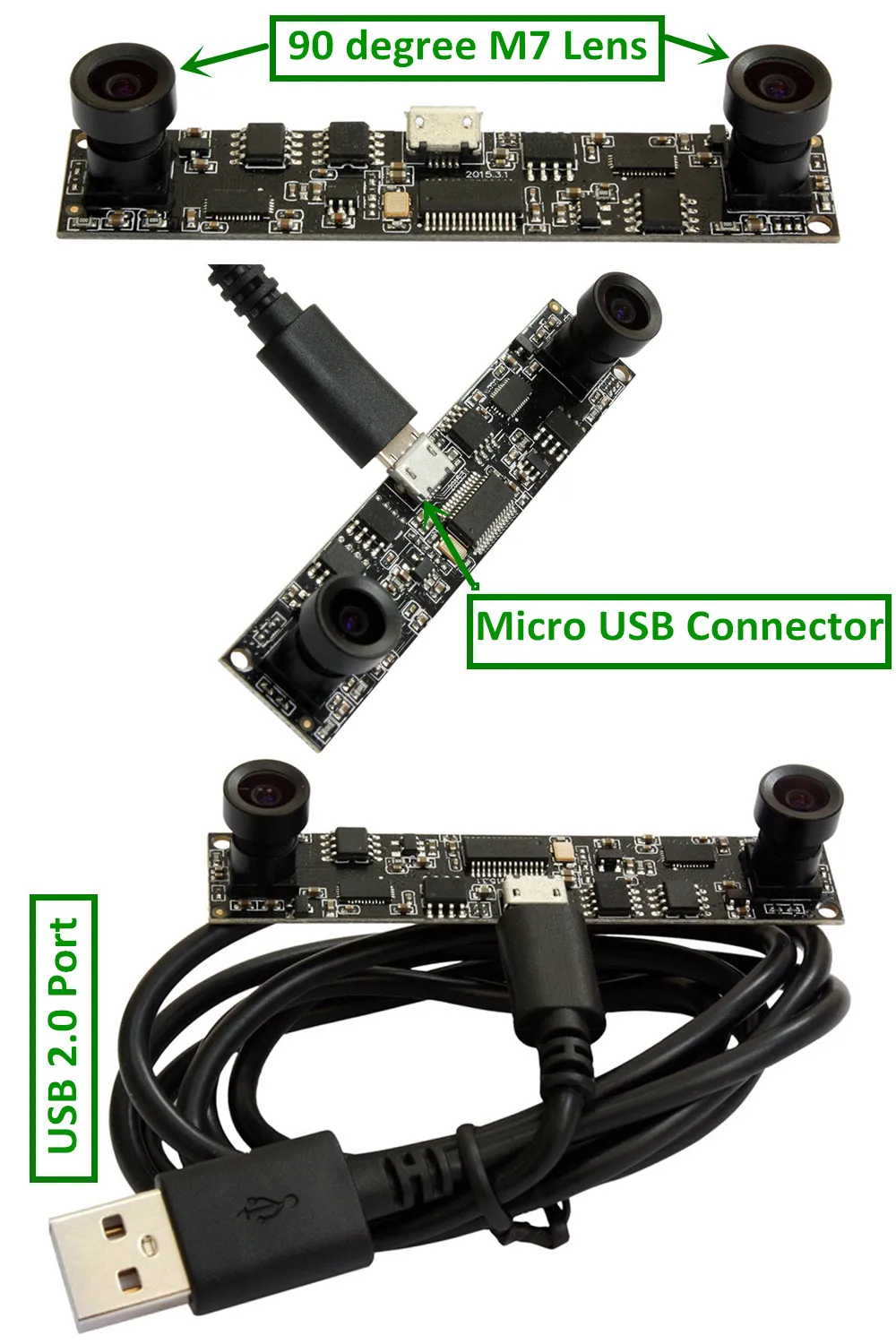

*With M7 Mount dual lens 45degree /90degree, up to 120degree wide view angle
-
*Dual Lens USB Cameras for count people or retina analyze , Stereo 3D VR application
-
*High speed USB 2.0 interface
-
*High frame rate, can get MJPEG:1280X720 MJPEG@ 30fps YUY2@10fps/ 640X360MJPEG@ 60fps YUY2@30fps
-
*Low power consumption
-

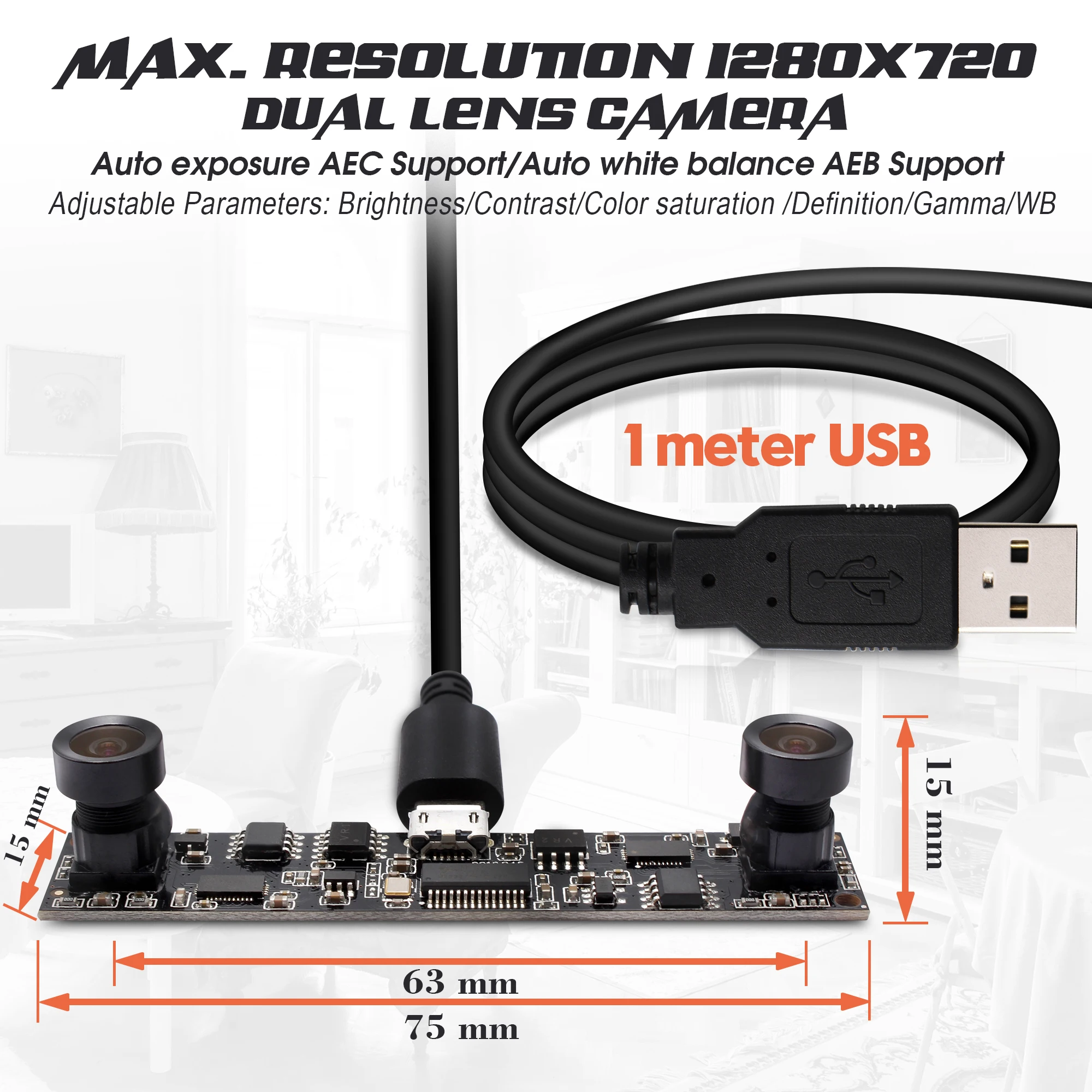

*Small outline for embedded application ,75*15mm
-
* Compact industrial camera solution for any PC with USB port
-
*OTG support
-
* Support Windows, Linux and Android OS with UVC
Specifications:
|
Model
|
ELP-1MP2CAM001-HOV90
|
|
Sensor
|
OV9712
|
|
Sensor Size |
1/4 inch |
|
Max. Resolution (Default)
|
1280(H)X720(V)
|
|
Image Array Area
|
1/4 inch (4:3)
|
|
Pixel Size
|
3.0μm x 3.0μm
|
|
Compression format
|
MJPEG / YUY2(YUYV)
|
|
Resolution & frame
|
1280X720 MJPEG@ 30fps YUY2@10fps
640X360MJPEG@ 60fps YUY2@30fps
|
|
S/N (Signal Noise Ratio) |
40dB |
|
Dynamic Range |
69dB |
|
Sensitivity |
3.7V/lux-sec@550nm |
|
Mini illumination |
0.1 Lux |
|
Shutter Type
|
Rolling Shutter
|
|
Connecting Port type
|
USB 2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC/AWB/AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure .
|
|
Lens Parameter
|
HOV: 90 degree
M7 Mount 45/ 90 / 120 degree lens optional
|
|
Power supply Interface
|
USB Bus Power Micro USB
|
|
Operating Voltage
|
DC 5V
|
|
Working current
|
130mA~180mA
|
|
Storage Temperature
|
-20～85℃
|
|
Working temperature
|
0～70℃
|
|
Board size /Weight
|
75mm × 15mm / 50g
|
|
Cable equipments
|
90cm
|
|
Operating system request
|
Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/
Android 4.0 or above with UVC
|

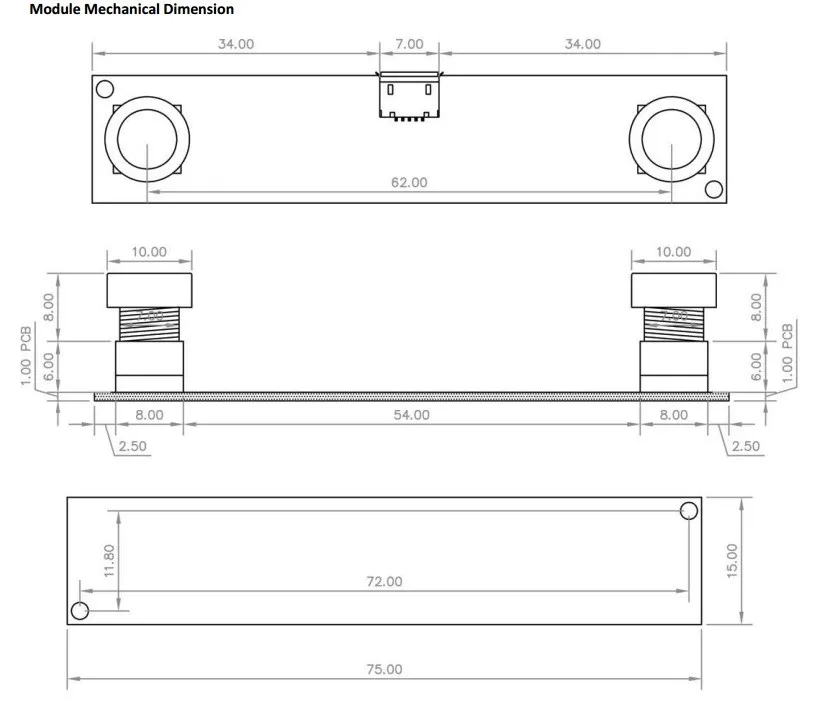

Mini Camera module size: 75*15mm
