ELP High Definition 16MP Zoom Camera 10X 4X CS Manual Focus Varifocal Lens RGB IMX298 HD Color USB Industrial Camera For Observing (Model:ELP-USB16MP01-MFV )
Description: 16MP Ultra HD ZOOM USB Camera : ELP-USB16MP01-MFV
-
This High Resolution 16MP USB Camera is based on big size 1/2.8” CMOS IMX298 image sensor, shoot the images or record videos with super Image reality, real color reproduction.
-
Its ultra 4656x3496 resolution can be used in a wide range of applications where high-resolution images and videos with manual focus capabilities are required.
-
high quality CS Mount varifocal lens ,focus ,zoom, aperature adjustable,
-
USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera,
Package include :
1 Piece of 16MP IMX298 USB Camera with CS mount Lens ,
1pc 3m USB Cable
Lens Optional :
The camera with 2.8-12mm lens, 5-50mm lens ,6-60mm lens or no lens all available .
*5-50mm/6-60mm zoom 10x
*2.8-12mm zoom 4x
Features
1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) Varifocal lens ,manual zoom ,manual focus : This camera module has a CS Mount varifocal Lens,2.8-12mm zoom 4x and 5-50mm zoom 10x optional, transmitting the most realistic image effect.
4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5) Widely Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
Specification
|
Model
|
ELP-USB16MP01-MFV(2.8-12)
ELP-USB16MP01-MFV(5-50)
|
|
Sensor
|
IMX298
|
|
Lens Size
|
1/2.8 inch
|
|
Pixel Size
|
1.12um X 1.12um
|
|
image area
|
6.4mm x 5.3mm
|
|
Max. Resolution
|
4656(H) X 3496(V) 16Megapixel
|
|
Compression format
|
MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
4656 x 3496MJPEG@10fps YUY2 1fps/4208 x 3120MJPEG@10fps YUY2 1fps
4160 x 3120 MJPEG@10fps YUY2 1fps/4000 x 3000MJPEG@10fps YUY2 1fps
3840 x 2160 MJPEG@10fps YUY2 1fps/3264 x 2448MJPEG@10fps YUY2 1fps
2592 x 1944 MJPEG@10fps YUY2 1fps/2320 x 1744MJPEG@30fps YUY2 1fps
2048 x 1536 MJPEG@30fps YUY2 1fps/1920 x 1080MJPEG@30fps YUY2 5fps
1600 x 1200 MJPEG@30fps YUY2 5fps/1280 x 960MJPEG@10fps YUY2 10fps
1280 x 720 MJPEG@30fps YUY2 10fps/1024 x 768MJPEG@10fps YUY2 10fps
800 x 600 MJPEG@30fps YUY2 15fps/640 x 480MJPEG@30fps YUY2 30fps
|
|
Mini illumination
|
0.5lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
Standard CS Mount varifocal lens ,optional 2.8-12/5-50mm lens
|
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~240mA
|
|
Working temperature
|
-10～70℃
|
|
Storage temperature
|
-20～85℃
|
|
Board size /Weight
|
38X38mm（Compatible 32X32mm）/ about 30g
|
|
Cable
|
Standard 3M / optional 2M,3M,5M
|
|
Operating system request
|
WinXP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
|

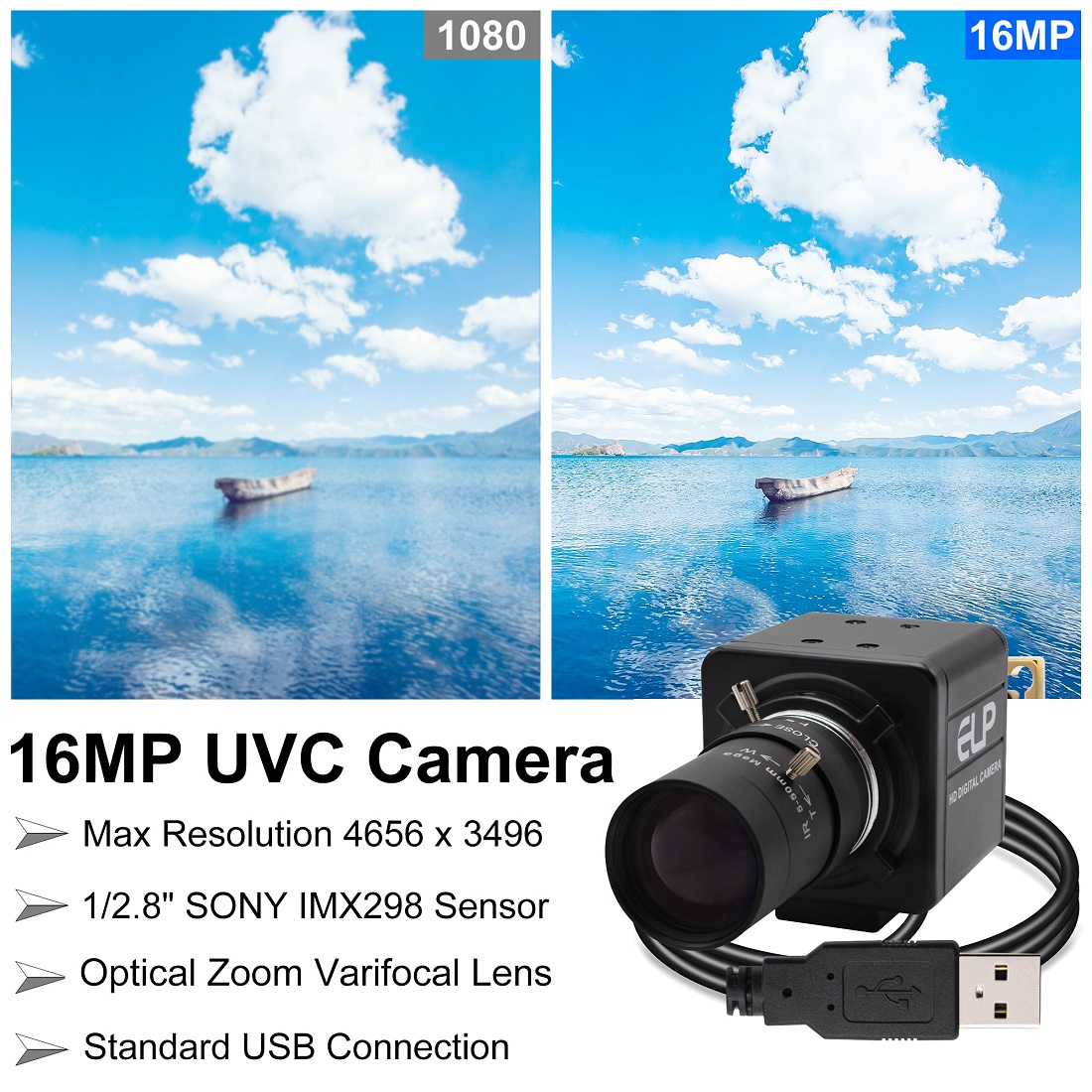

High resolution 16MP USB Camera max resolution 4656(H) X 3946(V)

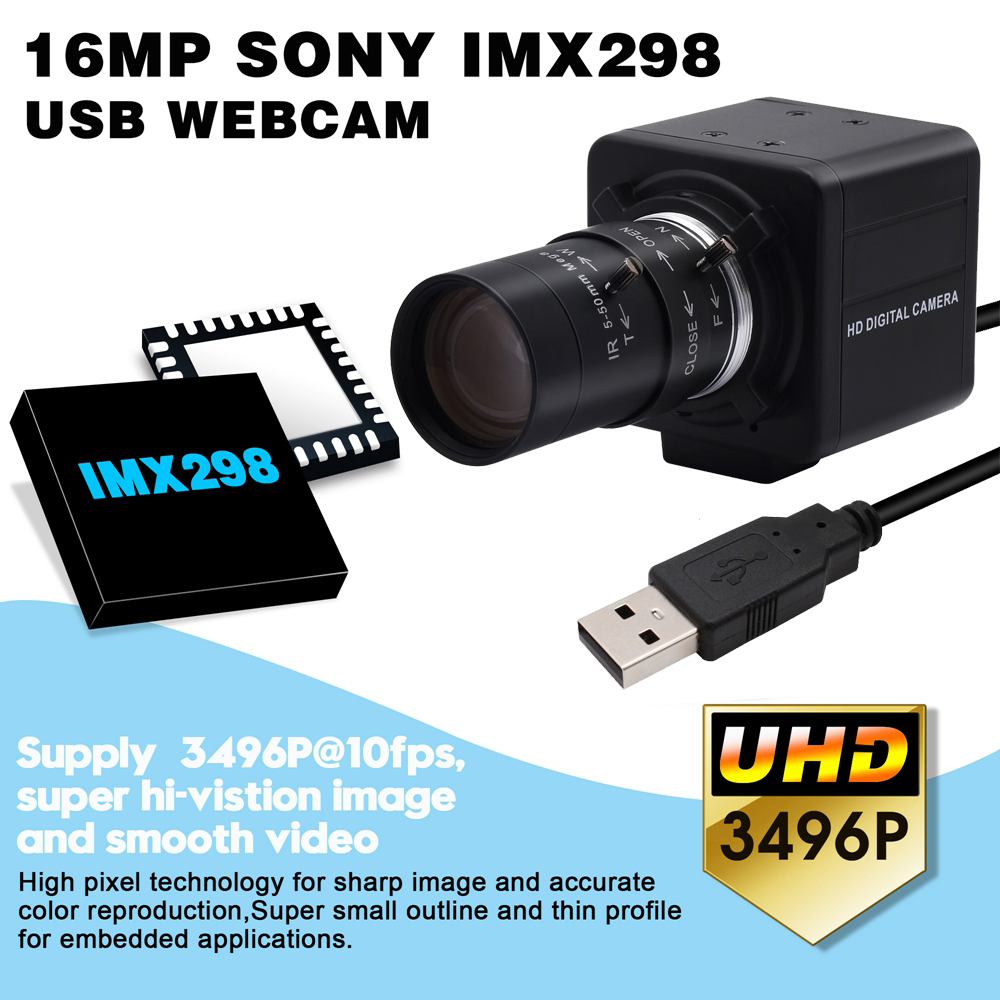

High Tech 1/2.8inch IMX298 sensor
High qualtity CS Mount varifocal lens :
Applications: ELP 16mp autofocus camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.
