ELP 2MP Autofocus Camera Full HD 1920X1080P 30fps CMOS OV2170 Mini USB Industrial Camera Autofocus With No Distortion Lens

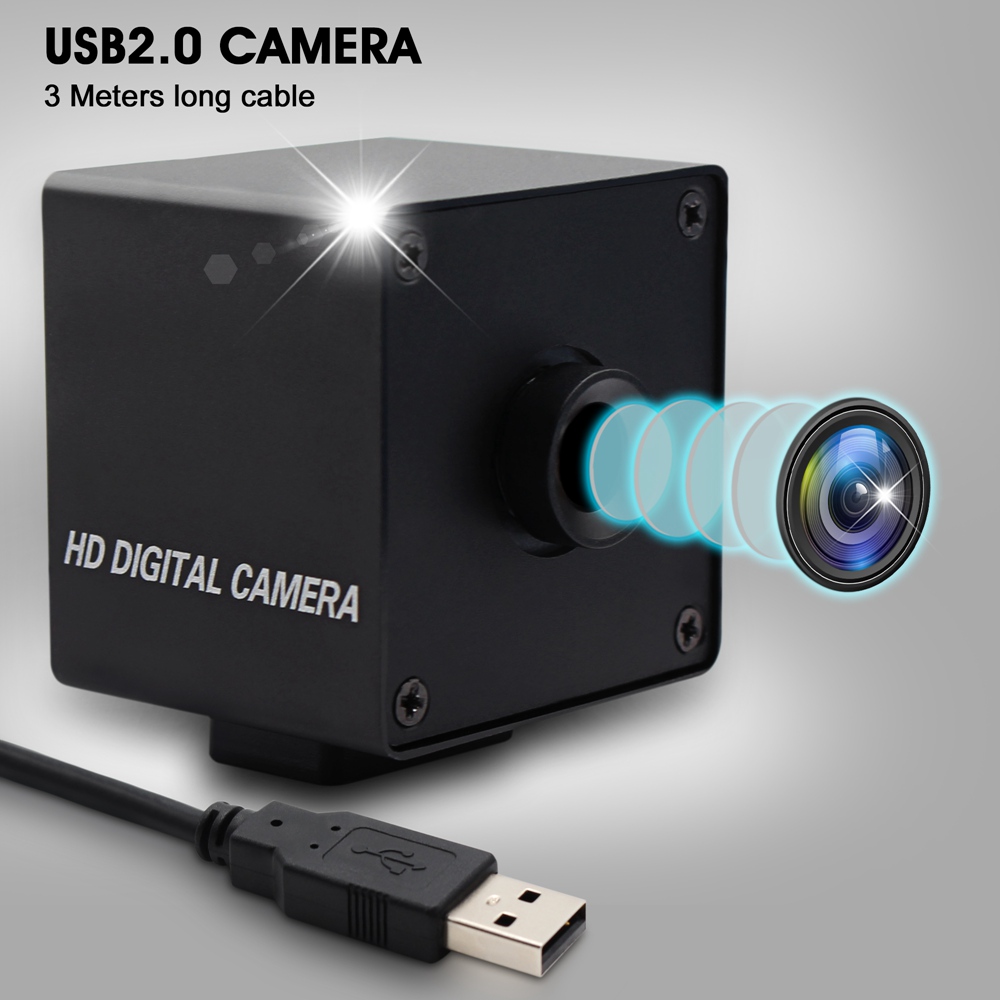

The ELP-USBFHD03AF-BA100 USB Camera module is a fully featured compact single-board camera with housing
perfectly targeted for space and cost sensitive OEM applications. A superior image quality in combination
with a very high frame rate make the camera ideally suited for embedded applications.
Features:
* 2MP USB Camera, Full HD Webcam 1920x1080
* Autofocus lens, the camera automatical focus clear at different working distance
*CMOS Sensor 1/2.7" CMOS OV2710 for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Android, Linux, Windows , MAC, SP2 or above.
*Camera with UVC.
Specification:
|
Optional models
|
ELP-USBFHD03AF-BA100
|
|
Sensor
|
1/3" CMOS OV2710
|
|
Lens size
|
200W, 2.0megapixel, 1920(H)x1080(V)pixels
|
|
Max. Resolution
|
1920X1080
|
|
Picture format
|
MJPEG
|
|
USB Protocal
|
USB2.0 HS/FS, USB1.1 FS
|
|
Support free driver
|
USB Video Class(UVC)1.1
|
|
Auto exposure AEC
|
Support
|
|
Auto white blance AEB
|
Support
|
|
Frame rate
|
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
|
|
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
|
|
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
|
|
Adjustable parameters
|
Brightness/Contrast/Color saturation /Definition/Gamma/WB
|
|
Night vision
|
no
|
|

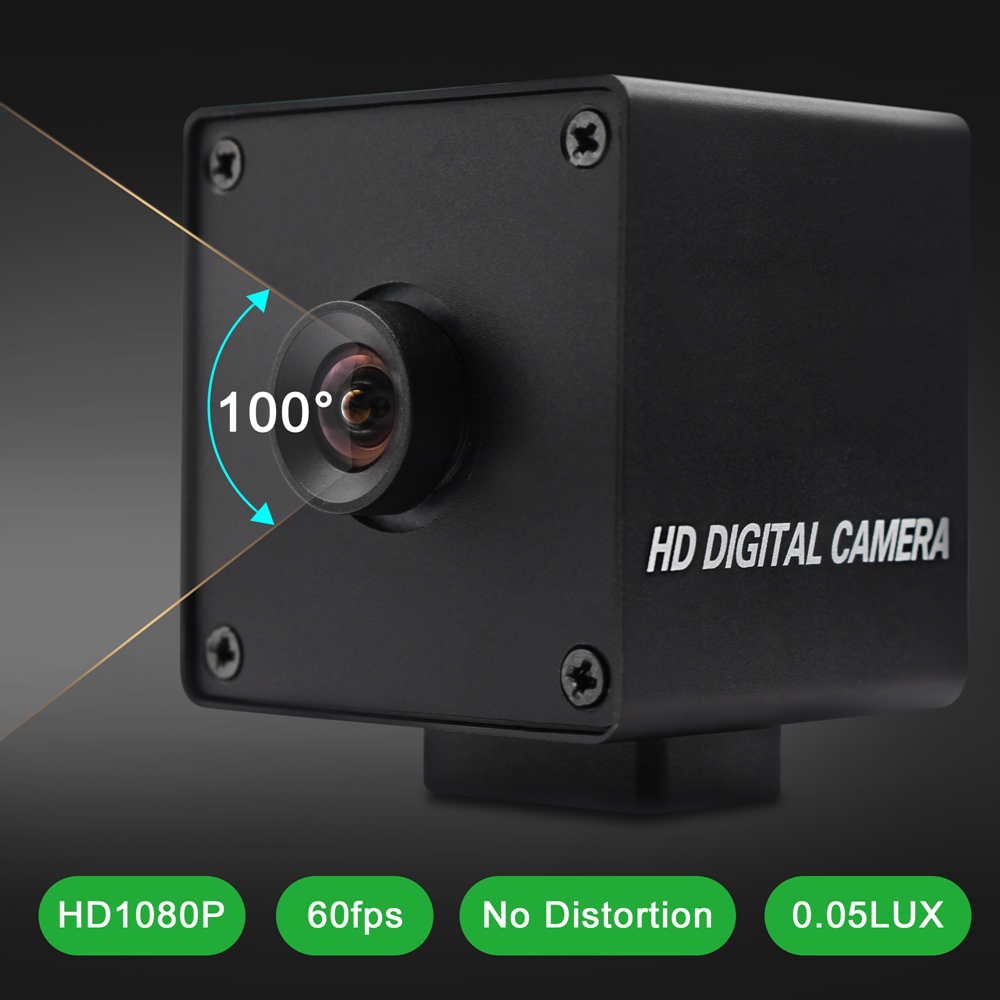

view angle
|
100 degree
|
|
voltage
|
DC 5V
|
|
current
|
150mA
|
|
work temperature
|
DEGREES(-20~70)
|
|
Size
|
42*42MM
|
|
Support OS
|
WinXP/Vista/WIN7/WIN8 /Linux with UVC
Mac-OS X 10.4.8 or later Wince with UVC,
Android 4.0 or above
|
