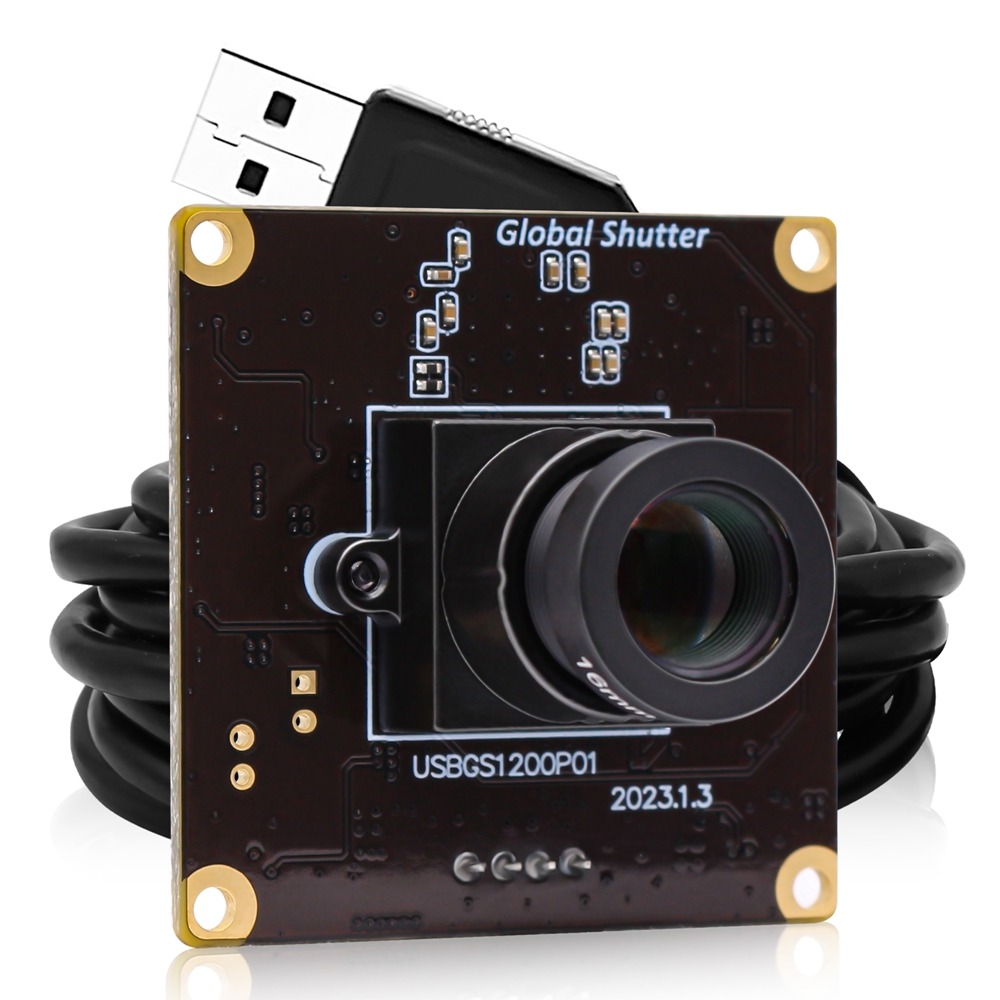

ELP Full HD 90fps Global Shutter USB Camera 16mm/25mm Long Focus Telephoto Lens CMOS Color Webcam Module For Motion analysis,Motion Tracking
ELP-USBGS1200P01-L16 (6mm Lens)
Package Includes:
1) 1pcs 2MP Global Shutter USB Camera with M12 mount fixed focus lens 16mm
2) 1pcs 1m usb cable (2/3/5m usb cable optional)
View angle for optional lenses:
|
Model Number
|
Lens
|
Horizontal angle
|
Vertical angle
|
Diagonal angle
|
|
ELP-USBGS1200P01-L21
|
2.1mm lens
|
120.00
|
67.00
|
143.00
|
|
ELP-USBGS1200P01-L28
|
2.8mm lens
|
114.00
|
68.00
|
136.00
|
|
ELP-USBGS1200P01-L36
|
3.6mm lens
|
87.00
|
52.00
|
100.00
|
|
ELP-USBGS1200P01-L60
|
6mm lens
|
57.00
|
35.00
|
65.00
|
|
ELP-USBGS1200P01-L80
|
8mm lens
|
44.00
|
27.00
|
50.00
|
|
ELP-USBGS1200P01-L12
|
12mm lens
|
26.00
|
16.00
|
29.00
|
|
ELP-USBGS1200P01-L16
|
16mm lens
|
21.00
|
13.00
|
24.00
|
|
ELP-USBGS1200P01-L25
|
25mm lens
|
12.00
|
7.00
|
14.00
|

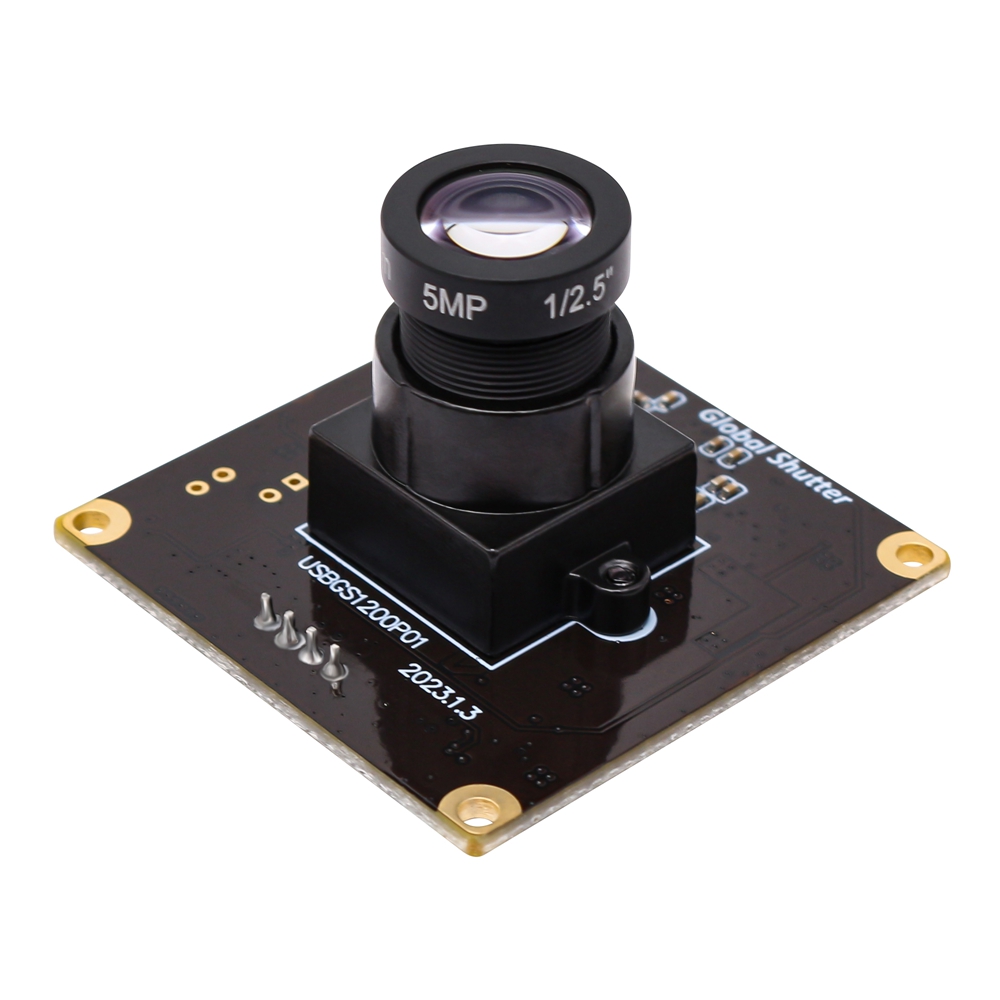

New ELP USB Global Shutter Camera
This model is a new member of ELP's USB camera family. It's a 2MP, based on the 1/2.6" global shutter Aptina AR0234 image sensor, UVC compliant, high speed, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it crisp, sharp, and accurate colorful images even for high-speed moving objects.
Why Global Shutter
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.
This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.
Difference of Rolling Shutter and Global Shutter
Main Features
* Global shutter Webcam ,captures an image by exposing the entire sensor at once .
* High Resolution 2MP USB Camera Full HD Max 1920H x 1200V
*High Frame Rates: 90fps @ 1920x1200 / 1920x1080 MJPEG , fast frame for for high-speed moving objects shooting.
*1080P USB Camera Module with High quality Aptina AR0234 Color CMOS Sensor for sharp clear image
*M12 16mm fixed focus webcam other M12 lens optional to change
*Mini camera board 38mmx38mm, easy to be embedded in industrial devices , can be used in machine visions for personal or industrial.
*HD Snap webcam without shadow,. widely used for barcode scanner, drone
*Plug & play .Camera with UVC compliant , no need any driver to run ,
just connect the camera to USB port in PC computer , laptop , Windows ,Linux ,Mac Android device or Raspberry Pi . ,

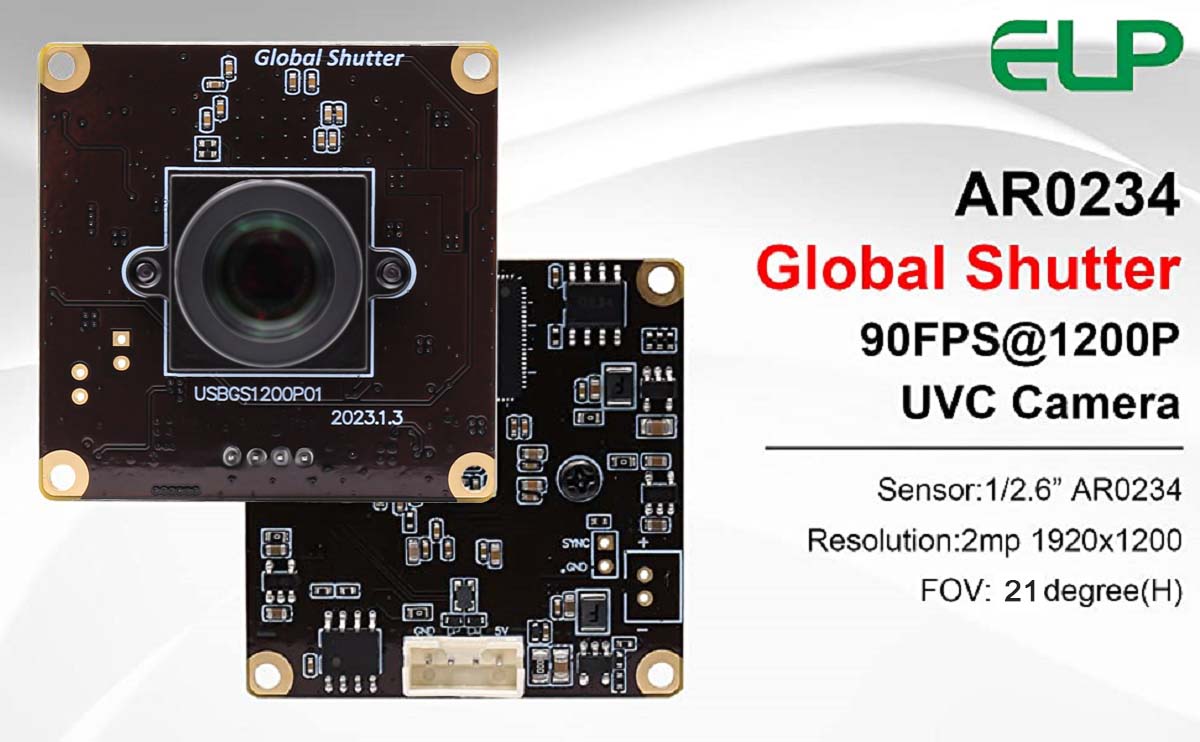

Specifications
|
Model
|
ELP-USBGS1200P01-L16
|
|
Sensor
|
Aptina AR0234 (1/2.6”) Global Shutter
|
|
Max Resolution
|
1920 (H) *1200 (V)
|
|
Sensor Size
|
1/2.6 inch (4:3)
|
|
Pixel Size
|
3.0μm
|
|
Compression Format
|
MJPEG / YUV2 (YUYV)
|
|
Resolution & Frame rate
|
1920x1200 @ 90fps MJPEG/
1600x1200 @ 90fps MJPEG/
1280x720 @ 90fps MJPEG/
960x720 @ 90fps MJPEG/
640x480 @ 90fps MJPEG/
|
1920x1080 @ 90fps MJPEG
1280x960 @ 90fps MJPEG
1024x768 @ 90fps MJPEG
800x600@ 90fps MJPEG
320x240 @ 90fps MJPEG
|
|
Surface Mount Technology
|
SMT
|
|
Focus
|
Fixed
|
|
Central Definition
|
600LW/PH (Center)
|
|
S/N Ratio
|
37dB
|
|
Dynamic Range
|
70dB
|
|
Sensitivity
|
1.4V/lux-sec@550nm
|
|
Min Illumination
|
0.3lux
|
|
Shutter
|
Global Shutter
|
|
Interface
|
USB2.0 High Speed
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
AGC
|
Support
|
|
Adjustable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
|
|
Lens Parameters
|
M12 mount 16mm fixed focus lens
Optional 2.1/2.8/2.9/3.6/6/8/12/16/25mm...

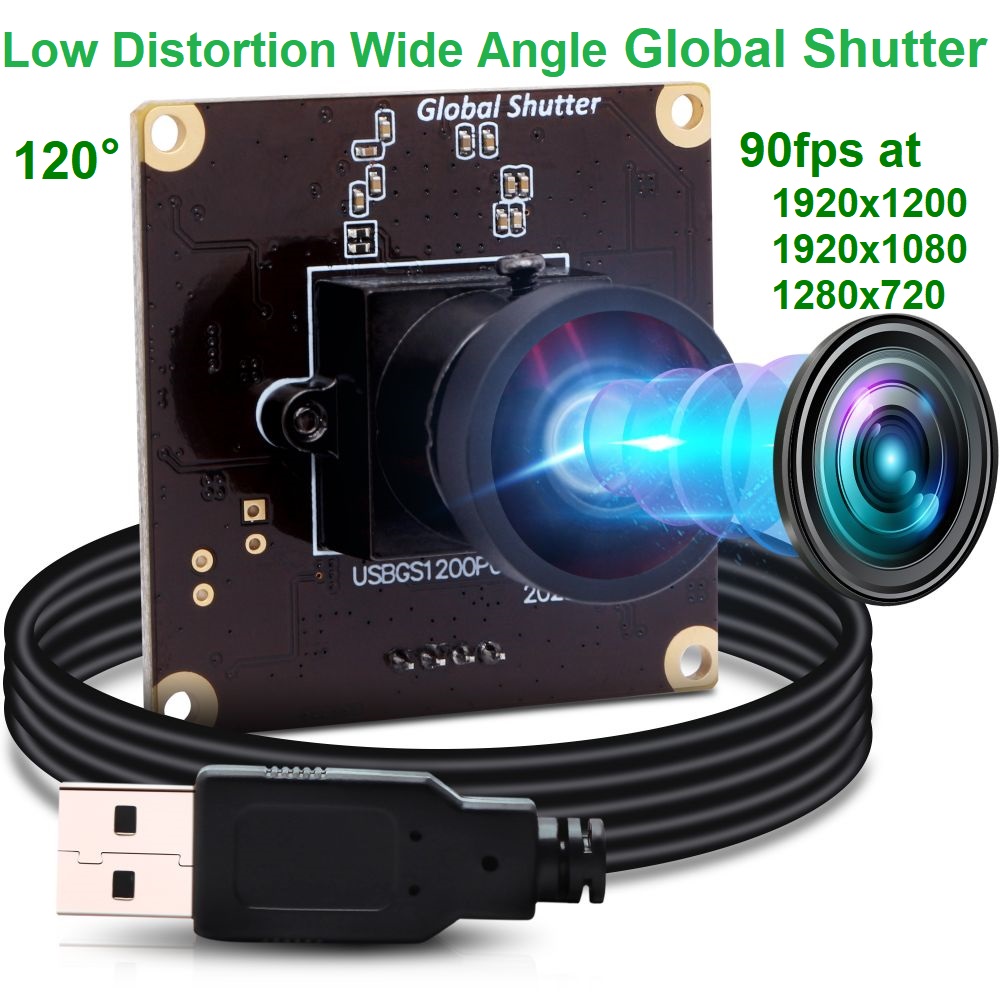

No Distortion Lens (FOV 65~130 degree optional), Fisheye lens etc.
|
|
LED board power connector
|
Support 2P-2.0mm socket
|
|
Power Supply
|
USB BUS POWER 4P-2.0mm socket
|
|
Operating Voltage
|
DC 5V
|
|
Working Current
|
160mA- 190mA
|
|
Dimension
|
38mm x 38mm
|
|
Storage Temperature
|
-20°C to 80°C
|
|
Working Temperature
|
0°C to 60°C
|
|
USB Cable
|
1M (0.3M,0.5M, 2M/3M/5M, customize support)
|
|
Operating System Request
|
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
Global shutter high frame 1080P@90fps usb camera board, can shoot high-speed moving objects in crisp sharp images
Camera with UVC , compatible with most operation systems, free driver plug and play to USB Port . Plug and play
Super mini light weight usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
The camera ELP-USBGS1200P01 , adopts the global shutter design, can capture the moving scene at the speed of 1920 * 1080P 90fps .
In low illumination and bright scenes, it can generate clear, low noise pictures without smearing.
It is suitable for robot vision, industrial detection, face recognition, vending machine, gesture recognition, high-speed capture, etc
2MP USB Camera global shutter 90fps widely used for sports ,fast moving
ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.
These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.
How to use ?
