ELP High Resolution 48MP Mini Camera Autofocus 8000x6000P 30fps 4K 8K Night Vision Webcam Module OEM UVC USB Driver Free Auto Focus Camera Module With White LED

ELP High Resolution 48MP Mini Camera Autofocus 8000x6000P 30fps 4K 8K Night Vision Webcam Module OEM UVC USB Driver Free Auto Focus Camera Module With White LED

(0) Write Review
  • Model: ELP-USB48MP03-AF70
  • Availability: In stock

$120.75

Quantity:
 inquiry Now

Products Description



ELP High Resolution 48MP Mini Camera Autofocus 8000x6000P 30fps 4K 8K Night Vision Webcam Module OEM UVC USB Driver Free Auto Focus Camera Module With White LED

Package include :

1 Piece of 48MP Autofocus USB Camera with mini 70dergee lens,

6pcs white LED installed ,

1pc 1m USB Cable

Features

*Ultra HD 8000X6000 High Resolution 48MP USB Camera.

*High Speed 30fps  @ 4K 3840X2160 HD USB Camera,

*Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.

*6pcs White LED installed in 48mp camera for Night Vision camera

*Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.

*With industrial grade high quality sensor GM1 Sensor

*Super Image reality, real color reproduction, without interpolation.

*UVC Free Driver , Plug and Play, easily used on different systems.

*Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...

*Widely application :Online class /live broadcast, high-definition photography,  face recognition, document scanning, ID Card/passpord scanning and etc

Specification

Model

ELP-USB48MP03-AF70

Sensor

GM1 Sensor

Sensor Size

1/2 inch (4:3)

Max. Resolution

8K ,UHD 8000 (H) *6000 (V)

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG

3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG

1280x720 @ 30fps MJPEG

1920*1080 @5fps YUY2 / 800*600 @25fps YUY2

640*480 @20fps YUY2

Surface Mount Technology

SMT
Focus Auto
Focus Speed Fast focus about 200ms
S/N Ratio 36dB
Dynamic Range 82dB
Sensitivity 1.4V/lux-sec@550nm

Mini illumination

0.3lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AWB

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure

Lens Parameter

No Distortion Lens

DFOV About 82 Degree

HFOV About 70 Degree

Mount M8.15 *P0.35
LED 6PCS LED

Power supply

USB BUS POWER 4PIN-2.0mm socket

Operating Voltage

DC 5V

Working current

550mA - 610mA

Storage Temperature

 -20～80℃

Working temperature

0～70℃

Board size /Weight

Double-deck, 38mm x 38mm / 200g

USB Cable

Supply 1m USB Cable standard ,optional 0.3m/0,5m/1.5m/2m .



Operating system request

Win XP/Vista/Win7/Win8 / Win10/ Win11 etc.

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC



Effect image:

70 degree no distortion viewing angle

200ms fast autofocus speed



ELP 48MP USB camera can capture very HD High Definition Fidelity images



ELP 48mp Autofocus USB PC Camera Module with white LED 8000*6000P 8K Mini PC Camera with 70degree No distortion lens UVC USB2.0 Video Webcam Board for Computer

ELP-USB48MP03-AF70 (HFOV about 70degree, DHOV about 82degree)

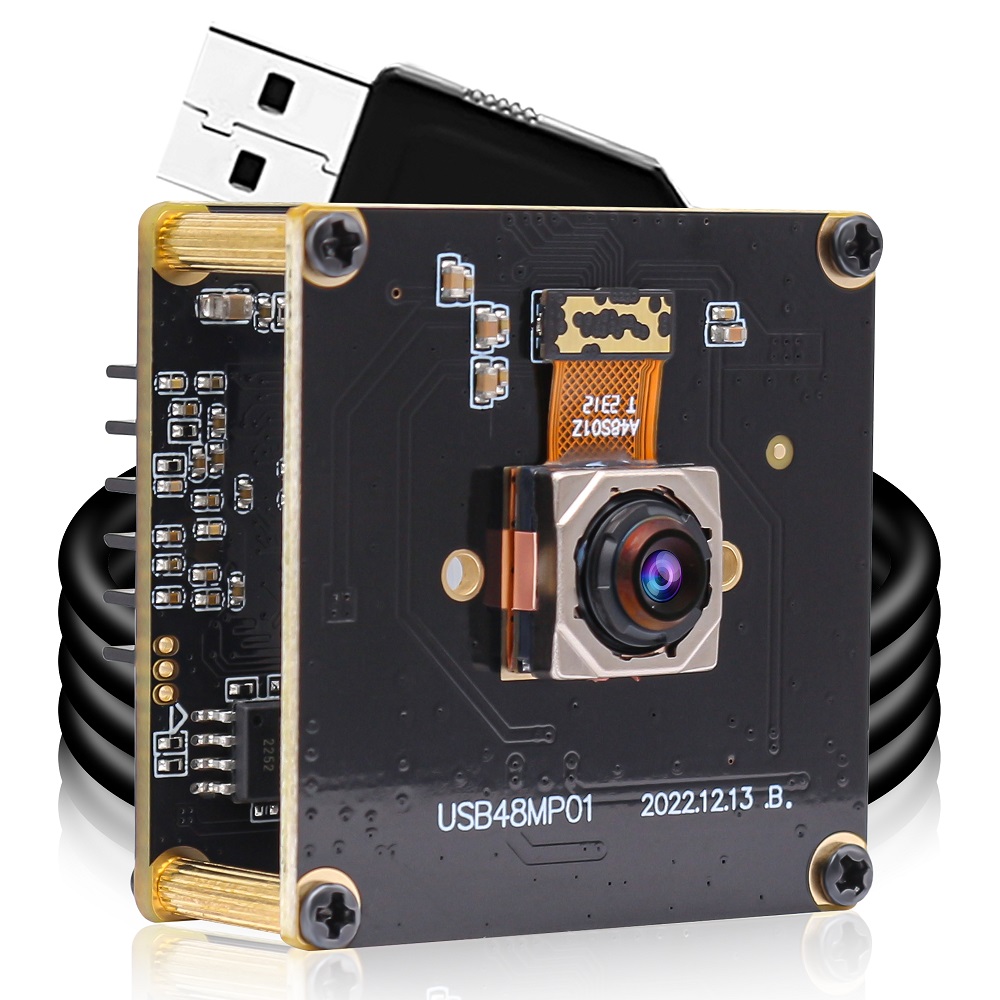

  • High Resolution 48MP Autofocus USB Camera Module With white led
  • Based on big size 1/2” GM1 Sensor image sensor, Auto Focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera board. Fast auto focus about 200ms, quickly shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required, small outline and thin profile can be embedded in most machines.
  • Withe LED in 48MP Camera to support night vision

Mini size light weight usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

Parameters:

  • Sensor: 1/2 inch GM1 Sensor
  • Max. Resolution: 8000 (H) *6000 (V)
  • Compression Format: MJPEG / YUY2 (YUYV)
  • Resolution & Frame Rate:
  • 8000x6000@5fps MJPEG/4000x3000@15fps MJPEG/3840x2160@30fps MJPEG/1920x1080@30fps MJPEG/1280x720@30fps MJPEG
  • Auto Focus Speed: Fast About 200ms
  • LED: 6PCS WHITE LED
  • Mini Illumination: 0.3lux
  • Shutter Type: Electronic rolling shutter / Frame exposure
  • Connecting Port Type: USB2.0 High Speed
  • Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure
  • Power Supply: USB BUS POWER 4P-2.0mm Socket
  • Operating Voltage: DC5V Working Current: 550mA- 610mA
  • Storage Temperature: -20°C to 80°C Working Temperature: 0°C to 70°C
  • USB Cable Standard 1m/3.3ft

Autofocus with 70degree mini size no distortion lens,mini size for PC camera interface,plug and play,free driver,UVC compliant.

48mp autofocus usb camera with 70degree no distortion lens for computer

Super Image reality, real color reproduction, without interpolation, fast autofocus 48 megapixel usb camera, 200ms autofocus speed.

48mp autofocus usb camera with 70degree no distortion lens for computer

48mp autofocus usb camera with 70degree no distortion lens for computer

48mp autofocus usb camera with 70degree no distortion lens for computer

48MP Ultra Clear

Max Resolution:

  • 8000(H) X 6000(V) 48 Megapixel

super Image reality, real color reproduction, show your best in every video call.

No Distortion Lens:

  • Mini USB autofocus camera with none-distortion lens,wider range of view:
  • HFOV: 70degree
  • DFOV: 82degree

Autofocus

  • shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.


Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...OTG Support, can be used on Android smartphone, recommended app "USB Camera".

48mp autofocus usb camera with 70degree no distortion lens for computer

48mp autofocus usb camera with 70degree no distortion lens for computer

48mp autofocus usb camera with 70degree no distortion lens for computer

Plug and Play/Free Driver

  • UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Application

  • this ultra clear 48mp usb camera is well used for medical device, 3D scanner, high resolution document scan, scientific research&developmrnt, education and training, etc.

Mini Size/Light Weight

  • this mini 38mmx38mm camera board can be installed in most hidden and narrow position, equipped with 1meter USB cable for wide range of usage.

Small outline and thin profile for embedded machines, mini size, light weight camera board can be installed in most hidden and narrow position.

Application:

Well used for industrial camera, video conferencing, live streaming, security system, medical device, industrial inspection, scientific research and development , education and training, high resolution document scan, high-speed photographic apparatus, photo scanner... and so on.

ELP USB camera module is a small camera device that connects to a computer or other device via a USB interface.

These modules typically include a camera sensor,a lens, and other necessary components to capture images or video.

How to use ?

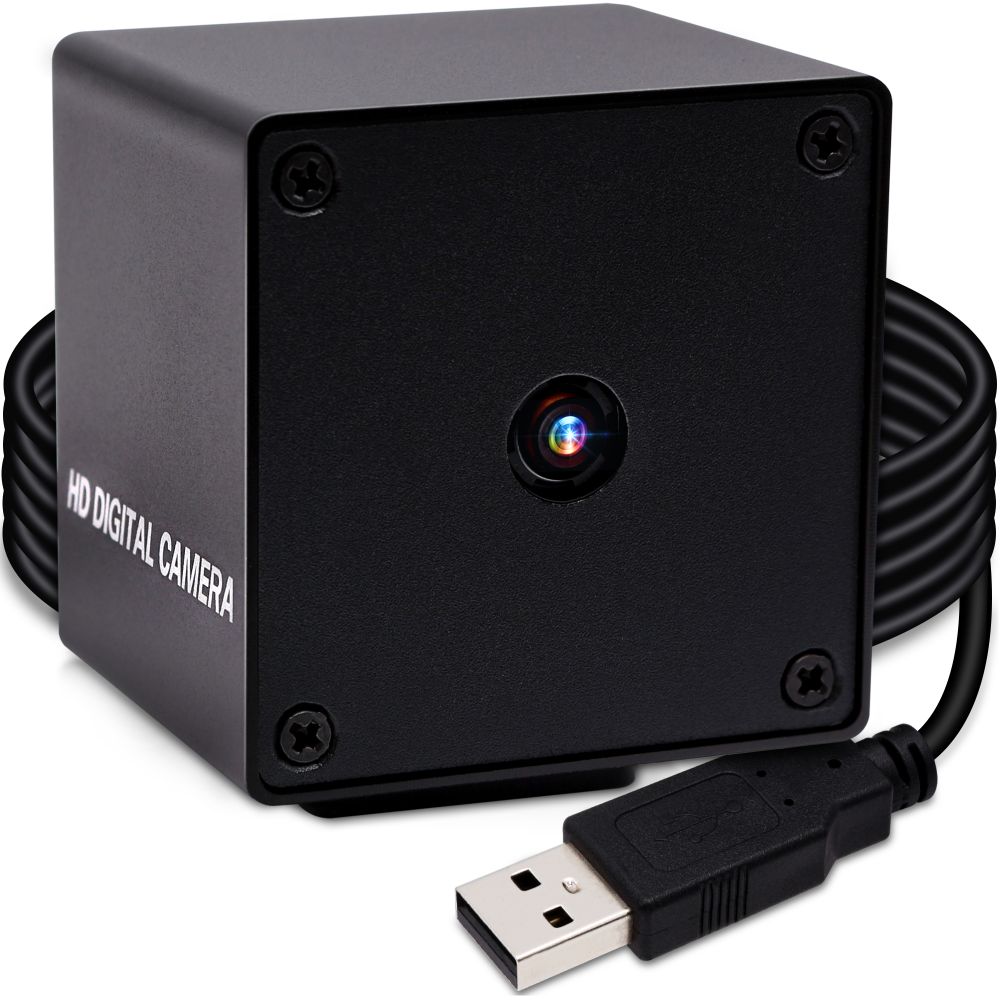

>>>If you request this 48MP Autofocus Camera no need LED or add housing ,please select this one
