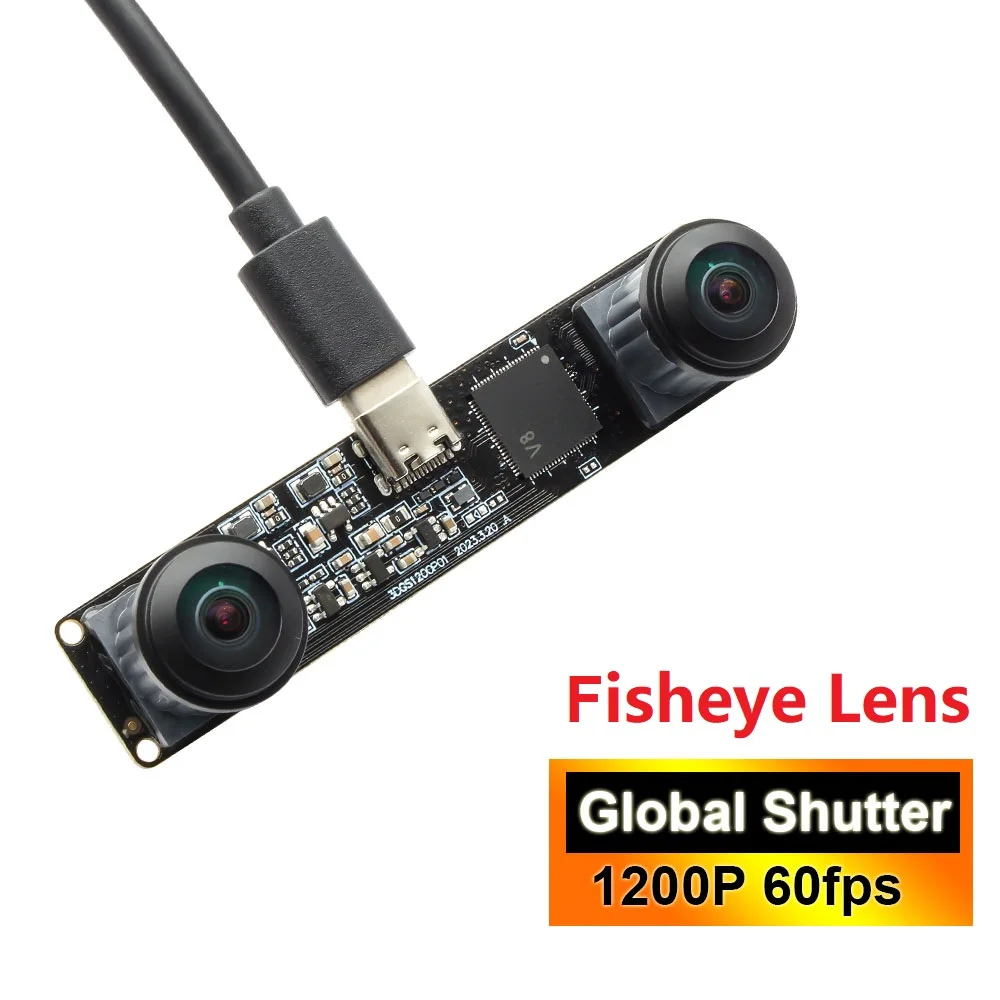

ELP 3D Stereo Fisheye PC Webcam Synchronization Dual Lens Global Shutter 1200P 60fps 480P 210fps High Speed USB Camera for Industrial Robotics PC Camera
Package include:

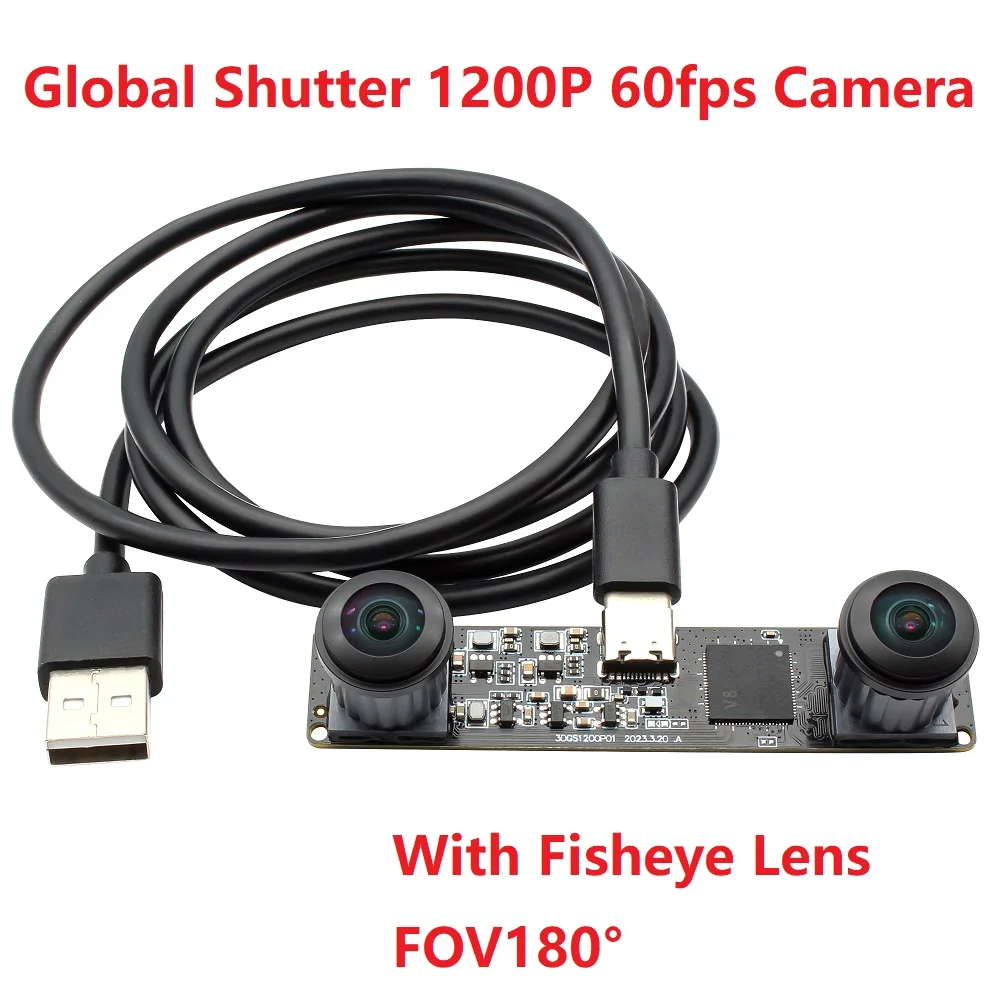

1pc Global Shutter 1200P Dual Lens USB Camera with M12 Fisheye lens (Color )
1pc1.2m USB Cable
ELP USB Camera Module Synchronization Dual Lens Webcam Global Shutter Camera
-
Based on 1/2.9inch Color global shutter OG02B10 image sensor , assembled with dual M12 wide angle lens capturing synchronized image side by side . 3D Sync Stereo USB Camera Module.
-
High resolution and High Frame rate performance:1200P@60fps,720P@60fps,480P@120fps
-
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.
-
Synchronization 3D VR USB Camera Module: like two human eyes, transfer data from one USB cable to get combined image. Min illumination: 0.3Lux.

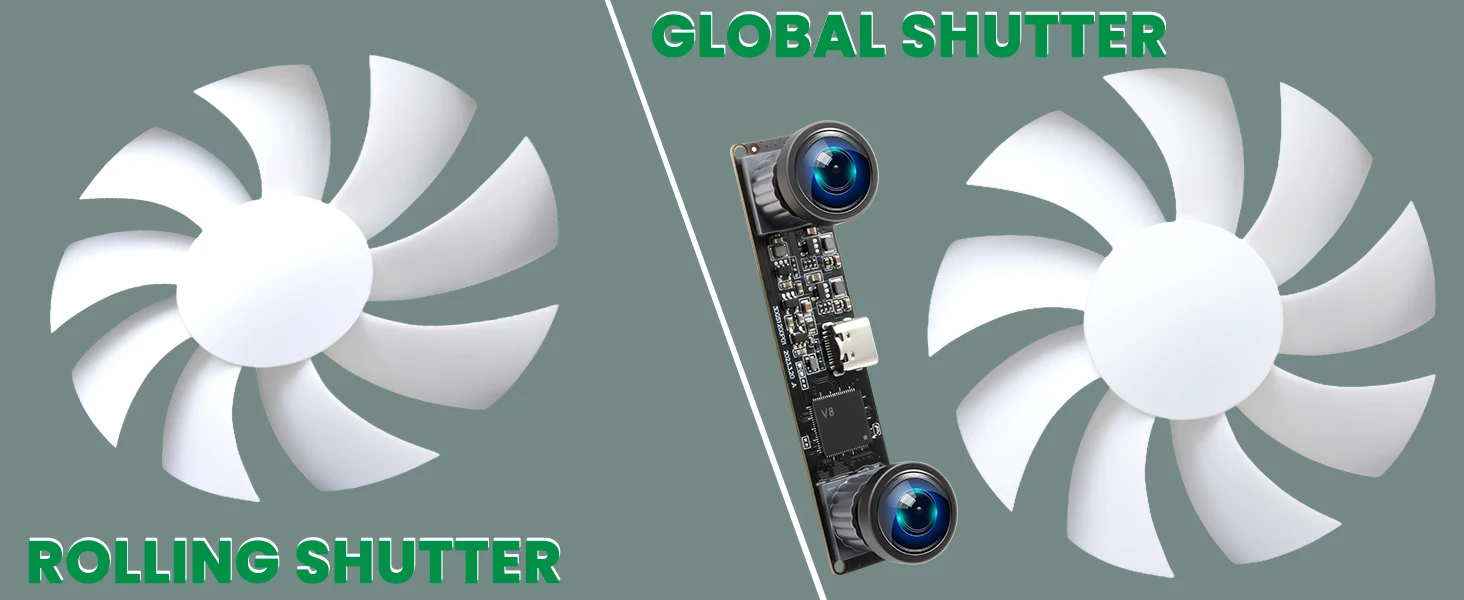

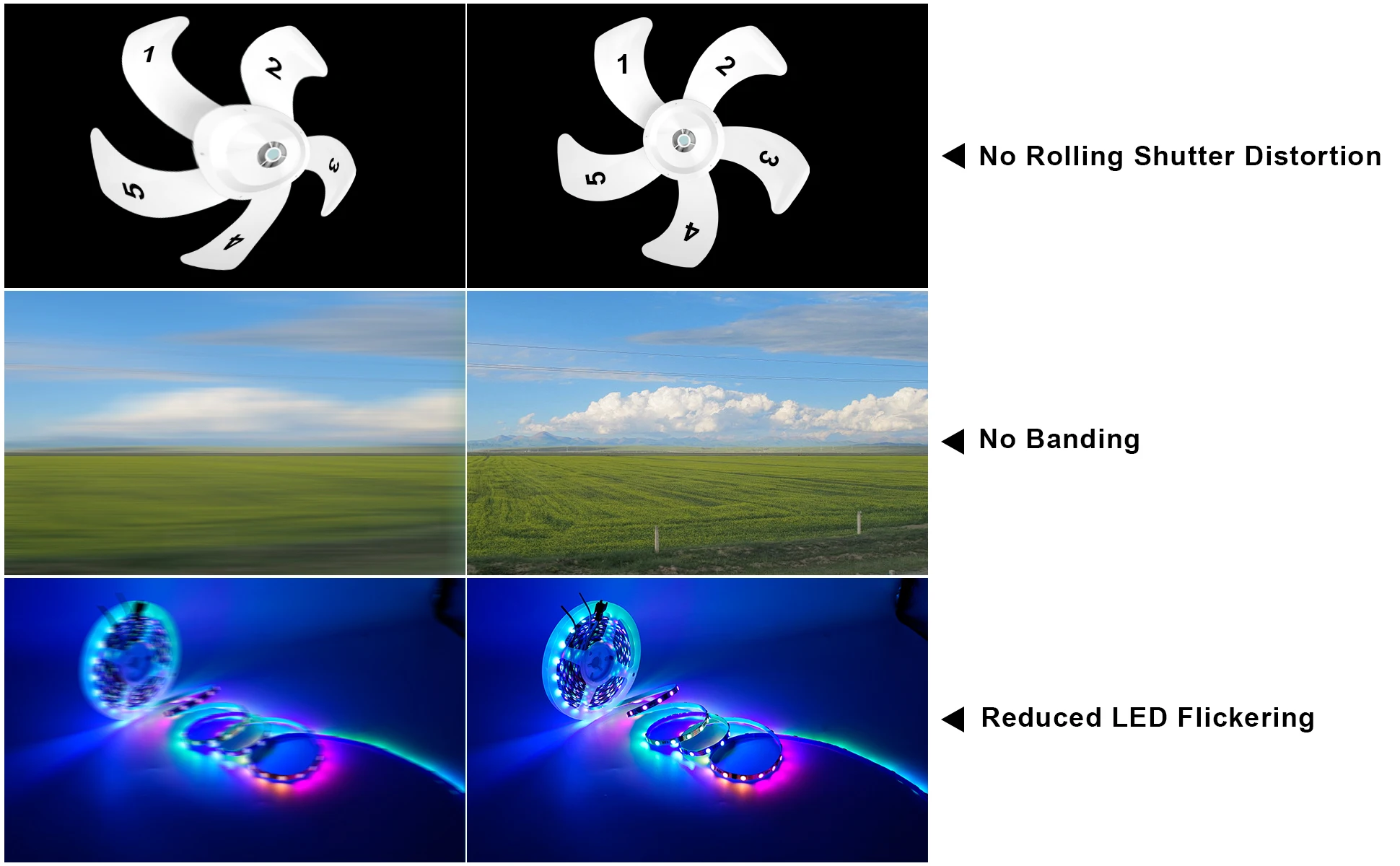

Difference between Rolling Shutter and Global Shutter
Advantages of Global Shutter Cameras
-
A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

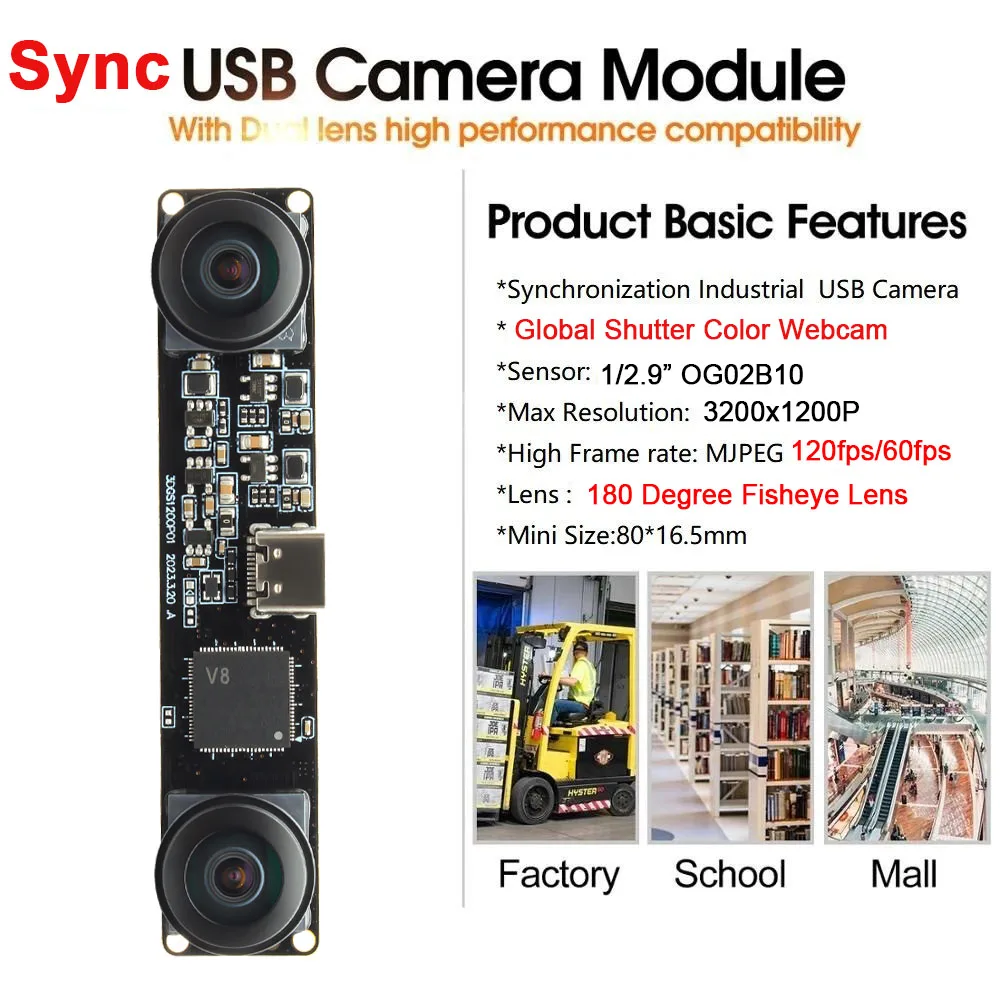

Features:
-
*3D Stereo USB camera module 4.0 megapixel HD 3200X 1200P webcam board.
-
*High Quality image sensor 1/2.9 inch OG02B10. Double color image side by side .
-
*High frame rate MJPEG: 3200X1200@60fps/2560X720@60fps/1600X600@120fps/1280X480@120fps /640X240@120fps
-
*Wide Angle Synchronization Dual lens M12 Mount lens optional .
-
*High speed USB 2.0 interface to Type C in camera ,Cable length 1.2m .
-
*Super mini camera 80*16.5mm small size and easy to embedded in kinds of smart machines .
-
*Camera with USB , UVC compliant, Plug and play, no need any driver to run .
-
*OTG support, Easy connect to Android tablet, and Android Smartphone via OTG cable.
-
*Support OS like Windows, Linux ,Android, Mac, Chrome OS, Ubuntu ,Raspberrry Pi and ect .
-
*Widely used in all kins of device: The sensor's excellent low-light sensitivity and the wide angle lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection. Robot vision, VR camera,
Specification:
|
Model
|
ELP-USB3DGS1200P01-L180
|
|
Sensor
|
OG02B10
|
|
Sensor Size
|
1/2.9inch
|
|
Pixel Size
|
4857µmx3955µm
|
|
Max. Resolution
|
3200(H)X1200(V)
|
|
Default Resolution
|
3200(H)X1200(V)
|
|
Compression Format
|
MJPEG
|
|
Resolution&Frame rate
|
MJPEG:
3200X1200@60fps/ 2560X720@60fps/1600X600@120fps
1280X480@120fps/ 640X240@120fps
|
|
Sensitivity
|
3.7V/lux-sec@550nm
|
|
Min illumination
|
0.1Lux
|
|
Shutter Type
|
Global Shutter
|
|
Connecting Port Type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
Support OTG Protocol
|
USB2.0OTG
|
|
AEC
|
Support
|
|
AWB
|
Support
|
|
Adjustable Parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain,
White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|

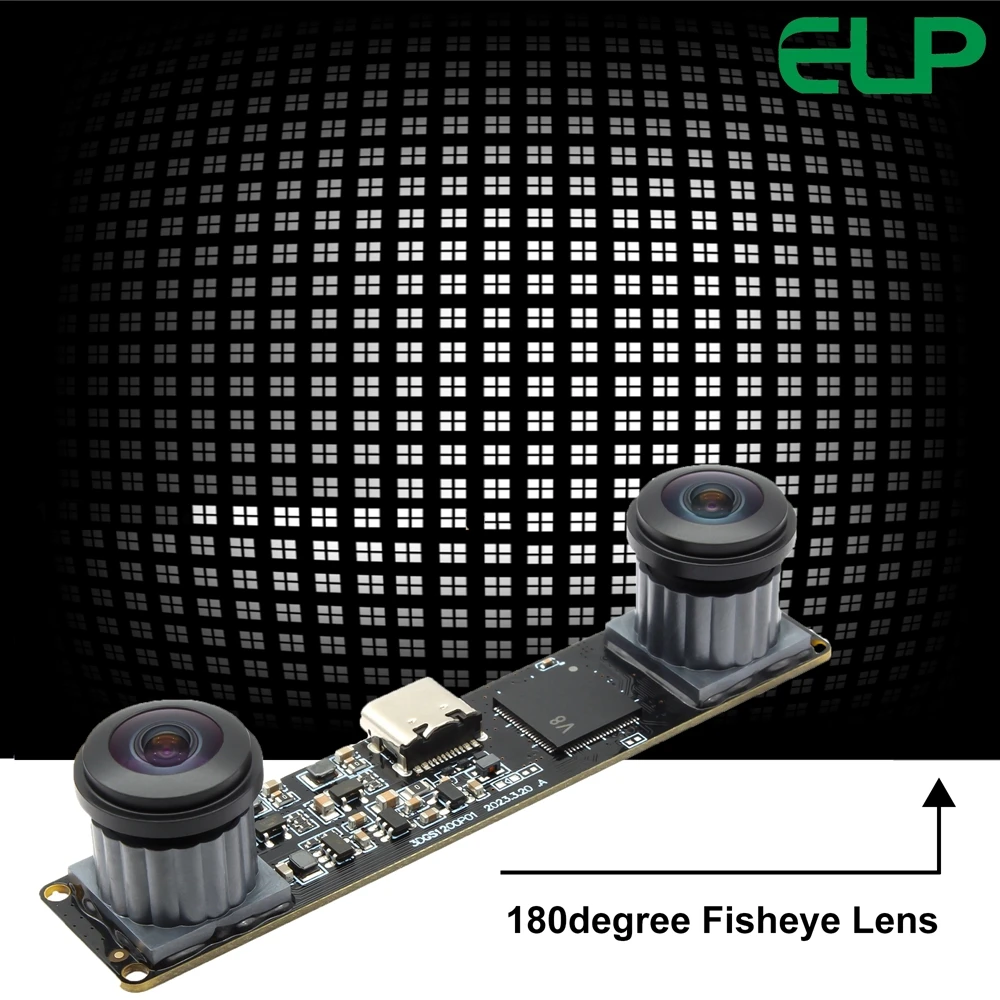

M12 Fisheye Lens 180degree lens optional
(Many other lens optional )
|
|
Power Supply
|
USB BUS POWER Type-C
|
|
Operating Voltage
|
DC5V
|
|
Working Current
|
180mA~230mA
|
|
Working Temperature
|
-10～60℃
|
|
Storage Temperature
|
-20～85℃
|
|
Board Size /Weight
|
80X16.5mm/ About45g
|
|
Cable
|
Standard 1.2m
|
|
Operating System Request
|
WinXP/ Vista/ Win7/ Win8/ Win9/Win10/Win11 etc.
Linux with UVC(above linux-2.6.26)
MAC- OSX10.4.8orlater
Android4.0 or above with UVC
|
Dual Lens USB Camera Module 2MP Global Shutter Camera 60fps, 120fps high speed camera board recording color video and image synchronized in dual M12 Lens.
Global Shutter USB Camera capture an entire frame all at once ,best choice for shooting fast moviing objects ,
4MP Dual Lens UBS Camera High Definition max 3200x1200p
Synchronization Camera two lens work at the same time .
High Speed 60fps 120fps Computer Vision and Robotics Visual Camera
Wide Angle HD Webcam 180degree fisheye lens

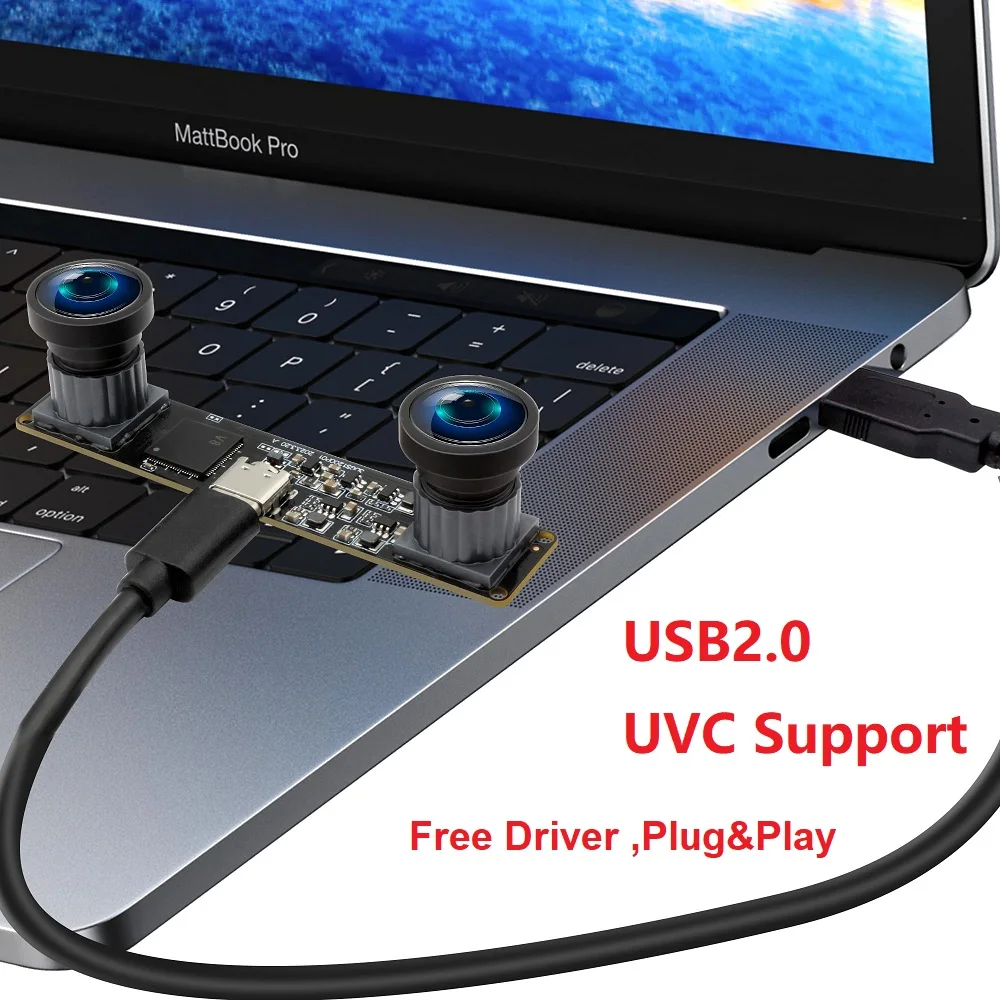

USB2.0 Interface ,camera with UVC ,Plug and play
Camera with USB2.0 Interface ,plug and play .
It can work with already preinstalled camera software instead of builtin camera.

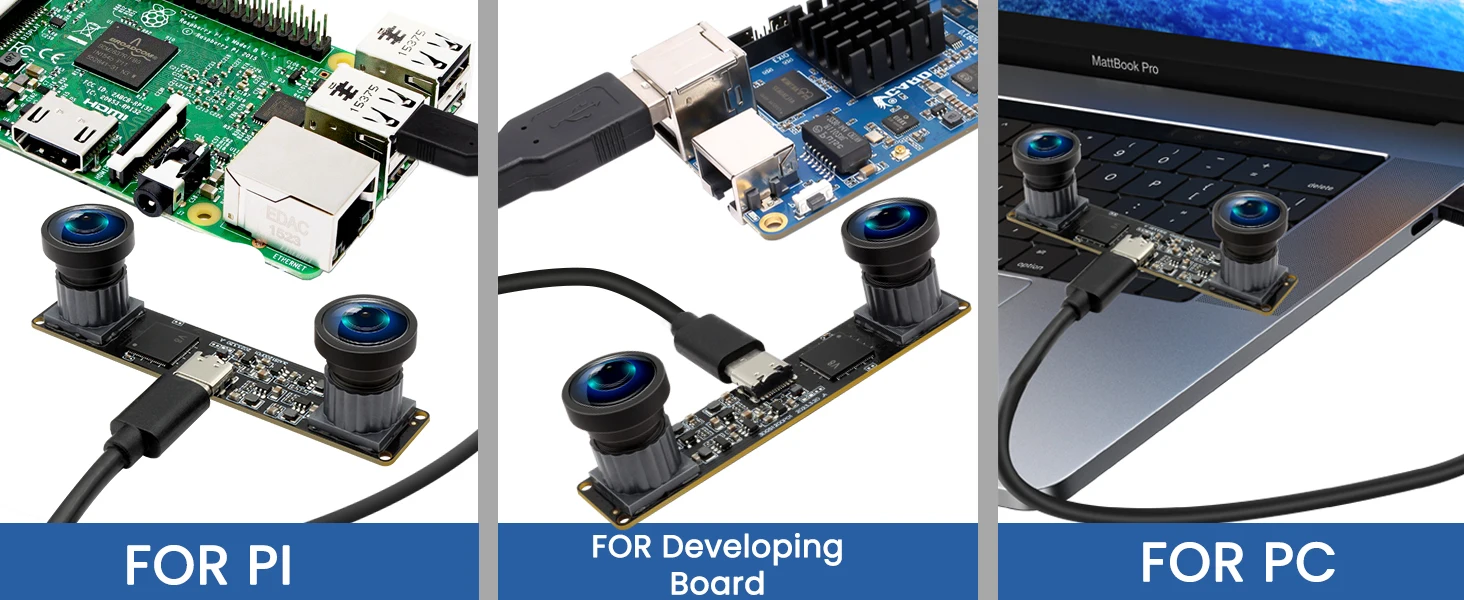

It can work with the developing board which OS like Raspberry Pi development board,Jetson Nano,etc.
UVC USB2.0 Plug and Play for computer, laptop, Raspberry Pi, Android device with default camera video software
USB Plug and Play UVC Industrial Camera with Dual Lens for Computer, Laptop, Raspberry Pi, Jeston Nano
-
UVC Complicant ,support Windows ,Linux ,Mac and Android .
-
OTG supported
-
No additional driver or special software is required.
-
Works with your computer's default video program, normal webcam software and professional video programe for engineers, developers, and professionals including Amcap, OpenCV, VLC, V4L2, fswebcam, Facetime,Camerafi/USB Camera.
What can it be used for?
This 2mp global shutter camera with dual lens, high resolution and high speed enables exceptionally accurate gaze and eye tracking, highly recommended for augmented and virtual reality, gesture, iris and physiognomy recognition, depth and motion detection,3D Scanning, Computer Vision AI, Biometrics, AR, Robotics, Automotive and Industrial Controls.
