Products Description

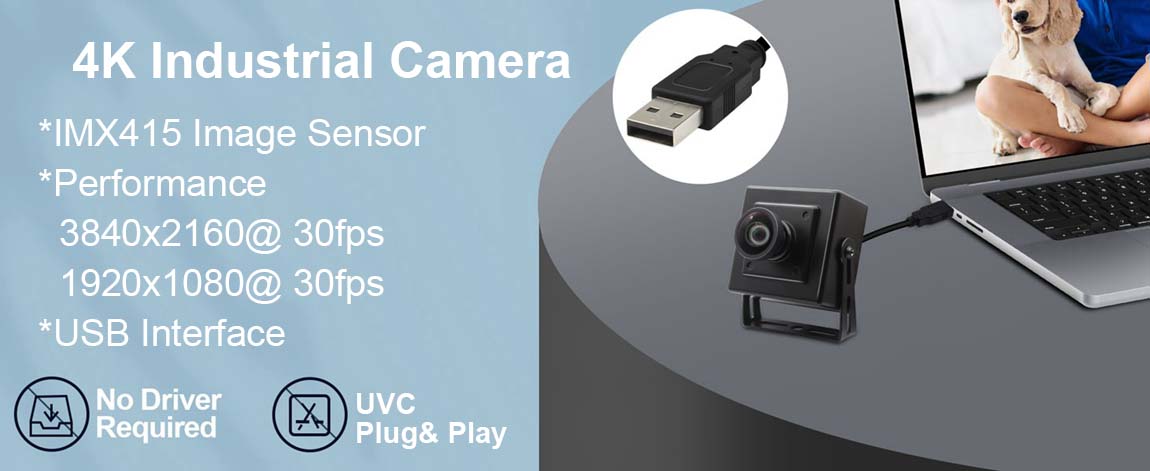

ELP 4K IMX415 Camera 3840x2160P 30fps CMOS Mini USB Industrial Webcam Camera with No Distortion Lens(100Degree Lens)

1) 4K Fixed focus Webcam High resolution , Max resolution 3840x2160 @30fps

2) Advanced Sony (1/2.8'' ) IMX415 image sensor

3) High quality lens, Standard H100 none distortion Lens, optional other M12 Mount lens ,like 2.1/2.8/3.6/6/8/12mm lens

4) Support OS: Windows , Android,Linux , support raspberry pi,Mac

5) Compression : MJPEG&YUY2

Model NO.:	ELP-USB4K03-BH100 （Fixed Focus）
Image Sensor	SONY IMX415 (1/2.8” )
Max. Resolution	3840(H) *2160 (V)
Sensitivity	1000mV/Lux-sec
Pixel Size	1.45µmx1.45µm
Compression format	MJPEG / YUY2（YUYV）
Resolution & frame	3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center definition	1000LW/PH (Center)
S/N Ratio	30dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.2lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Auto Focus	Support
Adjustable parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter	Size: 1/2.5, FOV: 100Degree ,No distortion Lens IR filter: 650±10nm
Power supply& connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC5V
Power Current	200mA

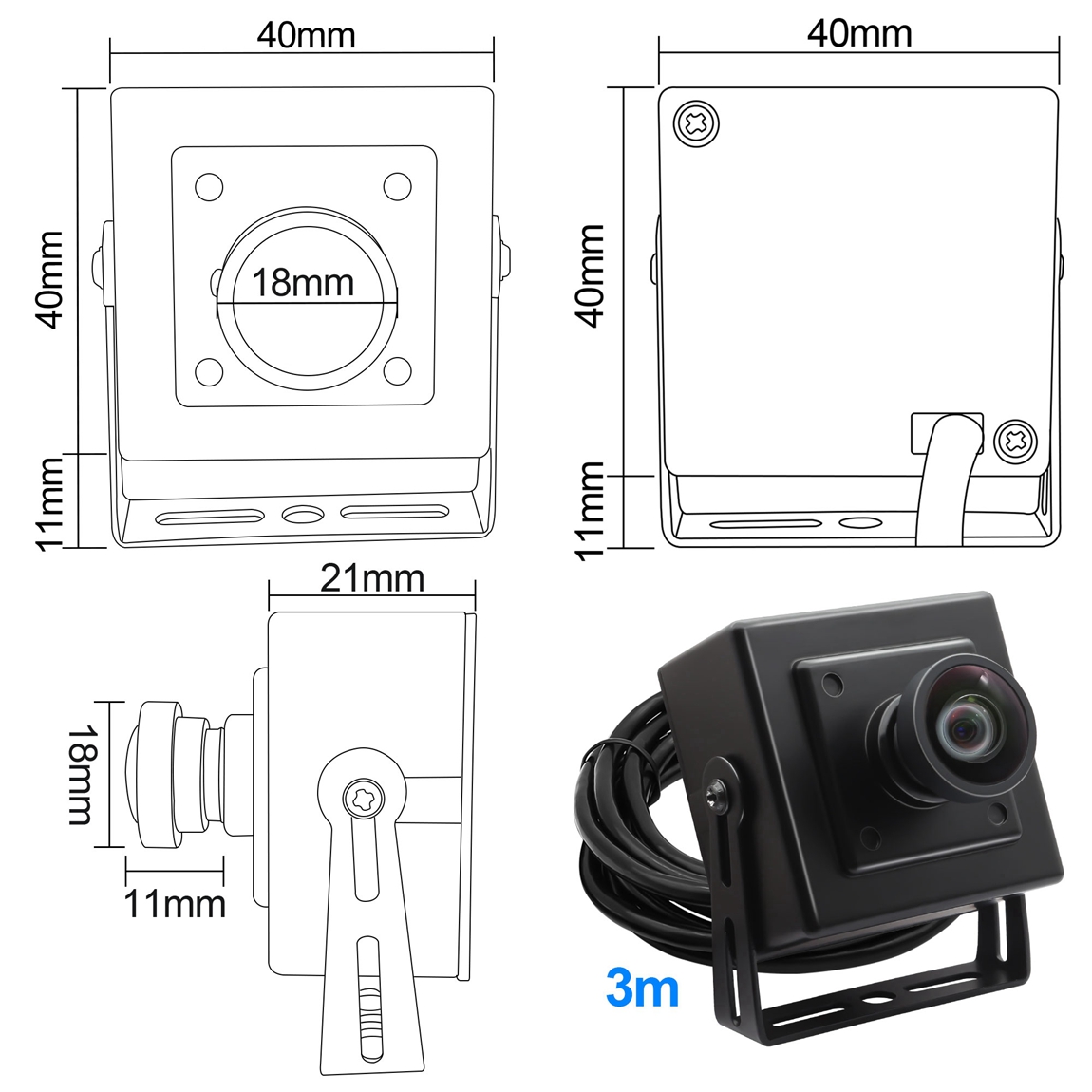

Camera Size	42*42CM
Storage Temperature	-20°C to 70°C
Work Temperature	0°C to 60°C
USB Cable	3M(2M/1M/5M optional)
Operating System support	Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC
